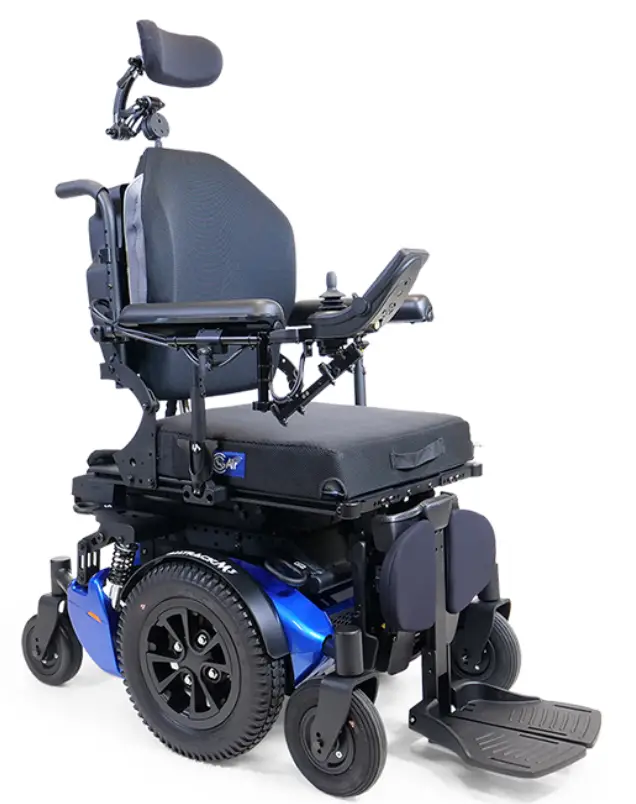

AMYLIOR Alltrack M3 Hip and Thigh Support Wheelchair
INTRODUCTION
There are two changes to the HIP & THIGH SUPPORT:
- Support Hardware Kit
- Thigh & Hip Pads
NEW HARDWARE KTS
Effective December 2022 or when the current inventory runs out, the Imperial-dimensioned hip & thigh guard support hardware kit, part number C-9612, will be discontinued and replaced with two (2) Metric-dimensioned kits:

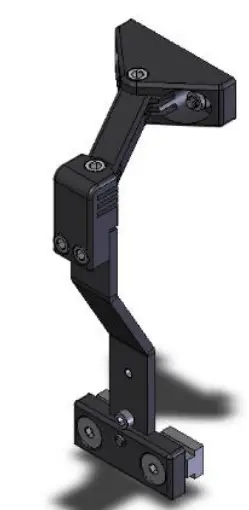

a) CURVED Hip & Thigh support hardware kit for Reclining and Cantilever Armrests
- Serviceable part # 1004020
- On-chair part # SOHTSARH-C

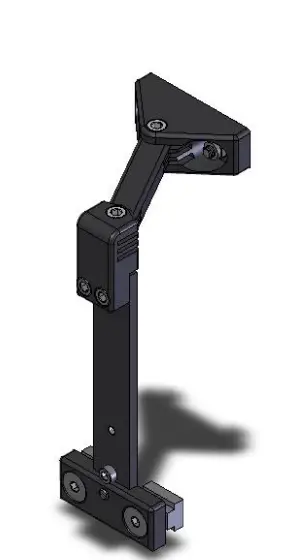

b) STRAIGHT Hip & Thigh support hardware kit for Dual Post Armrests
- Serviceable part # 1004021
- On-chair part # SOHTSARH-S
Metric curved
hip & thigh support
#1004020
#SOHTSARH-C
Armrest type:
Cantilever: SOAFB
Reclining: SOANI
Adding
Metric straight
hip & thigh support
#1004021
#SOHTSARH-S
Armrest type:
Single Post: SOSP
Dual Post: SOADP

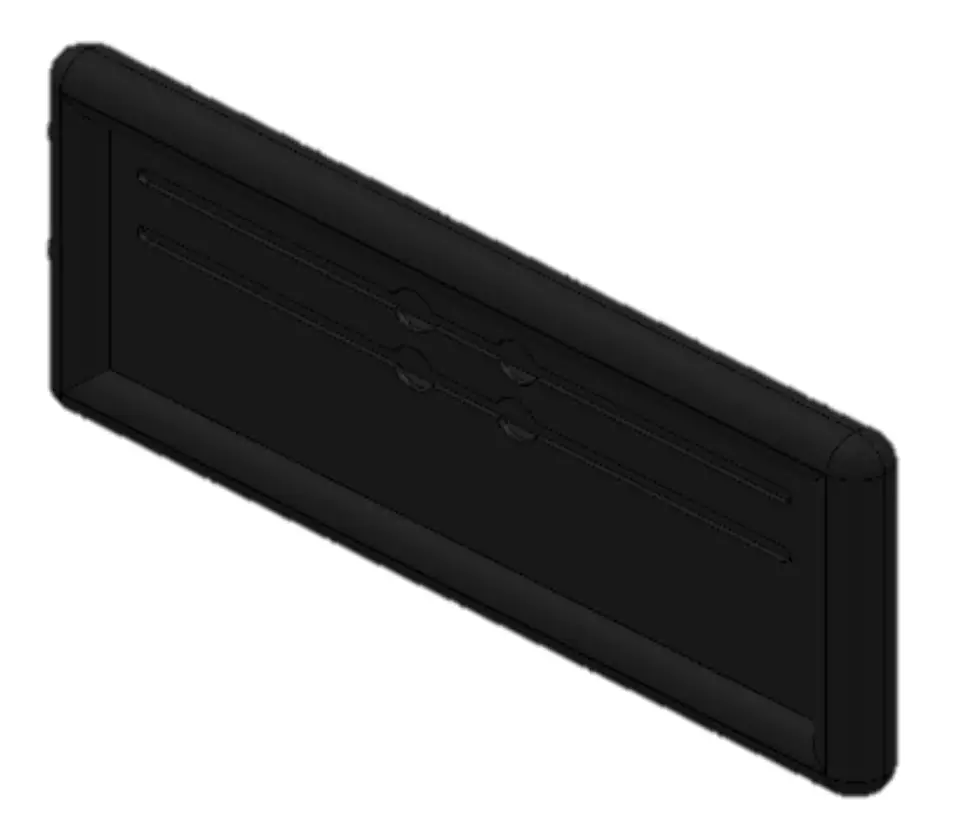

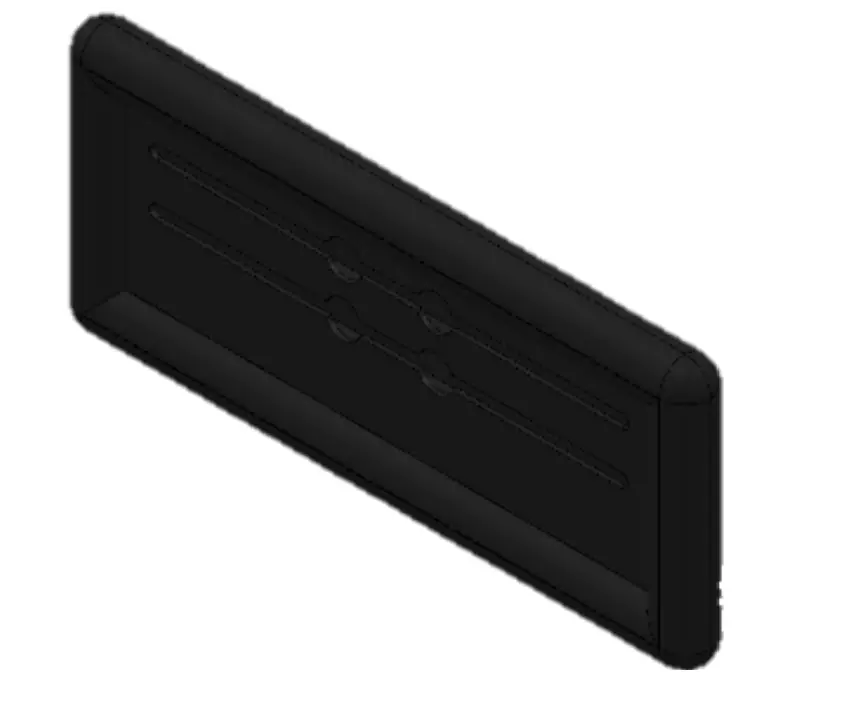

THIGH & HIP PADS
The foam density on the pads has changed to a more cushioned feel. We are keeping the same part numbers, but under a new revision. Both supports above are compatible with all old & new thigh pads.
- H00097 (Small) 10” x 4” (255 mm x 100 mm)
- H00098 (Medium) 12” x 5” (305 mm x 125 mm)
- H00099 (Large) 14” x 6” (355 mm x 150 mm)
Corresponding updates
There is no change to the Order Forms. The configurator will choose the appropriate Hip & Thigh Support according to the type of armrests selected. The Parts Manual has been modified and is online.
