Euromaid 60cm Freestanding Dishwasher EDWB16S

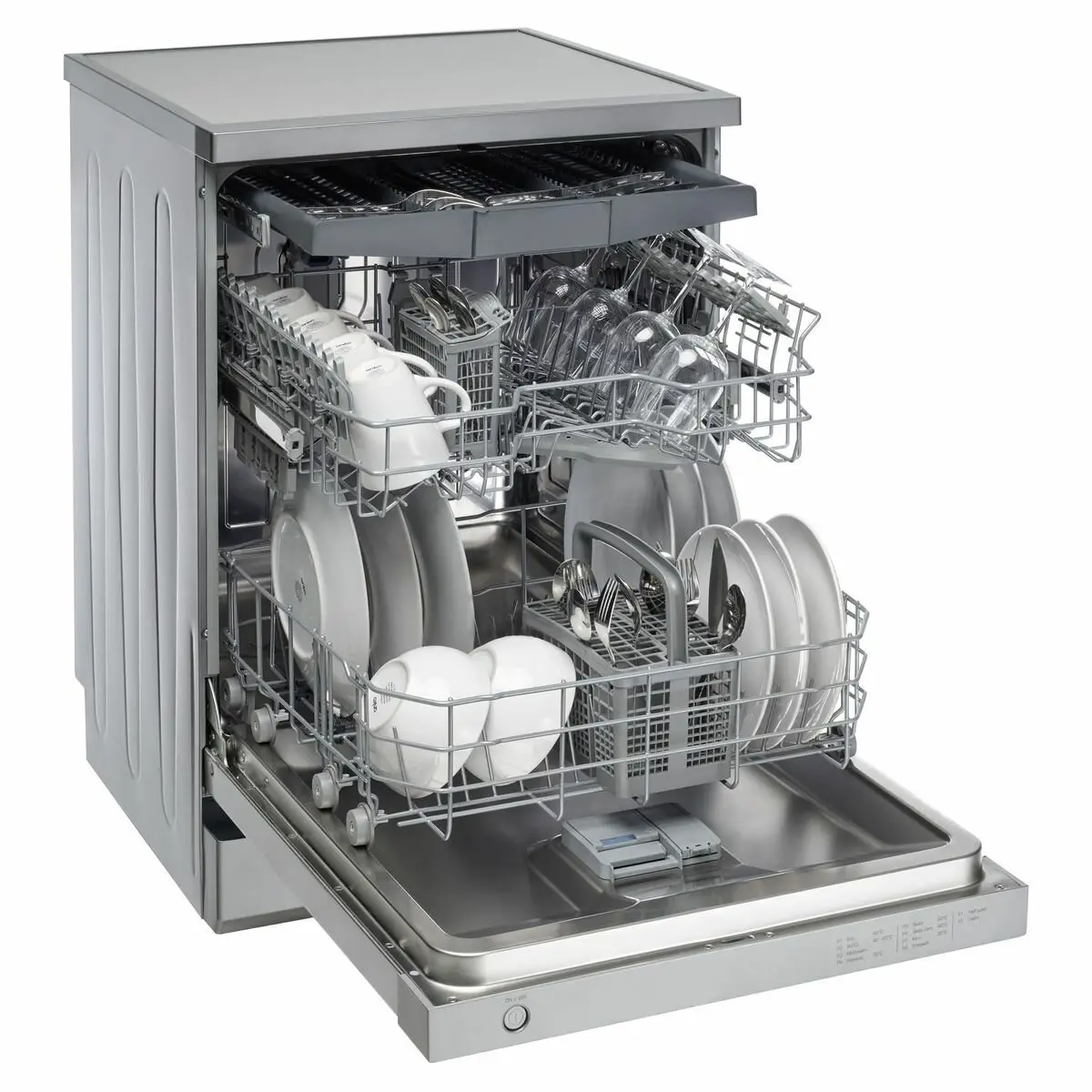

Product

FEATURES

Finish

Stainless Steel

Place Settings

16

Display

Red LED

Controls

Electronic Touch

Cutlery Tray

Full Size

Upper Basket Type

3 Adjustable Levels
(Fully Loaded)

Cutlery Basket

Included

No. of Spray Arms

3

Adjustable Plate Holders

3

Drying System

Closed Fan

Delay Start

Up To 24Hrs

Flood Protection

Overflow Sensor + Aquastop

Rinse Aid Indicator

Yes

Internal Tub Material

Stainless Steel

Filter Type

3 Stage

PROGRAMS

Program 1

Eco 45°

Program 2

Auto 40 – 65°

Program 3

MixWash+ 55 – 65°

Program 4

Intensive 70°

Program 5

Quick 60°

Program 6

Glasscare 40°

Program 7

Mini 35°

Program 8

Prewash

AUXILIARY FUNCTIONS

Program 1

Half Load

Program 2

Fast+

SPECIFICATIONS

Image 01

Electrical Connection

10A Plug

Power

220 – 240V / 50Hz

Total Wattage

2100W

Heating Element

1800W

Motor

BLDC

Energy Rating

4 Stars

Water Rating

4.5 Stars

Noise Level

43dBA

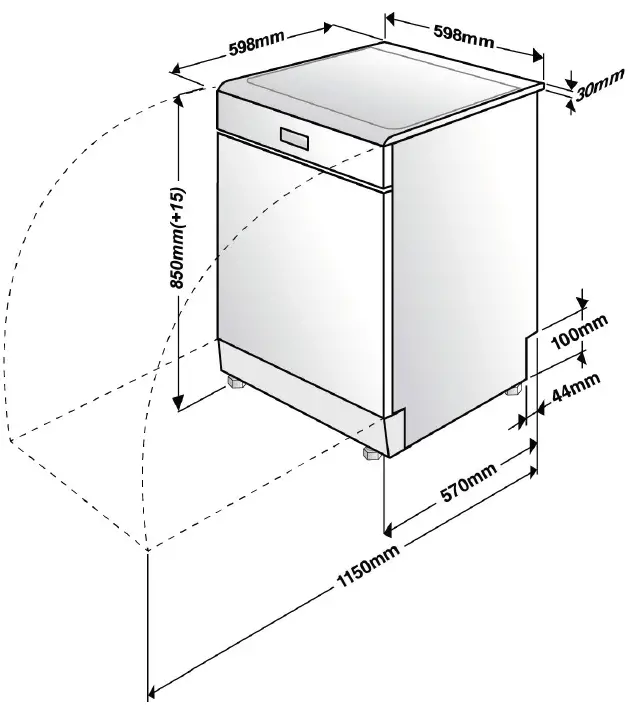

DIMENSIONS (W X H X D)

Product Boxed (mm)

657 x 897 x 674

Product Un-boxed (mm)

598 x 850 – 865 x 598

Cut-Out (mm)

600 x 855 – 870 x 600

WEIGHT

Product Boxed (kg)

54.7

Product Un-boxed (kg)

50.8

WARRANTY

Product

2 Years Parts and Labour

Brushless Motor

5 Years Parts Only

Product and cut-out dimensions are to be used as a guide only. Please refer to actual product before installing, or refer to the instruction manual or website for full instructions.

www.euromaid.com.au
