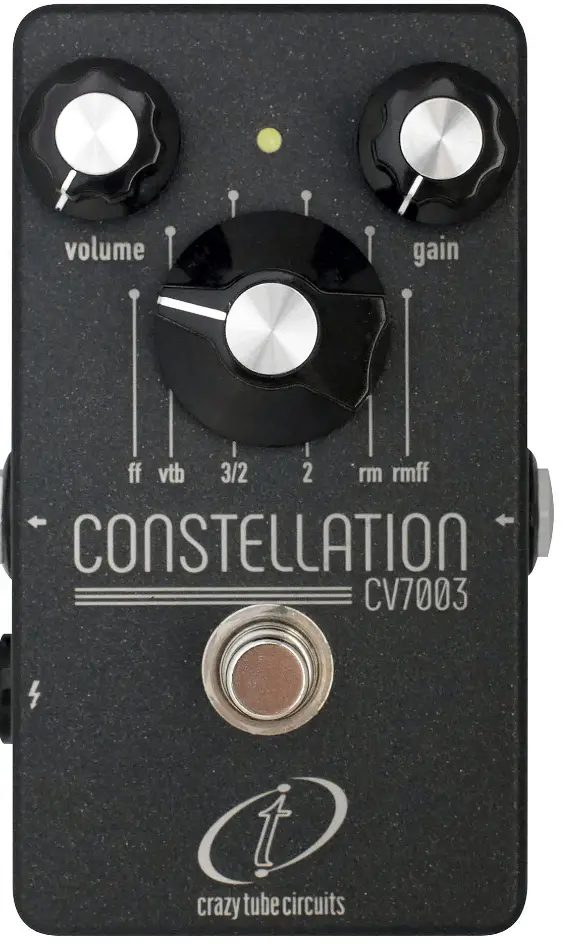

crazy tube circuits CV7003 constellation transistors
All analog sonic recreations of 5 legendary fuzz circuits plus a future classic combination. Limited run with hand selected NOS germanium CV7003 transis-tors (military spec OC44) made in the UK by Texas Instruments in 1968.
Controls
Voicing rotary switch:
- FF: a tribute to the most copied fuzz circuit.
- VTB: inspired by the Italian made fuzz circuit
- 3/2: voiced a˜er the mythical circuit knows as mk1.5
- 2: the soaring gain 3-transistor fuzz circuit
- RM: a treble booster as close as it gets to the real thing
- RMFF: a tailor made RM into a FF
Gain: set the desired gain level and control everything from your guitar’s volume/pick attack. Gain knob is inactive in RM mode.
Volume: set the output of the e°ect or treble boost level in RM mode.
Built with hand selected components, features true-bypass and operates with 9V battery or external 9V DC regulated power supply (- center, + ring). Max current consumption 6ma @ 9V DC. Using a power supply of 12V DC or more may cause severe damage to the pedal and void warranty.
Note: Constellation is a positive ground circuit. Do not use a daisy chain power supply with negative ground e°ects.
Warranty
Constellation comes with a limited lifetime warranty. We will provide service/repair at no cost for all internal parts – buyer is responsible for all shipping costs and customs fees that may apply. This warranty excludes damages done due to misuse or improper handling.
Contact info:
[email protected]
Visit our website:
www.crazytubecircuits.com
