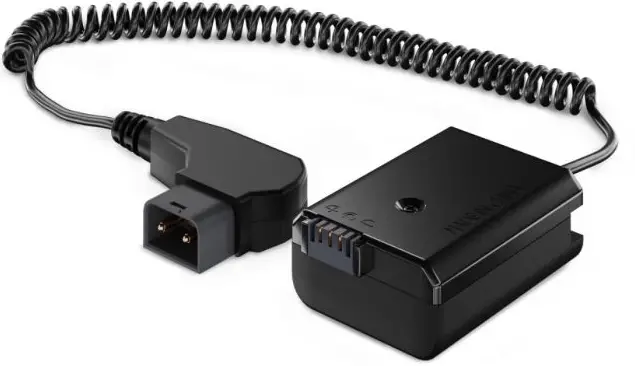

Newell DC-USB D-Tap Power Adapter
SAFETY INSTRUCTIONS
Before using the product, please read the following instruction manual carefully and keep it for future reference. When transferring the product to a third party, it is advisable to include the instructions.
- Do not charge batteries that are not intended for this product. It may damage the battery and cause leakage, explosion, personal injury, and property damage.
- Use indoors or in a vehicle. Do not expose to rain or snow.
- Do not disassemble. Do not leave unattended.
- Do not drop or place heavy objects on the device.
- For use by adults.
- The charger can operate in a temperature range of 0°C – 40°C.
- Keep away from heat sources and high temperature areas and do not expose to direct sunlight.
- The charger will heat up slightly, but it is normal.
- The batteries should be removed from the charger when it is not in use.
- Dispose of used batteries according to the guidelines in the manual.
SET CONTENT
| DC-USB |
• charger • power cable |
| dual channel SDC-USB-C | |
| triple channel SDC-USB-C | |
| DL-USB-C | |
| FDL- USB-C | |
| ULTRA FAST LCD | |
| DC-LCD* | |
| * Additionally the DC-LCD charger includes a car charger. | |
SPECIFICATION
| MODEL | INPUT | OUTPUT |
| DC-USBI | 5V 1A | 8.4 V 500mA |
| dual channel SDC-USB-C | 5V 2.1A (min) | 8.4V 700mA x 1/500mA x2 |
| triple channel SDC-USB-C | 5V 2.1A (min) | 4.4V 700mA mA x3 |
| DL-USB-C | Micro USB: 5V 2.1A (min), USB-C: 5V 2.1A (min) | 8.4V 700mA x 1/500mA x2 |
| FDL- USB-C | USB-C: 5V 2.1A (min),USB-A: 5V 2.1A (min) | 8.4V 1000mA x 1, 1000mA x 2 |
| ULTRA FAST LCD | • 100 V – 240 V
• 50/60 Hz, 15W (max) | • 8,4 V
• 1,6A |
| ULTRA FAST LCD Type C | • 5 V, 2,4 A
• 9V, 2 A | • 8,4 V; 1 x 1000 mA, 2 x 600 mA,
• 8,4 V |
| • 1 x 1500 mA, 2 x 1000 mA | ||
| DC-LCD | • AC: 100V-240V 50/60Hz 1500mA
• DC: 12-24V 3000mA (max) | • DC 8.4V /12.6V/16.8V normal charging
• 1000mAx1 500mAx2 fast charging |
| • 1500mAx1 800mAx2, USB 5V 2100mA |
INPUT TYPES
|
MODEL |  MICRO-USB |  USB-C |  USB-A |
AC/DC |
| DC-USBL | + | |||
| dual channel SDC-USB-C | + | |||
| triple channel SDC-USB-C | + | + | ||
| DL-USB-C | + | + | ||
| FDL- USB-C | + | + | ||
| ULTRA FAST LCD | + | |||
| ULTRA FAST LCD Type C | + | + | ||
| DC-LCD | + |

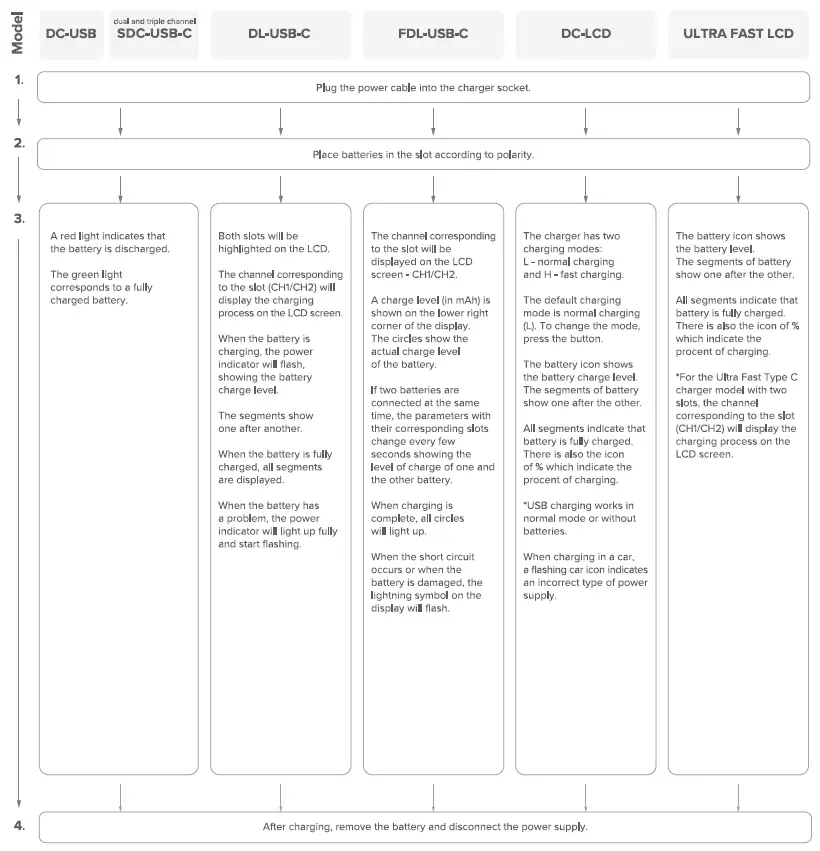

CHARGING
WASTE MANAGEMENT
The crossed-out trashcan symbol means that waste electrical and electronic equipment, batteries and packagings must not be placed with other household waste. They must be handed over to a separate waste collection system.
WARRANTY
Newell products are covered by a 40-month manufacturer’s warranty.
Distributor
Newell General Representative Fdirect sp. z o.o. ul. Rqbieriska 18 94-227 lodz
