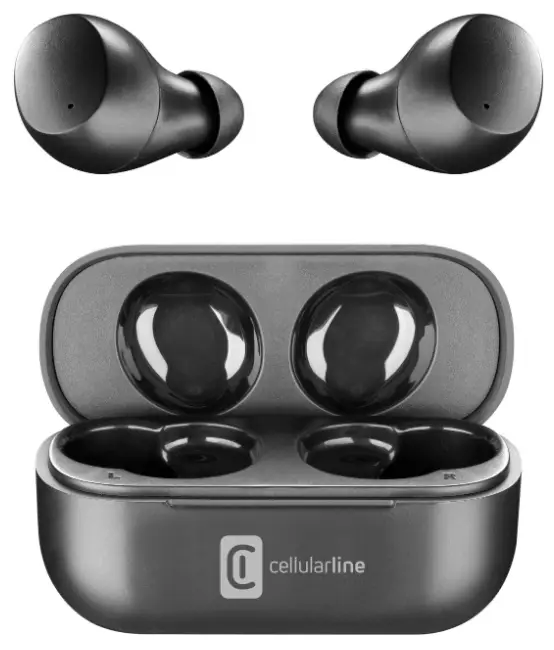

cellularline BTWINKTWSK Wink TWS Bluetooth In-Ear Headsetcellularline-BTWINKTWSK-Wink-TWS-Bluetooth-In-Ear-Headset-product

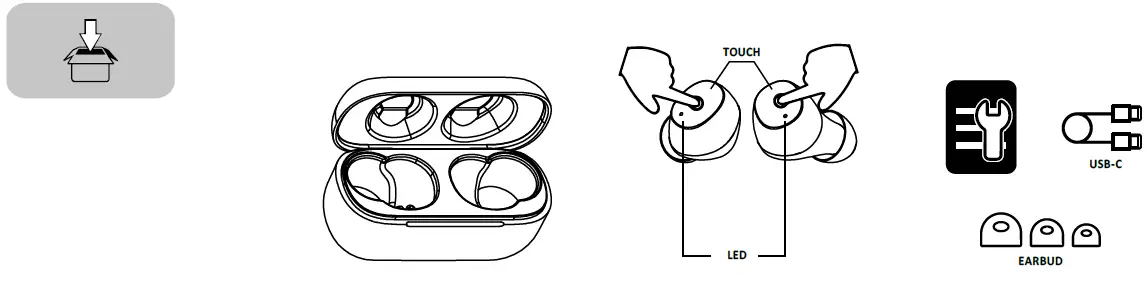

WHAT’S IN THE BOXcellularline-BTWINKTWSK-Wink-TWS-Bluetooth-In-Ear-Headset-fig-1

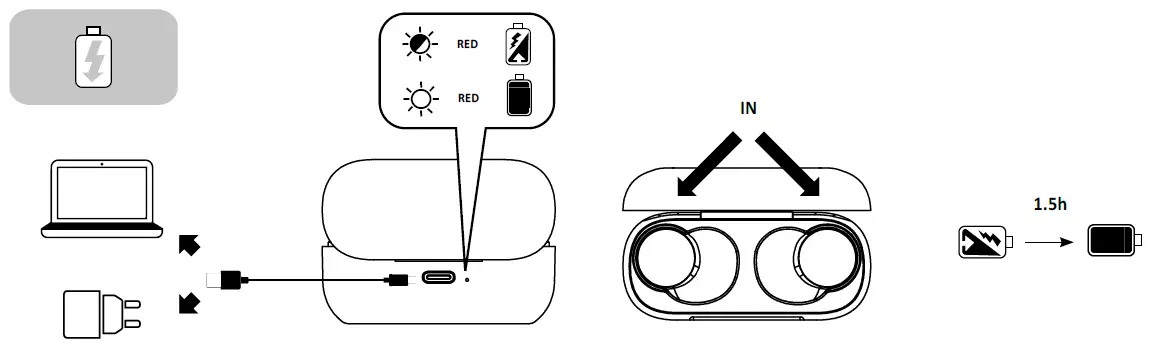

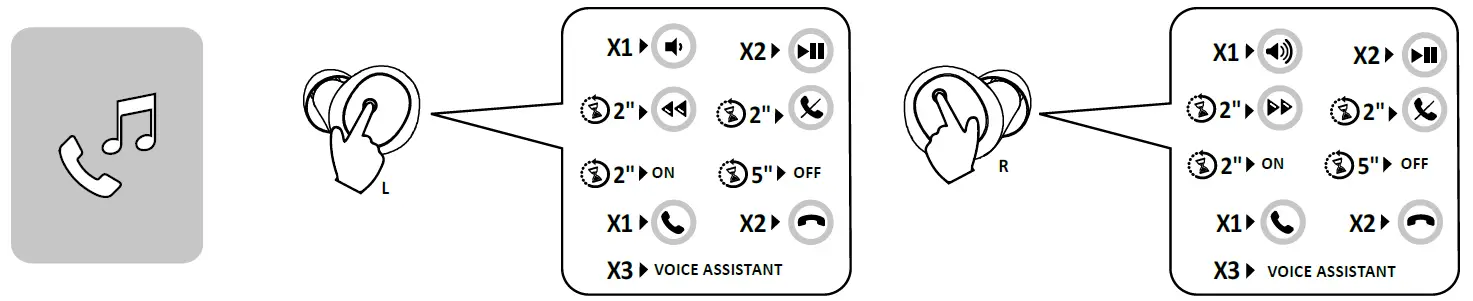

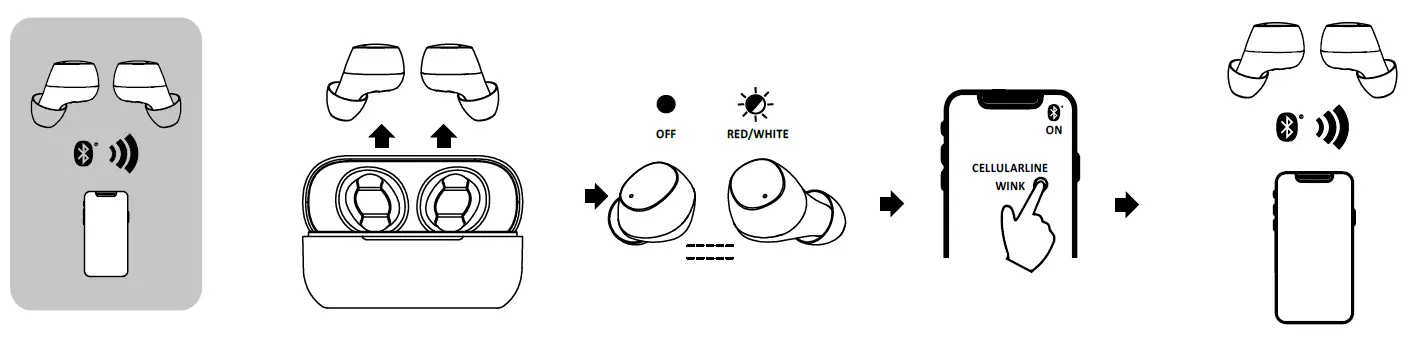

HOW TO USEcellularline-BTWINKTWSK-Wink-TWS-Bluetooth-In-Ear-Headset-fig-2cellularline-BTWINKTWSK-Wink-TWS-Bluetooth-In-Ear-Headset-fig-3

  • Using the device may, in some cases, interfere with the correct functioning of medical devices (e.g. pacemakers).
  • Prolonged exposure to high volume and prolonged use may cause permanent damage to hearing.
  • Do not use the device in places where being unable to hear external noises could prove dangerous (e.g. railway crossings, train platforms) If used when driving, comply with the regulations in force in the relevant country.
  • Children should be supervised when using the device and all accessories and packaging should be kept out of their reach.
  • Do not expose the device for prolonged periods to dampness, dust, soot, steam, direct sunlight, and excessively high or low temperatures, which could result in it mal-functioning

Use only suitable chargers for charging

Regularly charge the product (at least once every 3 months). Cellularline S.p.A. declares that this Bluetooth headset with charging case complies with Directive 2014/53/EU. The full text of the EU Declaration of conformity is available at the following

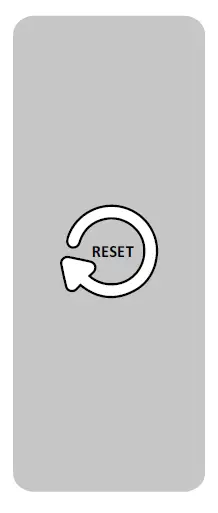

HOW TO RESET

cellularline-BTWINKTWSK-Wink-TWS-Bluetooth-In-Ear-Headset-fig-8

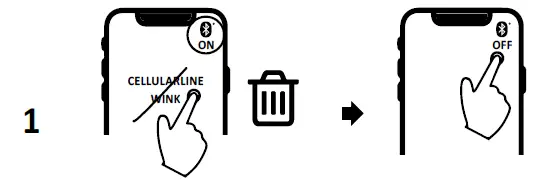

  • Step: 1

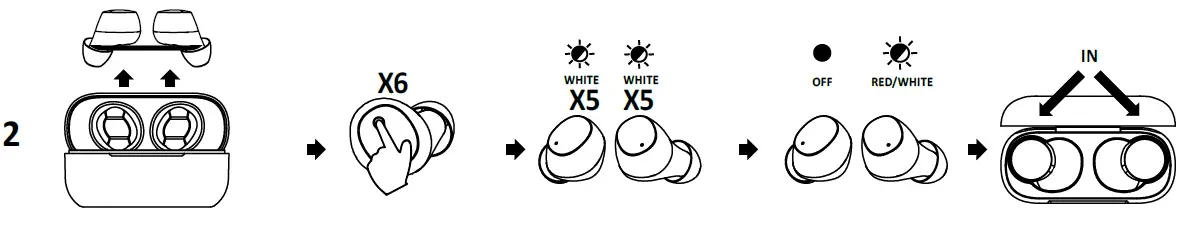

  • Step: 2

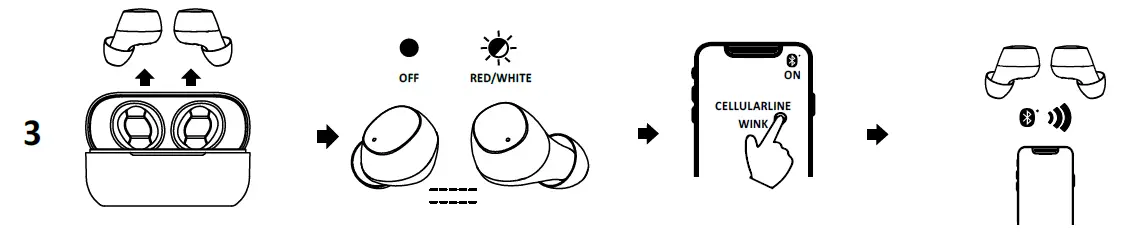

  • Step: 3cellularline-BTWINKTWSK-Wink-TWS-Bluetooth-In-Ear-Headset-fig-7

Technical specifications

  • Bluetooth®: v5.0
  • Supported profiles: Headset – Handsfree – A2DP – AVRCP Range: 10m
  • Bluetooth® Frequency Range: 2402-2480MHz
  • Battery Voltage: 3.7V
  • Battery Capacity: 40mAh X 2
  • Charging case battery capacity: 350 mAh
  • USB-C port voltage (V): 5V
  • USB-C port current (A): 300mAh
  • ERP output: -4,22 dBm
  • Stand-by Time: 150 hours
  • Talk Time: 5 hours
  • Play Time: 5 hours
  • Charging the earphones: about 1.5 hours
  • Charging the Charging Case: about 2 hrs
  • Weight: 38g
