Vevor Wf-a108e Fully Stainless Steel Ice Crusher User Manual

FULLY STAINLESS STEEL ICE CRUSHER

Handle Installation Diagram

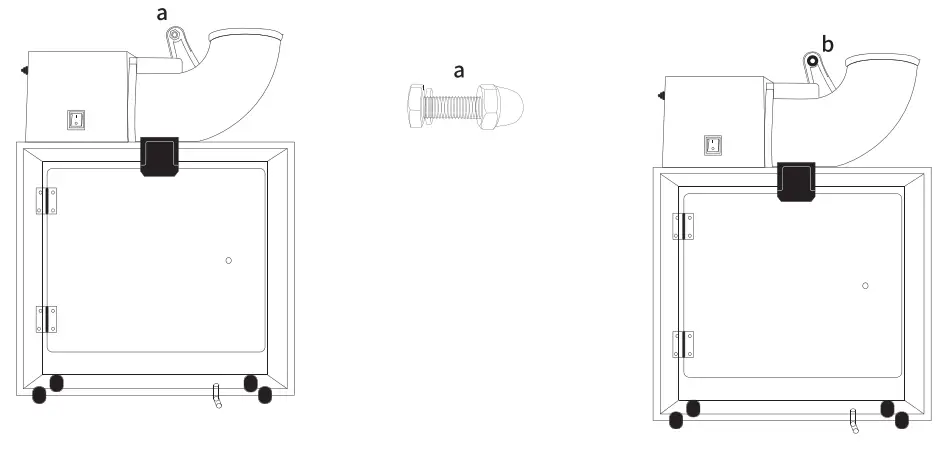

1. Take out screw(a) from part(b)

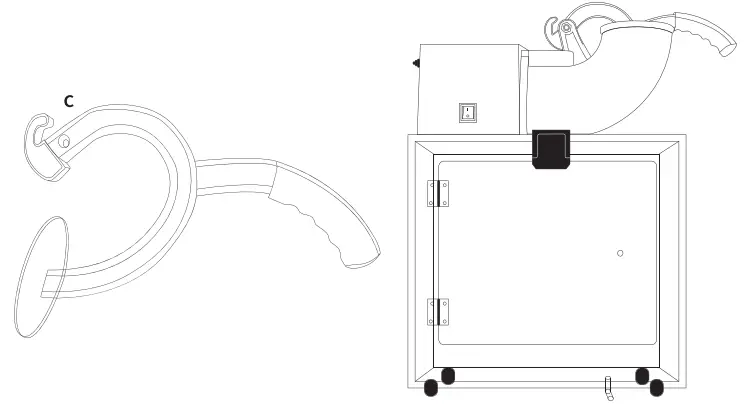

2. Take out the handle(c) load in part(b) and tighten the screw(a)

3. There are limited switch in part(d),limited switch will be contacted when the handle(c) press down(photo 2),when handle goes up(photo 1), machine will stop working

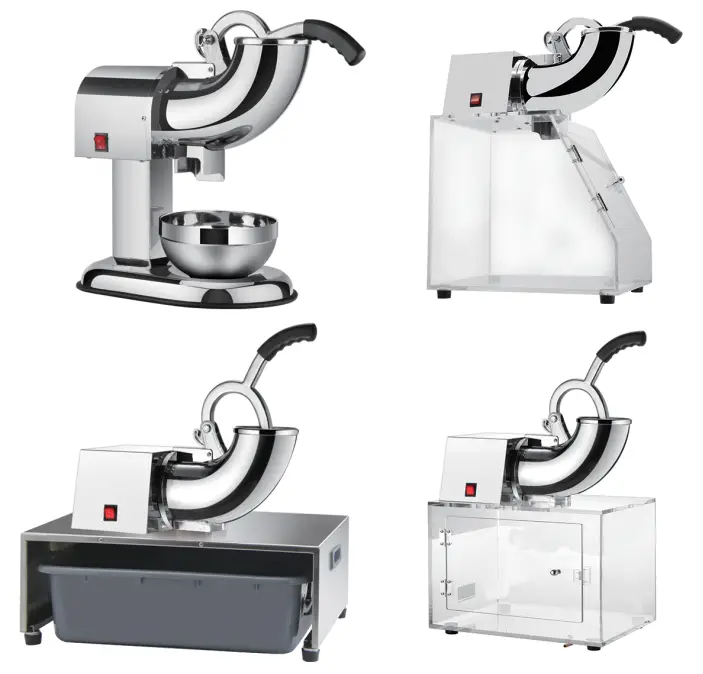

SPECLATION OF WF-A108E/A108H/A108F/A108G FULLYSTAINLESS STEEL ICE CRUSHER

0peration

1. Check voltage of current wether or not it corresponds to the shown and required voltage. Power supply should be with reliable ground wire.
2. Pick-up press-ice handle to up stop point, plug into electri-city. Turn on main switch, lie down the ice disc under Chassis, put down ice granular into the ice smash drum. (NOTE:quantity of ice in the drum can not exceed level of ice smash drum) Then put down the handle of the ice smash drum, to make protect switch to turn on auto matically, get the result of the smash ice, after finish work. Please raise the handle of ice smash to the up-stop,then to repeat above-mentioned procedurer.

Clean & maintenance

After operation of smash ice device, should turn off switch.Put out electricity plug. Wipe the surface of device to dry and lie it at the dry place.

Caution
When operation,outlet of ice granular can not be blocked other words, knife disc will be blocked,destroy motor,if above appearance appear, please lift up handle immediately ,turn off source of electri- city, examine the Reason.
NOTE: To improve our product continously, The factory hold the right of change above technical parameter with out notice.

Techmical parameter

WF-A108E

WF-A108H

WF-A108F

WF-A108G
