PARTY TENT

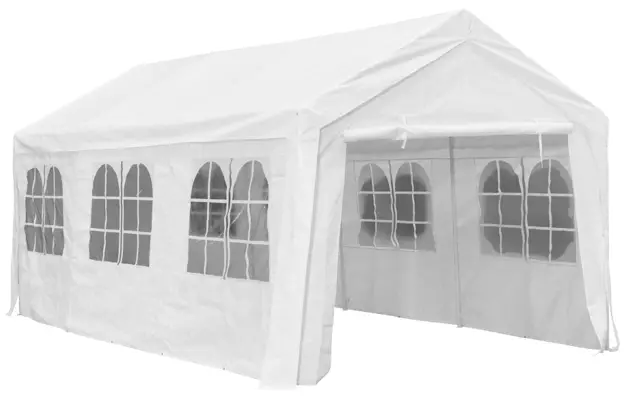

022100 Party Tent
Instruction Manual
022100 Party Tent
Jula AB reserves the right to make changes to the product. Jula AB claims copyright on this documentation. It is not allowed to modify or alter this documentation in any way and the manual shall be printed and used as it is in relation to the product. For the latest version of operating instructions, refer to the Jula website.
 |  |
 |  |
Read the operating instructions carefully before use!
Please retain for future reference.
SYMBOLS
 | Read the instructions. |

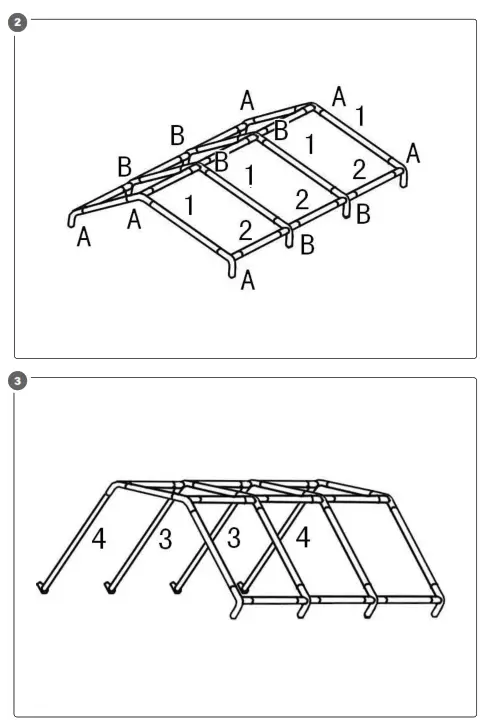

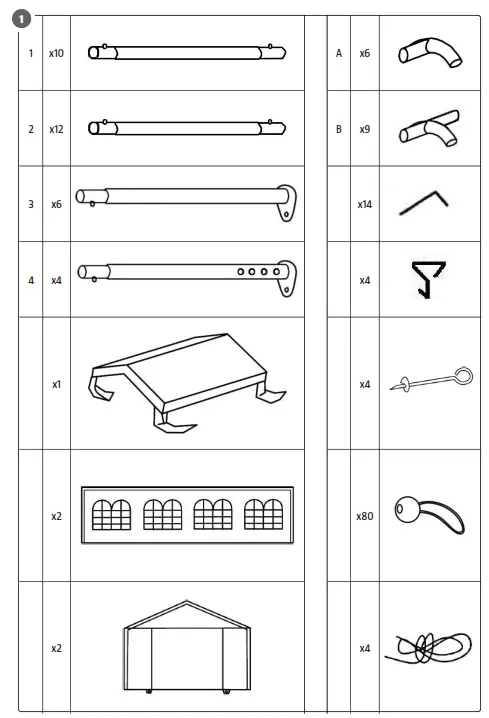

Connect all the tubes (1) and (2) with the connectors (A) and (B) as shown in the diagram.
FIG. 1
Lift up one side and fit the tubes (3) and (4) as legs.
FIG. 2

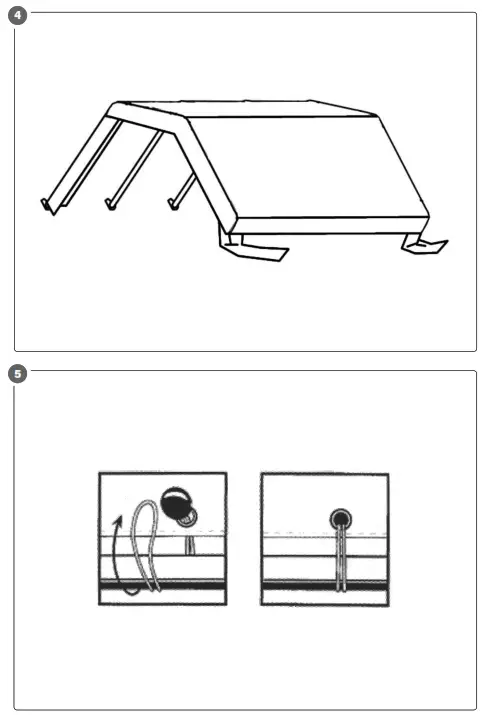

Place the tent fabric over the frame.
FIG. 3
Fasten the roof with the fasteners.
FIG. 4

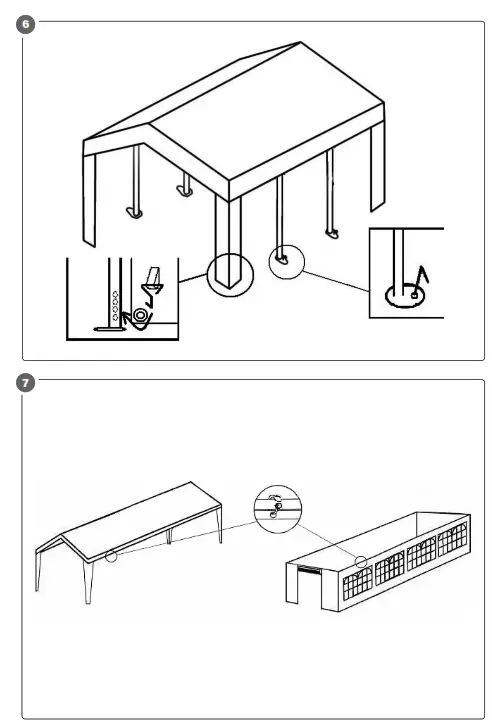

Repeat step 2 to fit the legs on the other side. Fasten the ropes from the roof at the legs with the hooks, and push tent pegs through the feet (see above diagram).
FIG. 5
Hang up the walls and door, and fasten as shown in step 7.
FIG. 6

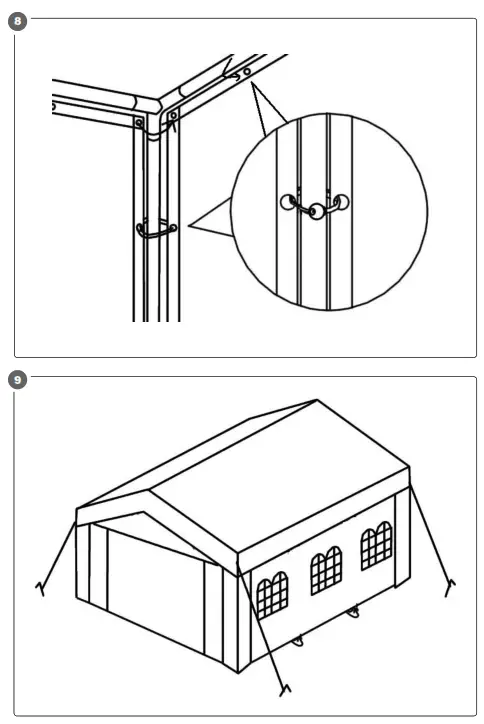

Fasten the side walls and door to the frame with the fasteners.
FIG. 7
Pull out and fasten the ropes with tent pegs to stabilise the tent.
FIG. 8
Jula – products for home and garden
