Motoalliance Wp-098 Polaris Ranger 12" Evolution Electric Wiper Kit Instructions

motoalliance WP-098 Polaris Ranger 12″ EVOLUTION Electric Wiper Kit

Thank you for purchasing our MotoAlliance Wiper Kit. You now own a premium Wiper Kit for use with your SxS. Please note the following instructions and heed all warnings.

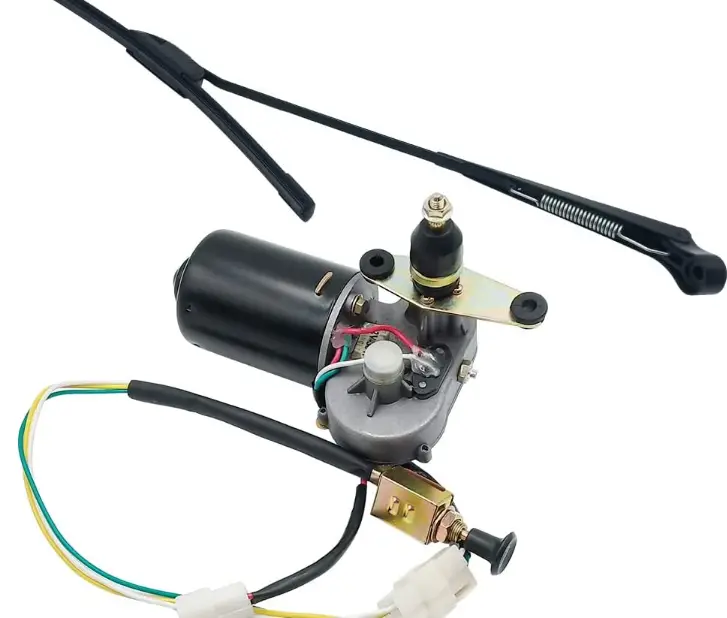

PARTS DESCRIPTIONS

Instructions

1. Identify a suitable location to mount the wiper assembly to the windshield. Make certain the motor location will allow for good wiper coverage and won’t interfere with the vehicle frame or dash.
2. Using Template 1 as a guide drill a 3/8” hole and ¼” hole where the wiper motor will be mounted. Note: The wiper arm has an adjustable 90-degree sweep from the motor shaft and can be repositioned at any time.

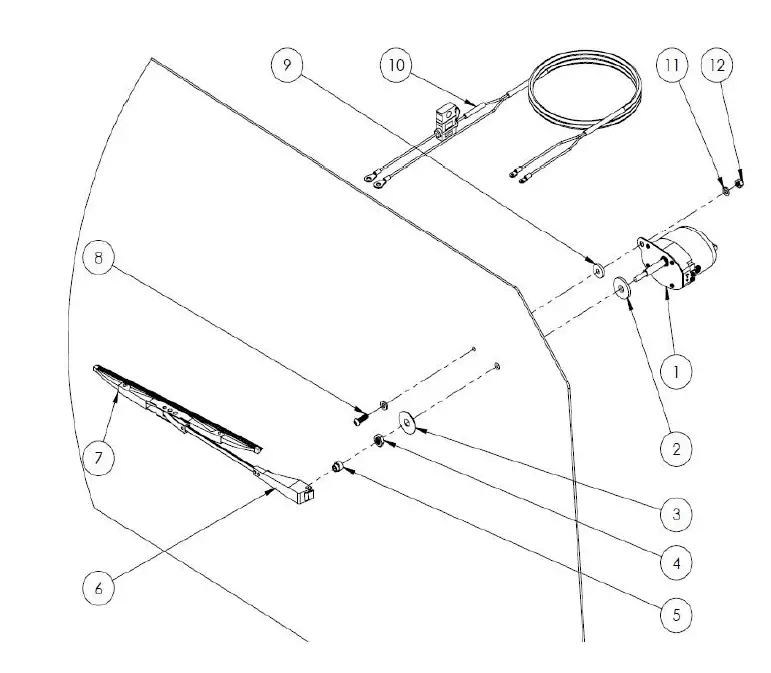

3. Install washers, bolts, nuts, rubber cap and motor as shown in Figure 1.
   IMPORTANT NOTE: Do NOT exceed a max torque of 25-in/lbs when installing the nut on the brass shaft of wiper motor. Exceeding max torque may cause damage to the wiper motor and will not be covered under warranty.
4. Take the end of the wire harness with the smaller ring terminals and connect the red wire ring to the positive (+) terminal and the black wire ring to the negative (-) terminal on the wiper motor.
5. Take the opposite end of the wire harness and connect the red wire ring to the positive 12 Volt power terminal (+) and the black wire ring to the ground terminal (-) on the battery.
   Note: Make sure the included 5-amp fuse is securely in place before turning the power on for the first time.
6. Attach the wiper blade to the shaft and tighten the attachment bolt. If adjustment is required, loosen the attachment bolt, reposition the wiper arm, and then retighten the bolt.

[email protected]
