Guangzhou Weshine Electronic Technology S1-ttb Smart Lock User Manual (+ PDF)

Mechanical keys please keep outdoor, just in case keys lock indoors.
Please replace for the battery when low wattage alarm.
Read this manual carefully before installation, and keep it for future reference.

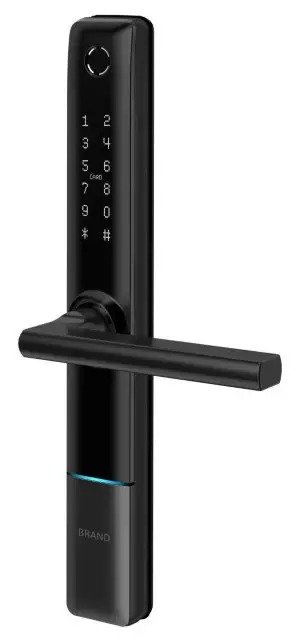

Introduction

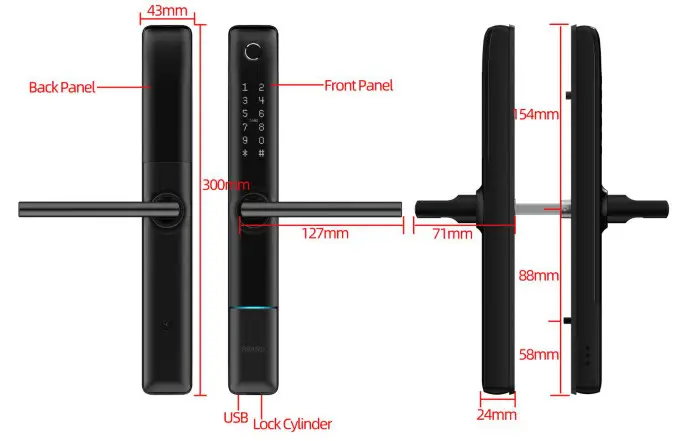

Lock structure

Packing List

Check the following drawing to check whether the package contains all the parts

NO	Name	Qty	NO	Name	Qty
1	Front Pane	1	11	Sliding Screvvs:16*5rnm	2
2	Back Panel	1	12	Mortise Screws:10*5 (For Aluminum Door)	4
3	Mortise:35*85	1	13	Mortise Screws:25’4mm (For Wooden Door)	4
4	Card	3	14	MS*30mm Screw for Door Thickness 30-65mm	1
5	Mechanical Key	2	15	MS*50mm Screw for Door Thickness 50-65mm	1
6	Waterproof Rubber Plate	2	16	M5*70mm Screw for Door Thickness 50-65mm	1
7	U-Clip	1	17	Square shaft for Door Thickness 35mm-55mm	1
8	User Manual	1	18	Square shaft for Door Thickness 45mm-65mm	1
9	Strike&Strike Box	1+1	19	Sucker	1
10	Screw Stubs:35*8mm	2

Specifications

Suitable for Models	S1-TTB	Doors Applicable	Aluminum door Wooden door
Materials	Handle: Aluminum alloy Panel: SS304	Working Voltage	6V/4x AA Batteries
Lock Weight	2.5KG	Door Thickness to Fit	35-65mm
Unlocking Way	Bluetooth Fingerprint(option) Password Card Mechanical key Gateway(option)	Data Capacity Card: 200	Fingerprint: 200 Password: 150
Color	Silver Black	Working Temperature	-107C-55″C
Low Wattage Alarm	Less than 4.8V	Working Humidity	0-95%

System Initialization
Open the cover plate of the front panel,long-press the “Reset” button on the back panel for 5s, press “000#”,and the initialization is complete

Installation

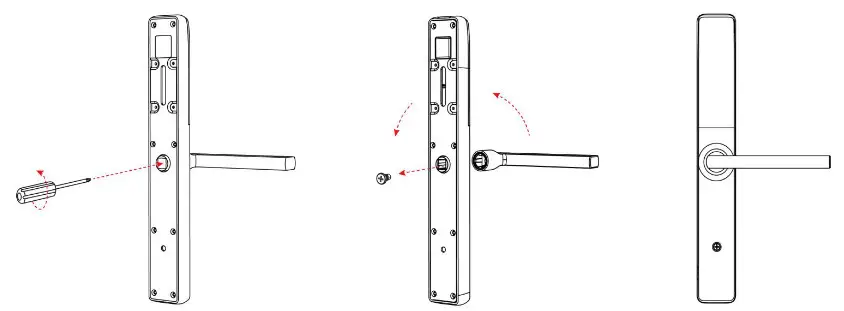

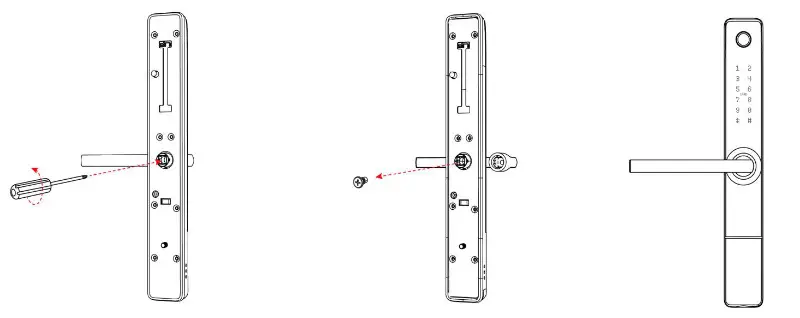

Turn the handle

Notice: Adjust the handle according to the direction you open the door.

Turn the handle on the front panel loosen the screws on the handle counterclockwise
Remove the handle
After adjusting the direction of the handle insert it into the handle seat and re-lock the screw of the handle to complete the turning.

Turn the handle on the front panel loosen the screws on the handle counterclockwise
Remove the handle
After adjusting the direction of the handle insert ‘t into the handle seat and re-lock the screw of the handle to complete the turning.

Installation Diagram(For 3585)

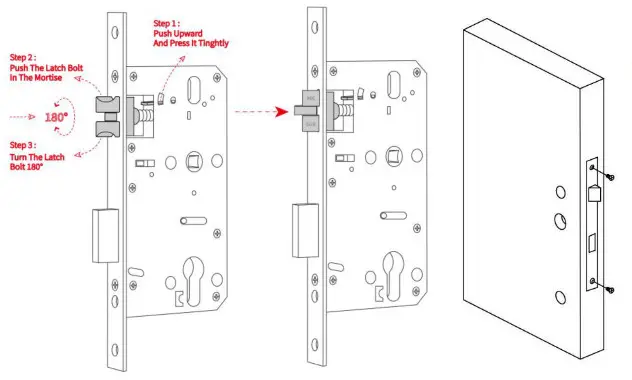

Step 1 Install Mortise

According to the size indicated by the hole icon, open the corresponding hole position as needed, and install the lock body.
Adjust the direction of the bolt according to the door opening direction

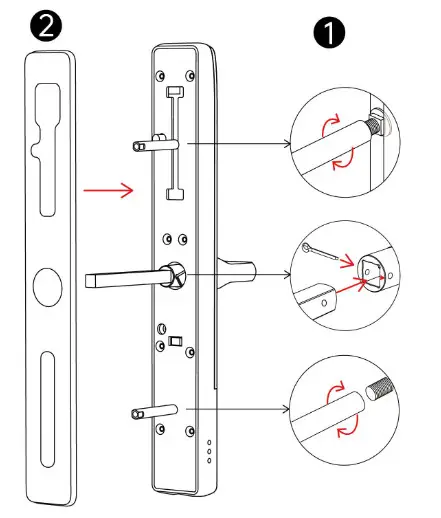

Step 2 Install Sliding Screw Casing and Square Shaft

Choose a screw column suitable for the thickness of the door install it on the front panel,
Install waterproof in alignment with the holes
Install the square shaft, put on the U-Clip, The arrow is in the same direction as the handle

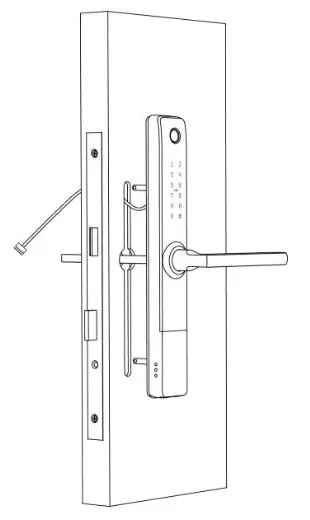

Step 3 Install Front Panel

Align the front panel of the installed accessories with the holes of the door and install

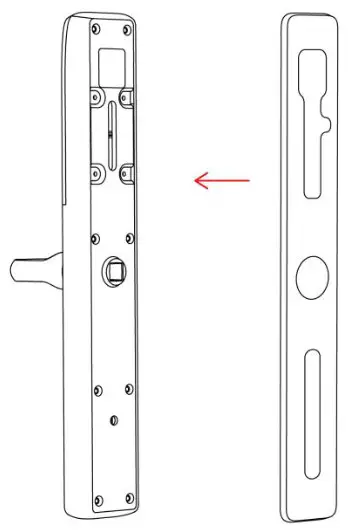

Step 4 Install Back Panel

Install another waterproof pad to the rear panel

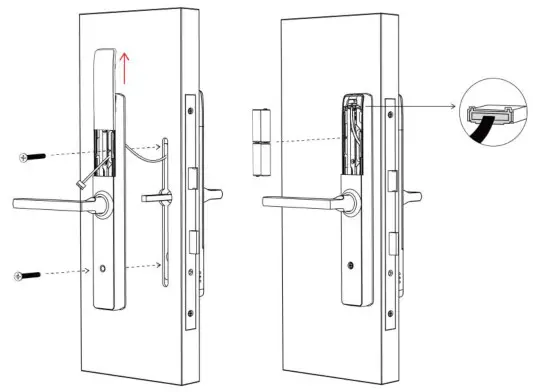

Step 5 Connect Front and Back Panels Wires

Fix the front and back panels with screws suitable for the thickness of the door
Connect the front power cord to the back panel

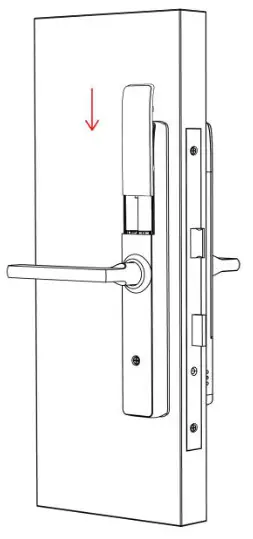

Step 6 Install the Battery

Install 4* AA batteries
Install the battery cover

Operation

Registration

http://a.app.qq.com/o/simple.jsp?pkgname=com.tongtongsuo.app&fromcase=40003

The software (iOS version) can be downloaded from the app store, and the Android version can be downloaded from the application store of Google play, Yingyongbao, Baidu, Ali, 360, Huawei, and Xiaomi.

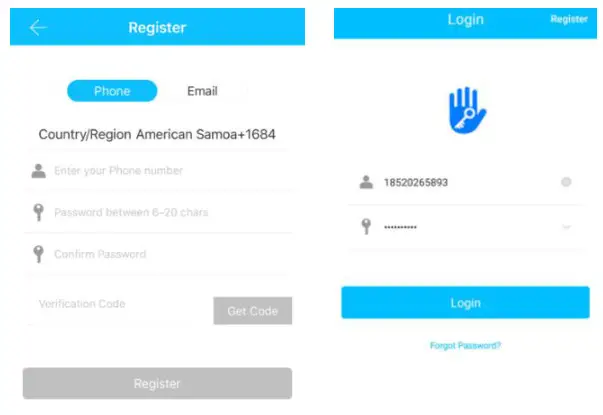

Connect lock to the phone

please scan the QR code to download the app
You can also search for TTLock in the APP store(Google Play)to download
Register a new account (phone number or email) or log in with an existing account.
Touch the lock screen to light, click “+ Add Lock”
The lock nearby will appear on the phone screen, Click “+”
Re-name the lock
The lock was added successfully

TTlock users can register their account by mobile phone and Email which currently support 200 countries and regions on the world. The verification code will be sent to the user’s mobile phone or email, and the registration will be successful after the verification.

Add locks

TTLock supports multiple types of lock devices. The lock needs to be added by the app after entering the add mode. Generally, a lock that has not been added, as long as the locking keyboard is touched, it will enter the add mode. The default password is 123456 if not added by the phone

User Management

3.4.1. Bluetooth management
Make sure there is no problem with Bluetooth communication. After connecting the phone to the door lock as above, Click ““to unlock.(the phone is within 5meters from the door lock)

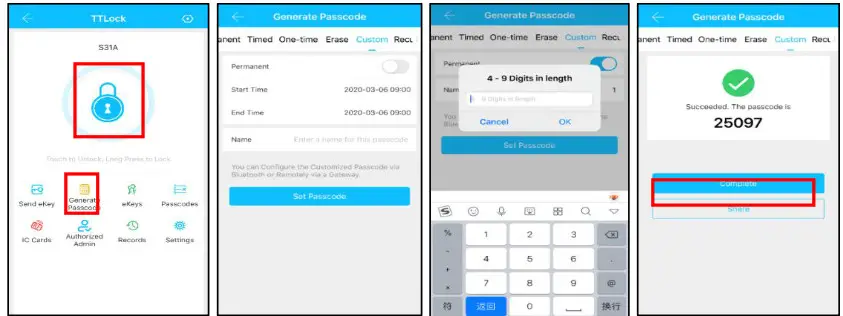

3.4.2. Setting Passcode
Passcodes are also a way to unlock. After entering the passcode on the locked keyboard, press the unlock button in the lower right corner to unlock. Passcodes are divided into permanent, time-limited, single, clear, cycle, and custom.(You can share the Passcode to another user via WeChat、SMS、Email、Messenger、WhatsApp)

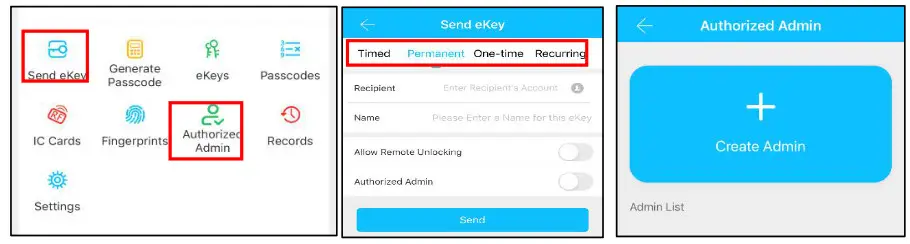

3.4.3. Send e-Key
Click on the “ ” as shown in figure, you can send the eKey to other users of TTlock to authorize the unlock(the receiver must download the APP and set up an account)→ Select the e-key format (Timed, permanent, One-time, Recurring) → Enter recipient’s account of TTlock,set the name and effective time of the eKey, Can choose to allow remote unlocking or disallowing, authorized administrator or not authorized, as shown in figure →Send→The recipient’s account has Bluetooth unlock permission

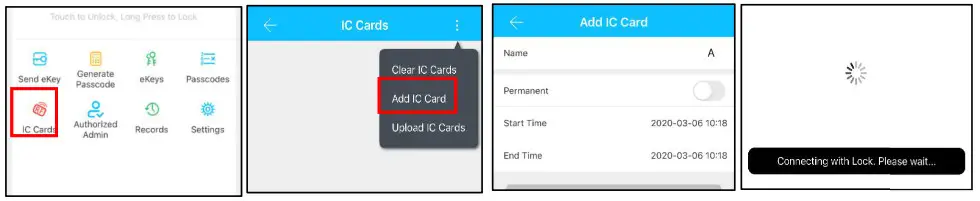

3.4.4.Add card
Supports opening doors through various IC cards. Before an IC card is used to open the door, it needs to be added first. The adding process needs to be performed by the app besides the lock. The validity period of the IC can be set, it can be permanent, or it can be limited in time.

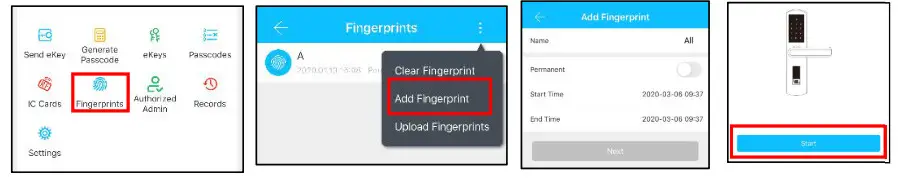

3.4.5. Add fingerprint
The premise that a fingerprint can be used to open a door is that it needs to be added first. The adding process needs to be performed by the APP beside the lock. The fingerprint expiration data can be set, it can be permanent, or it can be limited.
After setting,you can modify its validity period.

3.4.6. e-Key management
Click “ “ The manager can delete ekey, reset ekey, send and adjust the ekey, meanwhile he can search the lock record.
3.4.7. Passcode management
Click “ ” .All generated passwords can be viewed and managed in the password management module. This includes a password change, password deletion, password reset, and password unlock the record.

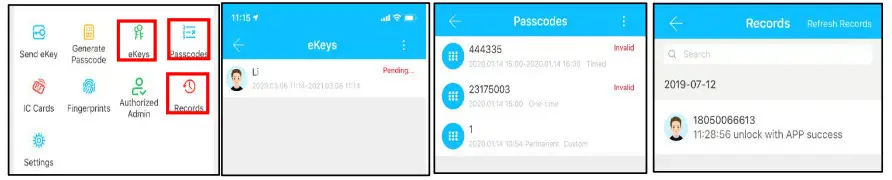

3.4.8.Unlock records
Click “ “you can query your unlock record as shown in figure

Gateway management(Optional)

The TT lock is directly connected via Bluetooth, that is why it is not attacked by the network. The gateway is a bridge between smart locks and home WIFI networks. Through the gateway, the user can remotely view and calibrate the lock clock, read the unlock record. Meanwhile, it can remotely delete and modify the password.

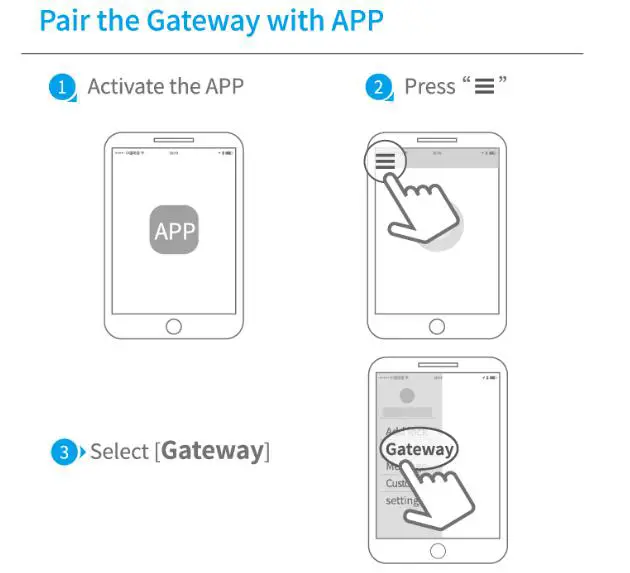

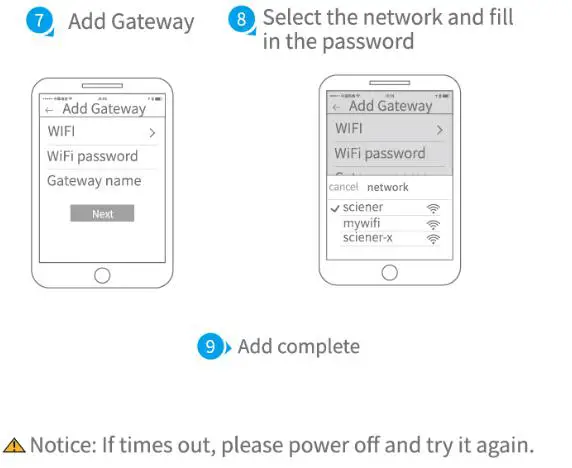

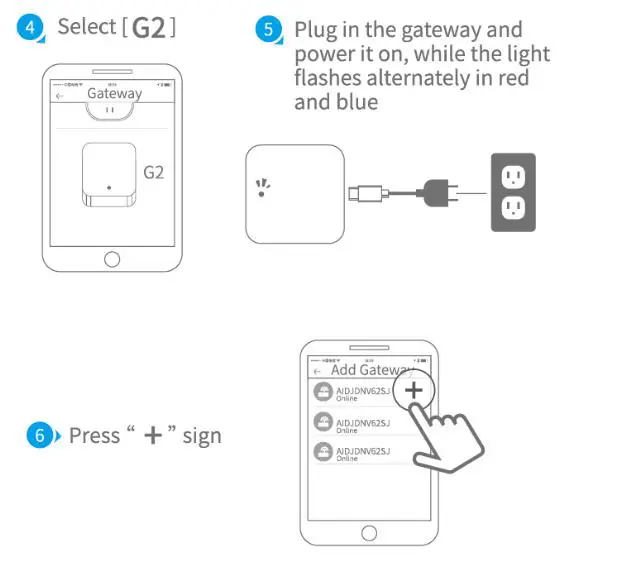

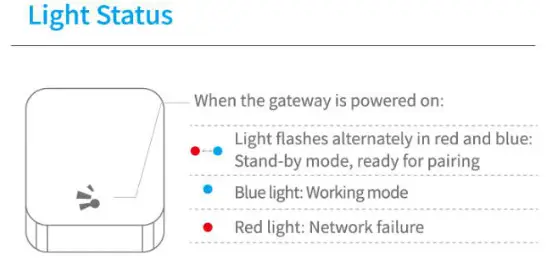

3.5.1. Add Gateway

3.5.2. Manual
After a short period of time, you can see which locks are in their coverage in the app. Once the lock is bound to the gateway, the lock can be managed through the gateway.

FAQ

1)How to read operation records?	In the Records of the main interface..
2)Why can’t I unlock it after opening the passage mode	You need to perform an unlock verification in any method then the passage mode will take effect.
3)What is the purpose of Auto-Lock	You can set how long to lock after unlocking
4)After installation, touch sensing keyboard, screen no respond	a)In this case, first check that the positive and negative electrodes of the battery have been installed upside down, whether the battery has enough power b)Remove the back panel and see if it’s connected. c)To eliminate the above situation, you need to remove the lock, check whether the wires of the lock body are squeezed, and re-wire.
5t Unable to register fingerprint	Check the fingers for dirt or wear, check the fingerprint head on the lock for dirt and oil stains, etc. Check to see if the fingerprint is working properly(Press to see if there is any responses.
6 ) What is the reason why the smart lock consumes fast power?	a)Large standby power consumption b)Short circuit
7 ) There is no response to pressing the handle on outside the door, and there is unlock normally on inside the door, but the verification is normal, and the motor is normal.	It may be the triangle direction on the clutch was an error, please check the correction.
8) How many times will the passcode be locked? How long is it locked?	Enter the wrong password more than 5 times in a row, the keyboard is locked for 5 mins, Other ways to can open the door

Guarantee

Customer Name：
Customer Calls ：
Purchase Date ：
Product Name ：
Product Model ：

Note:

Please keep this card so that you can use it when you need warranty service.
We provide you with a one-year warranty from the date of purchase.
This warranty service is valid for customers in any country in the world.

FCC Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
