GU43BU8079 SolarCell Remote
User Guide
solar cell Remote
Fire or explosion may occur, resulting in damage to the remote control or personal injury.
- Do not apply shock to the remote control.
- Be careful not to let foreign substances such as metal, liquid, or dust come in contact with the charging terminal of the remote control.
- When the remote control is damaged or you smell smoke or burning fumes, immediately stop operation and then repair it at the Samsung service centre.
- Do not arbitrarily disassemble the remote control.
- Be careful not to let infants or pets suck or bite the remote control. Fire or explosion may occur, resulting in damage to the remote control or personal injury.

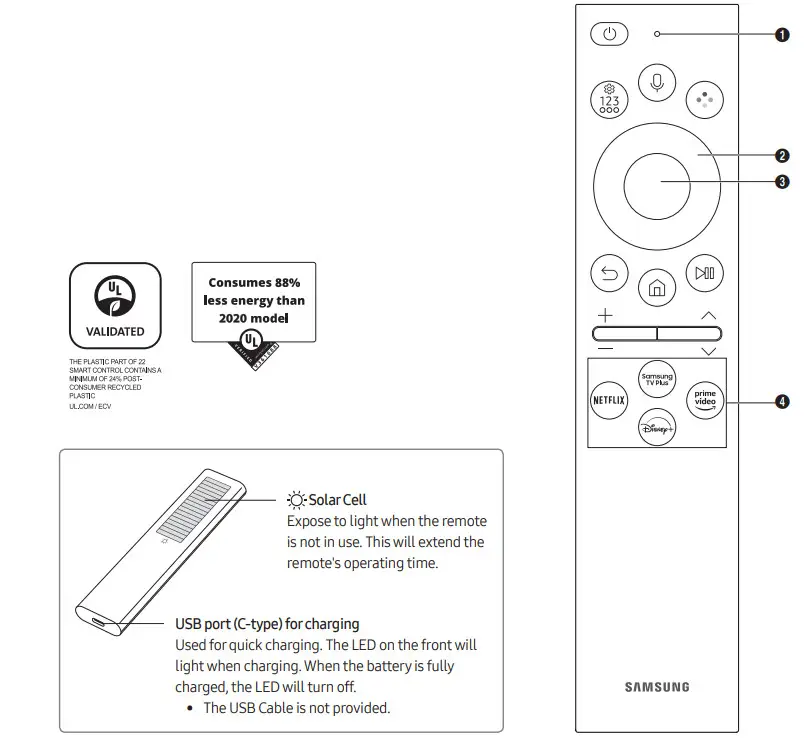

| Button | Description |
 (Power) | Press to turn the TV on or off. For The Frame model, When watching TV, press to switch to Art mode. In Art mode, press to switch to the Media Home. Press and hold to turn off the TV completely. |
| 1 MIC /LED | Used as MIC when using voice recognition with the remote control. •Do not impact the MIC hole or use a sharp object to poke into the hole. |
 (Voice Assistant) | Runs Voice Assistant. Press and hold the button, say a command, and then release the button to run Voice Assistant. •The supported Voice Assistant’s languages and features may differ by geographical area. |
 (Settings / Number /Option button) | Each time you press this button, the Settings menu /virtual numeric pad / Option pad are displayed alternately. • Use this button to access additional options that are specific to the feature in use. • Press to bring up the virtual numeric pad on the screen. Use the numeric keypad to enter numeric values. Select numbers and then select Done or Enter Number to enter a numeric value. Use to change the channel, enter a PIN, ZIP code and etc. • When pressed for second or more, the Shortcuts menu screen appears. |
 (Colour button) | When pressed, coloured buttons appear on the screen. Use this button to access additional options that are specific to the feature in use. |
| 2 Directional button (up, down, left, right) | Moves the focus and changes the values seen on the TV’s menu. |
| 2 Select | Selects or runs a focused item. When pressed while you are watching a broadcast programme, detailed programme information appears. |
 (Return) | Press to return to the previous menu. When pressed forl second or more, the running function is terminated. When pressed while you are watching a programme, the previous channel appears. |
 (Smart Hub) | Press to switch to the Media Home. For The Frame model, in Art mode, press to switch to the Art Home. |
 (Play/pause) | When pressed, the playback controls appear. Using these controls, you can control the media content that is playing. |
 (Volume) | Move the button up or down to adjust the volume. To mute the sound, press the button. When pressed for 2 seconds or more, the Accessibility Shortcuts appears. |
 (Channel) | Move the button up or down to change the channel. To see the Guide screen, press the button. •When pressed forl second or more, the Channel List screen appears. |
| 4 Launch app button | Press each button to run its function. •Available apps may differ depending on the geographical area or contents provider. |
 (Pairing) | If the Samsung Smart Remote does not pair to the TVautomatically, point it at the front of the TV, and then press and hold the and buttons simultaneously for 3 seconds or more. |
- Use the Samsung Smart Remote less than 6 m from the TV. The usable distance may vary with the wireless environmental conditions.
- The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.
- The Universal Remote function operates normally only when you use the Samsung Smart Remote that comes with the TV. (This function may not be supported depending on the model.)
- It is recommended to use an original Samsung charger. Otherwise, it may cause performance degradation or failure of the product. In this case, the warranty service is not applicable.
- When the remote control does not work due to low battery, charge it by using the USB-C type port.
