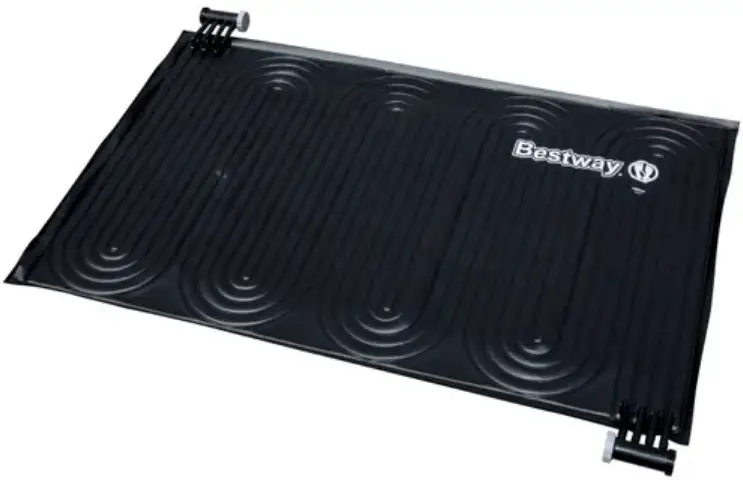

Bestway 58759e Solar Water Heater Owner's Manual

Bestway 58759E Solar Water Heater Owner’s Manual

WARNING
READ AND FOLLOW ALL
INSTRUCTIONS
WARNING-TO REDUCE THE RISK
OF INJURY do not permit children to use this product unless they are closely supervised at all times.
CAUTION- This product is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. A permanently-installed pool  is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage.
CAUTION- Do not touches the panel surface when the product is working or you may get hurt.
NOTE: Do not sit, stand or jump on this product.
NOTE: Weather conditions can affect the performance and life span of your solar water heater.
NOTE: This product must be set up on a flat and clean location; the ground must be cleared of all objects and debris including stones and twigs.
NOTE: Grass or other vegetation under the product will die and may cause odors and slime to develop, therefore we recommend removing all grass from the selected location. Avoid locating the item over of beside areas prone to aggressive plant and weed species as they may damage the item  hen they grow.
NOTE: This product must be placed in direct sun light to ensure proper performance.
NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale.

SPECIFICATIONS

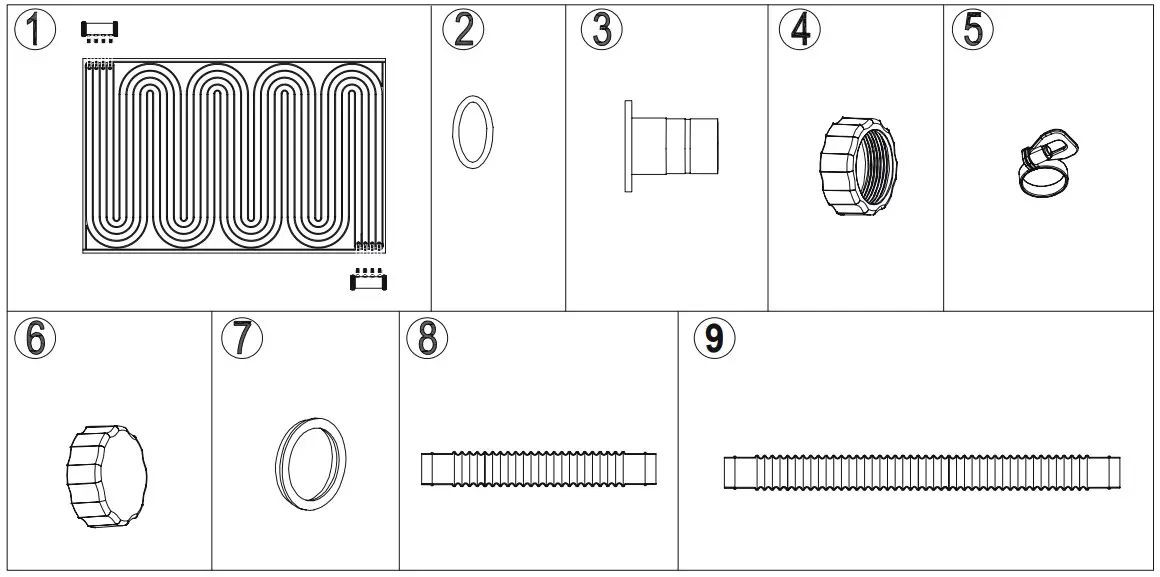

ASSEMBLY INSTRUCTIONS

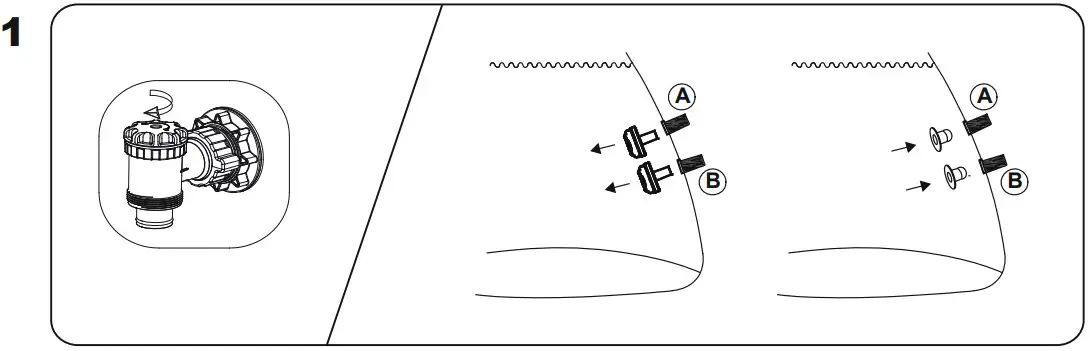

1. Unplug the sand filter. Loosen the hose clamps on the pool’s inlet and outlet valves, replace the debris screens with stopper plugs (or close the connection valves) to stop water to flow.

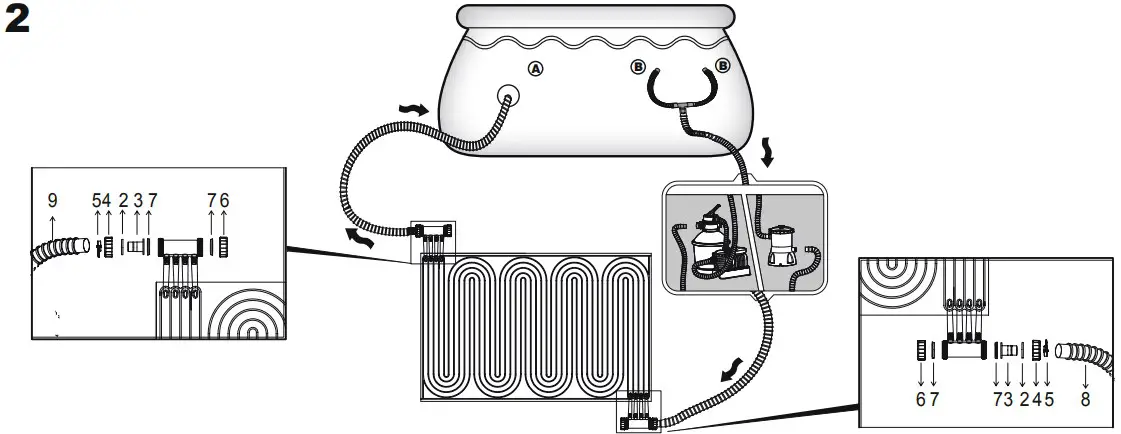

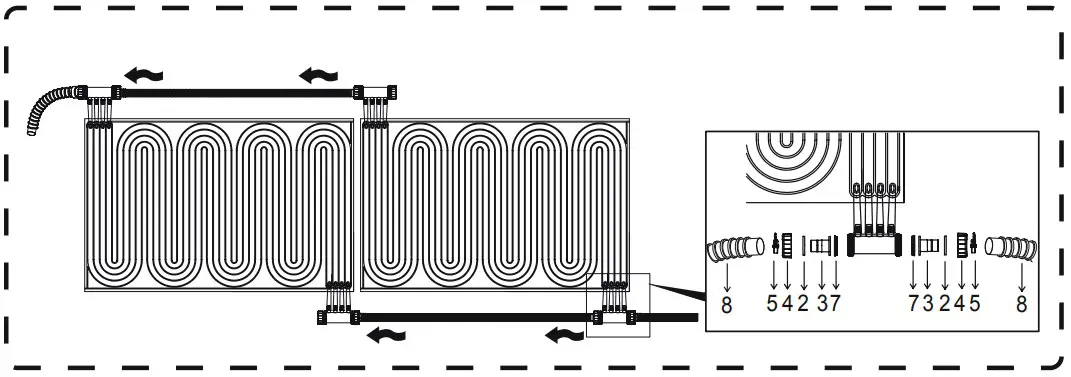

2. Follow the below diagram instruction to assemble all the parts properly;
   NOTE: Refer to the sand filter’s owner’s manual for assembly.

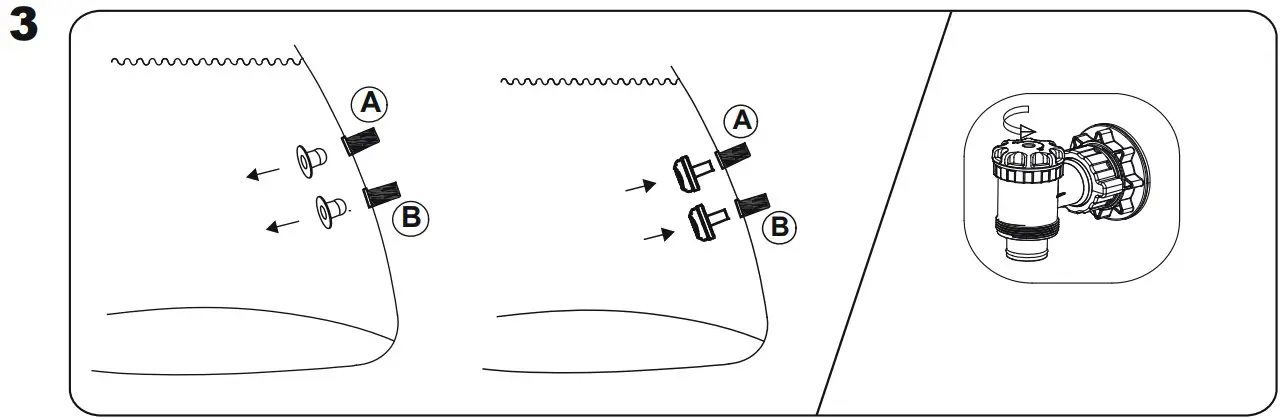

3. Loosen the hose clamps on the pool’s inlet and outlet valves; replace the stopper plugs with debris screens (or open the connection valves of the pool) to allow water to flow.
4. Tighten the hose clamps, ensure no water is leaking and every connection is securely fastened.
   NOTE: When the mat is filled with water, the mat will deform because of the water pressure, which is normal.

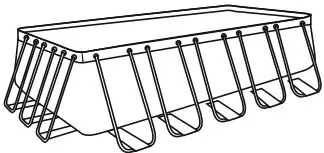

SOLAR HEATER MAT QUANTITY FOR BESTWAY POOLS

Number of solar heater mat recommended for larger pools. Based on 8 hours of sunshine exposure per day; heating performance varies depending on weather and ambient conditions, and whether the pool is covered or not at night.

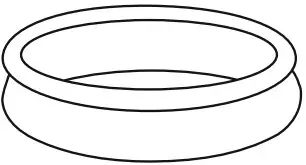

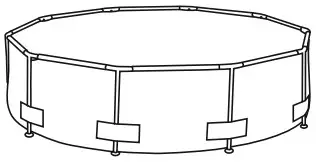

Pool	Pool Size	Recommend QTY of mat
	7 ft.3 in. x 59 in. x 17 in. (2.21 m x 1.50 m x 43 cm)	1
	8 ft.6 in. x 67 in. x 24 in. (2.59 m x 1.70 m x 61 cm)	1
	9 ft.10 in. x 6 ft.7 in. x 26 in. (3.00 m x 2.01 m x 66 cm)	1
	13 ft.1 in. x 6 ft.11 in. x 32 in. (4.00 m x 2.11m x 81 cm)	1
	8 ft. x 20 in. (2.44 m x 51 cm)	1
	10 ft. x 30 in. (3.05 m x 76 cm)	1
	12 ft. x 30 in. (3.66 m x 76 cm)	1
	12 ft. x 39.5 in. (3.66 m x 1.00 m)	1
	12 ft. x 48 in. (3.66 m x 1.22 m)	1
	14 ft. x 33 in. (4.27 m x 84 cm)	1
	15 ft. x 42 in. (4.57 m x 1.07 m)	2
	15 ft. x 48 in. (4.57 m x 1.22 m)	2
	18 ft. x 48 in. (5.49 m x 1.22 m)	3
	9 ft.3 in. x 6 ft.5 in. x 33 in. (2.82 m x 1.96 m x 84 cm)	1
	13 ft.3 in. x 6 ft.7 in. x 39.5 in. (4.04 m x 2.01 m x 1.00 m)	1
	13 ft.6 in. x 6 ft.7 in. x 48 in. (4.12 m x 2.01m x 1.22 m)	1
	16 ft. x 8 ft. x 48 in. (4.88 m x 2.44 m x 1.22 m)	2
	16 ft. x 16 ft. x 48 in. (4.88 m x 4.88 m x 1.22 m)	3
	18 ft. x 9 ft. x 48 in. (5.49 m x 2.74 m x 1.22 m)	3
	22 ft. x 12 ft. x 52 in. (6.71 m x 3.66 m x 1.32 m)	3
	24 ft. x 12 ft. x 52 in. (7.32 m x 3.66 m x 1.32 m)	3
	31 ft.4 in. x 16 ft. x 52 in. (9.56 m x 4.88 m x 1.32 m)	3
	14 ft. x 42 in. (4.27 m x 1.07 m)	2
	14 ft. x 48 in. (4.27 m x 1.22 m)	2
	16 ft. x 48 in. (4.88 m x 1.22 m)	3
	18 ft. x 48 in. (5.49 m x 1.22 m)	3
	18 ft. x 52 in. (5.49 m x 1.32 m)	3
	20 ft. x 48 in. (6.10 m x 1.22 m)	3
	22 ft. x 52 in. (6.71 m x 1.32 m)	3
	24 ft. x 52 in. (7.32 m x 1.32 m)	3
	26 ft. x 52 in. (7.93 m x 1.32 m)	3
	16 ft. x 10 ft. x 42 in. (4.88 m x 3.05 m x 1.07 m)	2
	18 ft. x 12 ft. x 48 in. (5.49 m x 3.66 m x 1.22 m)	2
	8 ft. x 26 in. (2.44 m x 66 cm)	1
	9 ft. x 30 in. (2.74 m x 76 cm)	1
	10 ft. x 30 in. (3.05 m x 76 cm)	1
	12 ft. x 30 in. (3.66 m x 76 cm)	1
	13 ft. x 33 in. (3.96 m x 84 cm)	1
	15 ft. x 33 in. (4.57 m x 84 cm)	1
	15 ft. x 42 in. (4.57 m x 1.07 m)	1

MAINTENANCE

CAUTION: YOU MUST ENSURE THE SAND FILTER IS UNPLUGGED BEFORE ANY MAINTENANCE BEGINS OR SEVERE RISK OF INJURY OR DEATH EXISTS.

1. Unplug the sand filter.
2. Loosen all the hose clamps.
3. Remove debris screens from inside of pool. Replace the debris screens with the stopper plugs in the pool’s inlet and outlet valves. (Or close the connection valves A.)
4. Clean the panels with a garden hose carefully

STORAGE

1. Unplug the filter pump or sand filter.
2. Follow the instructions as previously outline to stop water flowing to the filter pump or sand filter.
3. Detach all hoses.
4. Dry all components thoroughly.
5. Roll all the panels.
6. Store the product in a dry warm location out of child’s reach.

303021300620

©2022 Bestway Inflatables & Material Corp.
All rights reserved
Trademarks used in some countries under license from Bestway Inflatables & Material Corp., Shanghai, China
Exported by Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong Distributed in North America by Bestway (USA) Inc., 3435 S. McQueen Road, Chandler, AZ 85286,United States of America
Tel: +86 21 69135588
www.bestwayusa.com
