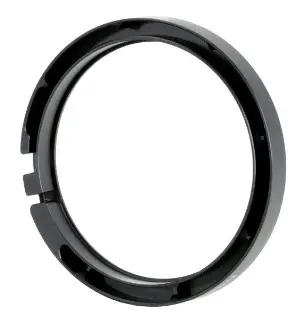

TILTA MB-T16-C80 80MM Cinema Adaptor Ring

OVERVIEW

installing BDMM CINEMA ADAPTER RING FOR TILTA MIRAGE

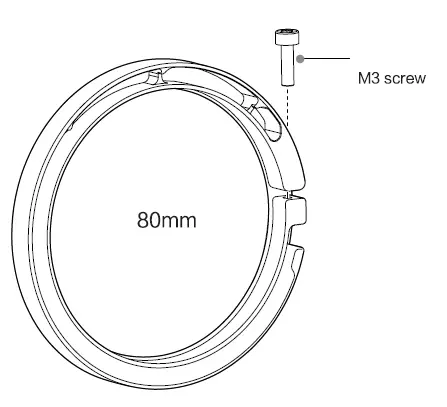

1. Mount 1 the 80mm adapter ring to any lens with an 80mm outside diameter. Tighten 2 the M3 screw.

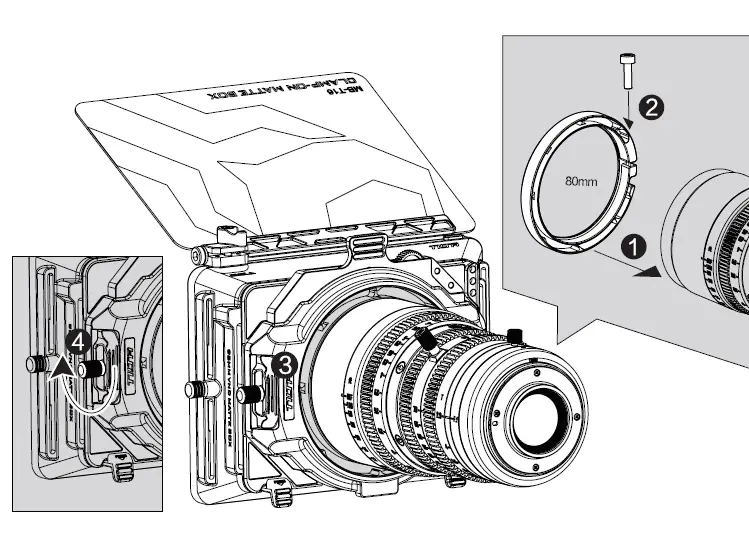

2. Mount the lens with the adapter ring attached to 3 the matte box and tighten the tie down screw.
