User Manual

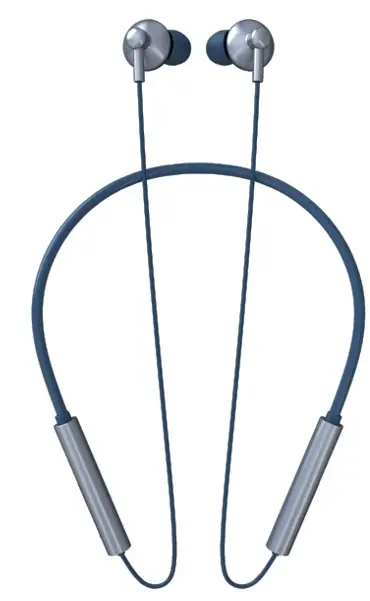

ZEB-YOGA N1 Wireless Neckband Earphone
Thank You for purchasing ZEB-YOGA N1 Wireless neckband earphone. Please read this user manual carefully before operation & save it for future reference.
Note: Please full charge the product with a power adapter output rated DC 5V before first time usage.
Do not self-disassemble the product or it will result in the failure of warranty. Make sure not to use this product at any high-temperature or high humidity environment.
Caution: Listening at high volume can cause hearing impairment. Please limit your usage time at high volume.
Features
Wireless BT earphone with Neckband Dual Pairing Metallic Ear Piece
Type-C Charging
Volume/Media Control
Call Function
Voice Assistant support
Flexible Neckband
Bui It-In Rechargeable Battery
Specifications
| BT Version | : 5.2 |
| Supported BT Profile | : HSP / SPP / A2DP / AVRCP |
| Drive size | : 14mm |
| Speaker impedance | : 320 |
| Playback time | : 20h* |
| Charging time | : 1 h |
| Standby Time | : 23 h |
| Talk time | : 8-9h |
| Net. weight | : 32g |
Package contents
| Neckband | : 1 U |
| Eartips | : 4 U |
| Charging Cable | : 1 U |
| QR Code Guide | : 1 U |
Usage Instruction:
Bluetooth Pairing Instructions:
STEP 1-Press and hold the MFB to power ON the earphones and to take them into pairing mode with Red & Blue LED blinking alternatively.
STEP 2- Switch ON the Bluetooth in your
mobile phone & search for the BT name “ZEB YOGAN1”
STEP 3- Once the BT name is visible in your mobile phone, tap to connect it.

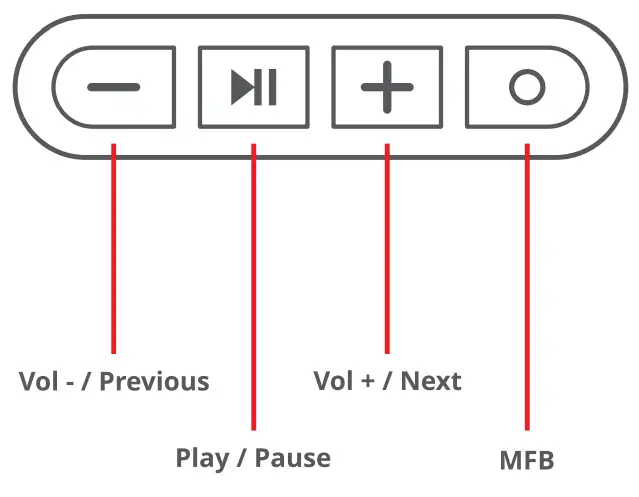

Product Representation
| Play/ Pause | : Music Play/Pause |
| MFB Press & Hold | : Wakes Voice Assistant |
| Short Press+/- | : Volume Up and Down |
| Long Press+/- | : Next I Previous number |
| For Call Function: | |
| MFB Short Press | : To Attend/ End the Call |
| MFB Long Press | : Call Reject |
| MFB Double Press | : Redial the last dialed |
Activating Smart Phone’s Voice Assistant:
When the neckband is connected to a mobile phone, Press and hold the MFB for 3 seconds to activate voice assistant.
Call Function:
- Short press the MFB to attend or end the incoming call.
- Press and Hold the MFB for 2 seconds to reject the incoming call.
- Double press the MFB to redial the last dialed number.
LED Indication:
| Charging Indication | : Red LED glows |
| Full Charge Indication | : LED turns Off |
| BT Discover mode | : Red & Blue LED |
blinks rapidly till it gets paired When Connected to a Phone: Blue LED will blink once in an interval of 5 sec
Charging Instruction:
Connect the Type-C charging cable to the charging port of the earphones & connect the other end to the DC 5V adapter.
ISO 9001:2015 Certified Company
www.zebronics.com
