SYLVANIA Lamps

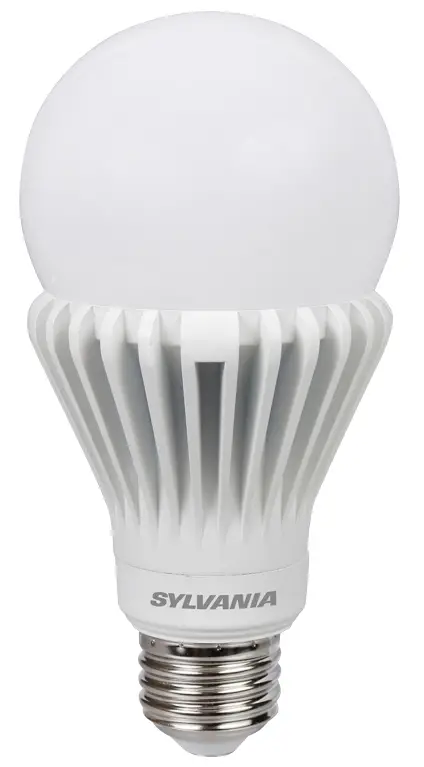

valued ™ High Lumen A-Line Lamp
Application
Value LED High Lumen A-Line Lamps are ideal for outdoor bollard or post-top applications and indoor low bay lighting.
Benefits and Features
- No warm-up time, instant-on with full light output and stable color
- Consumes up to 84% less energy than an equivalent HID lamps while delivering the same light output
- Passive cooling design (higher reliability with no internal fan)
- Rated for open and enclosed fixtures
- Up to 135 LPW
- 3000K, 4000K, and 5000K color temperatures
- CRI 80+
- 360° beam angle (or omnidirectional)
Electrical
- 120-277Vac
- Power Factor >90%
- 2kV surge protection
- Non-dimmable
Rated Life
- 17W & 24W: 40,000 hours (L70)
- 32W: 25,000 hours (L70)
Warranty
- Standard 5-year lamp warranty Ambient Operating Range
- -4°F to 113°F (-20°C to 45°C)
Wattage Comparison
| Traditional Source | Traditional System Wattage | LED System Wattage | Energy Savings | Energy Savings Over Lamp Life |
| HID Metal Halide | 50W HID/ 100W Incandescent | 17W | 83% | $456 |
| HID Metal Halide | 70W HID/150W Incandescent | 24W | 84% | $693 |
| HID Metal Halide | 100W HID/200W Incandescent | 32W | 84% | $924 |
Certifications and Listings
- ENERGY STAR®
- IP64 Rated
- cULus
- RoHS
- FCC*
- Lead-Free
- Mercury Free
* This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Please visit www.SYLVANIA.com/fccpart15b for more information.
Installation
- Requires easy ballast by-pass
- The lamp operates directly on line voltage, 120-277 Vac
Specification Data
| Catalog # | Type |
| Project | |
| Comments | |
| Prepared by |
Ordering Guide
| LED | XX | HIDE | XXX | UNIV | 8 | XX | MED |
| LED LED Lamps and Retrofits | Wattage 17, 24, or 32 Watts | Lamp Type HID Replacement | Lamp Shape A21, A23 or PS25 | Voltage Universal 120-277V | CRI 8 = 80+ | Color Temperature 30 = 3000K 40 = 4000K 50 = 5000K | Base Type MED = E26 Medium Base |
Ordering Information
| Item Number | Ordering Abbreviation | Power (W) | Base Type | Replaces | Lamp Shape | Input Voltage (V) | Average Life (hrs) | Typical Lumens (lm) | CCT | CRI | Power Factor | Dimming | Case Qty | ENERGY STAR® | CEC |
| 41033 | LED17HIDRA21UNV830MED | 17 | Medium base | 50W HID/100W Incandescent | A21 | 120-277 | 40,000 | 2040 | 3000K | 80+ | 0.9 | No | 6 | Yes | No |
| 41034 | LED17HIDRA21UNV840MED | 17 | Medium base | 50W HID/100W Incandescent | A21 | 120-277 | 40,000 | 2125 | 4000K | 80+ | 0.9 | No | 6 | Yes | No |
| 41035 | LED17HIDRA21UNV850MED | 17 | Medium base | 50W HID/100W Incandescent | A21 | 120-277 | 40,000 | 2125 | 5000K | 80+ | 0.9 | No | 6 | Yes | No |
| 41036 | LED24HIDRA23UNV830MED | 24 | Medium base | 70W HID/150W Incandescent | A23 | 120-277 | 40,000 | 3000 | 3000K | 80+ | 0.9 | No | 6 | Yes | Yes |
| 41037 | LED24HIDRA23UNV840MED | 24 | Medium base | 70W HID/150W Incandescent | A23 | 120-277 | 40,000 | 3310 | 4000K | 80+ | 0.9 | No | 6 | Yes | Yes |
| 41038 | LED24HIDRA23UNV850MED | 24 | Medium base | 70W HID/150W Incandescent | A23 | 120-277 | 40,000 | 3310 | 5000K | 80+ | 0.9 | No | 6 | Yes | Yes |
| 41039 | LED32HIDRPS25UNV830MED | 32 | Medium base | 100W HID/200W Incandescent | PS25 | 120-277 | 25,000 | 4000 | 3000K | 80+ | 0.9 | No | 6 | Yes | Yes |
| 41040 | LED32HIDRPS25UNV840MED | 32 | Medium base | 100W HID/200W Incandescent | PS25 | 120-277 | 25,000 | 4320 | 4000K | 80+ | 0.9 | No | 6 | Yes | Yes |
| 41041 | LED32HIDRPS25UNV850MED | 32 | Medium base | 100W HID/200W Incandescent | PS25 | 120-277 | 25,000 | 4320 | 5000K | 80+ | 0.9 | No | 6 | Yes | Yes |

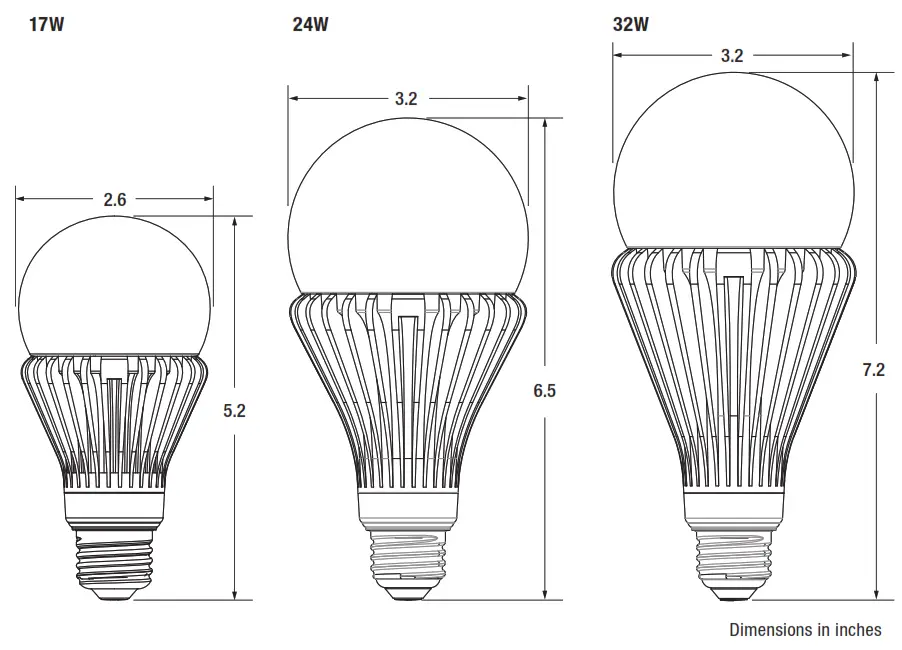

Physical Information
| (A) Height (inches) | (B) Diameter (inches) | |
| LED HIDR 17W | 5.2 | 2.6 |
| LED HIDR 24W | 6.5 | 3.2 |
| LED HIDR 32W | 7.2 | 3.2 |
Additional Specifications
- Verify fixture size before installation to ensure fit
- Cannot be used with dimmers
- Not suited for outdoor fixtures with air vents
- Should not be directly exposed to water
LEDVANCE LLC
200 Ballardvale Street
Wilmington, MA 01887 USA
Phone 1-800-LIGHTBULB (1-800-544-4828)
www.sylvania.com
SYLVANIA and LEDVANCE are registered trademarks.
All other trademarks are those of their respective owners.
Licensee of product trademark SYLVANIA in general lighting.
Specifications are subject to change without notice.
