Aprvtio ALD-200 Heated Diode Refrigerant Leak Detector
Notices
- Do not submerge the product in water or allow water to enter the intake of the probe.
- Do not expose the product to temperatures exceeding 60°C.
- Do not leave the product in direct sunlight for long periods of time.
- Do not dismantle or attempt repairs of the product without authorization.
- Do not change or replace the included lithium battery.
- Do not leave for more than 6 months without charging the battery to prevent damage.
- Do not use on objects with a charge or appliances connected to a power source.
- Ensure the filter is present and clean before performing a test.
- Ensure there is enough power before performing a test.
- Use only the supplied charging cable.
- Avoid the inhalation of refrigerant vapor. High concentrations are harmful and may lead to coma or death.

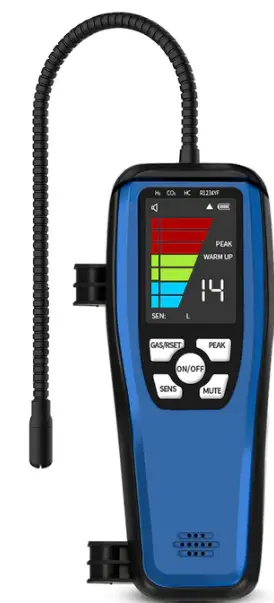

The LD-200 Refrigerant Leak Detector is a hand-held leak detector that uses the heated diode detection principle. Compared with the traditional leak detector, its sensor has a longer life,higher detection accuracy, easier to operate and can detect a wider range of refrigerants. The LD-200 has an ergonomic design and a large LCD screen for easy viewing.
Setup
- Power ( on/off the ): long press the on/off button.
- Reset sensitivity benchmark: long press the Reset button.
- Adjust sound: press the Mute button to cycle between low, medium and high buzzer volumes.
- Adjust sensitivity levels: press the Sens button. By default, sensitivity is set to highest.
Operation
- Check the device has a sufficient battery level.
- Turn on ( on/off button ) and wait for 30 seconds before testing.
- Adjust the sensitivity ( sens ).
- Slowly move the probe ( approx 3 inch/sec ) at a distance of 0.25 inch near the suspected leak area.
- Leakage intensity is proportional to the buzzer sound.

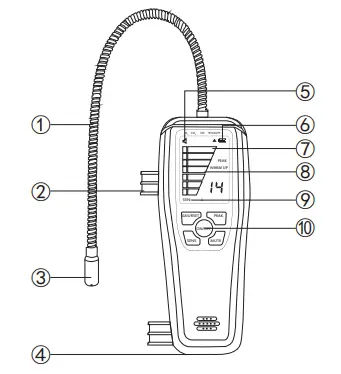

Accessories
- Flexible probe
- Case
- Probe tip
- USB Port
- Buzzer
- Battery
- Peak
- Leak
- Sensitivity
- Button
Specifications
- Sensor type: Heated Diode
- Sensor life: 10 years
- Max sensitivity: 4 g / yr
- Alarm mode: Sound, light and LCD display
- Battery: Built-in rechargeable lithium battery 3.7 V 2000 mAh
- Working time: Continuous 6 hours
- Charging time: 4 hours
- Charging current: 5V DC 1A
- Operating environment: -10°C to 52°C/ Relative humidity ( 20% to 85% RH )
- Storage temperature: -20°C to 60°C
- Weight: 415 g
- Dimension: 201x86x38 mm
- Certification: SAE_J1627, SAE_J2791, SAE_J2913, EN14624, 2012 CE Certification
