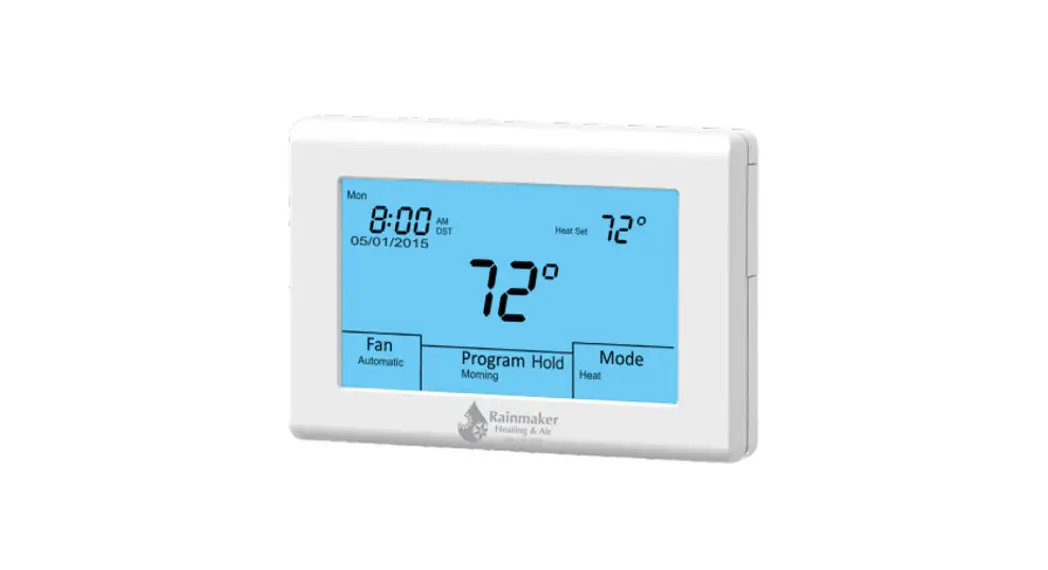

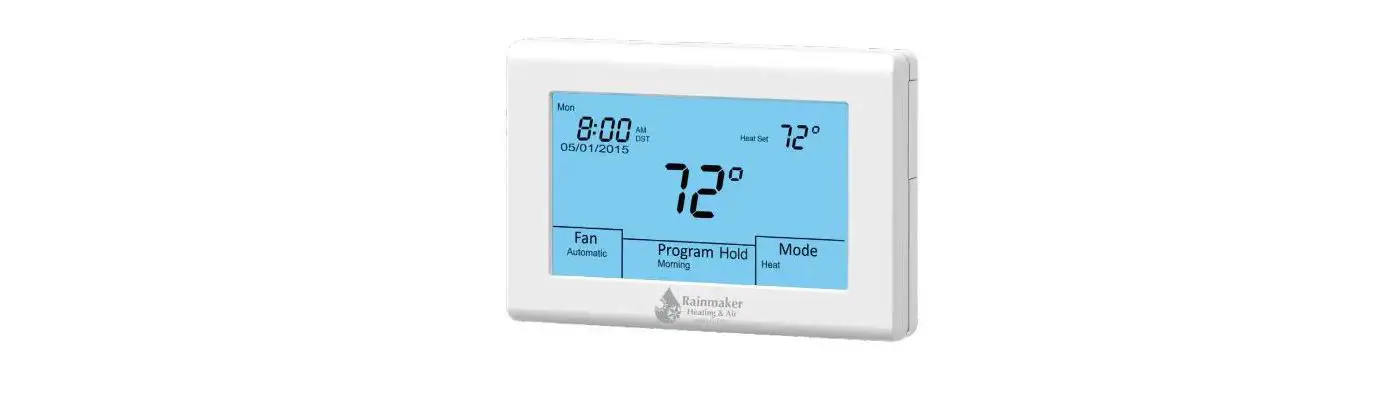

iO HVAC Controls UT32 Titan 3H or 2C Touchscreen Thermostat
The Titan thermostat is a low-cost, universal touchscreen thermostat available from iO HVAC Controls. The UT32 can be battery powered or hardwired which makes it ideally suited for use in residential and light commercial applications.
Features and Benefits
- Battery powered or hardwired
- Manual or auto changeover
- Programmable or non-programmable
- Up to 3H/2C, gas/electric, heat pump or dual fuel
- Keypad lockout
- Adaptive recovery
- Assignable auxiliary relay
- Adjustable heating and cooling setpoint limits
- Outdoor temperature display (with optional outdoor sensor, T-OTS)
- Temperature averaging (with optional indoor sensors, T-S1, T-S2)
- Short cycle protection
- High operating temperature makes it ideal for hot yoga rooms
Warranty
5 Years
Specifications
| Dimensions | 3.75” Height x 5.5” Width x 1.312” Depth |
| Display Size | 2.375” Height x 4.125” Width |
| Input Voltage | 24VAC, 50/60 Hz or 2 AA alkaline batteries |
| Relay Rating | 24VAC @ 1Amp maximum per relay |
| Operating Temperature | 32° F to 150° F |
| Operating RH | 0% – 90% (non-condensing) |
| Temperature Sensors | 10K NTC type 2 |
| Short Cycle Protection | 4 minutes |
| Setpoint Range | 41° F to 122° F |

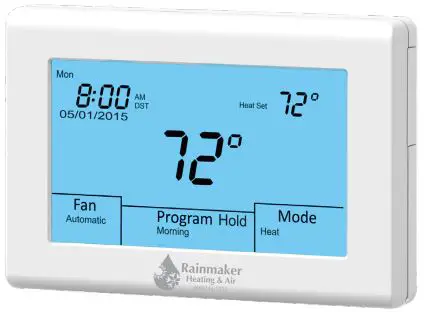

THERMOSTAT DIAGRAM
