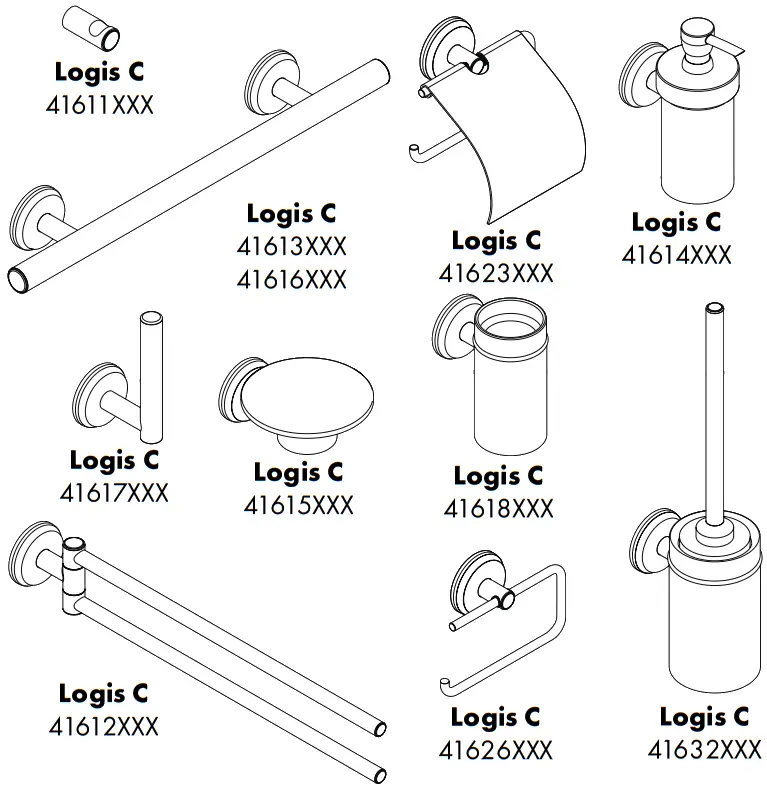

41613000 LOGIS Classic Wall Handle 300 mm
Instruction Manual
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries. Intended use of the handle 41613XXX: The handle is not a medical product, it is not intended for physically impaired persons, but only for general private use. Use only the handle for support, the remaining products are not intended to be used as supports. Check the proper attachment and tight seating of the installed products periodically (annually).
Installation Instructions
Where the contractor mounts the product, he should ensure that the entire area of the wall to which the mounting plate is to be fitted, is flat (no projecting joints or tiles sticking out), that the structure of the wall is suitable for the installation of the product and has no weak points. The enclosed screws and dowels are only suitable for concrete. For another wall constructions the manufacturer’s indications of the dowel manufacturer have to be taken into account.
Symbol description
 | Do not use silicone containing acetic acid! |

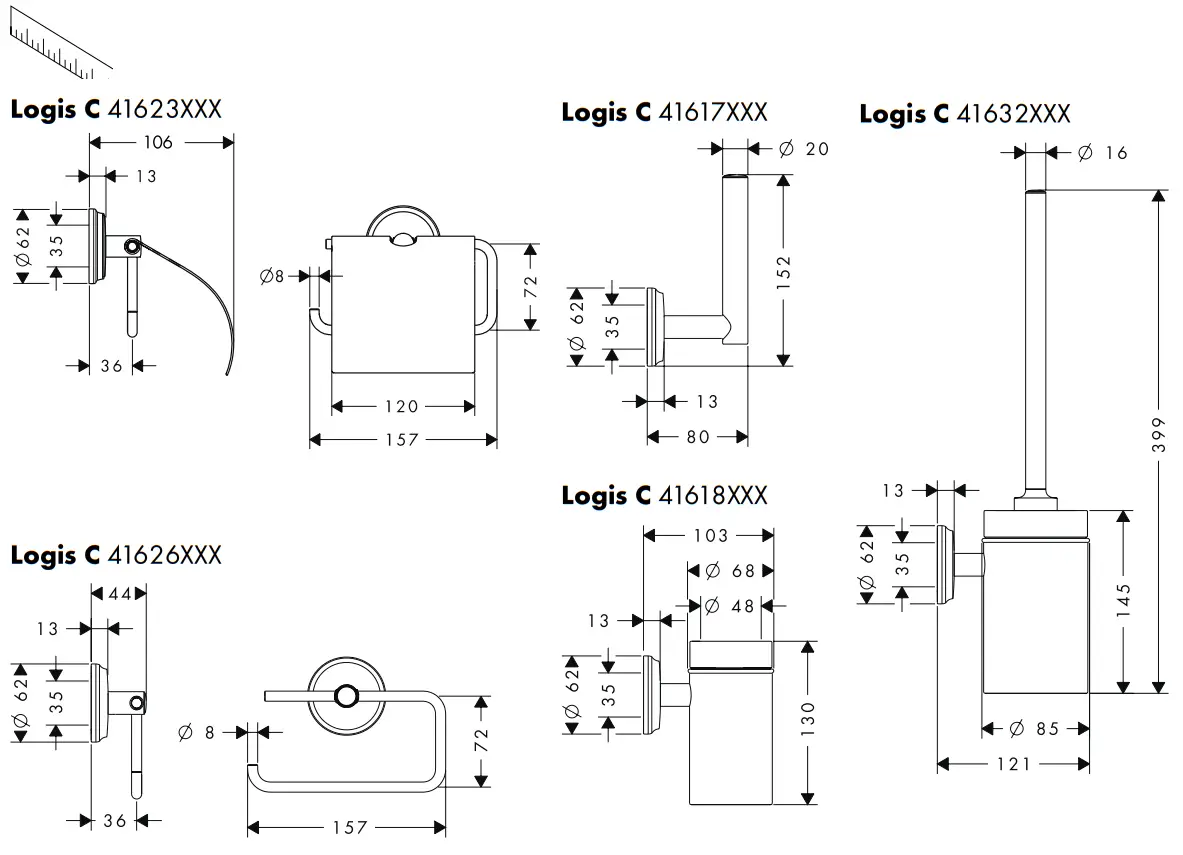

 | Dimensions (see page 16-17) The glass could be of a different size as illustrated due to it being blown by mouth. |

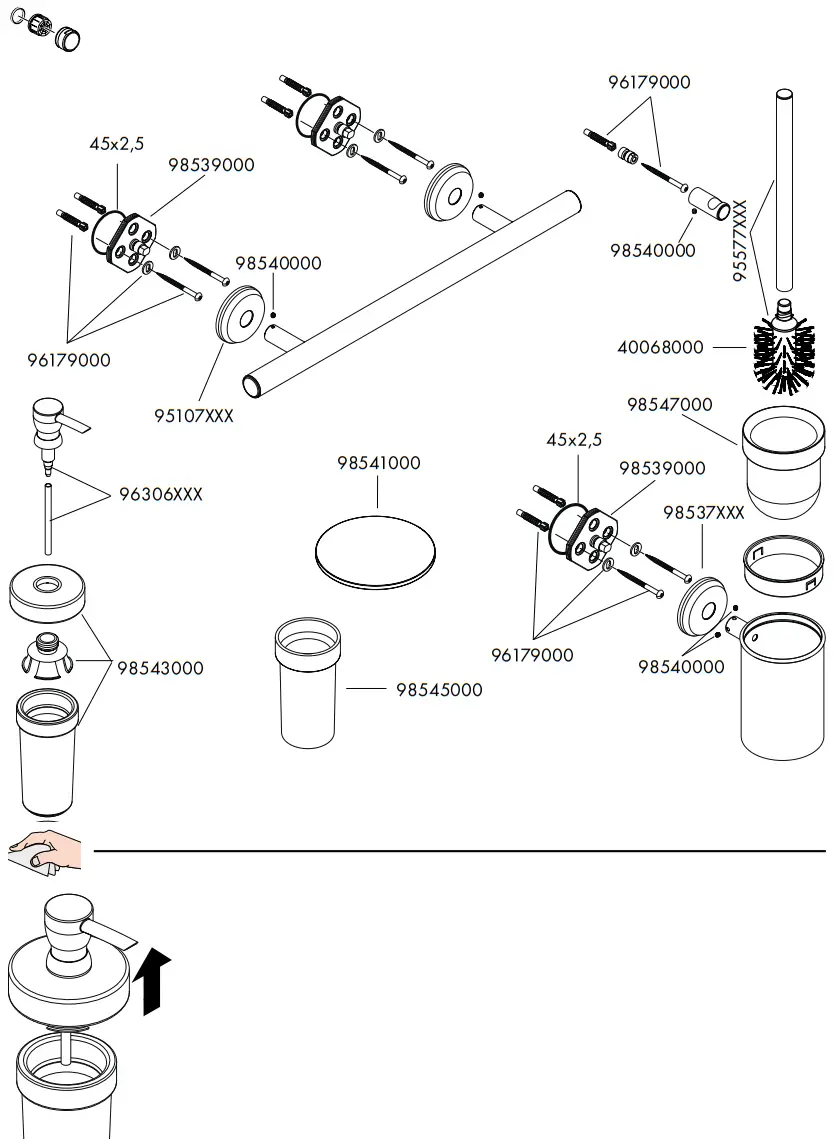

 | Spare parts (see page 20) XXX = Colors 000 = chrome plated 820 = brushed nickel |
 | Cleaning (see page 20) enclosed brochure Lift off pump and lid for filling and cleaning. |
Assembly

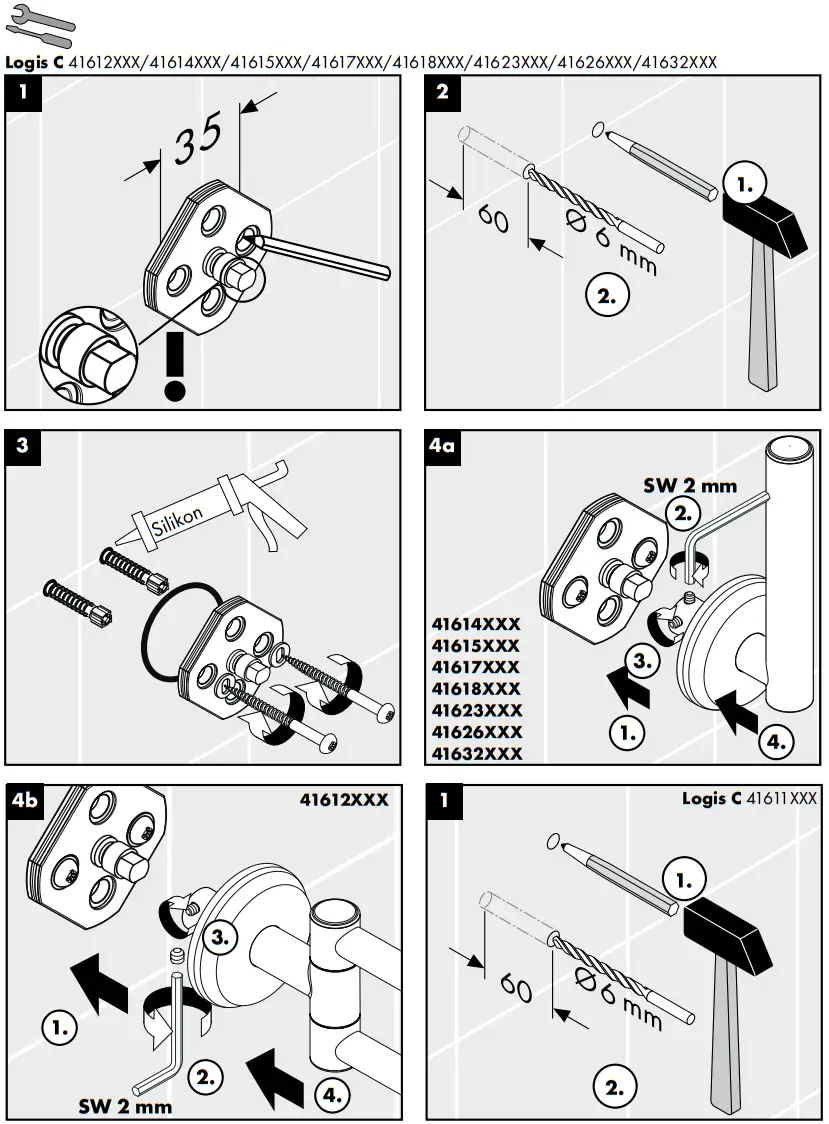

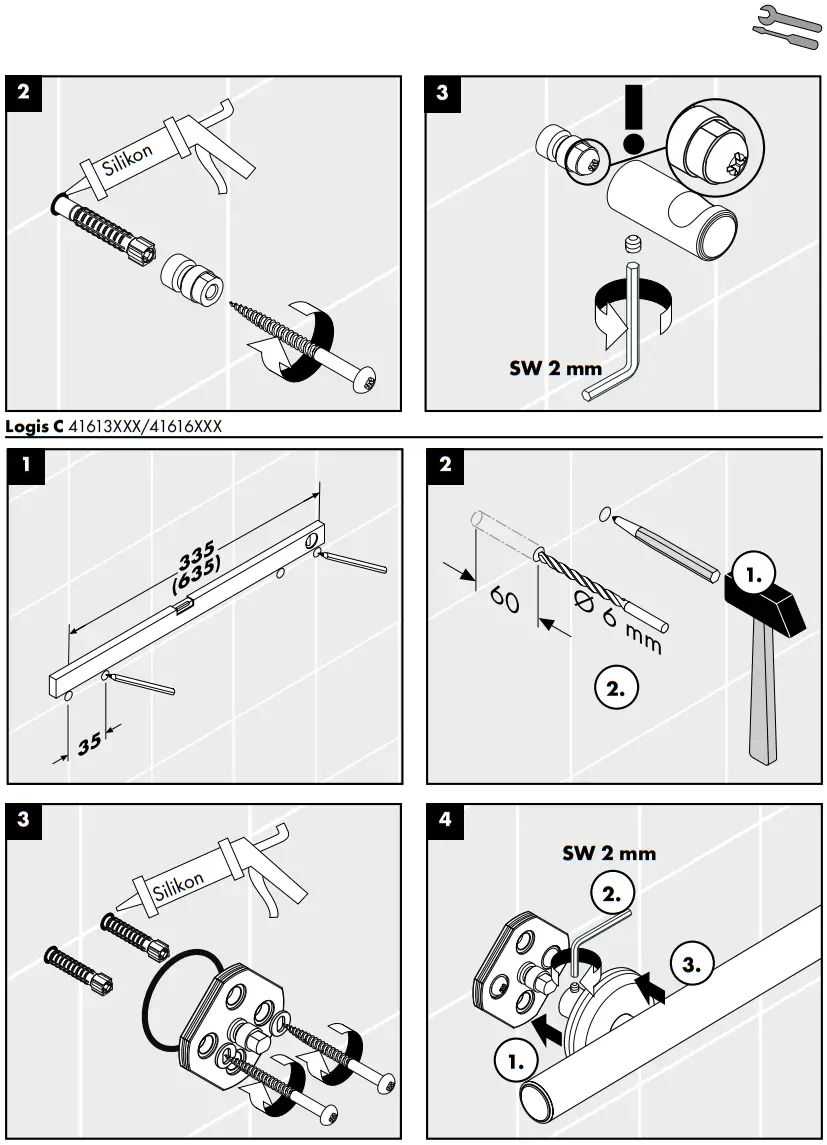

Assembly |  |
 |  |
 | |
