LINEAR TECHNOLOGY LTM8042 LED Driver Module Instructions

DESCRIPTION

Demonstration circuits 1511A-A and 1511A-B feature the LTM®8042 and the LTM8042-1, which are respectively com- plete 1A and 350mA µModule LED drivers. The demonstra- tion circuits are assembled as boost topologies, accepting an input voltage from 3V to 30V and supporting an output up to 32V (see Table 1). The default switching frequency is 600kHz for DC1511A-A and 950kHz for DC1511A-B, but can be adjusted by changing the value of RT. mode and buck mode (step-down). DC1511A includes a

DC1511A is easily configured to support other features, including PWM dimming, analog dimming, buck-boost P-channel MOSFET that is necessary for PWM dimming. The RADJ pin/terminal voltage controls the output current. Voltage is either applied directly to the terminal or set by a divider that includes resistor RADJ and the LTM8042’s internal 2V reference and divider resistor. Open LED over- voltage protection is also included. Consult the LTM8042/ LTM8042-1 datasheet for further information on how to properly use or modify the circuit.
Design files for this circuit board are available at http://www.linear.com/demo

L, LT, LTC, LTM, µModule, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.

PERFORMANCE SUMMARY            Specifications are at TA = 25°C

BOARD PHOTO

QUICK START PROCEDURE

Demonstration circuit 1511A is easy to set up to evaluate the performance of the LTM8042EV/LTM8042EV-1. Refer to Figure 1 for the proper measurement equipment set- up and follow the procedure below for a boost (step-up) topology.

1. Connect a string of LEDs with forward voltage 32V or less, but greater than the input voltage, to the LED+ (LED anode) and GND (LED cathode) terminals on the PCB, as shown in Figure 1.
2. With the power off, connect the input power supply to the BSTIN/BKLED– and GND terminals within the ranges specified in Table 1. Preset the DC input voltage within the recommended input voltage range for the appropriate forward voltage of the LED string.

Table 1. Input Range for Proper Operation (Refer to the

LTM8042/LTM8042-1 Datasheet)

3. Connect the PWM terminal. If PWM is not used, connect PWM to a 5V source or to the input voltage. PWM must be pulled high or the LEDs will remain off.
4. Turn the input power supply on.
5. Observe the LED string running at the programmed LED current.
6. For PWM dimming, connect a PWM 100Hz or higher frequency signal to the PWM terminal.
7. Observe the reduction of brightness in the LED string by varying the duty cycle of the PWM signal.

To use the DC1511A in a buck-boost mode topology, make the following modifications to the procedure.

1. At step 1, connect the cathode of the LED string to the BSTIN/BKLED– The LED forward voltage may be greater than the input voltage for buck-boost mode.
2. At step 2, refer to the datasheet buck-boost mode applications information table. Preset the DC input voltage within the recommended input voltage range for the appropriate forward voltage and current of the LED
   To use the DC1511A in a buck mode (step-down) topology, make the following modifications to the procedure.

1. Remove the 0Ω jumper at location R8 and instead install the jumper at location This shorts the VCC, TGEN and RUN pins/terminals to BSTOUT/BKIN instead of BSTIN/BKLED–.
2. At step 1, connect the cathode of the LED string to the BSTIN/BKLED– The LED forward voltage must be less than the input voltage for buck mode.

At step 2, connect the input power supply to BSTOUT/ BKIN and GND. Refer to the datasheet buck mode applications information table. Preset the DC input voltage within the recommended input voltage range for the appropriate forward voltage and current of the LED string.

QUICK START PROCEDURE

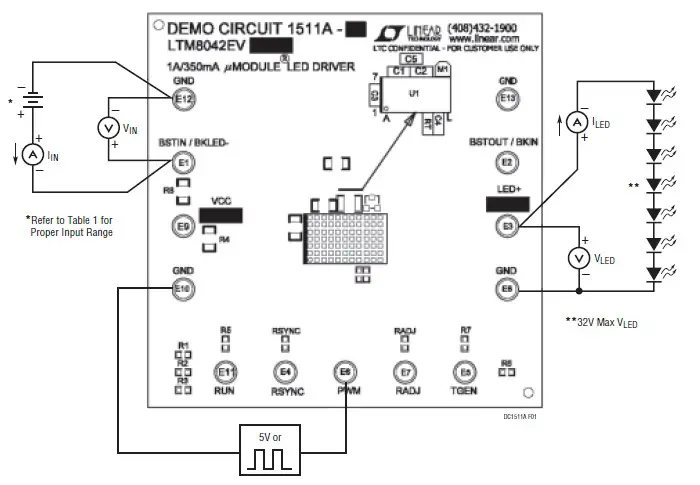

Figure 1. Proper Measurement Equipment Set-Up (Boost Topology)

Figure 2. DC1511A-A Efficiency vs VIN Boost Operation, 16.7V at 1A LED String

Figure 3. DC1511A-B Efficiency vs VIN Boost Operation, 24.8V at 350mA LED String

DEMO MANUAL DC1511A

PARTS LIST

LTM8042EV

Required Circuit Components

Additional Demo Board Circuit Components

Hardware, for Demo Board Only

LTM8042EV-1

Required Circuit Components

Additional Demo Board Circuit Components

Hardware, for Demo Board Only

SCHEMATIC DIAGRAM
