1more Ess6001t Colorbuds Wireless Earbuds Bluetooth 5.0 Headphone User Guide

1MORE ESS6001T Colorbuds Wireless Earbuds Bluetooth 5.0 Headphone

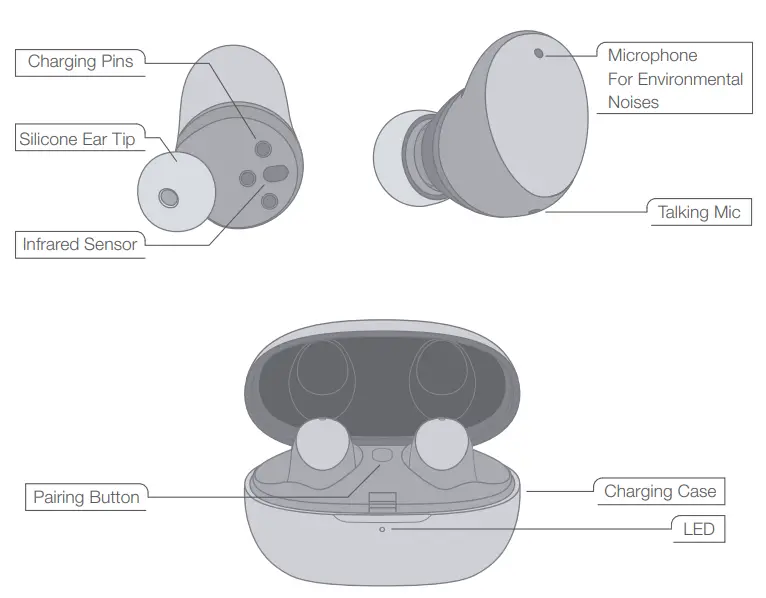

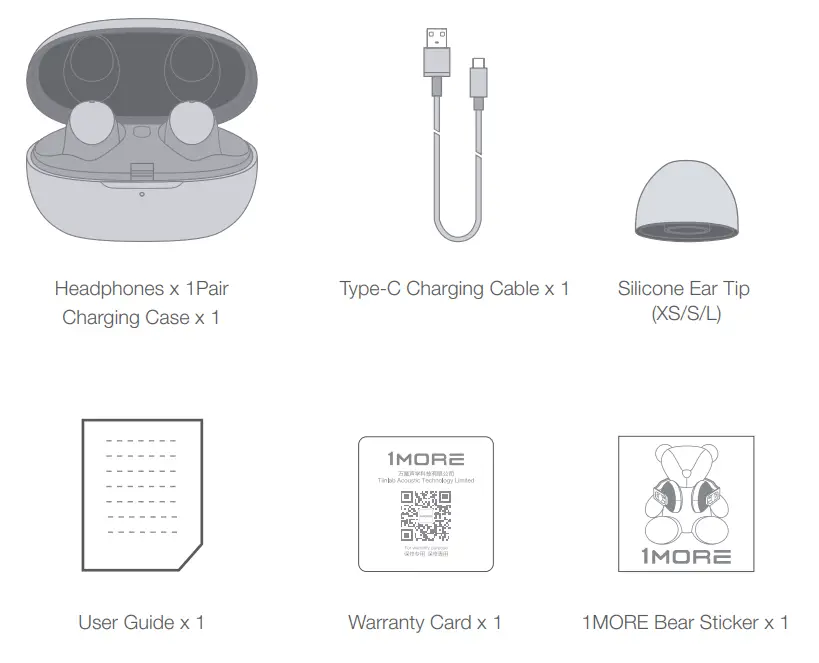

In The Box Product Overview

Fit

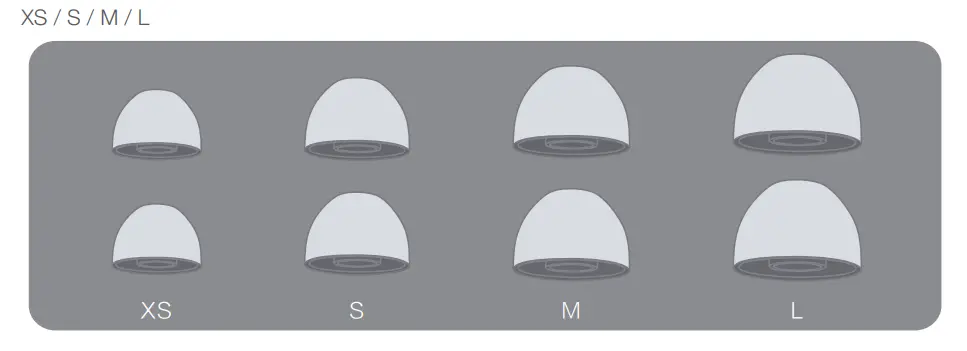

Silicone Ear Tip

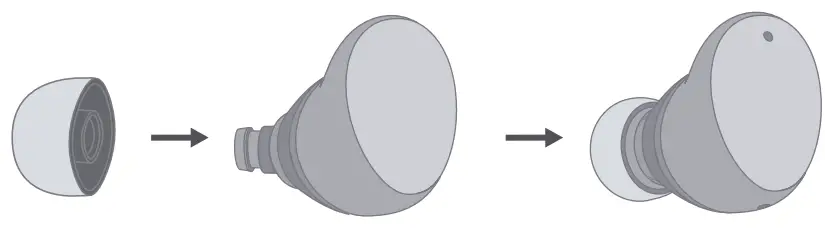

Replace

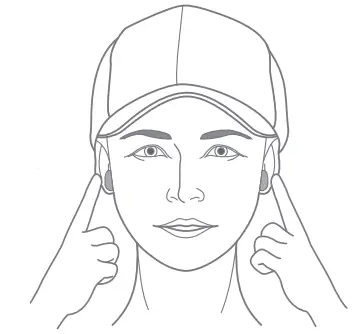

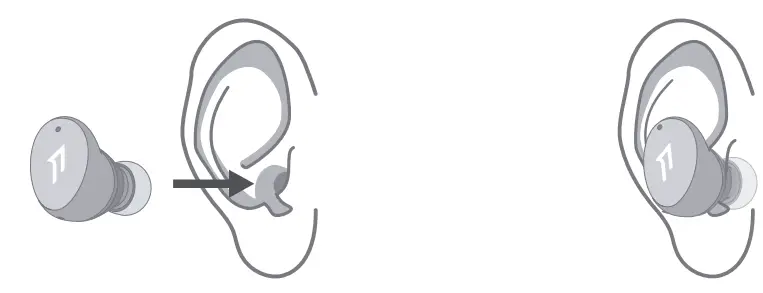

Placement Power

Headphones Pairing

1. The Left and Right headphones will automatically pair with each other after the lid is open when they are in the case (with charge).
2. If the Left and Right headphones taken out of the case have been powered off or in sleep mode, put the headphones back into the charging case (with charge), they will pair to each other automatically.

Switching Primary/Secondary Between Left and Right Earbuds

The default setting with the earbuds is Right as the Primary and Left as the Secondary. As the Primary, the Right earbud will automatically connect to your device, while the Left earbud connects to the Right (when same battery level).

1. The left earbud will switch to Primary when the battery level of the Left earbud is 30% higher than the Right.
2.  If Primary becomes out of range from a connected device, then the Secondary will switch to Primary and initiate pairing mode to connect to your device. Previous Primary will enter Left & Right pairing mode.

Bluetooth Pairing To The Device

To connect to your device during the first use, turn the headphones on to enter pairing mode, the red and blue lights of the Primary earbud will flash alternatively. Headphones will power off if not paired to a device within 3 minutes.
* After the first successful pairing, headphones will automatically connect to your device. To skip the previously paired device and pair it with a new one, put headphones back into the case, press and hold the pairing button for 2 seconds and select the new device name when powered on (no music or phone calls) to re-enter pairing mode.

* Above functions are available for either earbuds in individual or Stereo mode.

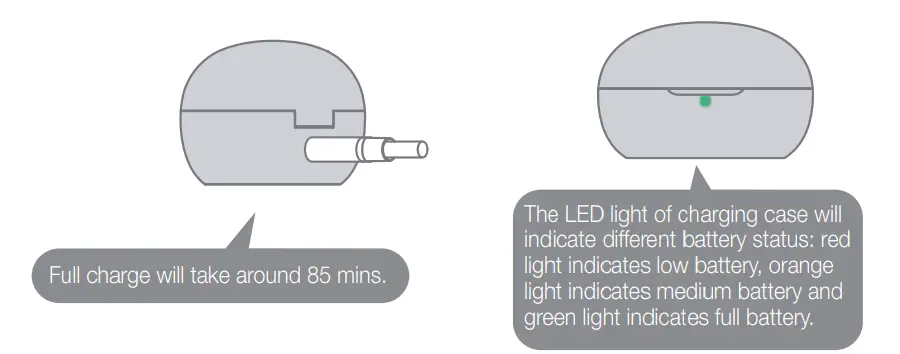

Charging

1. To charge the case with a Type-C cable.

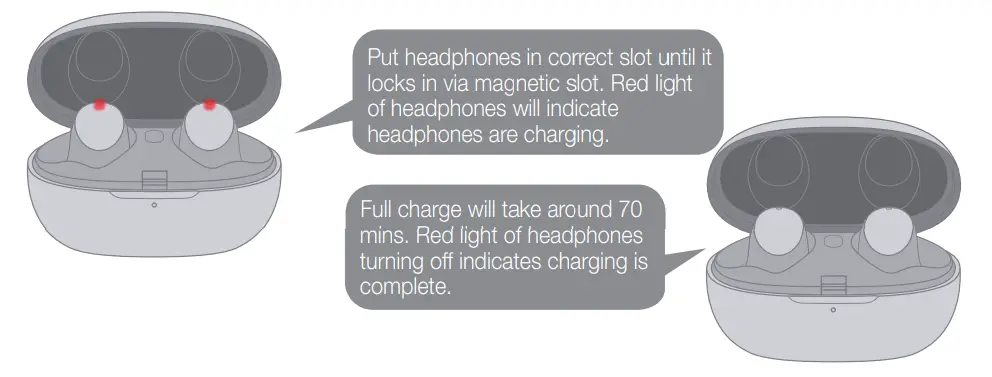

2. To charge the headphones with the case.

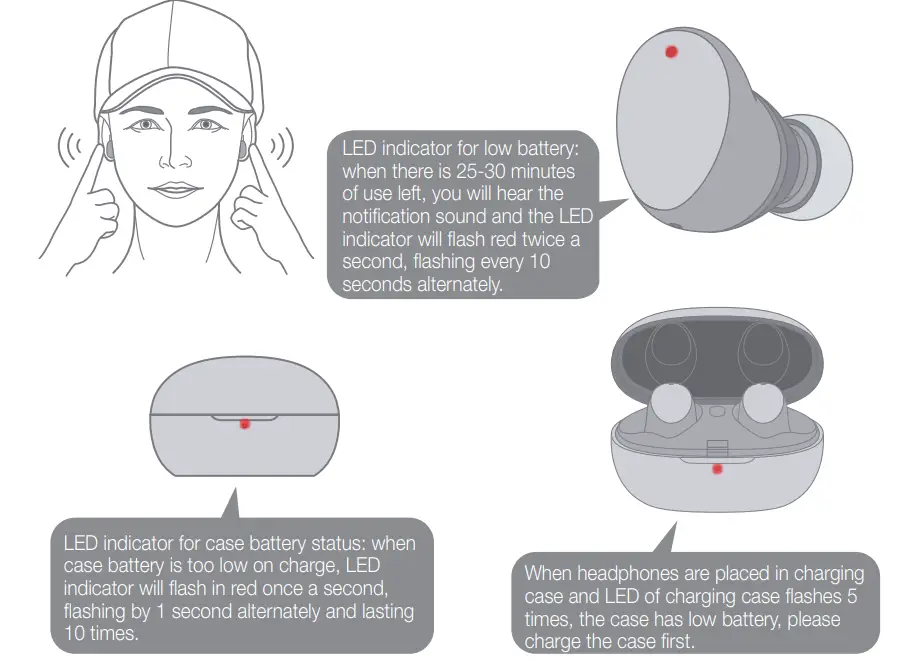

Battery Notification

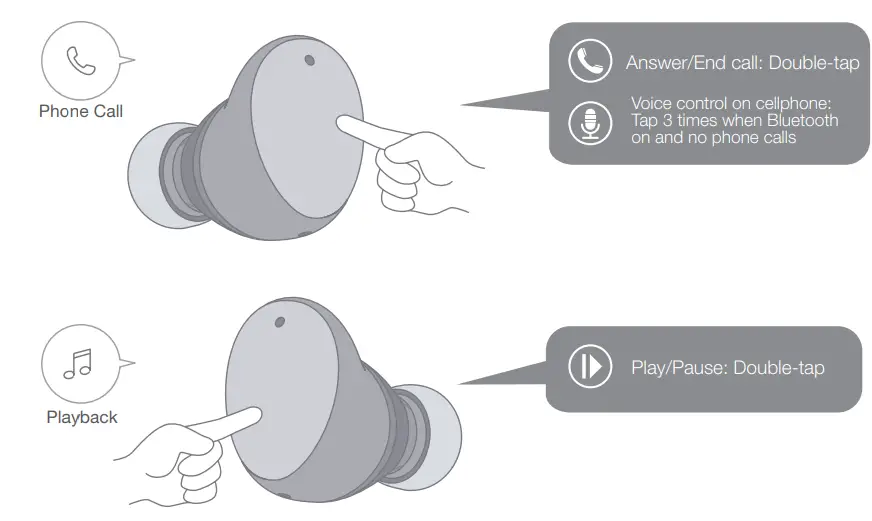

Tap Controls

Phone and music can be controlled by tapping the outside of the earbuds.

• The above functions are available for either earbud in individual or Stereo mode.
• To decline a call, change a song, or control volume, please operate on paired mobile phone or device.
• The above functions may vary with different devices.

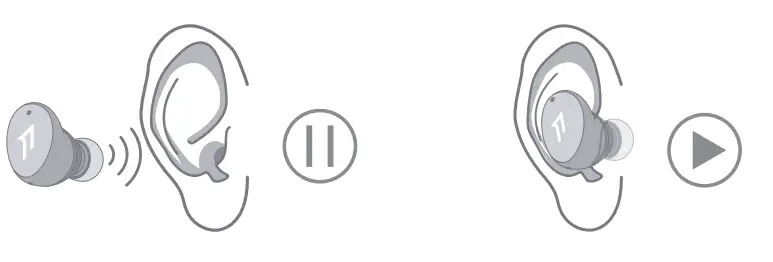

Smart Playback

An IR Sensor automatically detects when you take out your headphones to stop playback intuitively and resumes playback when you put them back in. To turn off Auto-Play connect the headphones to the 1MORE Music APP.

Extra Functions

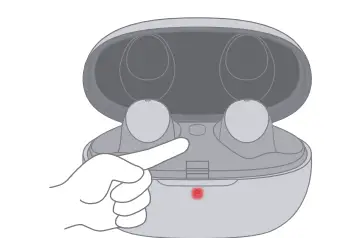

1. If headphones cannot pair normally when powered is on. Open the case, and quickly click the pairing button in the case 3 times to initially search for Left & Right pairing.
2. For single mode: put Left and Right earbuds in the case, double-click the pairing button and enter the separate pairing for a single earbud. Then the Left and Right earbuds can be connected to different cellphones.
3. To unpair the cellphone:
   Put both L & R into the case, and then press and hold the pairing button in the case for 8 seconds.
4. OTA Firmware Update: can be done synchronously with 1MORE Music APP when Left and Right headphones Bluetooth paired to each other.
   * Functions of 1MORE MUSIC APP may vary with different cellphones or operating systems.
   For more details, please contact our customer service.

SPECIFICATION

• Model: ESS6001T Headphone
• Weight (Single): 4.1 g
• Case Weight: 32.1 g
• Product Weight: 40.3 g
• Headphone Size: 27 x 21 x 20 mm
• Case Size: 60 x 30 x 38 mm
• Impedance: 22 Q
• Wireless Range: 10 m
• Headphone Battery Capacity (Single): 55 mAh
• Case Battery Capacity: 410 mAh
• Headphone Charging Time: 70 mins
• Case Charging Time: 85 mins
• Battery Life
  *Headphones fully charged
• Talk Time: 6 hours
• Playback Time: 6 hours*
  *Headphones and case fully charged
• Talk Time: 22 hours
• Playback Time: 22 hours*
• Bluetooth: Bluetooth5.0 h
• Bluetooth Protocol: HFP/A2DP/AVRCP
• Input: 5V1A
• Working Temperature: 0C~45 C
• Frequency Band: 2.400 GHz ~2.4835 GHz

The specifications are acquired from laboratory tested data. The playback time, tested under the laboratory condition of AAC format and 50% volume, may vary with different device setting, environments, usage and other factors.
Manufacturer: Twinlab Acoustic Technology Limited Address: Tianliao Building 1403, Zone A Tianliao Industrial Park, Taoyuan Str., Nanshan Dist., Shenzhen, P.R. China Product information can be found at www.1more.com

1MORE (1) Year Limited Warranty

1MORE Inc., (“1MORE”) warrants to the original retail purchaser that this product is to be free from defective materials and workmanship for a period of one year from the date of purchase if it is properly used and maintained. If this product proves defective in either material or workmanship, 1MORE, at its option, will (a) repair the product with new or refurbished parts, or (b) replace the product with an equivalent new or refurbished product, at no charge for parts or labor. If the product model is no longer available and cannot be repaired effectively or replaced with an identical model, 1MORE at its sole option may replace the unit with a current model of equal or greater value. In some cases, modification to the mounting surface may be required where a new model is substituted. 1MORE assumes no responsibility or liability for such modification. TO OBTAIN A REPAIR OR REPLACEMENT UNDER THE TERMS OF THIS WARRANTY, PLEASE RETURN TO THE ORIGINAL DEALER FIRST AND THE ORIGINAL DEALER SHALL REPAIR THE PRODUCT WITH NEW OR REFURBISHED PARTS OR REPLACE THE PRODUCT WITH AN EQUIVALENT NEW OR REFURBISHED PRODUCT. You will be required to submit proof of purchasing details, including but not limited to a receipt or sales invoice.
Return shipping for exchanges/repairs is the sole responsibility of the original retail purchaser.
Limitations:

• This limited warranty does not cover the failure of the product resulting from improper installation, misuse, abuse, accident, neglect, mishandling, or wear from ordinary use or environmental deterioration.
• This limited warranty does not cover cosmetic damage, including paint damage, or consequential damage to other components or premises which may result for any reason from the failure of the product.
• This limited warranty is null and void for products not used in accordance with 1MORE’s instructions.
• This limited warranty is null and void for products with altered or missing serial numbers and for products not purchased from an AUTHORIZED dealer.
• This limited warranty terminates if you sell or otherwise transfer this product to another party.

We Appreciate Your Business

We know you will enjoy new 1MORE headphones as much as we do. At 1MORE, we value your satisfaction. If you would like more details on this product or any of our other products, please visit us online by scanning the QR code. Go to www.1more.com and sign up for VIP, and 1MORE will treat you like one.

Tips

1. Please read this instruction manual carefully and retain for future reference.
2. Please fully charge the battery before first use.
3. If the headphones have been unused for more than 3 months, we recommend that you charge them. This will improve battery capacity.
4. Only use charging cables and adapters that are FCC (Federal Communications Commission) approved.
5. In dry environments, static electricity may numb your ear. This is not related to the quality of the product.

Safety Information

1. Never disassemble the headphones. There are no user-serviceable parts inside.
2. Do not expose the headphones to temperatures below 32 °F (0 °C) or to temperatures above 113 °F (45 °C).
3. do not use the headphones in a thunderstorm storm. This could prevent the headphones from working properly, and also increase your chance of being electrically shocked.
4. Do not use oil or any volatile liquid to clean this product.
5. Do not listen at high volumes for extended periods of time.
6. Do not use headphones in traffic. Do not use the headphones any time it would be dangerous to be unaware of noises around you.
7. Adult supervision is required for children of age 6 and under.
8. If you don’t feel comfortable after wearing the headphones, please refer to an aurist for advice on whether in-ear headphones are suitable for you.

WEEE
Electrical and electronic equipment, parts and batteries marked with this symbol must not be disposed of with normal household wastage, they must be collected and disposed of separately
to protect the environment.
Your 1MORE retailer will advise you of the correct way of disposal in your country.
Safety Caution
Do not expose batteries or battery packs to excessive heat such as sunshine, fire, or the like.
CE
Declaration of Conformity Hereby, Tiinlab Acoustic Technology Limited declares that the radio equipment type 1MORE ColorBuds True Wireless In-Ear Headphones of ESS6001T is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:www.1more.com
RF exposure information: The device has been evaluated to meet the general RF exposure requirements. The device can be used in portable exposure conditions without restriction. Radiation Exposure Statement Power is so low that no RF exposure calculation is needed.
Declaration for EU Compliance
Operation Frequency/Max. EIRP: 2400-2483.5MHz, Left ear Max. EIRP is 9.08dBm, Right ear Max. EIRP is 8.88dBm.

Warning
Replacement of a battery with an incorrect type that can defeat a safeguard (such as catching fire, explosion, leakage of corrosive electrolyte, etc);
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;
Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas, and A battery subjected to the extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
The symbol indicates DC voltage.
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2014/53/EU in order to be recycled or dismantled to minimize its impact on the environment.
User has the choice to give their product to a competent recycling organization or to the retailer when he buys new electrical or electronic equipment.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

FCC

The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device type ESS6001T (FCC ID: 2ASDIESS6001T) has also been tested against this SAR limit.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: ]

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changesto this equipment. Such modifications or changes could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Supplier’s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier:
Trade Name: 1MORE
Model No.: ESS6001T
Responsible Party – U.S. Contact Information 1MORE USA, Inc.
Address: 10225 Barnes Canyon Road, Suite A202, San Diego, California, 92121 Tel: 1-855-551-6673
E-Mail: [email protected]

IC Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1. (1) this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme avec Industrie Canada RSS exemptes de licence standard(s).

This device has been tested for compliance with IC SAR values at a typical operation near the body. To ensure that RF exposure levels are below the levels tested, use accessories with this equipment to maintain a minimum separation distance of 0 cm between the body of the user and the device. These accessories should not contain metallic components. It is possible that the accessories used close to the body that do not meet these requirements are not consistent with the SAR limits and it is advisable to avoid using them.

FAQS

Why the headphones cannot be turned on?

Check if your headphones have enough battery life. If not, please charge them for at least 30 minutes.
Why the headphones cannot connect to my cellphone, or take a long time to connect?

1. If the earbuds cannot pair to one another, and only one earbud will pair with your cellphone, then put both buds back into the charging case and quickly press the pairing button 3 times, click the device name, they should now pair correctly to the phone.
2. to pair the earbuds to a new cellphone, simply place them into the charging case and depress the pairing button for 2 seconds. Then click the new device name and pair with the new cellphone.

Why the headphones cannot play music after successfully connecting to my Android device?

After pairing successfully, on the Bluetooth menu of your device, tap the icon on the right of your device name and make sure the “Media Audio” option is on.

Why there is no sound from the headphones while making phone calls after successfully connecting to my Android device?

After pairing successfully, on the Bluetooth menu of your device, tap the icon on the right of your device name and make sure the “Phone Audio” option is on.

Why the Bluetooth connection is not stable and causing some interruptions?

1. Try shortening the distance between your headphones and your device. Avoid solid barriers in between.
2. Please keep away from strong interference sources, such as Wi-Fi and GPRS.
3. Please make sure the Bluetooth antenna of your device is not blocked.

Why some control functions do not match those in the manual while using third-party music/video player Apps?

Your operating system and the third-party music/video player apps may have different settings for the in-line remote control functions. We recommend that you use the music/video player apps that your device has originally provided.

I turned the headphones up to the maximum volume, but why the actual volume still sounds low?

In different operating systems, especially some Android systems, the headphones and your device have separate volume control systems. Please adjust the volume controls on both the device and the headphones according to your preference.
* For more detailed product FAQs, please visit the product support section under www.1more.com
