BA 19A Condenser Boundary Microphone for Instrument Applications
User Guide

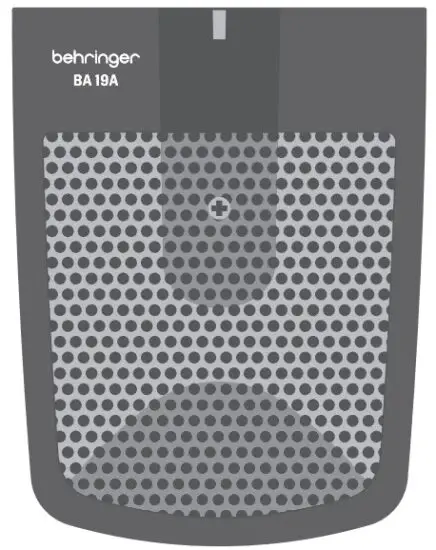

BA 19A
Condenser Boundary Microphone for Instrument Applications
Features
- Condenser boundary microphone for acoustic instruments
- Frequency response for kick drums, piano, and bass-heavy instruments
- Integrated preamplifier for outstanding signal integrity
- Half-cardioid polar pattern minimizes background noise and feedback
- Switchable filters for stronger lows and high-frequency attack
- The extremely high signal output which lets the sound cut through
- Requires no external mounting
- Impact-resistant carrying case included
- Rugged, reliable metal construction
Frequency Response Curve

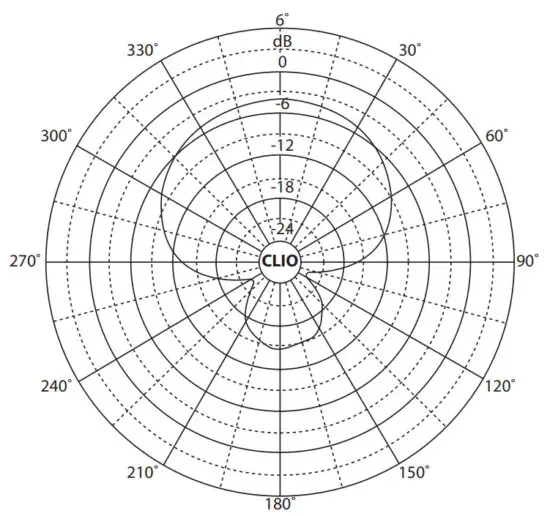

Polar Pattern
Specifications
| Type | Condenser |
| Frequency response | 50 Hz to 18 kHz |
| Impedance | 1500 |
| Phantom power | 48V |
| Connector | 3-pin |
| Polar pattern | Half-cardioid |
| Sensitivity | -53 dEt.t.3 dEbY I kKz(1 V/Pa) |
| Weight | 493g |
Behringer is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated..
