NEFP32-5019W-IOT Stylus
CARA ELITE WALLMOUNT ELECTRIC FIREPLACE
Instruction Manual
Specifications
| Model | BTU | Width | Height | Depth | Viewing Area |
| NEFP32-5019W-IOT | 5,000 | 59 1/8 | 20 5/16 | 11 | 12 x 31 7/8 |
Appliance Overview
Your NEFP32-5019W-IOT electric appliance comes fully assembled with the exception of media (see “finishing” section for more details). It consists of the following two components:

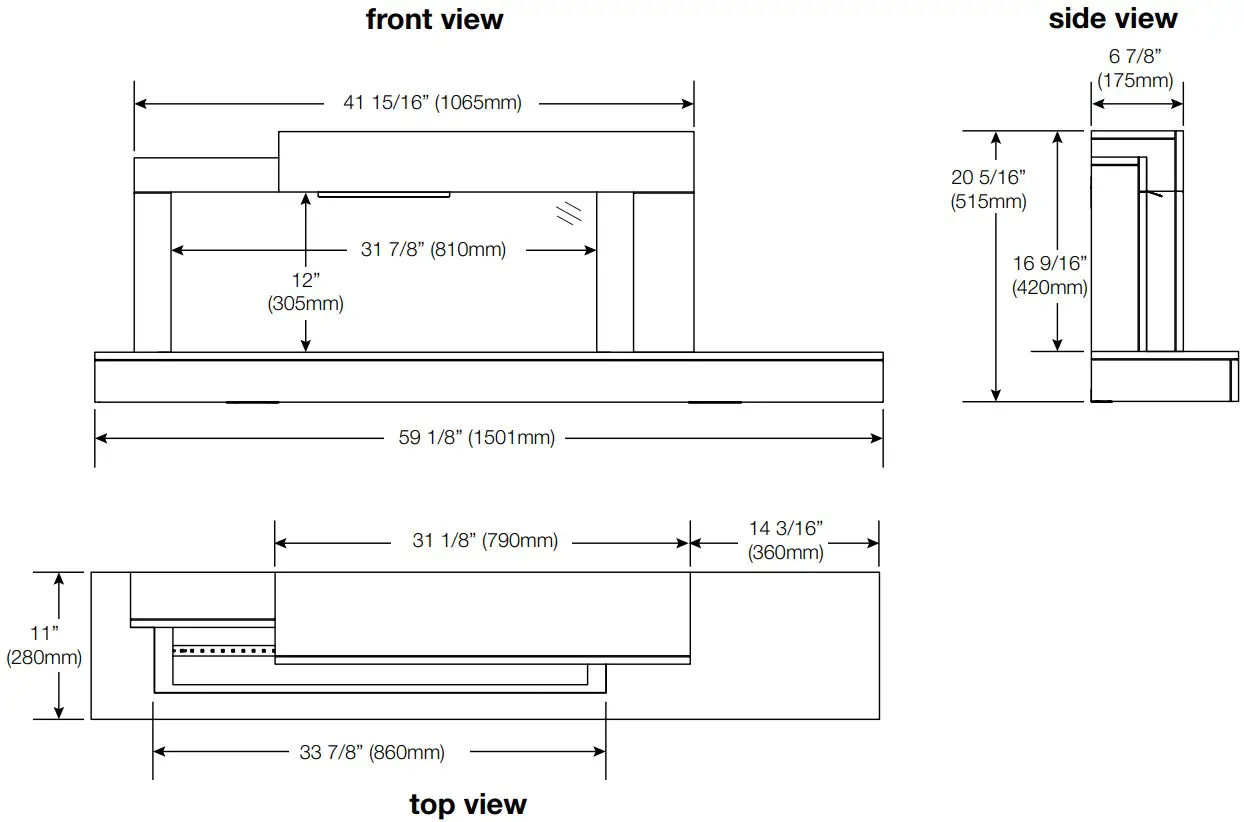

Dimensions
Product information provided is not complete and is subject to change without notice. Please consult the installation manual for the most up to date installation information.

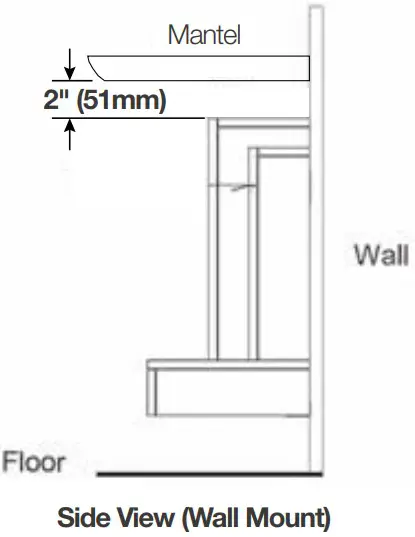

Minimum Mantel Clearances
WARNING
• When using paint or lacquer to finish the mantel, the paint or lacquer must be heat resistant to prevent discolouration.
note:
Although this appliance is safe to operate with a 0″ mantel height, a 2″ (51mm) gap between the appliance and the mantel is recommended in order to lift the appliance on/off the rear wall bracket hooks.

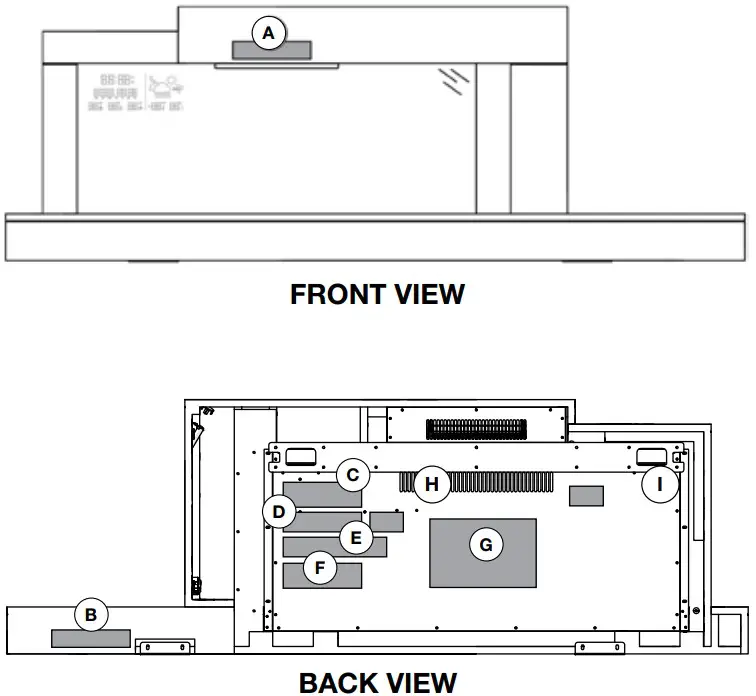

Label Location
| Ref. | Part Number | Label Description |
| A | W385-1946 | Do Not Cover |
| B | W385-2016 | C.A.R.B. Label |
| C | W385-2167 | Caution |
| D | W385-2163 | Warning |
| E | W385-2348 | Hardwiring |
| F | W385-2559 | Rating Plate |
| G | W385-2561 | Wiring Diagram |
| H | – | FCC Label |
| I | – | Wifi DSN Number |
W415-4106 / 09.20.22
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 0G8 Canada
1(866)820-8686
www.napoleon.com
