IST009- 0520
CECI
IN-GROUND
MODEL:
Ceci 160
Ceci 120
Ceci 90
MADE IN ITALY
www.fumagalli.it
GU10 LED Bulb Dimmable 5W
CAUTION! Installation and maintenance procedures must be carried out only after switching off the electricity supply. Use energy saving lamps only.

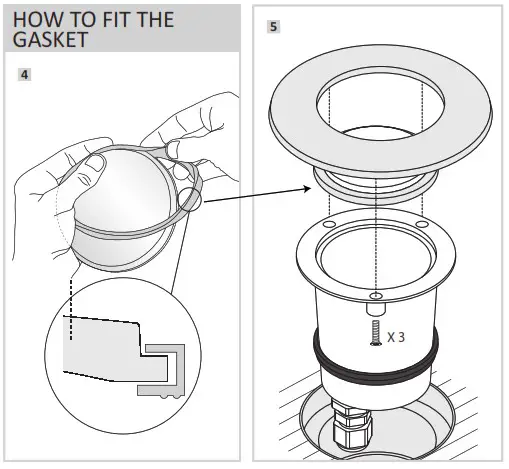

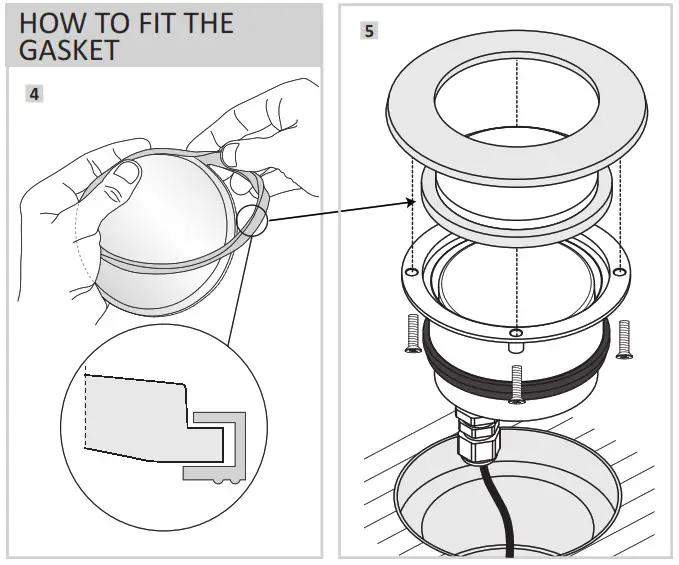

If present, fit the gasket properly inside the diffuser, to ensure the IP protection. Fumagalli Srl accepts no responsibility whatsoever for damages caused by incorrect installation, misuse or when used by combining it with non-original spare parts. If in doubt, consult a qualified electrician. Keep the instructions.

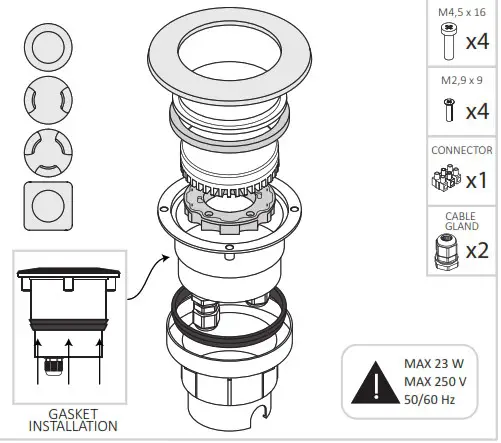

CECI 120 – CECI 160
GX53 LED
GROUND INSTALLATION

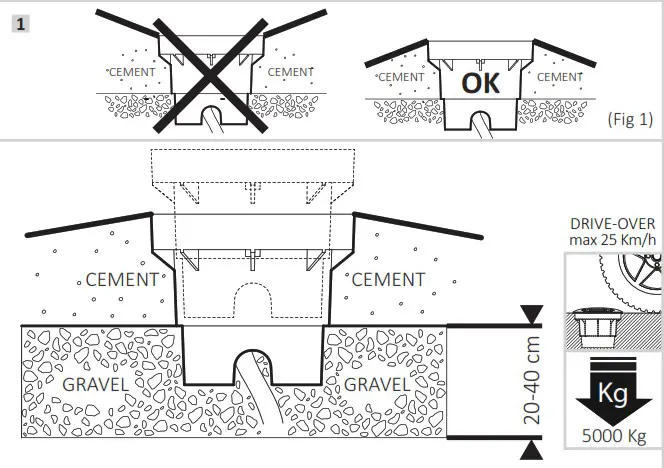

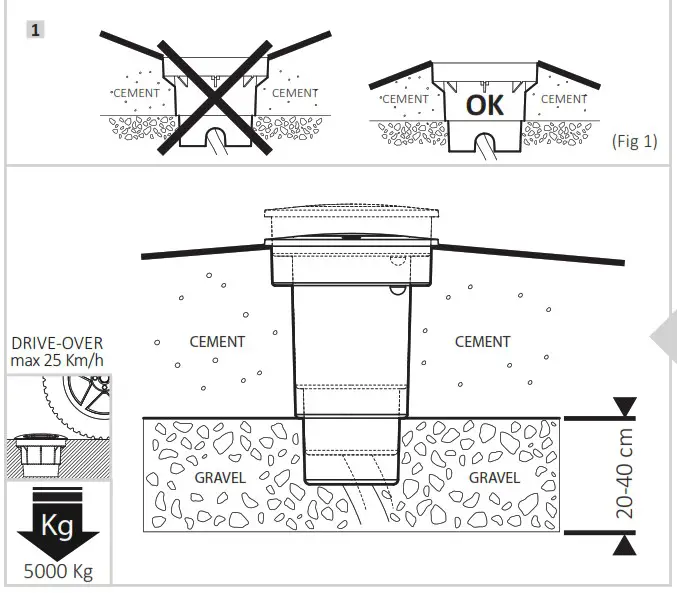

To ensure good drainage and to avoid water stagnation, provide a 30 cm draining gravel layer or a draining pipe system.
Caution! Do not install the luminaire on hollow areas or on standing water areas (Fig. 1).

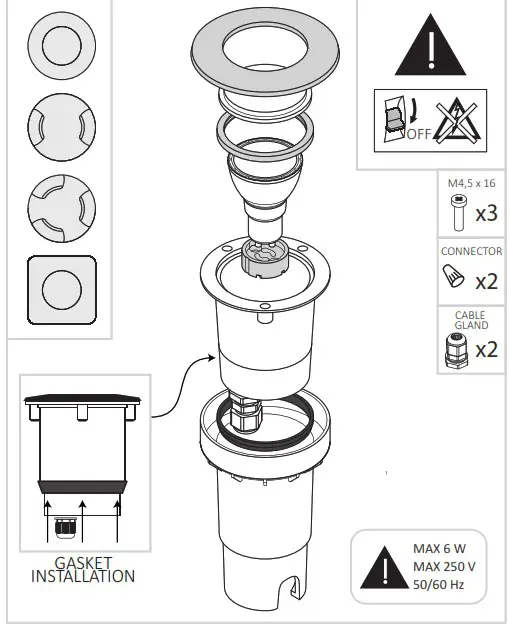

CECI 90
GU10 LED
GROUND INSTALLATION
To ensure good drainage and to avoid water stagnation, provide a 30 cm draining gravel layer or a draining pipe system.
Caution! Do not install the luminaire on hollow areas or on standing water areas (Fig. 1).
WARRANTY
Fumagalli products are marked. Declaration of conformity available at www.fumagalli.it/company. The warranty of Fumagalli product is of 1 year. In case of evident manufacturing faults, Fumagalli Srl according to his unquestionable judgement, will proceed to the repair or the replacement. This warranty does not cover any cost neither regarding the transport, nor the uninstallation, nor the re-installation, nor the dismantlement of the material.
