MO60L01
MO60L424

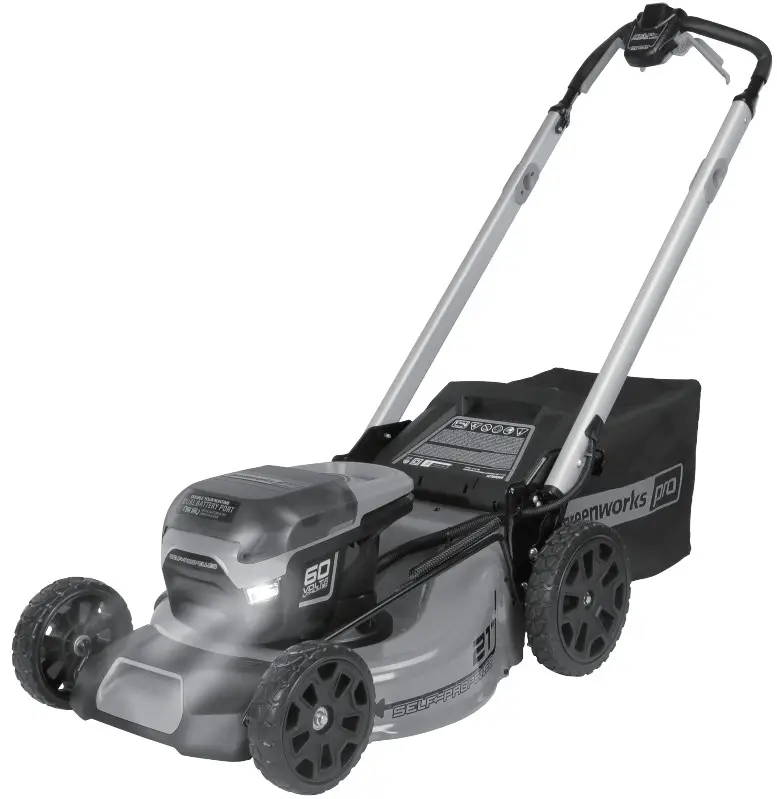

LAWN MOWER
OPERATOR MANUAL
LMC420
www.greenworkstools.com

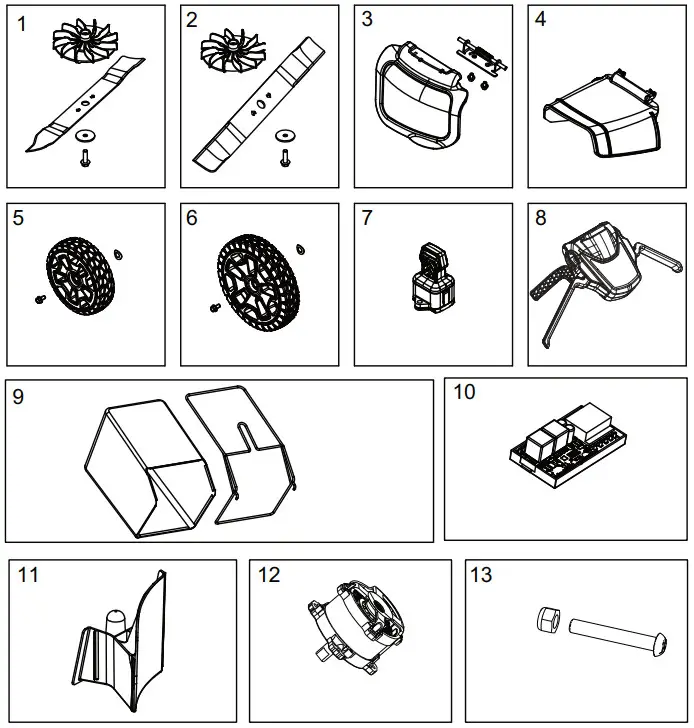

EXPLODED VIEW
| No. | Part No. | Qty | Description |
| 1 | R0200742-00 | 1 | Blade assembly kit |
| 2 | R0201875-00 | 1 | High lift blade |
| 3 | RB311081179A | 1 | Side discharge cover kit |
| 4 | R0200226-00 | 1 | Side discharge chute |
| 5 | RB341281179A | 1 | 8″ front wheel assembly |
| 6 | R0200744-00 | 1 | 10″ rear wheel assembly |
| 7 | RB341472376 | 1 | Safety key |
| 8 | R0200743-00 | 1 | Upper control assembly |
| 9 | R0201921-00 | 1 | Grass catcher assembly |
| 10 | R0201874-00 | 1 | Power control board |
| 11 | R0200068-00 | 1 | Mulch plug kit |
| 12 | R0200860-00 | 1 | Motor |
| 13 | R0201880-00 | 2 | Bolt/nut |
MO60L01
MO60L424
LAWN MOWER
OPERATOR MANUAL

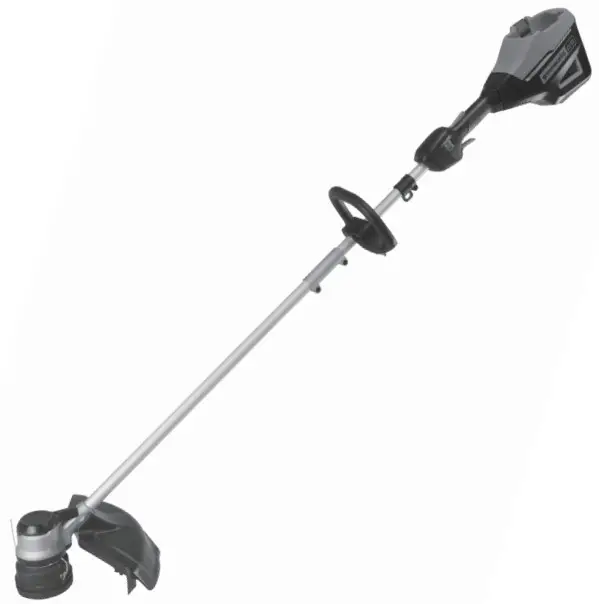

STC404
www.greenworkstools.com

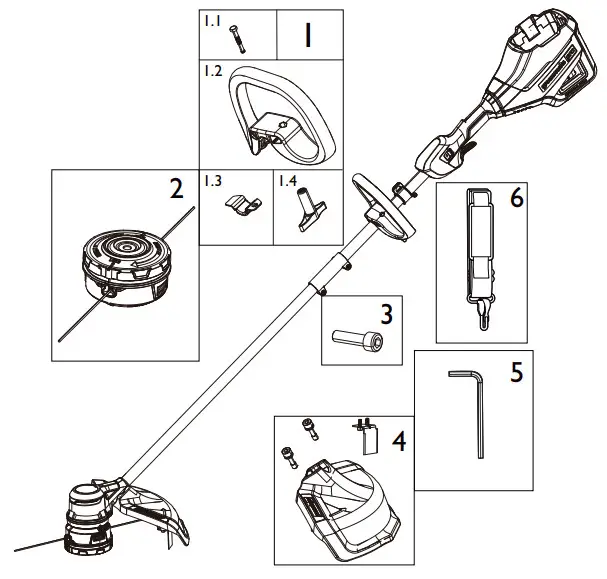

EXPLODED VIEW
| No. | Part No. | Qty | Description | No. | Part No. | Qty | Description |
| 1 | R0201836-00 | 1 | Auxiliary Handle Assembly | 2 | R0201834-00 | 1 | Trimmer Head Assembly |
| 1.1 | R0201826-00 | 1 | Bolt | 3 | R0201830-00 | 1 | Hex Screw |
| 1.2 | R0201827-00 | 1 | Auxiliary handle | 4 | R0201881-00 | 1 | Guard Assembly |
| 1.3 | R0201828-00 | 1 | Bracket | 5 | R0201770-00 | 1 | Allen key |
| 1.4 | R0201833-00 | 1 | Knob | 6 | RB37902144 | 1 | Shoulder strap |
