Hisense AEH-W0G1 WiFi Module Instructions

System Operation Requirements

A. Smartphone System Requirements

The following are the minimum specifications needed to successfully run the app on a smartphone:

Table 1 Smartphone requirements

B. Wireless Router requirements

Table 2： Wireless Router requirements

Notice

* Please try to use a certified 2.4G wireless router.
*The wireless router requirements are a general specification.
*Depending on the environment, there might be multiple WiFi access points available. It is important to ensure that the correct one is being used.
*A router firewall may have high security or parental controls configured, and these settings may block some required network ports for the device.
*The following network ports should be opened/whitelisted on your router:80/443/55020/55030(Check the router’s user manual for instructions on configuring firewalls.)
* The WiFi module does not support a new Wi-Fi certified specification and nonstandard Wi-Fi certification type.

C. Description

Wifi Module in the Internet of things system is the role of home appliances access Internet, and cloud linked, relying on cloud computing to achieve intelligent home appliances .

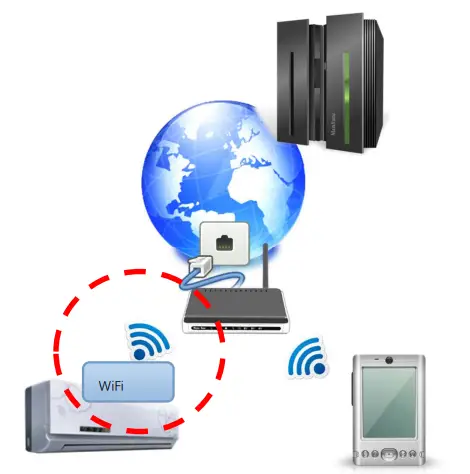

picture 1: The function of WiFi module in the intelligent home appliance system

Network standard 802.11 b/g/n

WiFi module parameters

• Work environment：-20℃-85℃
• Rated voltage： DC 3.3V
• Maximum dissipation power： <500mA
• Voltage fluctuation： ±10%

RF Frequency Oscillator

The crystal oscillator circuit is building in at WiFi module X1.

Operating frequency range：Wifi：2412-2462MHz

Modulation

WIFI: 11b: DBPSK, DQPSK and CCK and DSSS
11a/g: BPSK, QPSK, 16QAM, 64QAM and OFDM
11n: BPSK, QPSK, 16QAM, 64QAM and OFDM

Supported channels： 1-11

Max.tune-up power with tolerance (AV value)

802.11 b mode: 12±1.0dBm
802.11 g mode: 10±1.0dBm
802.11 HT20 mode: 9±1.0dBm
802.11 HT40 mode: 10±1.0dBm

Antenna type:  integral antenna
Antenna gain： 1dBi
Crystal frequency： 40MHz

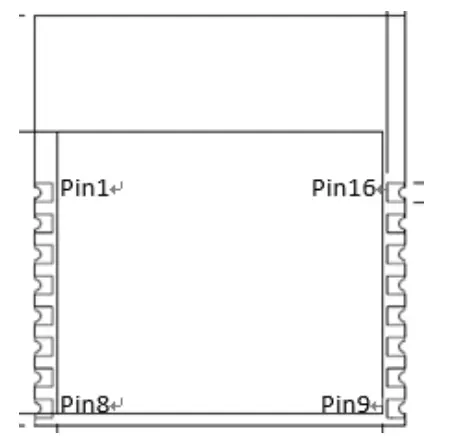

WiFi module Interface

SAFETY Precautions

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,Science and Economic Development Canada’s licence-exempt RSS(s)

Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

RADIATION EXPOSURE STATEMENT

This equipment complies with Canada radiation exposure limits set forth for uncontrolled environments. This transmitter must not be co-located or operating  in conjunction with any other antenna or transmitter.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Please notice that if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC ID: 2AGCCAEH-W0G1” any similar wording that expresses the same meaning may be used.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. This transmitter must not be co located or operating in conjunction with any other antenna or transmitter.

The devices must be installed and used in strict accordance with the manufacturer’s instructions as described in the user documentation that comes with the product.

Any company of the host device which install this modular with modular approval should perform the test of radiated & conducted emission and spurious emission, etc. according to FCC part 15C, 15B class B. Only if the test result comply with FCC part 15C, 15B class B, then the host can be sold legally.

CFR 47 FCC PART 15 SUBPART C has been investigated. It is applicable to the modular transmitter

This radio transmitter 2AGCCAEH-W0G1 has been approved by Federal Communications Commission to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.

Antenna information
Manufacture: INNO Circuits Limited

Please notice that if the ISED certification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains IC: 20778-AEHW0G1” any similar wording that expresses the same meaning may be used.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This radio transmitter 20778-AEHW0G1 has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.

Antenna information
Manufacture: INNO Circuits Limited

Notice to OEM integrator

The module is limited to OEM installation ONLY.
The OEM integrator is responsible for ensuring that the end-user has no manual instruction to remove or install module.

A separate approval is required for all other operating configurations, including portable configurations with respect to Part 2.1093 and difference antenna configurations.There is requirement that the grantee provide guidance to the host manufacturer for compliance with Part 15B requirements.The module complies with FCC Part 15.247 and apply for Single module approval. Trace antenna designs: Not applicable.

Must use the device only in host devices that meet the FCC/ISED RF exposure category of mobile, which means the device is installed and used at distances of at least 20cm from persons.

The end user manual shall include FCC Part 15 /ISED RSS GEN compliance statements related to the transmitter as show in this manual (SAFETY Precautions).

Host manufacturer is responsible for compliance of the host system with module installed with all other applicable requirements for the system such as Part 15 B, ICES 003.

Host manufacturer is strongly recommended to confirm compliance with FCC/ISED requirements for the transmitter when the module is installed in the host.

Must have on the host device a label showing Contains FCC ID: 2AGCCAEHW0G1, Contains IC: 20778-AEHW0G1

The use condition limitations extend to professional users, then instructions must state that this information also extends to the host manufacturer’s instruction manual.

This module is stand-alone modular. If the end product will involve the Multiple simultaneously transmitting condition or different operational conditions for a stand-alone modular transmitter in a host, host manufacturer have to consult with module manufacturer for the installation method in end system.
