Startimes X7 Plus Smart Watch User Manual

X7 Plus Smart Watch
User Manual

Please read this manual carefully before using the product and keep it properly

product description

Packing list: watch host(including strap)X1, Wireless ChargerXl, Product manualXl

1. Open the package. Follow the steps to connect the strap to the smartwatch

2. Wear the smartwatch and press and hold the button to turn it on

3. Open Wearfit Pro on your phone to set up the device

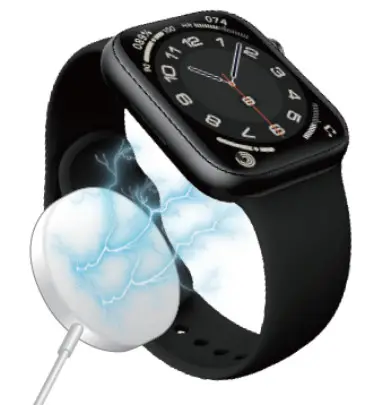

To charge, place the back of your watch on the wireless charger

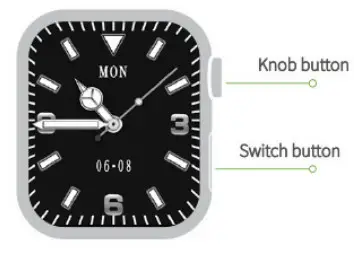

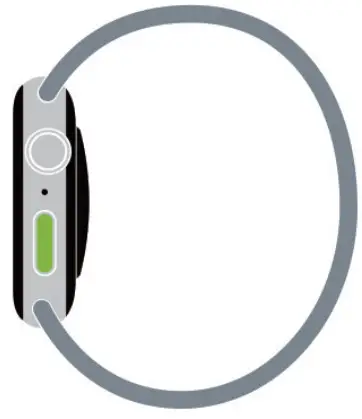

Product overview

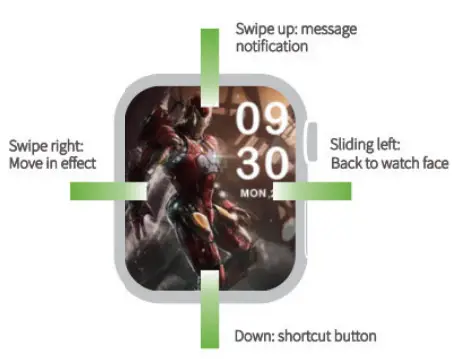

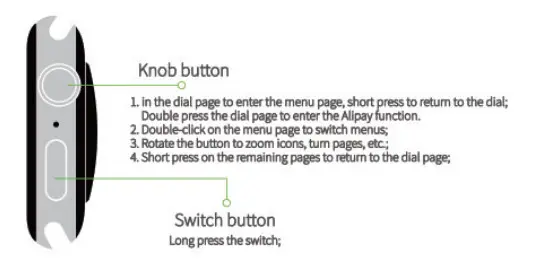

Button and touch

Connect the watch

http://howear.iwhop.com/cdn/html/howear_download.html

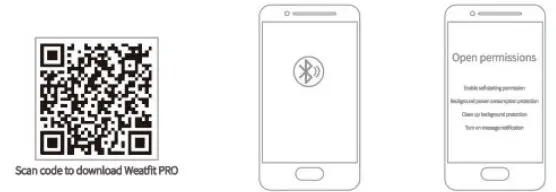

1. Download the ‘Wearfit Pro” APP to your mobile phone and install it, you can directly search for “Wearfit Pro” in the APP store to download, or scan the following QR code to jump to the link to download (scan code in browsers, WeChat, etc.)
2. Connect the watch
   1) Scan code connection: After the watch is turned on and entered on the dial page, slide right to enter the split screen function, and click the “scan code connection” shortcut button, the connection QR code will pop up, and you can directly scan the code connection in Wearfit Pro.
   2) Manual connection: After the mobile phone turns on Bluetooth, enter the APP to directly search for the device to manually connect.
   3) Conned and call Bluetooth In the initial state of the watch, the Bluetooth for calls is turned off, and the call and music functions cannot be used at this time. Scroll down to open the shortcut menu, and click the call Bluetooth switch. After turning it on, you can find the call Bluetooth in the mobile phone system (when the mobile phone Bluetooth is turned on), find the corresponding Bluetooth name Watch call or watch call has, and click connect. After a successful connection, you can use the call function and music function.

Watch operating instruction

1. Split screen function: Double-click appear and Click Return

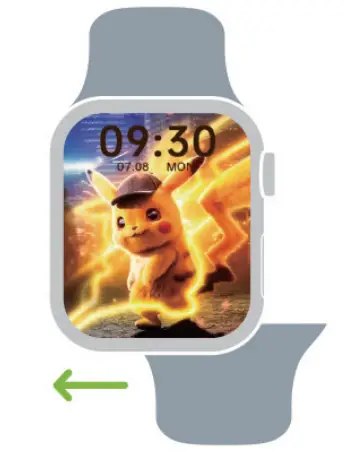

2. Dial page: Swipe left to enter the dial page selection, slide left to switch to other dials.
   Note: The system presets 18 dial pages, and the last dial is named “Custom”. This dial will change with the dial market on the APP side and the download settings of the custom dial.
3. Menu page: On the dial page, single press the side key to enter the menu page, after entering the menu page, double press the side key to switch between menus, and single  press the side key to return to the main dial page.
4. Function page: In the menu page, click each application icon to enter the corresponding function, slide right to return, and press the side button to return to the main dial page.
5. dial page double press the side key to enter the Alipay function.

The watch can preset me and TA (positioning health), blood sugar, and respiratory rate functions, you can download the APP to the APP market to install the APP, the APP will be transmitted to your watch, and you can check the health status and location of your friends anytime and anywhere.
Contacts: Connect to the mobile phone to synchronize contacts on the mobile phone and set
Dial-up: connect to the mobile phone to dial out, and you can call on the watch side
Call record: Connect the mobile phone to synchronize the call record of the mobile phone;
Record the exercise data of the day, including calories, activity time, number of activities, steps, and distance.
Bind to WeChat to receive payment via WeChat QR code
Put the watch close to your wrist, and the best place to wear it is the wrist bone above your arm. The real-time heart rate can be measured. The normal value of the average person |s 60-90 beats/min. The watch records the last 7 Measurement records and records the highest and lowest values.
Put the watch close to your wrist, and the best place to wear it is on the upper arm of the wrist bone. Blood pressure can be measured. The watch records the last 7  measurement records.
Put the watch close to your wrist, and the best wearing position is on the wrist bone and above the arm. The blood oxygen value can be measured. The watch records the last 7  measurement records and records the highest and lowest values.
It includes 6 regular sports including indoor running, indoor cycling, sit-ups, push-ups, and free training.
After you use the wake word to wake up the assistant function, you can use the watch assistant to control the Siri function of the mobile phone and operate the mobile phone with Bluetooth binding.
Alipay can be bound to the watch, and the watch can make offline payments through Alipay’s QR code.
After connecting the audio Bluetooth, tum on the mobile Shone music player, and the watch can play the mobile phone music.
Connect to a social APR open a Qr Code, let the other person scan it, and add a friend
Includes 7 sports such as outdoor running outdoor cycling, sit-ups, hiking, mountaineering, and other sports; 5 major sports data are recorded during exercise: steps, calories,  heart rate, cadence, pace, and can be set Sports goals, a comper breakdown of your sports detail
Breathing training can quickly relax oneself, relieve stress, and quickly replenish oxygen to the body. Three frequency options are provided: slow, normal, and slightly faster;  breathing time options: 1~5min.
You can use the watch to calculate the required data anytime and anywhere.
The watch supports stopwatch timing.
The watch realizes the function of Mett, converts all daily exercise volume into Mett value and displays it on the watch and APP, records the energy metabolism equivalent of one week of exercise, and forms a visual icon to let users dearly understand their exercise volume.
The watch supports continuous pressure monitoring, monitors the user’s 24-hour pressure changes, and uses scientific heatth algorithms to display the pressure as an icon,  allowing users to adjust their status at any time. The pressure range shows: 1-29 relaxed; 30-59 normal; 60-79 medium; 80-99 high.
Including brightness settings, often off-screen, raising the wrist to turn on the screen, do not disturb mode, sound and vibration, language switching, phone connection, password,  about the watch, restart, factory reset, and shutdown.
Connect to the APP to synchronize the weather.
The watch tums into a timer every second.

Recharge

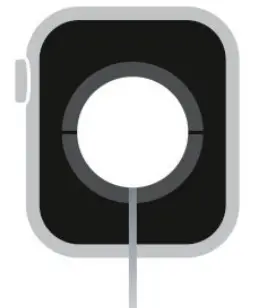

Please put the back of the watch on the wireless charger surface to start charging.
The charging instructions are displayed on the watch screen.

note:

1. Do not charge in a humid environment,
2. Make sure the back of the watch is in full and clean contact with the wireless charger surface ;
3. Clean the back of the watch and the wireless charger regularly with clean flannelette.
   Make sure the watch is fully in contact with the wireless charger surface to ensure proper charging ;
4. This product is not equipped with a power adapter. To ensure the safety of your family and property, you can use a computer USB port or choose a power adapter with an output not exceeding 5V 1A when charging. Please purchase power adapters through formal channels, and avoid using low-quality, fake power adapters to avoid bursting or fire.

Bluetooth data transmission
When connected to a mobile phone, the watch will instantly synchronize some data with the mobile phone via Bluetooth, including weather, notification messages, sports health data, etc. After the connection is disconnected or Bluetooth is turned off, the data will not be synchronized.

Precautions

1. The measurement results of this product are for reference only, not for any medical purposes or basis. Please follow the doctor’s instructions and never make self-diagnosis and treatment based on the measurement results.
2. The waterproof grade of this product is IP67, and it cannot be used for deep diving and long-term soaking in water. in addition, this product is not resistant to hot water,  because water vapor will affect the hand ring.
3. The company reserves the right to modify the contents of this manual without any notice. Some functions are different in the corresponding software version, which is normal.
