WATTS SA-310 SA Series Heavy Duty Sand and Sediment Interceptor
Engineering Specification
- Job Name
- Job Location
- Engineer
- Approval
- Tag
- Contractor
- Approval
- Contractor’s P.O. No
- Representative
Specification

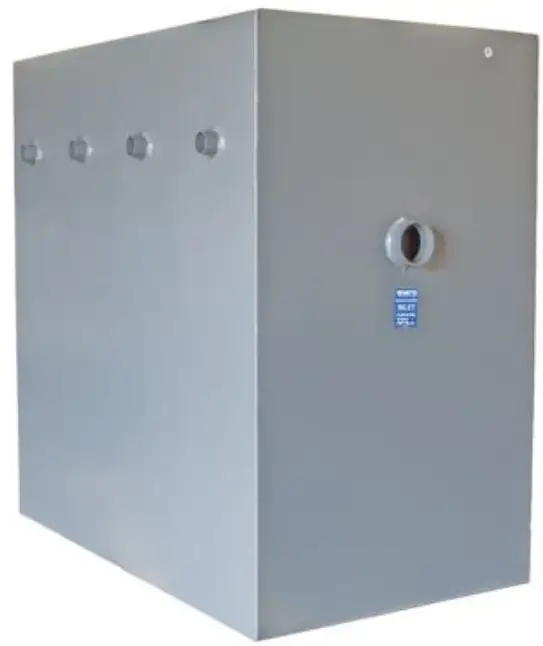

Watts SA Series heavy duty epoxy coated steel sand and sediment interceptor with gasketed epoxy coated steel skid-proof cover secured with hex head center bolt(s), internal straining baffles, 2″(51) no hub vents, and 4″(102) no hub (standard) connections
| Flow Rate Size Description | |
| 310 | 300 GPM |
| 410 | 400 GPM |
| 510 | 500 GPM |
| 610 | 600 GPM |
| 710 | 700 GPM |
| 810 | 800 GPM |
| 1010 | 1000 GPM |
| Size | Options Description |
| -DI | Dual Inlet |
| -HD | Heavy Duty (10,000 lb.) |
| Traffic Cover* | |
| -FC | Flange w/Mem. Clamp |
| -O | Inlet & Outlet other than |
| Standard* | |
| -SS | Stainless Steel |
| -THD | Threaded Connections |
| -THD | Threaded Connections |
HD Option Requires Minimum 4″ Extension

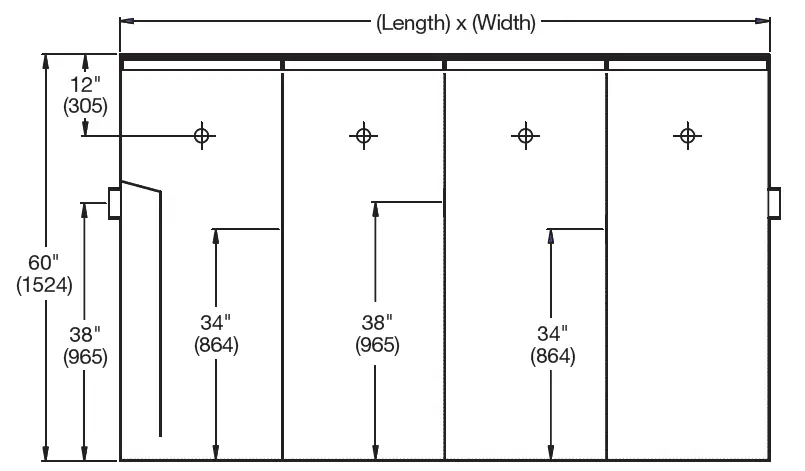

| Model No. | Approx. Weight Lbs. | Cu. Ft. | Length | Width | Height |
| SA-310 | 1600 | 43 | 60″(1524) | 36″(914) | 60″(1524) |
| SA-410 | 1750 | 54 | 72″(1829) | 36″(914) | 60″(1524) |
| SA-510 | 2100 | 72 | 96″(2438) | 36″(914) | 60″(1524) |
| SA-610 | 2500 | 81 | 108″(2743) | 36″(914) | 60″(1524) |
| SA-710 | 2700 | 90 | 120″(3048) | 36″(914) | 60″(1524) |
| SA-810 | 3000 | 108 | 144″(3658) | 36″(914) | 60″(1524) |
| SA-1010 | 3640 | 135 | 180″(4572) | 36″(914) | 60″(1524) |
NOTICE
The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product. Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements, please contact Watts Technical Service. Watts reserves the right to change or modify product design, construction, specifications, or materials without prior notice and without incurring any obligation to make such changes and modifications on Watts products previously or subsequently sold.
