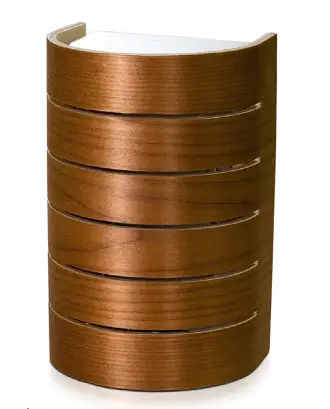

AIRAM SAUNALED HOR Wall Lamp
LED SAUNA LUMINAIRE
- The luminaire is not suitable for covering with thermally insulated material This product contains a light source of energy efficiency class G.

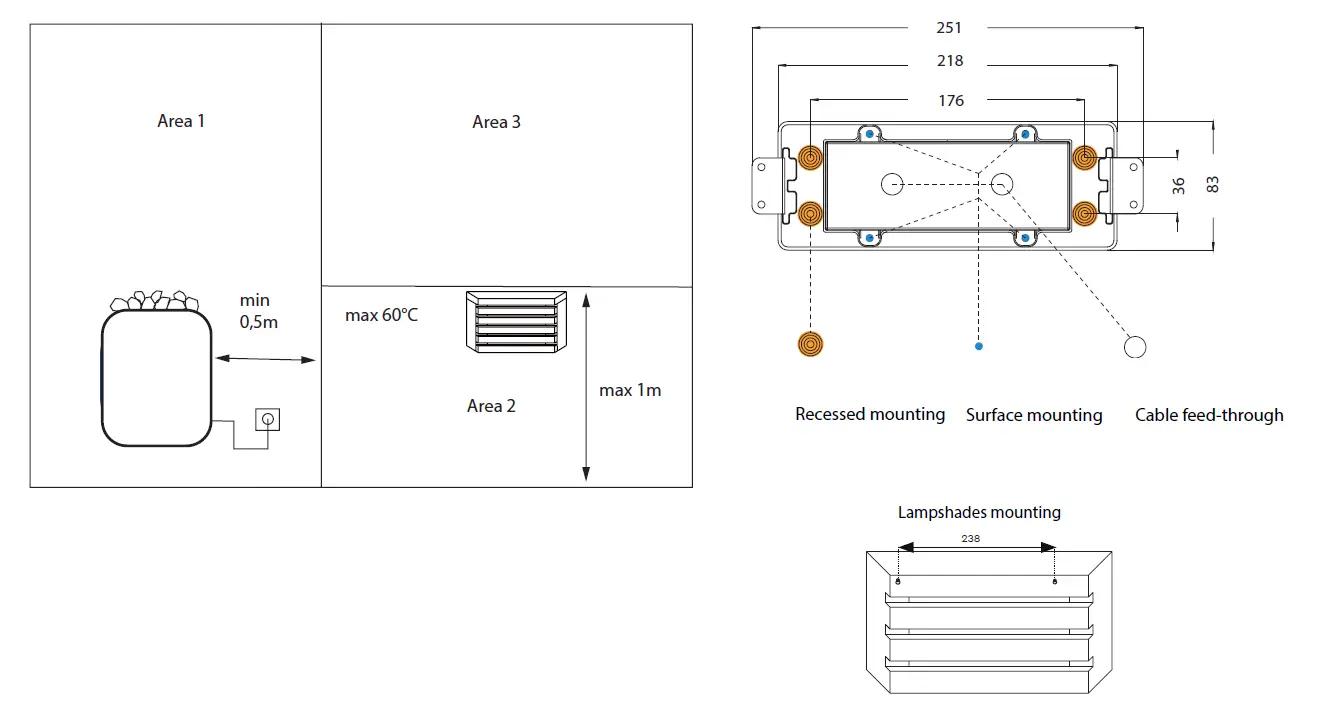

- For recessed or surface mounting on the wall. The Airam SaunaLed fixture should be installed only to area 2. Max installation height 1m from the floor and at minimum with a distance of 0,5 m from the sauna stove. Ceiling installation is not allowed.
- Only a professional electrician is allowed to do the installation. Use only rated voltage and frequency as marked in the fixture/driver. Switch off the current before installation or service.
- This mounting instruction must be kept available during installation and for future maintenance. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.

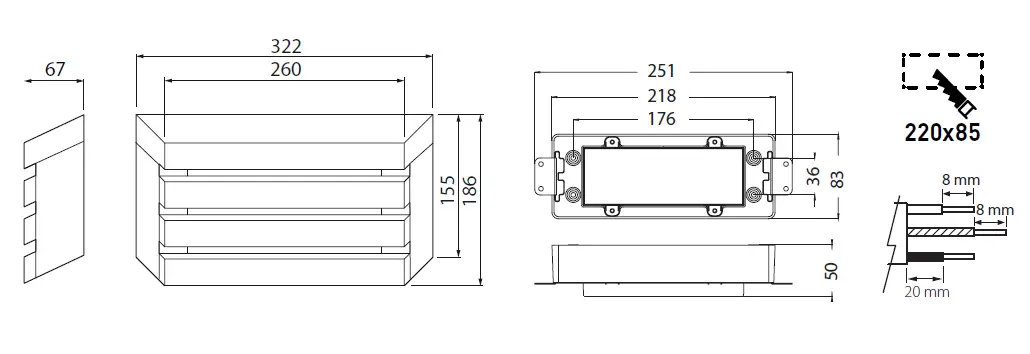

Dimensions

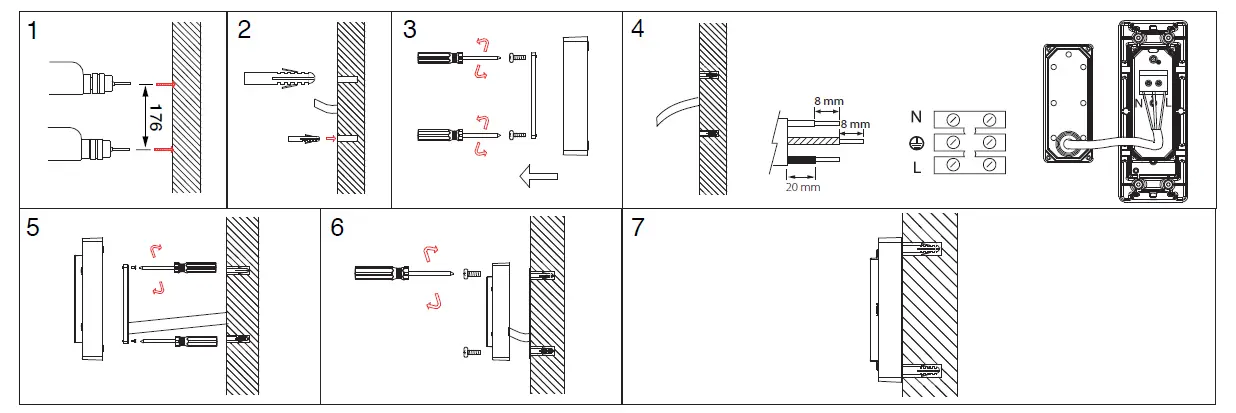

Surface mounting

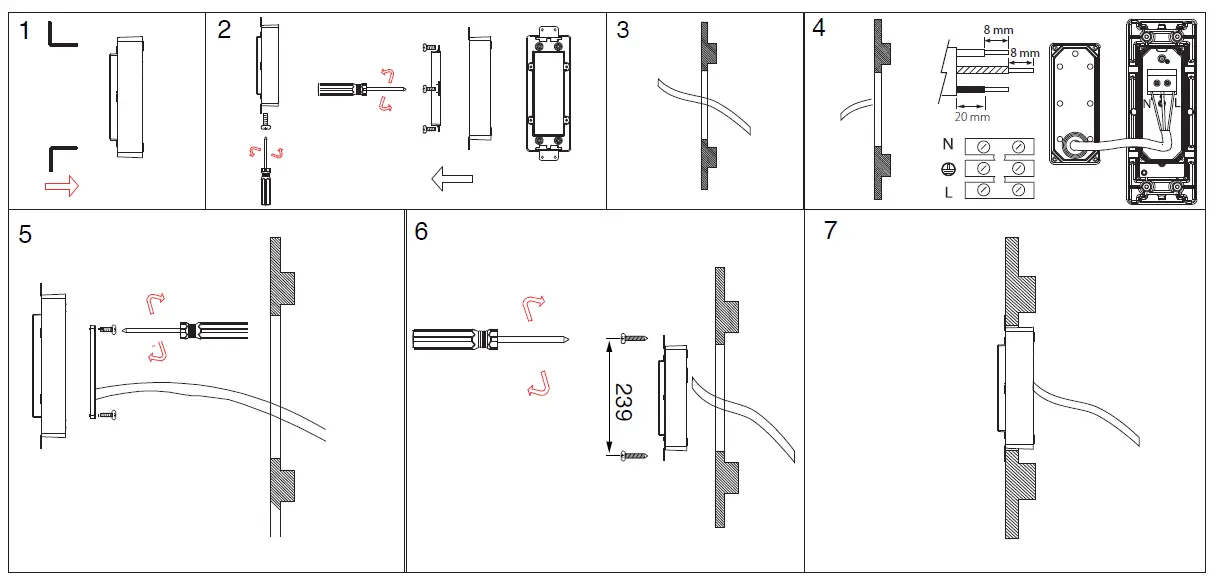

Recessed mounting
Airam Electric Oy Ab, Sementtitehtaankatu 6, FI-04260 Kerava, Finland, www.airam.fi
