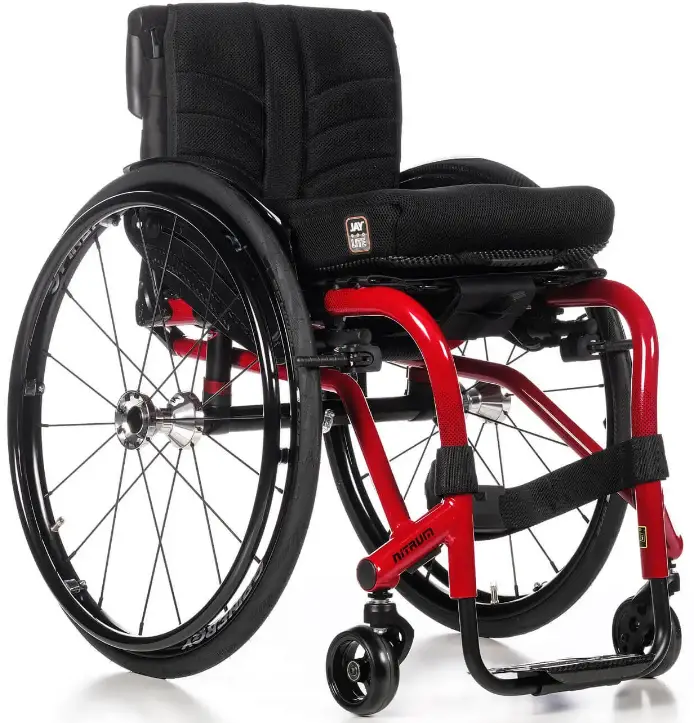

SUNRISE MEDICAL Quickie Nitrum Active Wheelchair User Manual
Mark For
Date
Dealer Acct #
Dealer
Dealer Contact
Dealer Addres
Dealer City
Dealer Phone
Confirmation Email
Confirm Via
Submitting for
Quote
Order
PO#
ADDITIONAL SHIPPING INFORMATION
Ship TO
Attention
Address
Address
Ship To City
Ship To Phone
FRAME
Base Model
Weight capacity 275 lbs for Open frame. 300 lbs for Hybrid dual tube frame.
| 112WM101 | Quickie Nitrum – Open frame | $4,439.00 | |
| 112WM102 | Quickie Nitrum Hybrid – Dual tube | $4,960.00 |
Backrest Frame Type
Active Rigid – welded must select Active Axle plate and Active Fixed backrest.
| 112FT68 | Adjustable | NC | |
| 112FT69 | Active Rigid – Welded | $406.00 |
Frame Angle
See FIGURE 1 Measure from front frame to floor.
Nitrum – Open frame
Nitrum Hybrid – Dual tube frame
| 112FA1 | 75° | NC | |
| 112FA8 | 80° | NC | |
| 112FA2 | 85° | NC |
Frame Inset Per Side

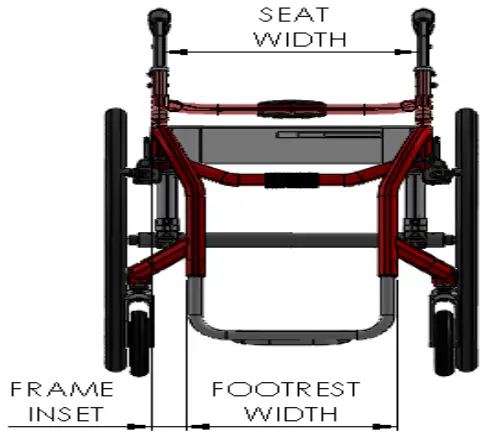

See FIGURE 2 Frame Inset is the distance from the outside of the seat tube to the outside of the footrest
| 112FF1 | 0″ | NC | |
| 112FF2 | 1″ (N/A w/ 12″ wide) | NC | |
| 112FF3 | 2″ (N/A with 12″ & 13″ wide) | NC |
Frame Length

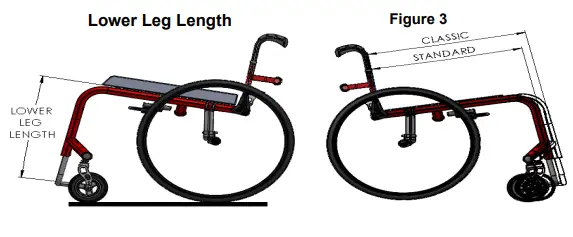

See FIGURE 3 measurement for set up in the APPENDIX page 7
| 112FS9 | Standard | NC | |
| 112FS34 | Classic | NC |
*Standard Frame – Seat Sling to front frame bend angle is 1.5″ shorter than the classic position.Classic Frame – Traditional seat sling to front frame bend angle dimensions. Front of back cane post to front edge of seat sling will remain the same for both Standard and Classic.
Transit
WC-19 and ISO 7176 standard compliance. N/A with Active Rigid
| 112TO45 | Transit System | NC |
Customer Service
(800) 263-3390 Fax: (800) 561-5834 Email: [email protected] www.sunrisemedical.ca Specifications are subject to change without notice. © 2022 Sunrise Medical Canada Inc. MK-129759-CAN, Rev (4)
SIZE / SEATING
Depth Adjustable Backrest (Optional)

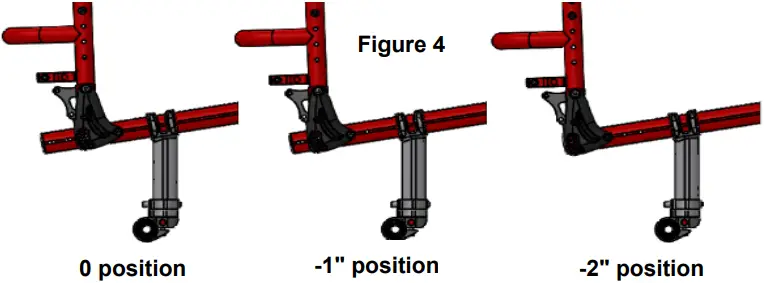

See Figure 4 Depth Adjust Backrest extends the frame rear of the seat sling, select a factory setting. N/A with 19″-20″ seat depth. N/A with Active Rigid frame
| 112DP02 | 0 Setting Backrest at standard position, field adjustable to -1″ or -2″ | $196.00 | |
| 112DP03 | -1 Setting Backrest -1″ offset, field adjustable to flush or -2″ | $196.00 | |
| 112DP04 | -2 Setting Backrest -2″ offset, field adjustable to flush or -1″ | $196.00 |
Seat Width
See FIGURE 2 Measure from outside of seat tube to the outside of opposite seat tube.
| 112S3 | 12″ | NC |
| 112S4 | 13″ | NC |
| 112S5 | 14″ | NC |
| 112S6 | 15″ | NC |
| 112S7 | 16″ | NC |
| 112S8 | 17″ | NC |
| 112S9 | 18″ | NC |
| 112S10 | 19″ | NC |
| 112S48 | 20″ | $296.00 |
Seat Depth
See FIGURE 1 Measure from front of back post to front edge of seat sling. Seat sling is 1″ shorter than depth ordered, but actual seat depth will remain the same as ordered.
| 112SD5 | 12″ | NC |
| 112SD6 | 13″ | NC |
| 112SD7 | 14″ | NC |
| 112SD8 | 15″ | NC |
| 112SD9 | 16″ | NC |
| 112SD10 | 17″ | NC |
| 112SD11 | 18″ | NC |
| 112SD12 | 19″ | NC |
| 112SD13 | 20″ | $296.00 |
Seating Systems
| Seating Systems | ||||
| o o o | 112OP01 | Standard Seat Sling | NC | |
| 112OP14 | Tension Adjustable seat sling | $105.00 | ||
| 112OP04 | Omit Seat Sling | NC | ||
Seat Sling Options
Utility & catheter bags are sewn at the bottom of the upholstery. Catheter bag N/A in 12″ depth. Utility bag and Cathether bag combination N/A at 15″ width or less.
| 1128A65 | 1 Utility Bag | $107.00 | |
| 1128A66 | 1 Catheter bag | $107.00 |
Cushion
| Cushion | ||||
| o | 112CU1 | 2″ Cushion | $180.00 | |
AY Cushions (Optional)
To order any JAY cushions on-chair, please see the JAY price list. Cushion name or part number must be filled out with desired width and depth.
CASTERS / SEAT HEIGHT
Front Seat Height

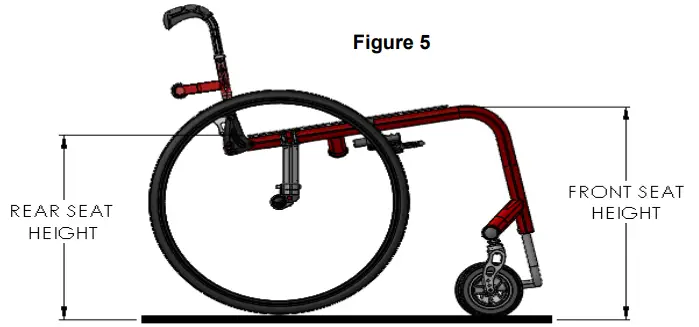

See FIGURE 5 Measure from the front of the seat rail to the floor
| 112SH14 | 16.0″ | NC |
| 112SH15 | 16.5″ | NC |
| 112SH16 | 17.0″ | NC |
| 112SH17 | 17.5″ | NC |
| 112SH18 | 18.0″ | NC |
| 112SH20 | 18.5″ | NC |
| 112SH21 | 19.0″ | NC |
| 112SH23 | 19.5″ | NC |
| 112SH24 | 20.0″ | NC |
| 112SH26 | 20.5″ | NC |
| 112SH27 | 21.0″ | NC |
Caster Fork and Suspension
Frog Legs are not included in the Colored Anodized Package
| 112CF65 | Multiple Position | NC |
| 112CF69 | Multiple Position Single Sided Fork | $169.00 |
| 112CF53 | Frog Legs 0 weight to 100 lbs. | $552.00 |
| 112CF54 | Frog Legs 101 lbs. weight to 190 lbs. | $552.00 |
| 112CF55 | Frog Legs 191 lbs. weight to 265 lbs. | $552.00 |
Caster Wheels
| Caster Wheels | ||||
| o o o o o o o o o o o
o
o | 112CW1 | 3″ Micro | NC | |
| 112CW3 | 4″ Low Profile Polyurethane | NC | ||
| 112CW31 | 4″ Micro Lighted | $105.00 | ||
| 112CW72 | 4″ x 1″ Aluminum Poly | $70.00 | ||
| 112CW44 | 4″ x 1.25 Semi Pneumatic | NC | ||
| 112CW5 | 5″ Low Profile Polyurethane | NC | ||
| 112CW51 | 5″ Micro Lighted | $105.00 | ||
| 112CW6 | 5″ Soft Roll (Grey) –N/A w/Frog Legs | $95.00 | ||
| 112CW65 | 5″ x 1″ Aluminum Poly | $121.00 | ||
| 112CW7 | 5″ x 1.5″ Semi Pneumatic | $105.00 | ||
| 112CW34 | 6″ Poly | NC | ||
| 112CW33 | 6″ Pneumatic | $105.00 | ||
| 112CW35 | 6″ x 1.5″ Semi Pneumatic | $105.00 | ||
Caster Color Wheels option
Casters are silver color unless you choose color option. Refer to Anodize package section on Page 7 for Anodize color selection. Match Ano color pkg pick is N/A with Black option.
| 112CW64 | 4″ x 1.5″ Aluminum Soft Roll | $105.00 | |
| 112CW66 | 5″ x 1.5″ Aluminum Soft Roll | $105.00 | |
| 112CW68 | 6″ x 1.5″ Aluminum Soft Roll | $105.00 | |
| Color Options | Package price | ||
| 112IL02 | Match anodize color package | NC | |
| 112IL01 | Match frame color | NC | |
| 112IL03 | Black anodize caster only | $75.00 | |
Caster Housing Position
See FIGURE 7 in page 7 for example. Options available on 0″ inset only.
| 112LH04 | Position Setting 1 ( Narrow ) | NC | |
| 112LH05 | Position Setting 2 ( Wide ) | NC |
REAR WHEELS / SEAT HEIGHT
Rear Seat Height
Open frame: RSH 13″-15.5″ only w/ 20″ Rear Wheel. RSH 15″-15.5″ Only w/ 20, 22 or 24″ w/HP Clincher Rear Wheel. RSH 13″-13.5″ & 20″ N/A w/ Rear Suspension. Hybrid frame: N/A with 13″-14″ RSH. Minimum RSH for 24” and 25” wheels is 16.5”.
| 112RH11 | 13.0″ | NC |
| 112RH12 | 13.5″ | NC |
| 112RH13 | 14.0″ | NC |
| 112RH14 | 14.5″ | NC |
| 112RH15 | 15.0″ | NC |
| 112RH16 | 15.5″ | NC |
| 112RH17 | 16.0″ | NC |
| 112RH18 | 16.5″ | NC |
| 112RH19 | 17.0″ | NC |
| 112RH26 | 17.5″ | NC |
| 112RH20 | 18.0″ | NC |
| 112RH27 | 18.5″ | NC |
| 112RH21 | 19.0″ | NC |
| 112RH37 | 19.5″ | NC |
| 112RH22 | 20.0″ | NC |
Axle
| Axle | ||||
| o
o | 112AX1 | Quick Release Steel | NC | |
| 112AX13 | Quad Quick Release Steel Only available with Mountain Whls. | $140.00 | ||
Axle Plate
Extended COG N/A w/ Xtender Power Assist. 4-link suspension N/A with Hybrid frame type.
| Adjustable COG (1″-4″) | NC | |
| Adjustable Extended COG (0″-3″) | NC | |
| 4-Link Suspension axle plate | NC | |
| Active Rigid (.5″ to 4″) Adjustment range 1/2″ before and after in 1/4″ increments except the .5″ and 4″ positions which are maxed. | NC |
Rear Suspension (Optional)
4-Link Rear Suspension COG (0″-3″) Single Post only available up to 2″ COG. Plastic Side Guards only available up to 2.5″ COG. N/A w/Xtender. Max weight capacity of 265 lbs.
| 112RW103 | 20″ Mag Wheel 5 Spoke | NC | |
| 112RW104 | 22″ Mag Wheel 5 Spoke | NC | |
| 112RW102 | 24″ Mag Wheel 5 Spoke | NC | |
| 112RW90 | 20″ Lite Spoke | $307.00 | |
| 112RW91 | 22″ Lite Spoke | $307.00 | |
| 112RW92 | 24″ Lite Spoke | NC | |
| 112RW93 | 25″ Lite Spoke | NC | |
| 112RW94 | 26″ Lite Spoke | $121.00 | |
| 112RW06 | 22″ Ultra Lightweight Spoke Wheel | $343.00 | |
| 112RW10 | 24″ Ultra Lightweight Spoke Wheel | $343.00 | |
| 112RW16 | 25″ Ultra Lightweight Spoke Wheel | $343.00 | |
| 112RW28 | 22″ Spinergy SPOX Black Spokes | $830.00 | |
| 112RW95 | 24″ Spinergy SPOX Black Spokes | $830.00 | |
| 112RW96 | 25″ Spinergy SPOX Black Spokes | $830.00 | |
| 112RW97 | 26″ Spinergy SPOX Black Spokes | $830.00 | |
| 112RW32 | 22″ Spinergy LX Black Spokes | $1,068.00 | |
| 112RW98 | 24″ Spinergy LX Black Spokes | $1,068.00 | |
| 112RW99 | 25″ Spinergy LX Black Spokes | $1,068.00 | |
| 112RW40 | 26″ Spinergy LX Black Spokes | $1,068.00 | |
| 112RW152 | 24″ Spinergy CLX Carbon Wheel | $1,458.00 | |
| 112RW153 | 25″ Spinergy CLX Carbon Wheel | $1,458.00 | |
| 112RW148 | 24″ Proton Wheel | $307.00 | |
| 112RW149 | 25″ Proton Wheel | $307.00 | |
| 112RW50 | 24″ Mountain | $378.00 |

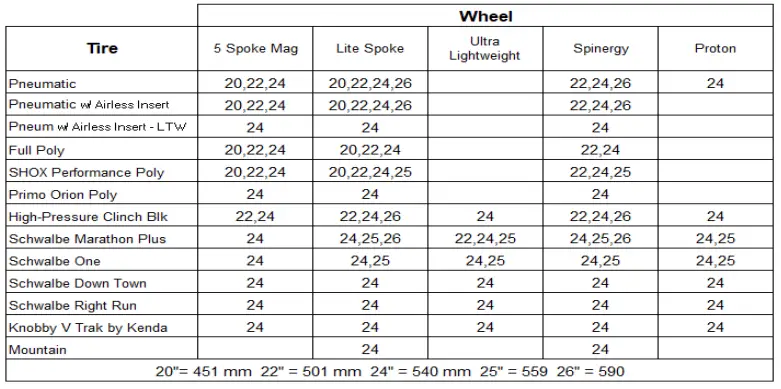

Rear Wheel Tire
Primo Orion Poly & Infinergy® E-TPU airless insert only available in 24″ wheels
| 112RT1 | Pneumatic | NC | |
| 112RT2 | Pneumatic Airless Insert N/A with Xtender. | $237.00 | |
| 112RT24 | Pneumatic Airless Insert – Infinergy® Lightweight – E-TPU material | $237.00 | |
| 112RT3 | Full Poly Tire | NC | |
| 112RT38 | SHOX Performance Poly | $102.00 | |
| 112RT25 | Primo Orion Poly | $116.00 | |
| 112RT39 | High-Pressure Clincher Black | $100.00 | |
| 112RT21 | Schwalbe Marathon Plus Evolution | $151.00 | |
| 112RT42 | Schwalbe One | $199.00 | |
| 112RT40 | Schwalbe Down Town Two Grip Only available in 24″. | $199.00 | |
| 112RT41 | Schwalbe Right Run Only available in 24″. | $102.00 | |
| 112RT27 | Knobby V-TRAK by Kenda | $116.00 | |
| 112RT12 | Mountain Only available in 24″. | NC |
Xtender Power Assist
RSH 16.5″-19″ with 22″ wheels, RSH 17.5″-20″ with 24″ wheels 0 camber, pneumatic tire. 22″ & 24″ wheels only. Anti-Tips no charge. N/A w/ Transit and 4-link Suspension. Dual Drive mode available with B4ME. Max weight capacity of 265 lbs. N/A with Active Rigid frame
| 112XT6 | 22″ Xtender Power Assist JWX-2 NICKEL | $9,608.00 | |
| 112XT7 | 22″ Xtender Power Assist JWX-2 LITHIUM | $11,154.00 | |
| 112XT4 | 24″ Xtender Power Assist JWX-2 NICKEL | $9,608.00 | |
| 112XT5 | 24″ Xtender Power Assist JWX-2 LITHIUM | $11,154.00 |
Please select one of the following handrim options
| o o | 112XH5 | Plastic Coated | NC | |
| 112XH6 | Stainless Steel | NC | ||
| Xtender – Other Options | ||||
| o o | 112XA10 | Spare NiMH Power Pack – NICKEL | $1,851.00 | |
| 112XA11 | Spare Li-ion Power Pack – LITHIUM | $2,382.00 | ||
| Xtender Wheel Options | ||||
| o
o
o
o | 112XA8 | SPARE 22″ Lite Spoke Pneu Alum | NC | |
| 112XA9 | SPARE 22″ Lite Spoke Pneu Plastic | $139.00 | ||
| 112XA2 | SPARE 24″ Lite Spoke Pneu Alum | NC | ||
| 112XA4 | SPARE 24″ Lite Spoke Pneu Plastic | $139.00 | ||
Spinergy Spoke Colors (Optional)
Please select one of the following Spinergy wheel options first. Color spokes N/A with CLX carbon wheels and Spinergy Flexrim .
Spinergy Spox spokes color:
- Black
- Blue
- Red
- White
- Yellow
Spinergy LX spokes color:
- Black
- Blue
- Green
- Orange
- Pink
- Purple
- Red
- White
- Yellow
REAR WHEELS / SEAT HEIGHT (CONT)
Handrim

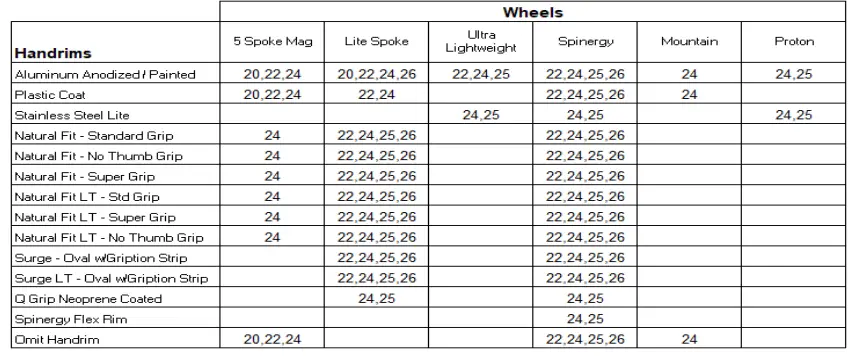

See APPENDIX in page 7 for avaiability. See Page 6 for color handrim option.
| 112HR1 | Aluminum Anodized | NC | |
| 112HR29 | Aluminum Powder coated colored | $92.00 | |
| 112HR4 | Plastic Coated N/A w/ 25″ & 26″ Lite Spoke Wheels | $140.00 | |
| 112HR35 | Stainless Steel Lite | $140.00 | |
| 112HR22 | Natural Fit – Standard Grip | $359.00 | |
| 112HR23 | Natural Fit – Super Grip | $418.00 | |
| 112HR25 | Natural Fit – No Thumb Grip | $359.00 | |
| 112HR30 | Natural Fit LT – Standard Grip | $500.00 | |
| 112HR31 | Natural Fit LT – Super Grip | $569.00 | |
| 112HR32 | Natural Fit LT – No Thumb Grip | $536.00 | |
| 112HR26 | The Surge – Oval w/Gription Strip | $536.00 | |
| 112HR27 | The Surge LT – Oval w/Gription Strip | $569.00 | |
| 112HR28 | Q-Grip Neoprene Coated | $453.00 | |
| 112HR24 | Spinergy Flex Rim Only available on Spinergy LX wheels 24″ & 25″ Blk spokes | $674.00 | |
| 112HR7 | Omit Handrim N/A w/ Ultra Lightweight Wheels. | NC |
Handrim Tab Mount options
Tab mount handrims option only available Spinergy, Proton and Ultra light wheels. Not all combinations of wheels available.
| 112TB1 | Standard Tabs | NC | |
| 112TB3 | Narrow Tabs | $59.00 |
Front to Rear Seat Height Matrix
| 112WL77 | Standard – Push | NC | |
| 112WL45 | Ergo Scissor | NC | |
| 112WL88 | Knee lever | $105.00 | |
| 112WL30 | Compact | $156.00 | |
| 112WL10 | Omit Wheel Lock | NC |
Camber
6° N/A with 5 spoke Mag wheels.
| 112CI1 | 0° | NC | |
| 112CI2 | 3° | NC | |
| 112CI4 | 6° | NC |
Center of Gravity Preset
Measure from front of back post to the center of rear axle. Xtender 1″- 4″
| 112CC12 | 0″ | NC | |
| 112CC1 | .5″ | NC | |
| 112CC2 | 1.0″ | NC | |
| 112CC3 | 1.5″ | NC | |
| 112CC4 | 2.0″ | NC | |
| 112CC5 | 2.5″ | NC | |
| 112CC6 | 3.0″ | NC | |
| 112CC7 | 3.5″ | NC | |
| 112CC8 | 4.0″ | NC |
WHEEL LOCKS
Wheel Lock
Not all wheel locks available in all seat depths, wheel size, or COG
| 112F229 | Aluminum Tubular | NC | |
| 112F274 | Aluminum Tubular w/ Snap On Cover | $41.00 | |
| 112F276 | Angle Adjustable Flip Back | $256.00 | |
| 112F257 | Angle Adjustable FB Composite | $105.00 | |
| 112F325 | Angle Adjustable FB Carbon Fiber | $256.00 | |
| 112F51 | Platform Footrest | $105.00 | |
| 112F67 | Platform Footrest Composite | NC | |
| 112F111 | Ultra Lite Platform Footrest N/A w/ 14″ wide and 2″ inset, N/A w/ 19-20 wide w/ 0″ inset | $156.00 | |
| 112F323 | Platform Carbon Fiber footrest Not available on 19″-20″ W | $199.00 |
Adaptive Platform Spacer
N/A with Aluminum Tubular or Ultra Lite Platform.
| 112AD1 | Adaptive Platform 2″ Spacer | $175.00 | |
| 112AD2 | Adaptive Platform 4″ Spacer | $175.00 | |
| 112AD3 | Adaptive Platform 6″ Spacer | $175.00 |
Footrest Options
High Mount N/A w/ Tubular footrest
| 112DI03 | Leg Strap | $59.00 | |
| 112DI04 | Extra Leg Strap | $35.00 | |
| 112DI05 | Gel Hanger Cover | $129.00 | |
| 112DI07 | Neoprene Impact Guards | $59.00 | |
| 112DI02 | Wear Pads | $46.00 | |
| 112DI06 | Position Plates NA for Tubular Footrest | $65.00 | |
| 112DI08 | High Mount options | $86.00 |
Lower Leg Length (LL
Lower Leg Length is measured from seat sling to the top rear of the footrest. See Appendix on Page 7. A minimum 2” ground clearance is required below the footrest. If the selected configuration results in less than 2” of ground clearance the footrest will be raised to 2” ground clearance, which may alter the lower leg length measurement. Available lower leg length is dependent on frame selection including adapter space
- 6″
- 8″
- 10″
- 12″
- 14″
- 16″
- 18″
- 20″
- 6.5″
- 8.5″
- 10.5″
- 12.5″
- 14.5″
- 16.5″
- 18.5″
- 20.5″
- 7″
- 9″
- 11″
- 13″
- 15″
- 17″
- 19″
- 7.5″
- 9.5″
- 11.5″
- 13.5″
- 15.5″
- 17.5″
- 19.5″
BACKREST
Adjustable Back Type Options
| Adjustable Back Type Options | ||||
| o
o | 112BT96 | Folding w/ Double Lock Down Angle Adjustable | NC | |
| 112BT122 | Freestyle Backrest Folding w/Double Lock Down | $285.00 | ||
Active Rigid Back Type Options

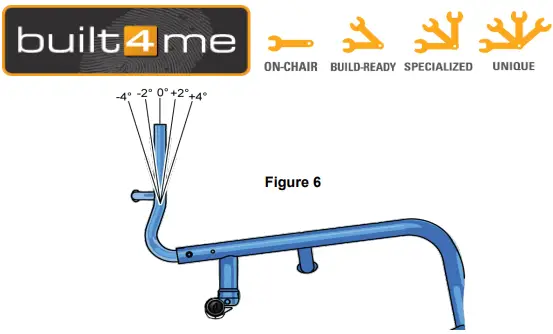

0° Equal is perpendicular to floor, + means forward. See Fig 6 in page 7
| 112BT97 | Active Fixed Backrest | NC | |||||||||
| Setting | o | -4 | o | -2 | o | NC | o | +2 | o | +4 | |
Choose Option 1 or 2
Aluminum Height Adjustable Backrest
Ultra Lightweight Aluminum Fixed Backrest
| 1. Aluminum Height Adjustable Backrest | OR | 2. Ultra Lightweight Aluminum Fixed Backrest | ||||
| o
o
o
o | 112B159 | Setting | 10 “- 12” Back Height | NC | Select back height. 8″, 9″, or 10″ only available with omit push handles.
| |
| o 10″ o 11″ o 12″ | ||||||
| 112B139 | Setting | 12 “- 14” Back Height | NC | |||
| o 12″ o 13″ o 14″ | ||||||
| 112B138 | Setting | 14 “- 16” Back Height | NC | |||
| o 14″ o 15″ o 16″ | ||||||
| 112B137 | Setting | 16 “- 20” Back Height | NC | |||
| o 16 o 17 o 18 o 19 o 20 | ||||||
Back release options
Twist-lock bar N/A with Freestyle back or Height Adjustable backrest.N/A with 12″-13″ width. Back release options N/A with Active Rigid backrest
| 112OD24 | Push-bar release | NC | |
| 112OD25 | Twist-lock release | $266.00 |
Towel Bar
| Towel Bar | ||||
| o
o | 112QT01 | Standard Style – 4″ Offset | NC | |
| 112QT11 | Narrow Profile – 3″ Offset Limited w/Solid Backs, Not suggested with 19″ & 20″ wide. | $86.00 | ||
Push Handles
Integral push handles N/A with Active Rigid backrest.
| 112PH6 | Integral Push Handles | NC | |
| 112PH5 | Fold Down Push Handles N/A w/ 10″-12″ adj height & 8″-12″ fixed height. N/A w/ standard EXO upholstery. | $162.00 | |
| 112PH2 | Omit Push Handles | NC |
Backrest Options
Telescoping Push Handlles have Double “D” tubing to eliminate rotation. Available with Omit push handle and EXO / EXO Pro Tension Adjustable upholstery only.
| 112A192 | Telescoping Push Handles | $291.00 | |
| 112A195 | Telescoping Push Handles – Tall | $291.00 |
JAY J3 Back
| 112JB01 | J3 Back To order a J3 Back please select Omit Back Upholstery. See J3 Back Order Form for Part #’s. N/A w/Freestyleback. | Price List |
Backrest Upholstery
EXO Standard and Tension Adj upholstery binding is Standard black.
| o | 112BU88 | Standard Upholstery EXO | NC | ||||||
| Color Binding: o | Silver | o | Orange | o | Red | o | Blue | ||
| o | 112BU70 | Backrest Tension Adj Ballistic Nylon *Reference 186BU70 for billing | $177.00 | ||||||
| o 112BU89 | Backrest Tension Adj EXO *Reference XXXBU89 for billing | $431.00 | |||||||
| Color Binding: o | Silver | o | Orange | o | Red | o | Blue | ||
| o | 112BU90 | Backrest Tension Adj EXO Pro 3DX *Reference 186BU71 for billing | $431.00 | ||||||
| Color Binding: o | Silver | o | Orange | o | Red | o | Blue | ||
| o | 112BU14 | Omit Back Upholstery | NC | ||||||
Military Service Patches
| Military Service Patches | ||||
| o o o o o o o o o o o | 112VU1 | US Marines Patch | $107.00 | |
| 112VU2 | US Army Patch | $107.00 | ||
| 112VU3 | US Navy Patch | $107.00 | ||
| 112VU4 | US Air Force Patch | $107.00 | ||
| 112VU12 | Coast Guard Patch | $107.00 | ||
| 112VU5 | Purple Heart Patch | $107.00 | ||
| 112VU8 | Purple Heart with Marines Patch | $166.00 | ||
| 112VU9 | Purple Heart with Army Patch | $166.00 | ||
| 112VU10 | Purple Heart with Navy Patch | $166.00 | ||
| 112VU11 | Purple Heart with Air Force Patch | $166.00 | ||
| 112VU13 | Purple Heart with Coast Guard Patch | $166.00 | ||
Freestyle Backrest Option 3
Accessories such as head supports & lateral supports are not available with Freestyle backrest. The Freestyle back comes standard with a small lumbar positioning component Available with Plastic side guards and limited ranges with Carbon fiber sideguard with fender. Chair Seat depth wil be reduced by 1″ with backrest.
Backrest Type
| 112JB06 | JAY J3 Back LT Aluminum model (J3PAXXXYYZZ) | $609.00 |
| 112JB07 | JAY J3 Back LT Carbon Fiber model (J3CFPAXXXYYZZ) | $1,020.00 |

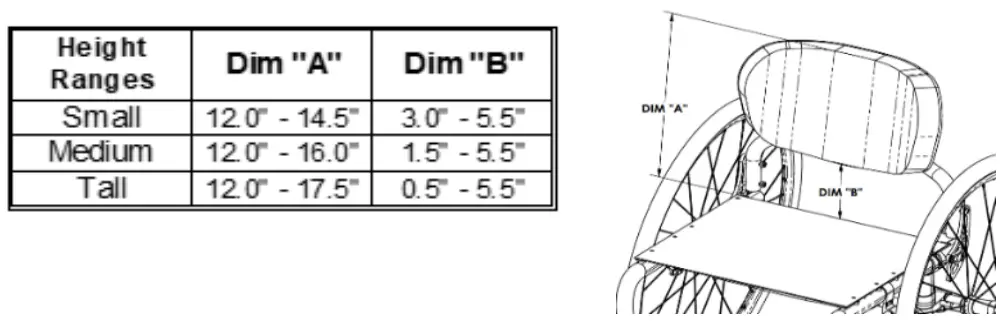

Backrest Height
Medium size backrest not available in Carbon Fiber
| 112QF04 | Small 6.5″ shell hgt, 9″ back height | NC | |
| 112QF05 | Medium 8″ shell hgt, 10.5″ back height | NC | |
| 112QF06 | Tall 9.5″ shell hgt, 12″ back height | NC |
Backrest Color
Not applicable with carbon fiber back or Zebra color
| 112GZ01 | Black | NC | |
| 112GZ02 | Matching Frame- Standard Colors | NC | |
| 112GZ03 | Matching Frame- Personalized Color | $58.00 |
Backrest Width
| Backrest Width | ||||
| o o o o | 112JQ01 | 14″ Backrest Width | NC | |
| 112JQ02 | 16″ Backrest Width | NC | ||
| 112JQ03 | 18″ Backrest Width | NC | ||
| 112JQ04 | 20″ Backrest Width | NC | ||
ARMREST / SIDEGUARDS
Armrest – Padded Swing Away
Some limitations when used with the Angle Adjustable Back in the rear most setting Please select a setting, will default to 11″ if no selection is made.
| 112AA162 | Padded Swing-Away Fixed height (13″) | NC | ||||||||||
| 112AA18 | Padded Swing-Away STD (9″ to 14″) | $267.00 | ||||||||||
| Setting | o | 9″ | o | 10″ | o | 11″ | o | 12″ | o | 13″ | o | 14″ |
Armrest – Height Adjustable
| Armrest – Height Adjustable | ||||
| o
o | 112AA11 | Single Post Height Adjustable – Std Range 8″ – 13″. Adjust in 1″ increments | $326.00 | |
| 112AA29 | Single Post Height Adjustable – Low Range 6.5″ – 10.5″. Adjust in 1″ increments | $326.00 | ||
Armpad – For Height Adjustable
| Armpad – For Height Adjustable | ||||
| o o o o o | 112AM23 | Desk Length (10″) Classic | NC | |
| 112AM21 | Desk Length (10″) Contour | NC | ||
| 112AM24 | Full Length (14″) Classic | NC | ||
| 112AM22 | Full Length (14″) Contour | NC | ||
| 112AM27 | Ergo Pad (12″) | NC | ||
Side Guards
Increases overall width of chair. Some interferance may exist w/ padded SA arms at lowest settings Not available w/Height Adjustable Arms.Alum Flip sideguard option N/A with Twist lock fold release, Freestyle back and Active Rigid.
| 112SG33 | Plastic Standard | $180.00 | |
| 112SG29 | Plastic Low | $180.00 | |
| 112SG35 | Aluminum | $302.00 | |
| 112SG36 | Aluminum w/ Fender | $302.00 | |
| 112SG12 | Carbon Fiber | $494.00 | |
| 112SG41 | Carbon Fiber Long w/LG Fender | $579.00 | |
| 1129A05 | Flip Back Option Aluminum side guard only. | $105.00 |
Side Guard – Color Option
Available with Aluminum or Aluminum with Fender. Not applicable to carbon o fiber options
| 112GE01 | Black | NC | |
| 112GE02 | Matching Frame- Standard Colors | NC | |
| 112GE03 | Matching Frame- Personalized Color | $54.00 |
KEY OPTIONS AND ACCESSORIES
Anti Tips
Anti Tip Single Side N/A 12W-14W range, N/A w/ Rear suspension. Included with Xtender.
| 112AT1 | Anti Tips (Pair) | $116.00 | |
| 112AT14 | Anti Tip Single Side – Flip Up oLeft o Right (Facing from rear) | $249.00 | |
| 112AT83 | Tip assist o Right Mnt o Left Mnt | $39.00 | |
| 112AT20 | Sport Anti Tip / 5th wheel | NC |
Active lifestyle options
LED lights mounted on caster arms, battery & controller on leg strap. Leg strap included with LED lights
| 112A1 | Backpack – Adult | $107.00 | |
| 112A2 | Backpack – Kids | $100.00 | |
| 1121A01 | Seat Pouch Black | $80.00 | |
| 1128A47 | Mobile phone pocket | $32.00 | |
| 1129A06 | Twin LED lights | $298.00 | |
| 112A999 | Quickie Water Bottle & Holder | $78.00 |
Spoke Guards
Only available with Lite spoke. N/A w/ Xtender Power Assist.
| 1124A01 | Quickie Black Spoke Guard | $151.00 | |
| 1124A02 | Quickie Clear Spoke Guard | $151.00 |
Positioning Belt
| Positioning Belt | ||||
| o o o o | 112A117 | Belt 2″ Aircraft Buckle w/Clamps | $134.00 | |
| 112A118 | Belt 2″ Aircraft Buckle Pad w/Clamp | $196.00 | ||
| 112A141 | Belt 1.5″ Auto Buckle w/Clamps | $94.00 | ||
| 112A804 | Positioning Belt Clamps Only | NC | ||
Accessories
| Accessories | ||||
| o o o o | 112A2100 | Crutch Holder | $110.00 | |
| 1128A21 | Tool Kit | $41.00 | ||
| 112NP01 | Gel Swing Away Pad | $140.00 | ||
| 1129A07 | Frame Protections pads | $105.00 | ||
COLOR
Standard Frame Color
Handrim color option only available if Aluminum Coated colored option was selected. Handrim color option only available if Aluminum Coated colored options was selected. Black not available as base w/Zebra.
| 112C140 | Aztec Gold | o | |
| 112C118 | Bead Blast | o | |
| 112C2 | Black (Not avail as base w/Zebra) | o | |
| 112C141 | Black Cherry | o | |
| 112C10 | Black Opal | o | |
| 112C38 | Blue Opal | o | |
| 112C36 | Candy Blue | o | |
| 112C14 | Candy Purple | o | |
| 112C35 | Candy Red | o | |
| 112C142 | Electric Blue | o | |
| 112C143 | Evergreen | o | |
| 112C44 | Glossy White | o | |
| 112C126 | Glow | o | |
| 112C144 | Green Apple | o | |
| 112C147 | Hot Sparkle Pink | o | |
| 112C148 | Mauve Pink | o | |
| 112C103 | Rootbeer | o | |
| 112C114 | Sparkle Silver | o | |
| 112C145 | Sunrise Orange | o | |
| 112C113 | Titanium Color Paint | o | |
| 112C8 | Yellow | o |
Matte Frame Colors
Handrim color option only available if Aluminum Coated colored options was selected
| 112C116 | Matte Black | o | |
| 112C151 | Matte Black Cherry | o | |
| 112C150 | Matte Electric Blue | o | |
| 112C149 | Matte Evergreen | o | |
| 112C152 | Matte Purple | o |
Personalized Frame Color
| Personalized Frame Color | ||||
| o | 112C112 |
| Desert Camouflage | $354.00 |
| o | 112C43 | Mossy Oak Camouflage | $354.00 | |
| o | 112C42 | Stars & Stripes | $354.00 | |
| Zebra (Choose above base color) Std with | ||||
| o | 112C108 | White unless above base paint is chosen N/A w/ Blk, Matte Black, Blk Opal, Titanium or Bead | $354.00
| |
| Blast). | ||||
Frame Decal Colors
Applies to front caster link decals and aluminum & carbon fiber sideguards.
| 112D16 | Black | NC | |
| 112D17 | Blue | NC | |
| 112D18 | Orange | NC | |
| 112D19 | Red | NC | |
| 112D20 | Silver | NC |
COLOR (CONT)
Anodized Color Package
Forks, Rear Axle Clamp,and backrest bracket. N/A with Frog Legs.
| 112EB07 | Black | NC | |
| 112EB08 | Blue | $204.00 | |
| 112EB13 | Gold | $204.00 | |
| 112EB09 | Lime Green | $204.00 | |
| 112EB10 | Purple | $204.00 | |
| 112EB11 | Red | $204.00 | |
| 112EB12 | Ti Grey | $204.00 |

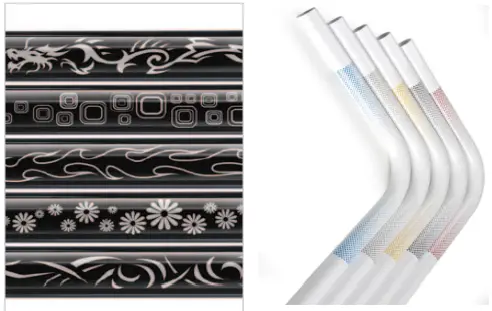

Frame Graphics
Graphic designs on front frame tubes. N/A with transit & Matte Black Cherry
| 1128A24 | Bloom | $354.00 | |
| 1128A25 | Dragon | $354.00 | |
| 1128A26 | Ghost Flames | $354.00 | |
| 1128A27 | Retro Squares | $354.00 | |
| 1128A28 | Tribal | $354.00 | |
| 1128A33 | Floating Dots Black | $338.00 | |
| 1128A34 | Floating Dots Matte Black | $338.00 | |
| 1128A78 | Floating Dots Blue | $338.00 | |
| 1128A76 | Floating Dots Orange | $338.00 | |
| 1128A35 | Floating Dots Silver (grey) | $338.00 | |
| 1128A77 | Floating Dots Red | $338.00 |
Built For Me
To inquire about any unique personalized for Quickie products, contact:
Phone: (800) 263 – 3390, Option #3, Fax: (800) 561 – 5834
APPENDIX
Customer Service
(800) 263-3390 Fax: (800) 561-5834 Email: [email protected] www.sunrisemedical.ca Specifications are subject to change without notice. © 2022 Sunrise Medical Canada Inc. MK-129759-CAN, Rev (4)
Wheelchairs, Seating & Mobility Solutions | Sunrise Medical
