Airamster Tiger 8-550 50 Litre Air Comressor Instruction Manual

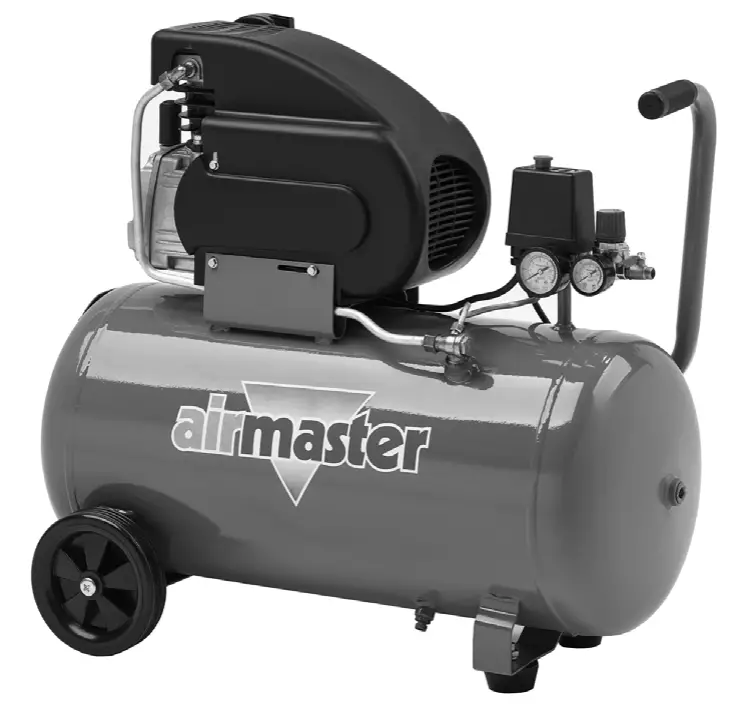

50L AIR COMPRESSOR
MODEL NO: TIGER 8/550
PART NO: 1499495

OPERATION & MAINTENANCE INSTRUCTIONS
ORIGINAL INSTRUCTIONS
DL0122 ISS 5

INTRODUCTION

Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you and you can look forward to your purchase giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission. This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through the purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery, and environmentally sound disposal of the WEEE. In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognized disposal facility.

SAFETY PRECAUTIONS

Before using your compressor it is in your own interest to read and pay attention to the following safety rules.

1. Compressed air is dangerous. DO NOT point a jet of air at persons or animals and DO NOT discharge compressed air against the skin.
2. DO NOT operate your compressor with the guard removed.
3. Repairs must only be carried out by a qualified engineer. If problems occur, contact your dealer.
4. Before carrying out any maintenance, ALWAYS make sure that the pressure is released from the air tank and that the compressor is disconnected from the electrical supply.
5. DO NOT leave pressure in the receiver overnight, or when transporting.
6. DO NOT adjust, or tamper with the safety valves. The maximum pressure is
   factory set, and clearly marked on the compressor.
7. DO NOT operate in wet or damp conditions. Keep the compressor dry at all times. Similarly, clean air will allow the compressor to work efficiently. DO NOT use in dusty or otherwise dirty locations.
8. Some of the metal parts can become quite hot during operation. DO NOT touch these until the compressor has cooled down.
9. ALWAYS set the pressure regulator to the recommended setting for the tool.
10. When spraying flammable materials e.g. cellulose paint, ensure that there is sufficient airflow and keep clear of any source of ignition.
11. Before spraying any material ALWAYS consult paint manufacturers’ instructions for safety and usage.
12. Protect yourself. Goggles will protect your eyes from flying particles. Face masks will protect you against paint spray and fumes.
13. DO NOT apply strain to electrical cables and make sure that air hoses are not kinked or wrapped around the compressor.
14. When disconnecting air hoses or other equipment from your compressor, make sure that the air supply is turned off at the outlet and vent all pressurized air from within the tank and other equipment attached to it.
15. Make sure that children and animals are kept well away from the compressor and any equipment attached to it.
16. Make sure that all individuals using the compressor has had the necessary training and have read and fully understand these operating instructions.
17. Make sure that any equipment or tool used in conjunction with your compressor has a safe working pressure exceeding that of the compressor.
18. Be careful when transporting the compressor to prevent tipping over
19. Permanently installed systems must be installed by a competent engineer.
20. These compressors produce noise levels in excess of 70dB(A). Persons working near the compressor must be supplied with ear protection.

SAFETY SYMBOLS

Read this instruction booklet carefully before positioning, operating or adjusting the compressor.
This compressor contains surfaces that may reach a high temperature during operation. Never operate with the motor housing removed.
Wear safety goggles when using this compressor
Wear ear protectors when using this compressor
This compressor produces a high sound level during operation. Ear protection should be worn.

ELECTRICAL CONNECTIONS

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAIN SUPPLY.

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug or a suitably fused isolator switch.
If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions are shown below. The old plug must be discarded safely, as insertion into a power socket could cause an electrical hazard.

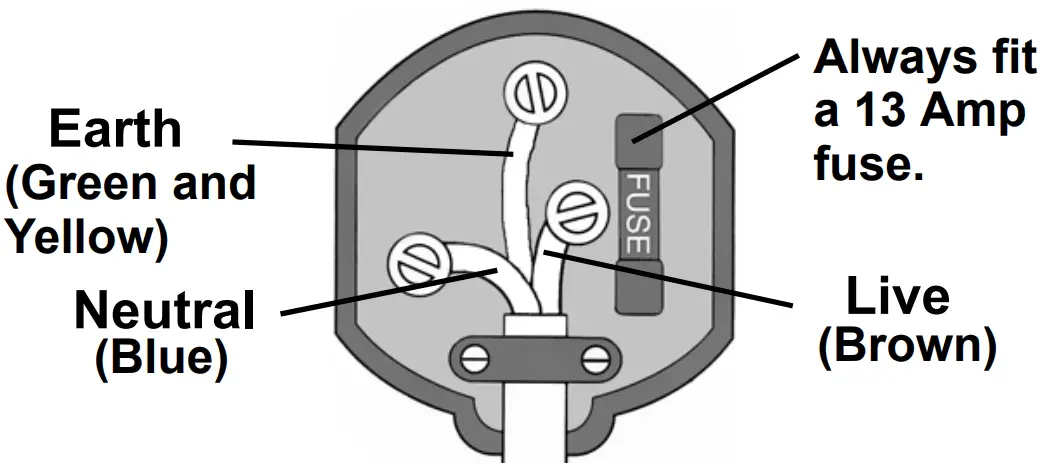

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

If the colors of the wires in the power cable do not agree with the markings on the plug:

• The BLUE wire must be connected to the terminal which is marked N or colored black.
• The BROWN wire must be connected to the terminal which is
  Plug must be BS1363/A approved.

Ensure that the outer sheath of the cable is firmly held by the clamp
The YELLOW AND GREEN wire must be connected to the terminal which is marked or colored green.
We strongly recommend that this machine is connected to the mains supply through a Residual Current Device (RCD)
If you are not sure, consult a qualified electrician. DO NOT try to do any repairs.

ASSEMBLY

ATTACH THE WHEELS

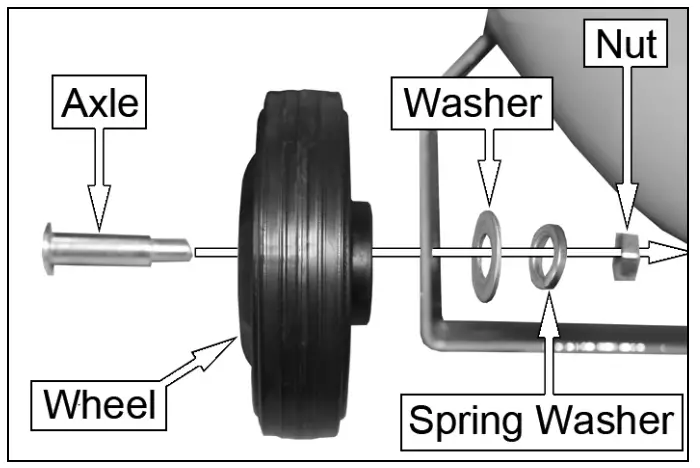

Use a spanner to attach the wheels to the compressor. Use the washers and spring washers in the positions shown.
ATTACH THE FEET

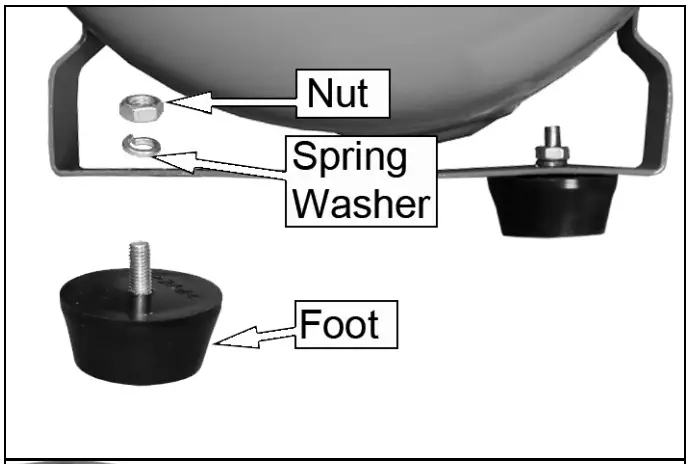

Insert the feet into the position shown.
ATTACH THE AIR FILTER

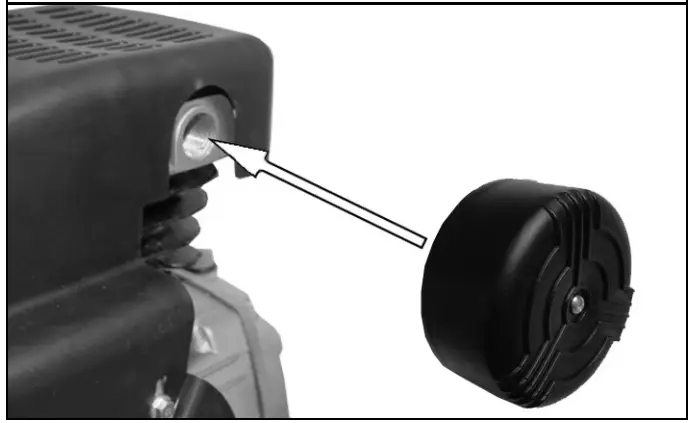

21. Screw the air filter into position.
The air filter must be hand-tight only.
INSTALL THE OIL FILLER CAP

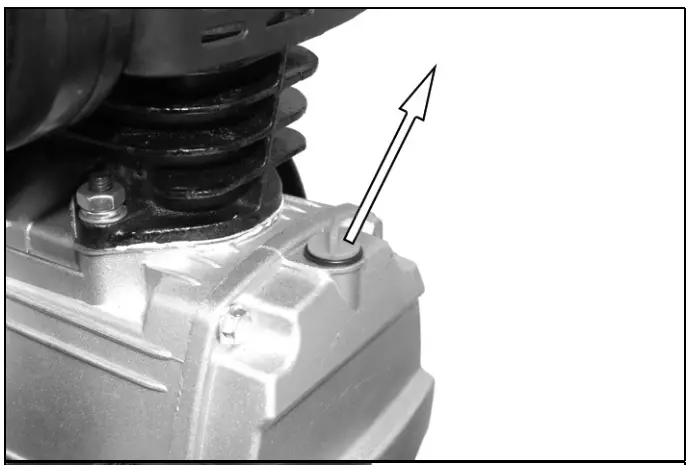

1. Remove the travel plug.

2. Insert the oil breather cap.MOVING THE AIR COMPRESSOR
CAUTION: THE COMPRESSOR IS HEAVY AND REQUIRES TWO PEOPLE TO LIFT SAFELY.

• Stop the compressor and disconnect it from the power supply before you move it.
• Always use the handle.
• To prevent damage, do not lift by (or put a strain on) valves or hoses.

BEFORE USE

Before you connect your compressor to the power supply, check the following:-

• Set the ON/OFF switch to the OFF position (pushed down).
• Make sure that the compressor is on level ground.
•  Make sure that the supply voltage matches the voltage shown on the data label.

CHECK THE OIL LEVEL

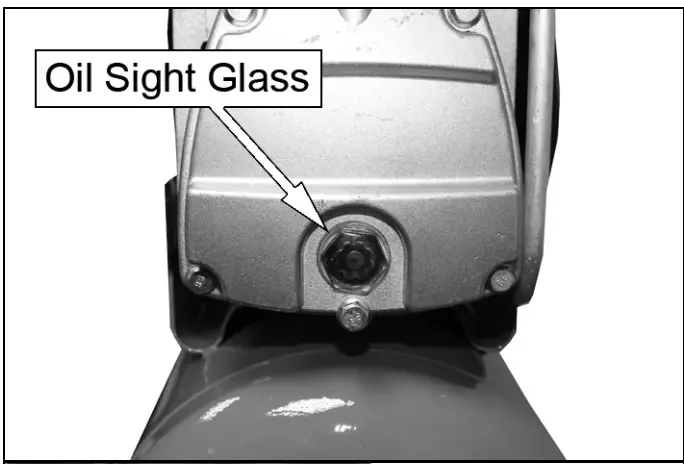

1. Make sure that the oil level is halfway up the oil sight glass.2. If not, remove the oil cap and add oil to the tank.
Only use SAE30 compressor oil, available from your dealer.
Only fill to the halfway point on the sight glass, Overfilling may result in damage.

OPERATION

If the compressor has not been used for more than 24 hours, open the drain valve (on the bottom of the tank) and drain any condensate which has collected. See page 12.
ATTACHING AIR TOOLS
WARNING: BEFORE CONNECTING AIR TOOLS, MAKE SURE THAT YOU READ THE INSTRUCTIONS SUPPLIED WITH THE TOOL, ALSO ENSURE THAT THE TOOL IS SUITABLE FOR USE WITH THE COMPRESSOR AND HOSE SPECIFICATIONS.

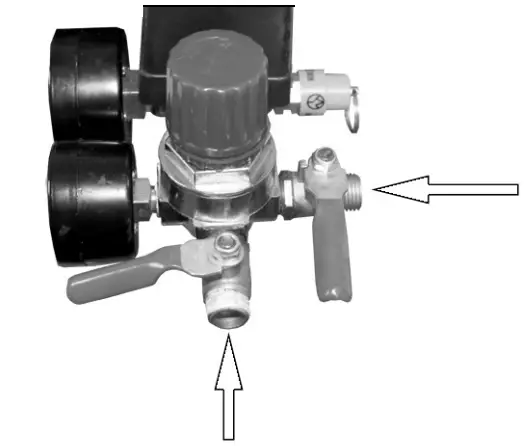

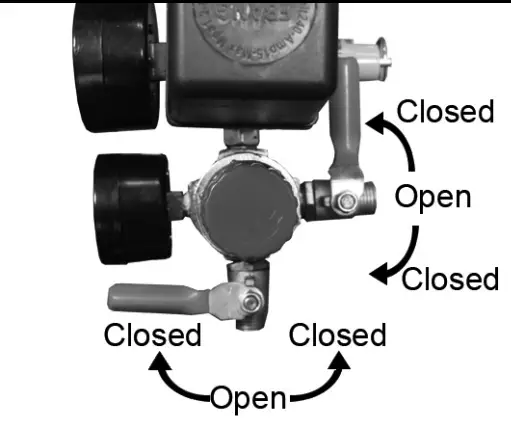

1. Attach the air hose to one of the ¼” BSP outlet valves.
2. Attach the tool to the end of the air hose.

3.  Turn the outlet valve handle to the open position.

NOTE: The outlet valve is shown without the air hose attached for clarity.
TURNING THE COMPRESSOR ON
1. connect the compressor to the power supply.

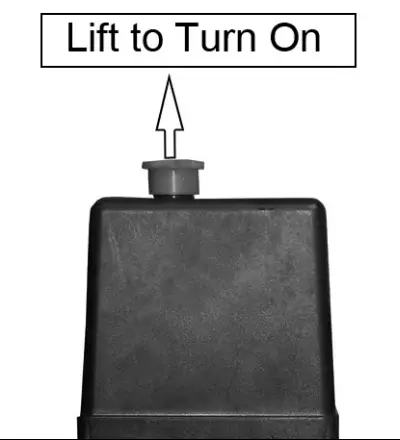

2. Lift the On/Off button. The compressor will operate until the tank is fully pressurized. It will then stop.
The compressor will start up again when the pressure in the tank decreases below a pre-set value.
CHECK THE SAFETY VALVE
To make sure that the safety valve works correctly:

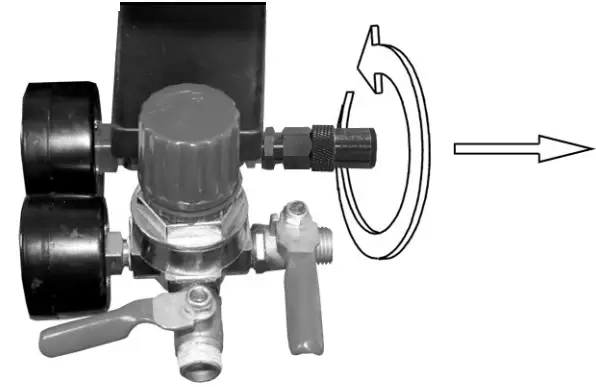

1. Unscrew the knurled end and pull it firmly outwards.
2. Air will be released when you pull the cap out and stop when released.
3. If the valve does not operate in this way, do not use the compressor. The compressor must be repaired by a qualified service agent.
4. Screw the knurled end cap back into position.

WARNING: DO NOT REMOVE, BLOCK OR TRY TO ADJUST THE SAFETY VALVE.
SET THE OUTPUT PRESSURE

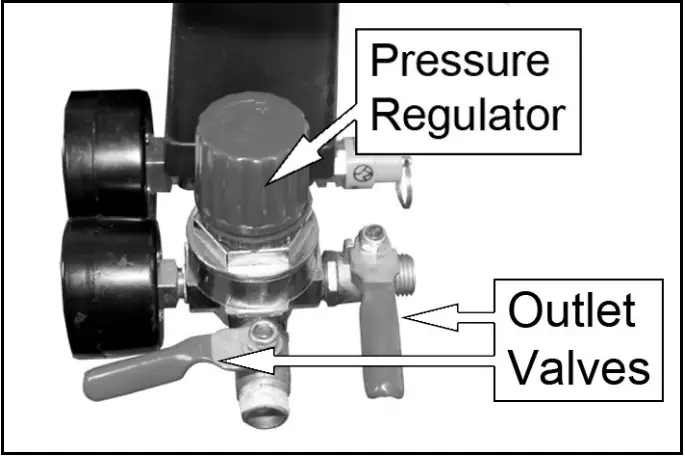

1. Use the pressure regulator to set the output pressure of the outlet valves.
Turn clockwise to increase the pressure.
Turn counterclockwise to decrease the pressure.

GAUGES

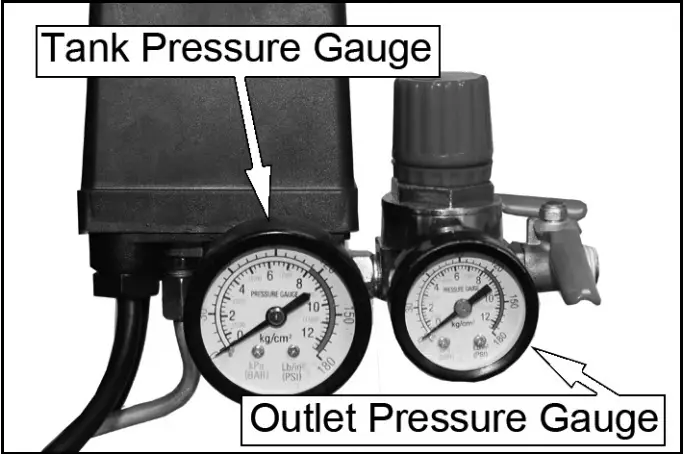

1. The tank pressure gauge shows the current pressure in the tank.
2. The outlet pressure gauge shows the `user set’ outlet pressure. This can be adjusted as shown above.
REMOVE TOOLS FROM THE AIR HOSE
WARNING: ALWAYS SET THE PRESSURE REGULATOR TO ZERO BEFORE YOU REMOVE OR REPLACE A TOOL.

1. Push down on the On/Off button to stop the compressor.

2. Turn the outlet valve handle to the closed position.
3. Operate the tool to depressurize the air hose.

4. Disconnect the tool from the hose.

TURN THE COMPRESSOR OFF

1. Follow steps 1-3 in “Remove Tools From The Air Hose” above.
2. Disconnect the compressor from the power supply.
3. Slowly open one of the outlet valves to depressurize the tank.
   You will hear a hissing sound as the tank depressurizes.
   Do not leave the compressor unattended if the tank is pressurized.

DRAINING THE TANK
CAUTION: YOU MUST DRAIN THE MOISTURE FROM THE TANK AFTER EACH DAY USE AND BEFORE YOU PUT YOUR COMPRESSOR INTO STORAGE.

1. Turn the compressor off and disconnect it from the power supply.
2. Put a container below the drain valve to collect the condensate.

3. Slowly open one of the outlet valves to depressurize the tank.
   · You will hear a hissing sound as the tank depressurizes.
   · Do not leave the compressor unattended if the tank is pressurised.

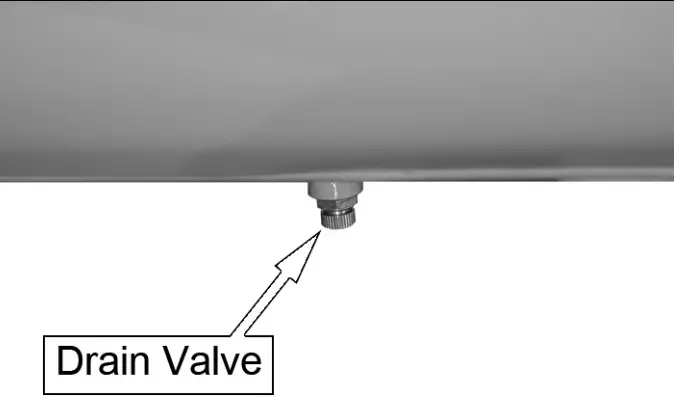

4. Open the drain valve slowly.
   · Condensation will drain from the tank.
5. Close the drain valve when the tank has fully drained.

RESET BUTTON

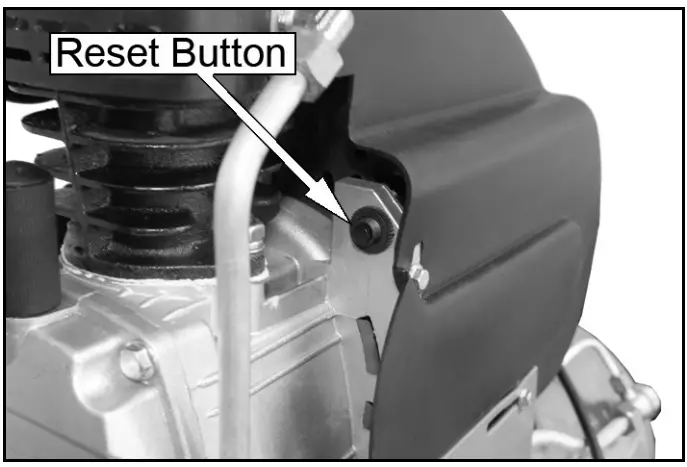

This compressor has a thermal overload device.
If the motor gets too hot, the thermal overload device cuts the power which prevents damage to the motor.

If the thermal overload device operates, let the motor cool down for 5 minutes and push the reset button.
If you start the compressor and the overload cutout operates again, stop the compressor and disconnect from the power supply and have your compressor examined by an approved service agent.

MAINTENANCE

CHECKING THE OIL LEVEL (DAILY)

1. Make sure that the oil level is halfway up the oil sight glass.

2. If not, remove the oil breather cap and add oil to the reservoir.
3. Only use SAE30 compressor oil, available from your dealer.

DRAIN THE TANK (DAILY)
After use, always open the drain valve to make sure that any condensate is drained off.
CLEAN THE AIR FILTER (MONTHLY)
The air filter must be examined monthly, more often in dusty conditions,

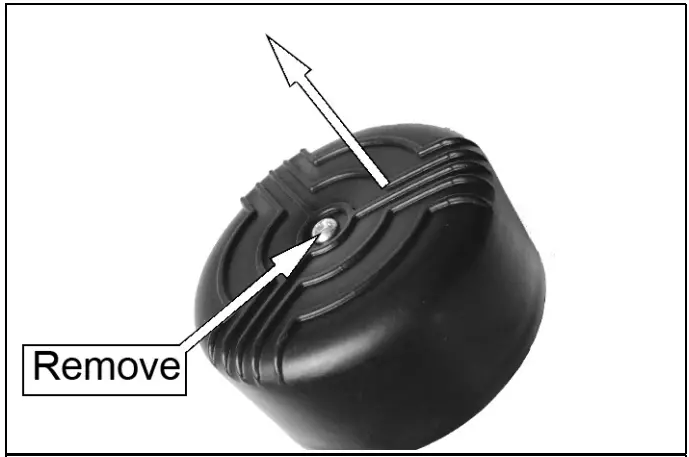

1. Remove the filter cover from the filter.

2. Remove the filter from the filter cover.
3. Use a soft brush to clean the sponge and the filter cover.
   · Clean the filter in warm soapy water.If necessary.
   · Rinse and let the filter dry completely before refitting.
4. Make sure that the filter and filter cover is replaced into position.
   · If the filter is damaged you must replace it. 13

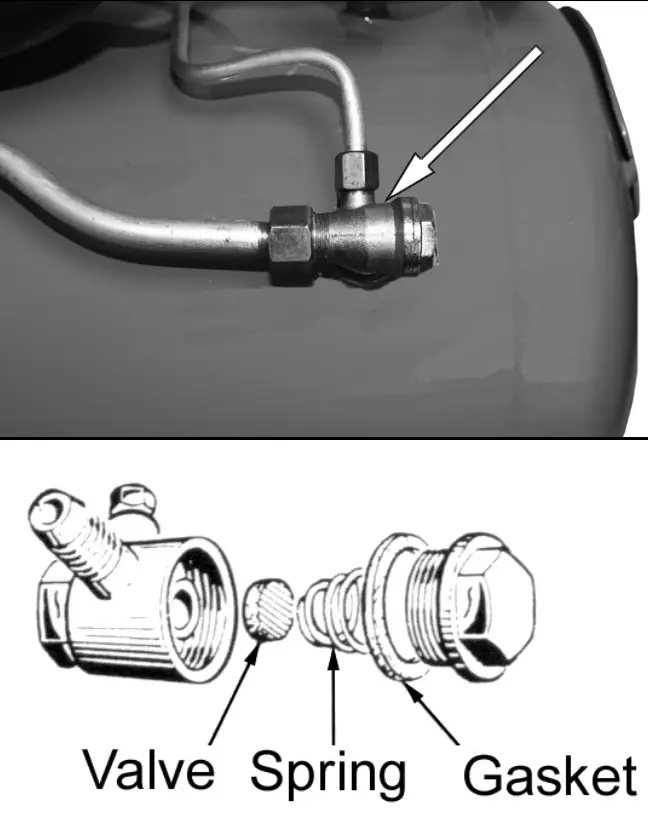

CHECK THE NON-RETURN VALVE (EVERY 6 MONTHS)
If the tank pressure decreases for no apparent reason, it is possible that the non-return valve is leaking. To check,

1. Make sure that the tank is not under pressure and the compressor is switched OFF.
2. Examine the non-return valve, and replace the gasket and valve if necessary.


CHANGING THE OIL

1. Switch off the compressor and disconnect from the mains supply.
2. Release any air pressure in the hoses.
3. Hold a collection vessel under the oil drain plug.

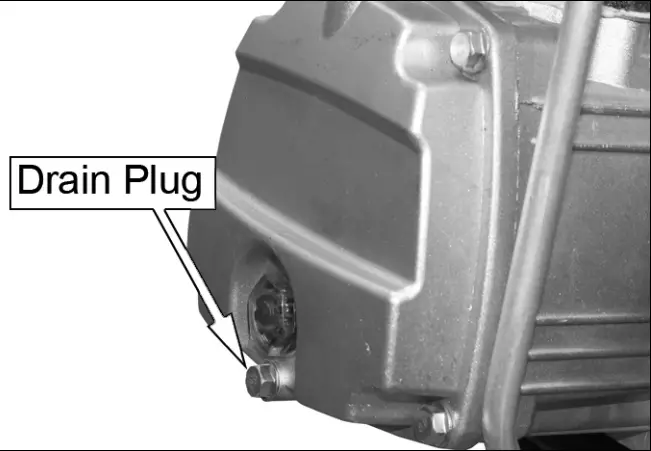

4. Unscrew the oil drain plug from the compressor pump.
   · Collect the oil in the vessel.
   · If the oil does not drain out completely, we recommend tilting the compressor slightly.
5. When the oil has drained out, refit the oil drain plug.
6. Dispose of the old oil in an environmentally responsible way.

TROUBLESHOOTING

CAUTION: DO NOT TRY TO REPAIR OR ADJUST THIS COMPRESSOR IF YOU ARE UNCERTAIN. IF YOU HAVE ANY QUERIES, CONTACT YOUR DEALER.

SPECIFICATIONS

Please note that the details and specifications contained herein, are correct at the time of going to print. We reserve the right to change specifications at any time without prior notice.
PARTS AND SERVICING TELEPHONE NUMBERS

PARTS LIST & EXPLODED DIAGRAM

DECLARATION OF CONFORMITY

We hereby declare that this product(s) complies with the following directive(s): 2014/30/EU
Electromagnetic Compatibility Directive 2006/42/EC
Machinery Directive. 2011/65/EU
Restriction of Hazardous substances. 2000/14/EC
Noise Emissions Directive, (amended by 200588/EC).
The following standards have been applied to the product(s):
EN 1012-1.2010,
EN 60204-1’2006+A1:2009,
EN 61000-6-3:2007+A1.2010,
EN 61000-3-2:2014,
EN 61000-3-3.2013.
The technical documentation required to demonstrate that the product(s) meet(s) the requirement(s) of the aforementioned dtrective(s) has been compiled and is available for inspection by the relevant enforcement authorities
The CE mark was first applied in 2018
Signed:

Product Description: Air compressor
Model number(s): Tiger 81550
Serial / batch Number: 1499495
Date of Issue: 17/01/2018 (Noise Conformity)
Notified Body: TUV SUD Industrie Service
GmbH Westendstral&e 199 80686 MUNCHEN Germany
Technical Documentation Holder:
An R Pond Clarke International 2a Shrubland Road London E10 7RB UK
Conformity Assessment Procedure: to 2000/14/EC Annex VI
Manufacturer: Clarke International
Noise Related Value: 1.5 kW
Measured Sound Power Level: 94 dB
Guaranteed Sound Power Level: 96 dB
