Poldina Ld0286b3 Pendant Light Instructions (+ PDF)

Lampada a sospensione ricaricabile
• Rechargeable suspension lamp

lampada a sospensione ricaricabile / rechargeable suspension lamp

LED DIMMER
2,2W • 192-200lm
2700-3000K • IP65
CRI>80 • 5Vdc max 1A
Ø 198 x 198 cm / Ø 7,8 x 7,8 in
LD0286B3 bianco / white
LD0286N3 grigio scuro / dark grey
LD0286R3 corten

Contents hide

1 Inclusi / Included

2 Tips for use:

3 Technical data of the lamp:

4 Battery charger technical data:

5 important:

6 INCLUDE AND NOT INCLUDED ACCESSORIES

7 RECHARGEABLE BATTERY MAINTENANCE

8 Documents / Resources

9 Related Posts

Inclusi / Included

Cavo di ricarica con entrada USB Tipo C / Charging cable with USB Type C input

Noninclusi / Not included
LD0340RA
Caricature multipresa USB (8xUSB)/ Multi-socket USB charger (8xUSB)

BAT04703706701900
Pacco batteria sostitutiva / Replacement battery pack

KIT00009006800201
Scheda LED sostitutiva/ Replacement LED board

Tips for use:

A) Installation and maintenance must be done when full power is switched off. B) Modifications or handling of the product and the non-respect of the information below may be dangerous. C) The assembled lamp (head + frame), reaches an IP54 degree of protection which makes it suitable for outdoor use. The light diffuser only (head) has a degree of protection IP20 and used individually is not suitable for outdoor use. D) Cleaning of all metal and plastic surfaces using a soft dry cloth. E) The company Zafferano assumes no responsibility for damages caused by a product installed not in accordance with instructions.

Technical data of the lamp:

Lithium battery pack included (see section accessories included); for instructions about how to replace the battery pack, please consult the website: www.zafferanoitalia.com. Use only original batteries for replacement.
– Ricarica / Charge: 6 h
– Durata batteria: / Battery life: 9 h
– Classe / Class: III
– Grado di protezione / Protection rating: IP54
– CRI>80

Battery charger technical data:

It is advisable to use the original charger and charging base. Alternatively, you can use a certified 1A max. charger.

important:

please refer to local laws for the proper disposal and recycling of the battery

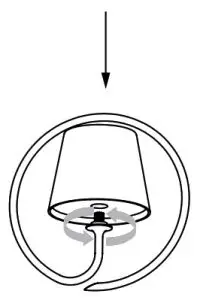

ASSEMBLY INSTRUCTIONS

Important! Don’t tighten too hard

INSTRUCTIONS FOR USE

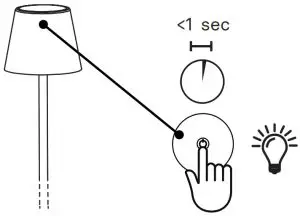

SWITCHING ON

quickly press the touch sensor to switch on the lamp

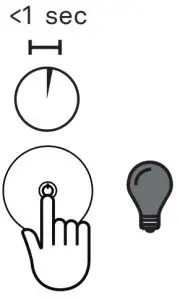

SWITCHING OFF

quickly press the touch sensor to switch off the lamp

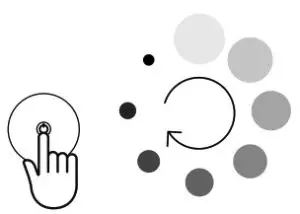

DIMMER

when the lamp is switched on, lightly press the touch sensor to obtain the desired brightness

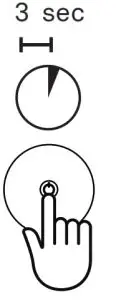

COLOR TEMPERATURE CONFIGURATION

When the lamp is switched off, press lightly for 4 seconds until a steady blue LED lights up

A quick tap on the touch sensor to change the color temperature of the lamp

Light pressure for 4 seconds to set the new color temperature and switch off the lamp

CHARGE

Charge the battery before initial use. To correctly charge the lamp, we recommend that you:
1) Connect the USB cable to the adaptor; 2) Connect the USB cable to the lamp; 3) Put the plug into the electrical socket; 4) When fully charged, disconnect the plug from the electrical

INDICATOR LEDS

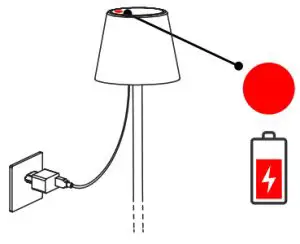

charging in progress

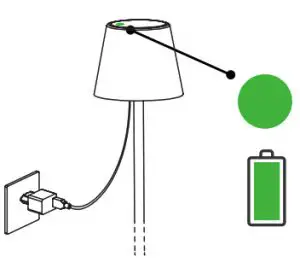

GREEN LED

the battery is charged, it is advisable to disconnect it from the power charger

INCLUDE AND NOT INCLUDED ACCESSORIES

INCLUDED

Charging cable with USB Type C input

	INPUT: 5Vdc max 1A OUTPUT: 5Vdc max 1A
	INPUT: AC100-240V 50/60Hz OUTPUT: 5Vdc max 1A

NOT INCLUDED
LD0340RA

Multi-socket USB charger (8xUSB)

INPUT: AC100-240V 50/60Hz
OUTPUT: 5Vdc max 8A

REPLACEMENT
Replacement LED board

KIT00009006800201

Scan the QR code to see how to replace the LED board of your lamp.

http://qr.w69b.com/g/lbNfgxIac

BAT04703706701900*

Replacement battery pack

BAT04703706701900* x 1 pz

Scan the QR code to see how to replace the exhausted batteries of your lamp.

http://qr.w69b.com/g/teAkpChEI

RECHARGEABLE BATTERY MAINTENANCE

All rechargeable batteries are subject to wear when used. The life of batteries, which can generally be recharged 450 times, may be reduced by certain factors:

incorrect recharging mode (the lamp must be recharged when it is flat: about 10% of its remaining autonomy);
when left unused for a long time;
when left for a long time on a live recharging base even if the lamp is recharged;
when non-original accessories are used for recharging;
when the product is exposed to very high or very low temperatures. When the lamps no longer recharge or their autonomy after recharging is very short, the batteries must be replaced. Spare parts for Zafferano rechargeable lamps can be found in the catalogue and identified by a special code. The warranty for batteries is only valid for manufacturing defects, which may occur after initial use.

LEGEND

	User-replaceable source
	User replaceable light source
	User-replaceable LED source
	LED source replaceable by qualified personnel
	Non-replaceable LED source
	User-replaceable driver
	Driver replaceable by qualified personnel
	Non-replaceable driver
	User-replaceable battery
	Battery replaceable by qualified personnel
