QUICK REFERENCE GUIDE > CPV3-486GD N
Gas Rangetop, 48″, Griddle
Series 9 | Professional
Stainless Steel | Natural gas

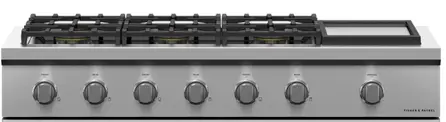

CPV3-486GD N Gas Rangetop
A powerful six-burner range top with Professional styling and the additional cooking flexibility of a stainless steel griddle.
- Griddle with burners that deliver up to 23,500 BTU heat per burner, for seriously fast boiling
- Continuous surface grates designed for pots and pans to move safely across the cooktop
- The stainless steel griddle is great for cooking anything from grilled cheese to quesadillas
- Made from quality materials and real stainless steel
DIMENSIONS
| Height | 8 5/16″ |
| Width | 47 7/8″ |
| Depth | 28″ |
FEATURES & BENEFITS
COOKTOP POWER
Sealed Dual Flow Burners™ deliver rangetop power up to 23,500
BTU for seriously fast boiling right down to a precise 140°F full
surface simmer with the gentlest of flames.
PRECISE CONTROL
From the highest to the lowest temperatures you get total control with halo-illuminated range top dials. A precise full-surface simmer is delivered across all burners.
COOKING FLEXIBILITY
The continuous surface grates are designed for pots and pans to move safely across the range top. The deep-platform style grates provide full coverage so heat goes directly onto the pot, for a faster boil.
EASY TO CLEAN
These rangetops are easy to clean with sealed burners and a continuous, porcelain baseman.
INFORMATION AT A GLANCE
LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
DESIGN QUALITY
This range top is built to last with craftsmanship in every detail, featuring real stainless steel, cast iron trivets, and titanium-coated dials.
SPECIFICATIONS
| BC36:D72urner ratings | |
| Max burner power | 23500BTU |
| Power back center | 18500BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power front center | 18500BTU |
| Power front left | 23500BTU |
| Power front right | 18500BTU |
| Power griddle | 18000BTU |
| Total cooktop power | 134000BTU |
| Cleaning | |
| Easy clean porcelain baseman | • |
| Controls | |
| Metal illuminated dials | • |
| Star K Certification | • |
| Gas Requirements | |
| Fitting and pipe | ½ NPT, min. ⅝” flex line |
| Supply Pressure (natural gas) | 6″ to 9″ W.C |
| Performance | |
| Sealed Dual Flow Burners™ | 6 |
| Sealed range top | • |
| Simmer on all burners | 140°F |
| Power requirements | |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 28″ |
| Height | 8 5/16″ |
| Width | 47 7/8″ |
| Recommended Back Guards’ Ventilation | |
| Combustible situation | BGCV2-3048H |
| Non combustible situation | BGCV2-3048 / BGCV2-1248 |
| Pro hood | HCB48-12_N |
| Warranty | |
| Parts and labor | Limited 2 years |
| SKU | 82387 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
