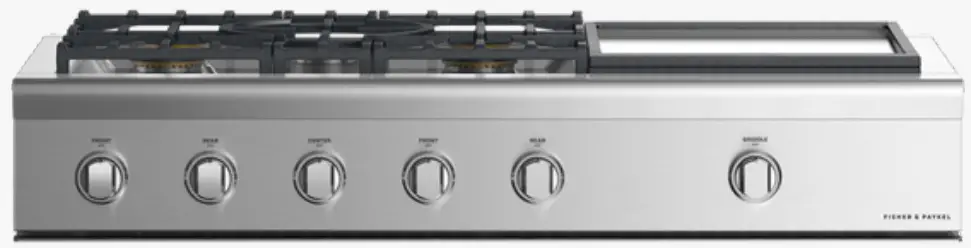

CPV2-485GDL N Gas Rangetop
QUICK REFERENCE GUIDE > CPV2-485GDL N
Gas Rangetop, 48″, Griddle, LPG
Series 9 | Professional
Stainless Steel | LPG
A powerful five-burner range top with Professional styling and the additional cooking flexibility of a stainless steel griddle.
- Your burners can deliver anything from a high 19,000 BTU heat per burner for fast boiling, to a gentle flame for simmering
- The griddle is great for cooking anything from pancakes to bacon, grilled cheese to quesadillas
DIMENSIONS
| Height | 8 5/16″ |
| Width | 47 7/8″ |
| Depth | 28″ |
FEATURES & BENEFITS
Perfect heat
Sealed Dual Flow BurnersTM delivers a range of top power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Precise control
From the highest to the lowest temperatures you get total control with halo-illuminated range top dials. A precise full surface simmer is delivered across all burners.
Cooking flexibility
The continuous surface grates are designed for pots and pans to move safely across the range top. Heavyweight stainless steel griddles can be set to desired temperatures and then maintained evenly across the entire griddle surface.
Information at a glance
LED halo control dials to provide information at a glance and assist in alerting you if any burners are accidentally left on.
Easy cleaning
These cooktops have sealed burners and a single sheet cooking surface which, combined with a commercial-style stainless steel finish and dishwasher-safe grates, allow easy cleaning.
Complementary Design
Built to last with distinctive, bold styling, this range top is designed to match the Fisher & Paykel Professional style family of appliances.
SPECIFICATIONS
| Burner ratings | |
| Max burner power | 23500BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power front left | 18500BTU |
| Power front right | 18500BTU |
| Power griddle | 24500BTU |
| Controls | |
| Metal illuminated dials | • |
| Performance | |
| Electric circuit | 3 wire |
| Sealed Dual Flow Burners™ | 5 |
| Sealed range top | • |
| Simmer on all burners | 140°F |
| Power requirements | |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120VV |
| Product dimensions | |
| Depth | 28″ |
| Height | 8 5/16″ |
| Width | 47 7/8″ |
| Recommended Back Guards Ventilation | |
| Minimum CFM | 1200 BTU |
| Pro hood | VS48 |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 71379 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
