Alogic Wcg2x68-anz 2 Port Usb-c Gan Charger User Guide

ALOGIC WCG2X68-ANZ 2 Port USB-C Gan Charger

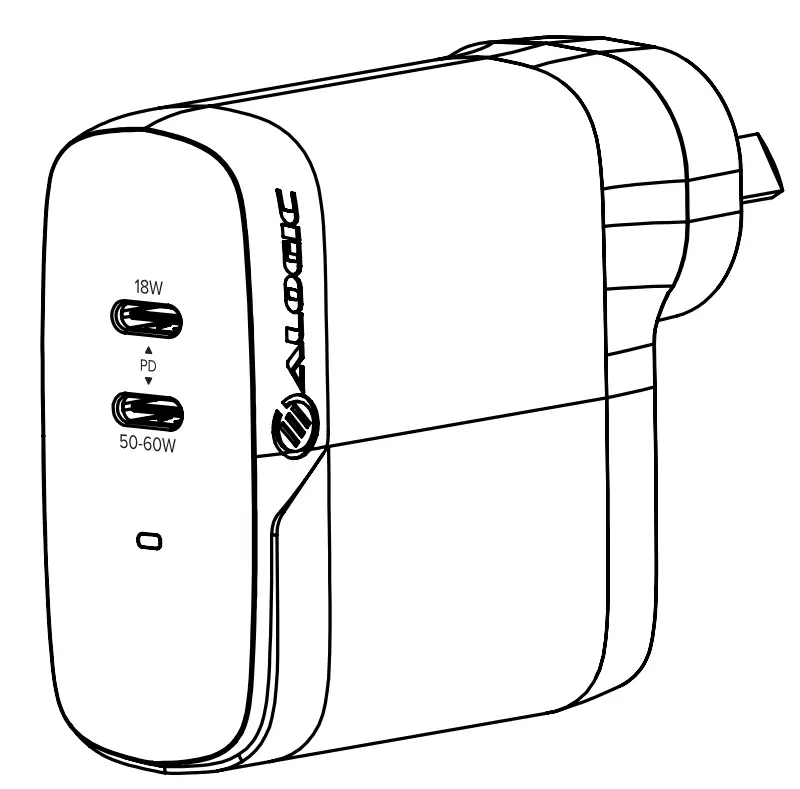

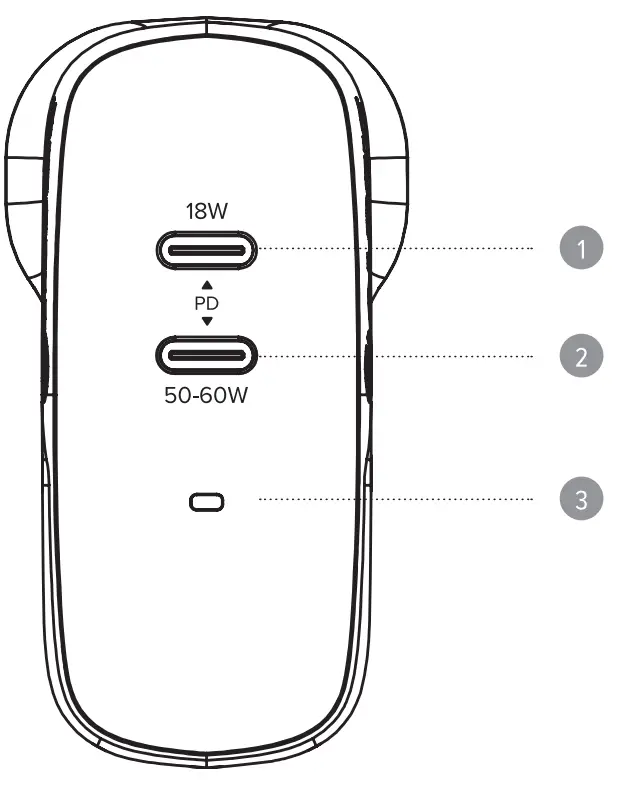

Overview

Specifications

Package Contents

• 68W Rapid Power GaN Charger
• 2m USB-C to USB-C 100W Charging Cable
• User Manual

Instructions

Congratulations on purchasing this quality ALOGIC product. To get the most out of your purchase, please take the time to read these instructions before use.
This product allows you to charge up to two devices that support USB charging

simultaneously. It supports the latest USB Type-C Power Delivery (PD) charging standard to allow high power devices such as laptops to be charged at up to 60W, but can also safely charge smaller devices such as tablets, portable gaming consoles & smartphones.

USB Power Delivery is a new, multi-voltage charging standard that dynamically negotiates power output over a USB Type-C connection allowing you to safely and efficiently charge a wide range of compatible devices from a single charger

Using the Charger

(Refer to the images on the previous pages)

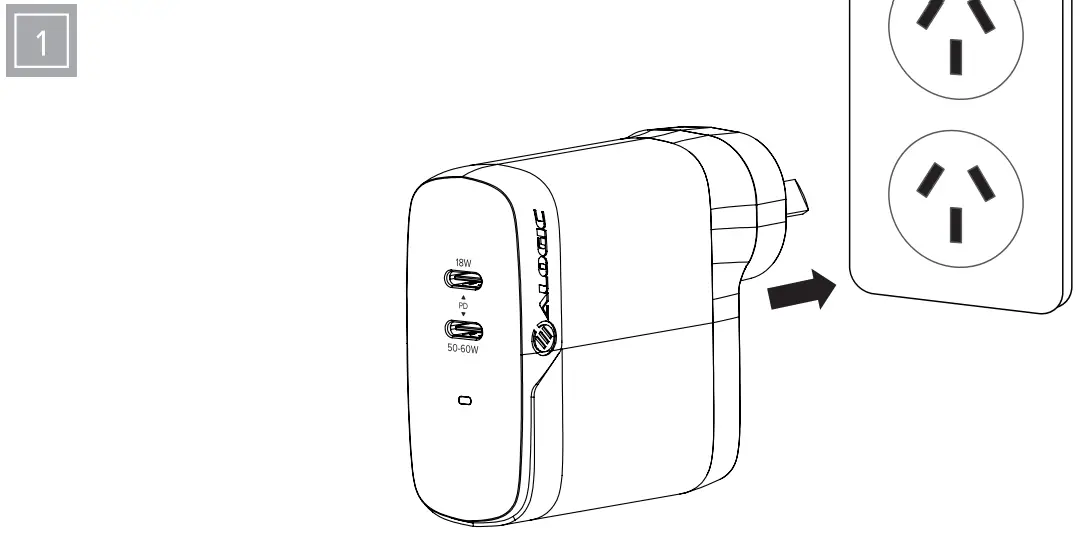

Plug the wall charger into a power outlet.

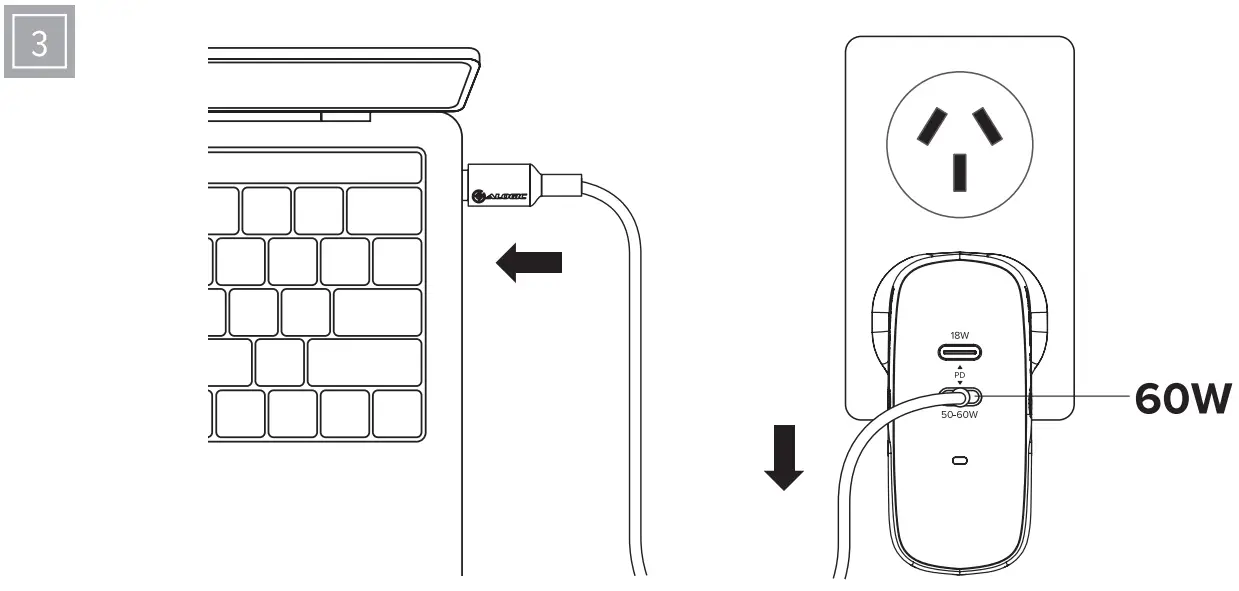

Connect laptops or other high powered devices such as tablets to the lower USB-C outlet. This outlet will charge devices at up to 60W on a single port or 50W with both ports used. Use the cable supplied with the charger or another USB-C 5A rated cable to ensure the laptop charges at the fastest possible speed.

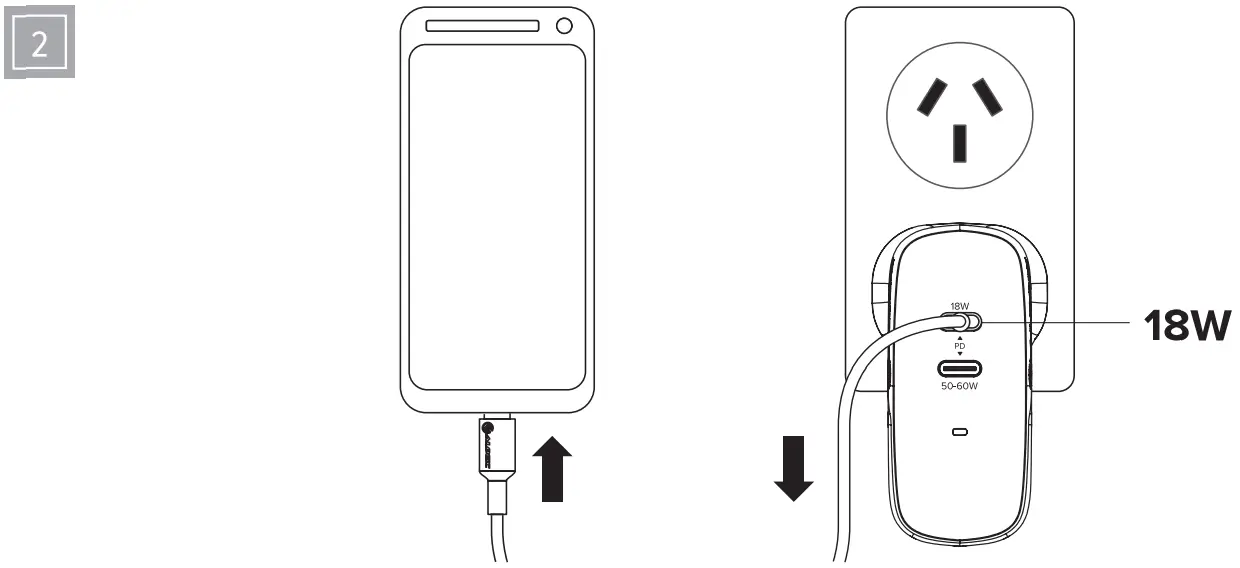

Connect lower powered USB-C devices such as phones to either USB-C outlet. The second USB-C port will charge devices at up to 18W.

Unplugging your devices when they have finished charging is recommended to prolong the life of the batteries.=

Note

The lower USB-C port can charge devices at up to 60W when used on its own. When both ports are in use the maximum output available is reduced to 50W.

Troubleshooting
