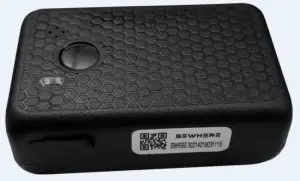

BeMini B3-MIOT-NA Indoor Outdoor Asset Tracker
User Manual
BeWhere BeMini (B3-MIOT-NA) is a small form factor asset tracker that utilizes the latest in LTE-M/NB Cellular technology. It has very low power consumption and long battery life so you can track, monitor, and manage a wide variety of durable and perishable assets like never before.
The BeMini is rechargeable with mini-USB, features sensors like temperature and light along with multiple location modules to enhance indoor location tracking. The BeMini smaller form factor is ideal for tracking smaller assets both indoor and outdoor.
Features
- Available on the following Radio Access
Technologies: B3-MIOT-GA (M1 / NB1/ NB2) - Rechargeable with mini-USB (included)
- Configurable alerting
- Motion tracking, triggering updates
- Outdoor Location: GNSS (GPS, BeiDou, Galileo, GLONASS, and QZSS)
- Indoor Location: Wi-Fi / BLE 5.2
- IP67 Rugged and Dust / Water-proof enclosure
- On-board sensors
– Temperature
– Humidity
– Pressure
– Light
– Accelerometer
– Buzzer
Benefits
- Ultra-low-power platform
- Low device cost
- Low deployment cost
- No reader needed
- Full coverage (indoor and rural areas)
BeMini Technical Specifications
| General | |||||
| Communication Battery | LTE CAT M1 / CAT NB1/NB2 Operating Voltage: 3.35 – 4.35V±0.02V Built-in rechargeable battery (Lithium-Polymer). Rechargeable via a Micro-USB cable. Charge: 0℃~ +45℃ In-use: -30℃~ +60℃ | ||||
| Location | |||||
| GPS Receiver | Gen9 VT of Qualcomm (GPS, GLONASS, BeiDou, Galileo, and QZSS). Tracking & Navigation: –157 dBm Cold start: –146 dBm Hot start: –157 dBm | ||||
| Wi-Fi Receiver | For Micro-location purposes only. Frequency: 2.4 GHz to 2.4835 GHz, Sensitivity: – 70 dBm | ||||
| Cellular | Sensor Operation Range (full accuracy) | ||||
| Data | LTE CAT M1 Packet Data (CoAP/UDP) CAT NB1/NB2 Packet Data CoAP/LwM2M/UDP | Environmental | Temperature [ -30, +60; Absolute accuracy ±0.5 °C ] Humidity [ Absolute accuracy ±3 %RH ] Pressure [ 300…1100 hPa, Absolute accuracy ±1 hPa ] | ||
| Operating Bands and Carriers | North America & Europe: Cat M1 /NB1(2) M1:LTE-FDD: B2/B3/B4/B5/B8/B12/B20 NB1/NB2: LTE-FDD: B2/B3/B4/B5/B8/B12/B20 (AT&T, Bell, T-Mobile, Europe) | 3-Axis Accelerometer | Motion | ||
| SIM | MFF2 (embedded SIM) | ||||
| Certification | |||||
| Certifications: FCC/IC, CTIA (PTCRB/OTA) | Vibration and Shock*: MIL-STD-810G | ||||
| Network Targets*: North America: T-Mobile, AT&T, Bell International/Europe: MVNO, Deutsche Telekom, Telia, Orange, Vodafone | Ingress Protection*: IP67 | ||||
| Physical | Environmental Operating Range | ||||
| Dimensions | 57 x 36 x 20 mm 2.24 x 1.4 x 0.79 inches | Temp | -30C to +60C | ||
| Weight | 0.1 lb (50 gr) | Humidity | 95% R.H. @ 50C noncondensing | ||
Compliance Statement
A separation distance of 20 cm must be maintained between this device and nearby persons.
FCC statement: “This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”
“Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.”
IC statement:
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science, and Economic Development Canada’s license-exempt RSS(s).
Operation is subject to the following two conditions:
- This device may not cause interference.
- This device must accept any interference, including interference that may cause undesired operation of the device.
Copyright © 2021 BeWhere Inc. All rights reserved.
