8×40
Fernglas/Binoculars
Art. No. 8850840
Operating Instructions

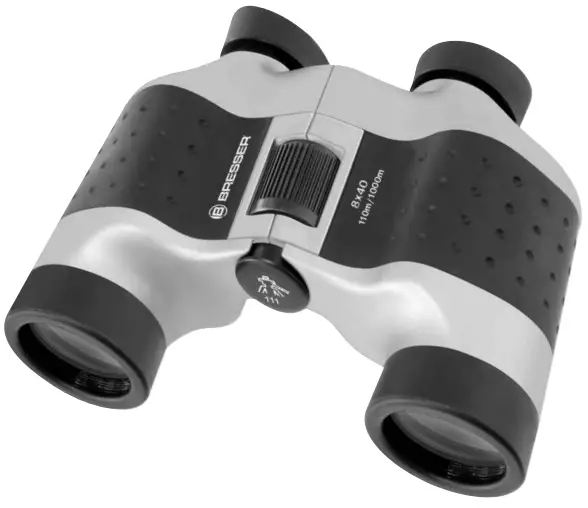

Hunter 8×40 Binoculars
SERVICE AND WARRANTY:
BINOCULARS GUIDE:
BINOCULARS FAQ:
RISK to your child!
Never look through this device directly at or near the sun. There is a risk of BLstic bags, rubber bands, etc.) away from children. There is a risk of SUFFOCATION.
Fire/Burning RISK! Never subject the device – especially the lenses -to direct sunlight. Light ray concentration can cause fires and/or burns.
RISK of material damage! Never take the device apart. Please consult your dealer if there are any defects. The deal-er will contact our service centre and send the device in for repair if needed.
Do not subject the device to temperatures exceeding 60 C.
TIPS on cleaning
Clean the lens (objective and eyepiece) only with the cloth supplied or some other soft lint-free cloth (e.g. micro-fibre). Do not use excessive pressure – this may scratch the lens.
Dampen the cleaning cloth with a spectacle cleaning fluid and use it on very dirty lenses.
Protect the device against dirt and dust. Leave it to dry properly after use at room temperature. Then put the dust caps on and store the device in the case provided.
RESPECT privacy!
This device is meant for private use. Respect others‘ privacy – do not use the device to look into other people‘s homes, for example.
DISPOSAL
Dispose of the packaging material/s as legally required. Consult the local authority on the matter if necessary.
EC Declaration of Conformity
Bresser GmbH has issued a “Declaration of Conformity” in accordance with applicable guidelines and corresponding standards. The full text of the EU declaration of conformity is available at the following internet address: www.bresser.de/download/8850840/CE/8850840_CE.pdf
UKCA Declaration of Conformity
Bresser GmbH has issued a „Declaration of Conformity“ in accordance with applicable guidelines and corresponding standards. The full text of the UKCA declaration of conformity is available at the following internet address: www.bresser.de/download/8850840/UKCA/8850840_UKCA.pdf
Bresser UK Ltd.
Suite 3G, Eden House, Enterprise Way Edenbridge, Kent TN8 6HF Great Britain
Warranty & Service
The regular warranty period is 2 years and begins on the day of purchase. To benefit from an extended voluntary guarantee period as stated on the gift box, registration on our website is required. You can consult the full warranty terms as well as inforINDING YOURSELF!
Children should only use this device under supervision. Keep packaging materials (plamation on extending the warranty period and details of our services at www.bresser.de/warranty_terms.

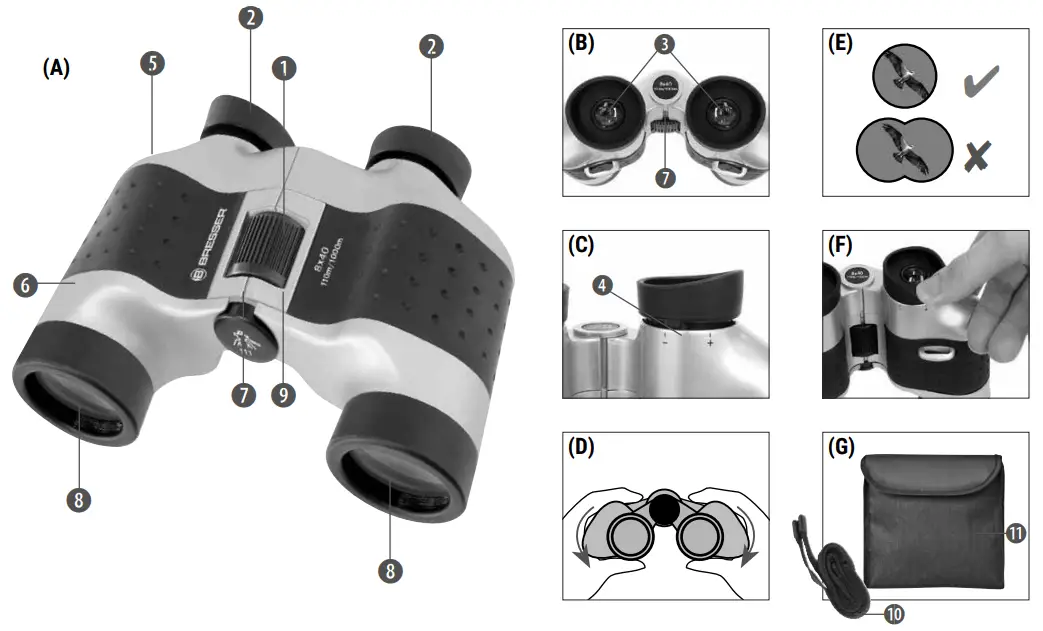

Your binoculars comprises the following parts
- Focussing knob (centre)
- Folding eye protection (eyepieces)
- Eyepiece lens
- Optical compensation ring (dioptre ring)
- Carrying strap/loop ring
- Binocular support (main tube)
- Binocular axis, folding
- End lenses (objective lens)
- Binocular bridge
- Carrying strap / loop
- Binocular case (nylon)
How to focus
Eye spacing
Eye spacing is different in every child. It‘s therefore essential this be correctly set for you.
Take the binoculars in both hands as in illustration D and hold them to your eyes. Fold them so that you see a single circle when looking though them with both eyes (see illustration E).
Focussing
Find an object over ten meters away. Close the right eye, or hold a finger over it. Turn the focussing wheel (illustration A. 1) to focus correctly for your left eye. .
Then repeat the process with the other eye using the vision compensation ring (illustration A.4). Once you have both focussed correctly you‘ll be able to see any object in focus with both eyes.
If you wear glasses
The eyepieces on the lenses fold (illustration A.2).
Fold them back if you wear glasses to see in focus (illustration F).
Now your adventure can begin.
Have fun!
Make sure your binoculars serve you well for a long time.
Clean the lenses (eyepiece and/or objective lenses) only with the cleaning cloth provided or some other soft lint-free cloth (e.g. micro-fibre). Do not press hard when doing so as the lenses are very delicate and could get scratched.
If your binoculars are very dirty ask you parents for help. Dampen the cleaning cloth with a little cleansing fluid and use it to clean very dirty lenses.
Make sure your binoculars are always well protected against dust and damp. Leave them in a warm dry room for a while after use so that any residual moisture can dry.
Store them in the case provided.
Contact
Bresser GmbH
Gutenbergstraße 2
46414 Rhede · Germany
www.bresser.de
@BresserEurope
Bresser UK Ltd.
Suite 3G, Eden House
Enterprise Way • Edenbridge,
Kent TN8 6HF • Great Britain
Errors and technical changes reserved.
