QUICK START GUIDE
[ Please be sure to read the enclosed Shark® Owner’s Guide prior to using your unit. ]
WHAT’S INSIDE
A. Vacuum Pod
B. Motorized Floor Nozzle
C. Handle & Hose
D. Wand
E. Accessory Holder
F. Pet Multi-Tool
G. Duster Crevice Tool
H. Wide Upholstery Tool
I. Precision Duster
J. 16″ Extension Wand

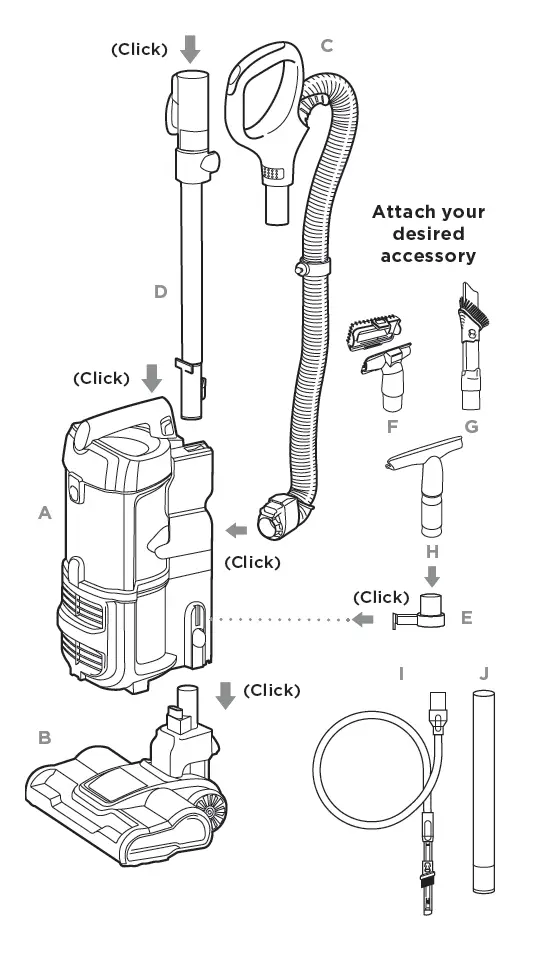

ASSEMBLY
NOTE: For proper operation, ensure all parts are firmly CLICKED into place.
TIPS:
For quick cord access, rotate upper hook down and remove cord.
Use cord clip to secure cord while in use.
To store your vacuum, wrap cord around cord hooks.
EMPTYING THE DUST CUP
Empty the dust cup after each use.
MAINTENANCE:
Rinse pre-motor filters every 3 months and HEPA filter once a year. Rinse with water only. Allow filters to air-dry completely before reinstalling.
See enclosed Owner’s Guide for more information on how to clean and replace the filters.
CHECKING FOR BLOCKAGES
Brushroll access
- Use a coin to turn locks, then rotate cover open.
- Clean off any debris on bristles, and clear the debris intake.
- With Zero-MTM technology, the brushroll actively removes hair wrap while you vacuum, sending it to the dust cup. Check for blockages or objects stuck in the brushroll.
- If any hair is wrapped around brushroll, extending cleaning time will help it clear.
2 WAYS TO CLEAN

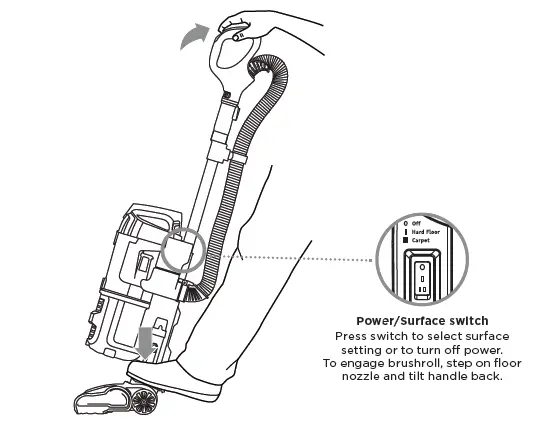

UPRIGHT
Power/Surface switch
Press switch to select surface setting or to turn off power.
To engage brushroll, step on floor nozzle and tilt handle back.

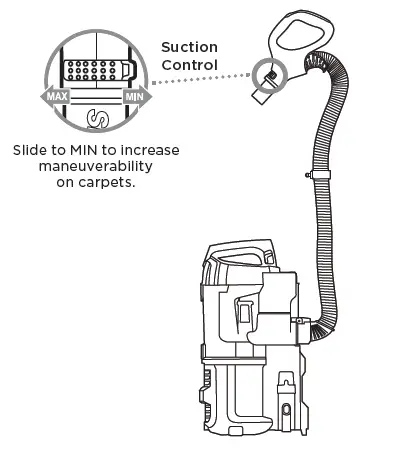

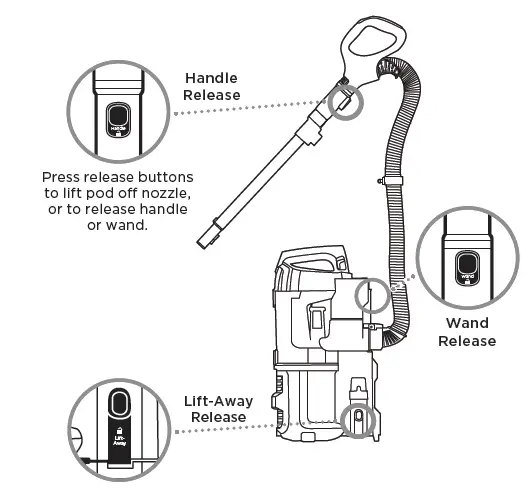

LIFT-AWAY®

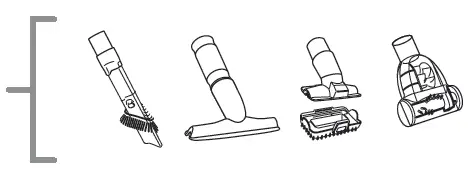

Attach accessories to handle or wand.
For additional parts and accessories, visit sharkaccessories.com
For questions or to register your product, contact us at 1-800-798-7398 or visit us online at sharkclean.com
