Denso 550-0103 TPMS 315-MHZ Sensor for Factory Alloy Wheel Options

Sensors are already programmed in the package, fix in tires then it’s ready for use. Be sure to fix the sensor to the right tire according to the tire position marked on each sensor.
4 Sensors are provided in the standard package, each one marked with its tire position {LF, LR, RF, RR), as already paired with the monitor, please be sure to fix the sensor in the right tire.

SPECIFICATIONS

• Detecting pressure range 0~8BAR (0~116PSI)
• Operation temperature -40°C-80°C
• Storage temperature -40°C-8S°C
• Frequency 433.92MHz
• Transmission power <l0dBm
• Pressure accuracy ±0.1 bar(± 1.5 psi)
• Temperature accuracy ±30(
• Dimension 75(L) x 62.S(W) x 21(H)mm
• Weight 29 g

INSTALLATION

Notice:
For tire already had an internal sensor installed, notify the technician of the sensor location and be cautious during tire detaching and loading
(operate at 15cm or more away from the valve).

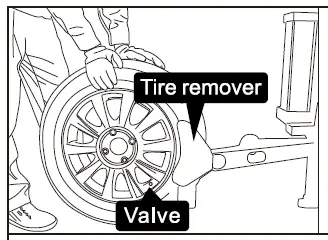

• Step 1. Detach off tire and deflate, remove the tire valve.

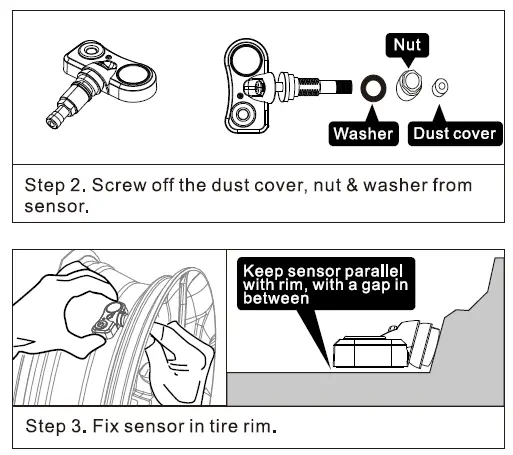

• Step 2. Screw off the dust cover, nut & washer from the sensor.
• Step 3. Fix sensor in lire rim.

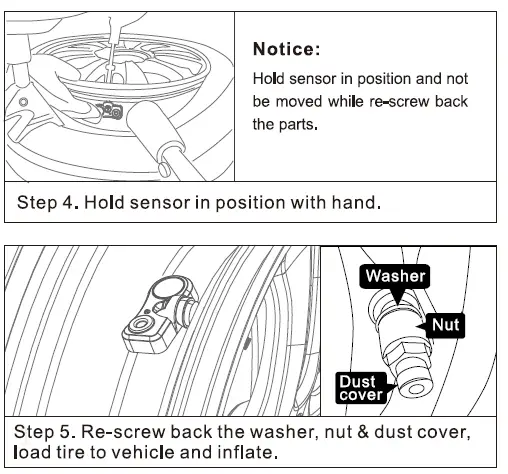

• Step 4. Hold the sensor in position with your hand.
• Step 5. Re-screw back the washer, nut & dust cover, load tire to a vehicle, and inflate.

1. internal sensor installation must be handled by technicians.
2. Be cautious of sensors in tires during maintenance and detaching/loading tires.
3. Each sensor is marked with tire position (as already paired with the monitor), be sure to fix the right tire.
4. Monitor issues sensor low battery alert when the sensor battery almost runs out of power.
5. After the sensor is installed in the tire, please examine the tire/valve with soapy water to prevent any air leakage.

OE

US315-004

DECLARATION OF CONFORMITY

FCC Warning
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body.
