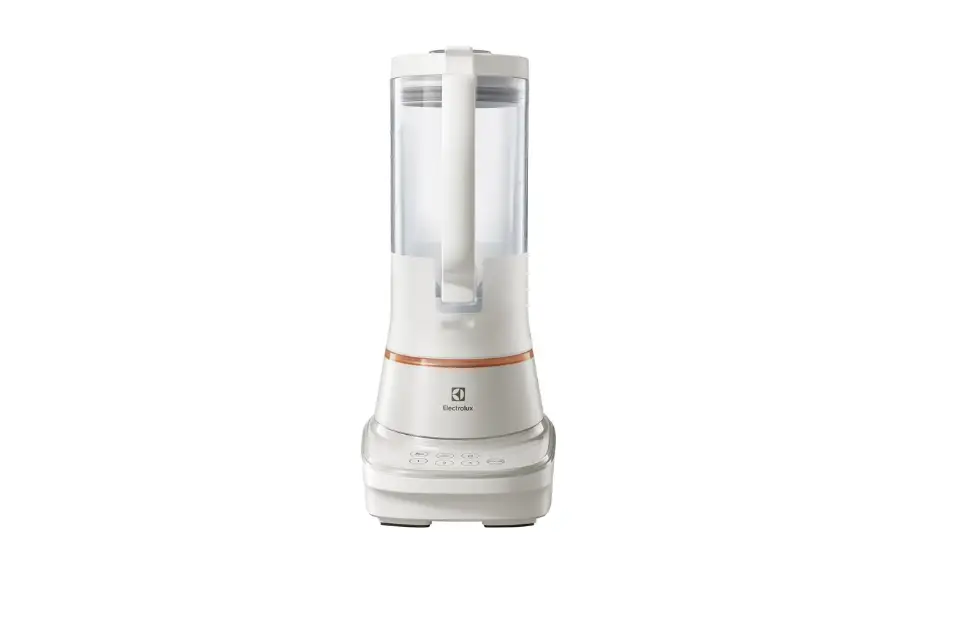

Electrolux E7tb1-50cw 900w Explore 7 Blender Instruction Manual

Electrolux E7TB1-50CW 900W Explore 7 Blender Instruction Manual

Instructions

Thank you for choosing an Electrolux product. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

INSTRUCTION MANUAL

Graphics and drawings in this manual are solely for illustration purposes and are subject to variations from actual product.
Read all instructions carefully before using the appliance for the first time.
Keep this manual for future reference.

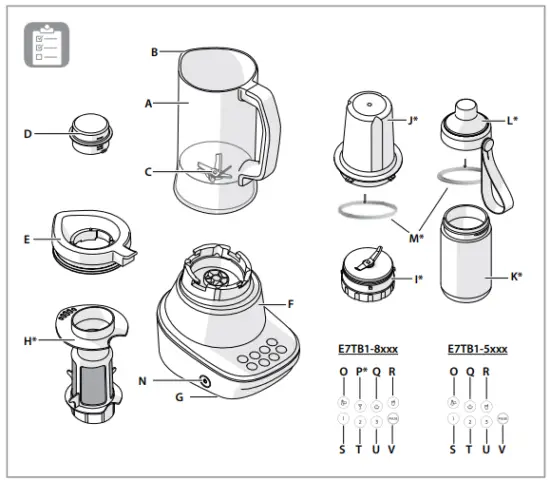

COMPONENTS

A. Jug
B. Spout
C. Blade assembly (not removable)
D. Measuring cup
E. Lid with filler hole
F. Blender base with cord storage
G. Non-slip feet
H. Filter*
I. Multi-chopper blade assembly*
J. Multi-chopper jar*
K. Take away bottle*
L. Drinking lid with carry handle*
M. Rubber seal*
Control panel (touch button interface)
N. ON/OFF button
O. Ice Crush button
P. Drink button*
Q. Soup button
R. Smoothie button
S. “Speed 1” button
T. “Speed 2” button
U. “Speed 3” button
V. PULSE button

Certain models only

SAFETY ADVICE

• Remove and safely discard any packaging materials before using the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Keep the appliance and its power cord out of reach of children. Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and maintenance should not be performed by children unless they are supervised.
• The appliance can only be connected to a power supply which voltage and frequency comply with the specifications on the rating plate.
• Never use or pick up the appliance if the power cord is damaged and/or the housing is damaged.
• If the appliance or its power cord is damaged, it must be replaced by Electrolux or its service agent in order to avoid hazard.
• Do not immerse the appliance, its power cord or plug in water or any other liquid.
• Do not use or place the appliance near the edge of the table or counter, near hot gas, stove, electric burner or heated oven.
• Always place the appliance on a flat, level and dry surface.
• Always switch off the appliance and disconnect it from the power supply if it is left unattended and before changing of the accessories, cleaning or maintenance.
• The blades and inserts are very sharp. Danger of injury. Care shall be taken when changing accessories, after use and during cleaning and maintenance.
• Never touch the blades or inserts with your hand or with any utensils while the appliance is plugged in and/or during operation.
• Do not attempt to remove the blade assembly.
• Keep hands and utensils away from the appliance during operation to avoid the risk of severe injury to persons or damage to the appliance.
• Ensure that the appliance is switched off before removing the jug from the motor base.
• Do not operate the appliance without food or liquid in the jug.
• Never operate the appliance without the lid.
• Do not use the appliance continuously for more than 7 minutes when processing heavy load.
• The jug cannot be used for blending or grinding hard and dry substances, except for ice cubes. Use the multi-chopper to grind hard and dry substances (Eg. nuts, candy, rice etc…)
• Be careful if hot liquid is poured into the appliance as it can be ejected out of the appliance due to a sudden steaming.
• Never process boiling liquids (max 90°C).
• Do not exceed the maximum filling volume as indicated on the appliance.
• Do not use this appliance to stir paint. Danger, could result in an explosion!
• Do not let the power cord come into contact with hot surfaces or hang over the edge of a table or counter.
• Never use accessories or parts made by other manufacturers not recommended or sold by Electrolux as it may cause a risk of injury to persons.
• This appliance is for indoor use only.
• This appliance is intended for domestic use only. Electrolux will not accept any liability for possible damage caused by improper or incorrect use.
• If the appliance is left on without using any speed or programs, it will automatically switch off after 5 minutes.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

GETTING STARTED

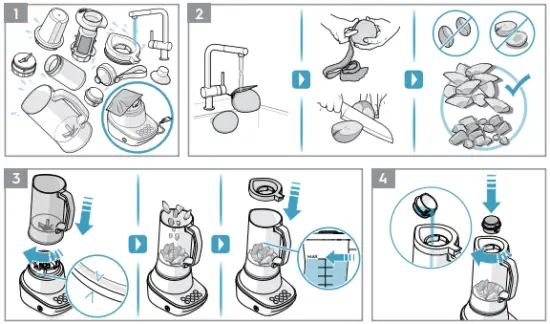

1. Before using your appliance for the first time: Remove all packing material such as plastics, stickers or tags that may be attached to the housing, bowls or attachments. Clean the appliance and accessories, see instructions: “Cleaning and Care”.
2. Prepare the ingredients: Rinse ingredients thoroughly. Cut the ingredients into 4 to 6 pieces and remove any hard or large seeds. Remove any thick peel from the fruit or vegetables.
3. Place the jug on the blender base. The jug can only be placed on the base with the handle towards the user interface. Rotate it clockwise until it clicks into position. (The jug can only be placed in one position). When locked, the symbol on the jar should be aligned with the symbol on the blender base. Put the ingredients in the jug. (Do not exceed the maximum level as indicated on the jug.)
4. Close the lid. Insert the measuring cup by rotating clockwise until it clicks into position. (You can add ingredients through the filler hole. Never remove the measuring cup or the lid while running the product.)
   Caution! Never run the blender empty. When processing hot liquids, see step 5.

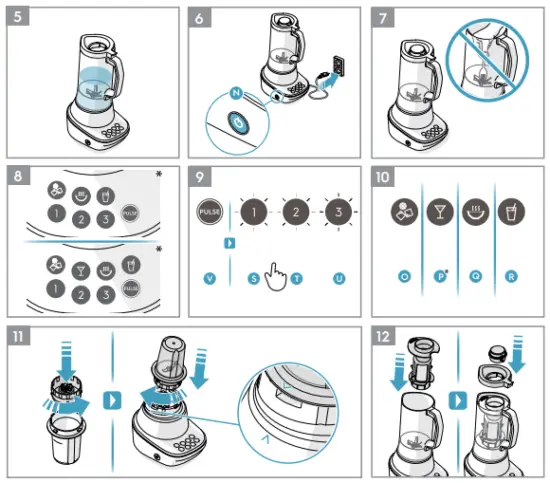

5. Processing hot liquids: We recommend to allow hot liquids to cool down (max 90 °C) before filling the jug. Fill the jug only half full and start processing on low speed. The blender jug can become very warm – take care to protect your hands and to ventilate steam out through the filler hole. Always replace the lid before use.
6. Start the blender: Plug into mains. Press the ON/OFF-button (N), The buttons will light up illuminating the display. Press the speed 1, 2, or 3 button, to select your desired processing speed.
7. Caution! Keep hands and utensils out of the blending jug while blending.
   Caution! Never run the blender empty, running the blender empty can cause overheating and damage the product.
8. You have preset speeds (1, 2, 3), dedicated recipe programs, and Pulse mode to choose from. The selected speed or recipe program will light up. The blender will operate until the program is finished. To stop any program manually, press any button.
9. You can give the ingredients a quick mix to get to your desired consistency with the Pulse function. Press the PULSE button(V) to go into Pulse mode. The PULSE and the speed buttons start blinking. Press 1, 2, or 3 to pulse at different speeds.
10. The product comes with a variety of recipe programs. You can choose between a number of recipes which are IIce crush (O), Drink* (P), Soup (Q), Smoothie (R (*depending on the model). The blender will stop automatically when the program is ready.
    Attention! After 5 seconds of inactivity, the blender goes into sleep mode. In order to wake up the blender, press any button. You can continue working with the blender.

USING

USING THE MULTI-CHOPPER

( CERTAIN MODELS ONLY)

Turn the multi-chopper (J) upside down, with the open end facing upwards. Carefully remove the blade assembly (I) by rotating it clockwise. Fill the multi-chopper jar with the desired ingredients. Do not fill more than half full. Fasten the multi-chopper blade assembly (I) on the open end of the jar by rotating anti-clockwise.
Turn the multi-chopper the right way up and lock into place on the blender base by rotating clockwise.
Note: When locked, the symbol on the grinder blade assembly should be aligned with the symbol on the blender base.
Caution! The blades are very sharp!

USING THE FILTER (CERTAIN MODELS ONLY)

To make juice: Insert the filter (H) into the jug. Place the filter in the jug with the wide part facing up. Align the ridge inside the blender jar with the cut out at the bottom of the filter to fit the filter correctly. Add fruits in the filter (do not use the blender to mash large seeds such as those in plums or avocados). Fasten the lid with the measuring cup and start juicing.

USING THE TAKE AWAY BOTTLE ( CERTAIN MODELS ONLY)

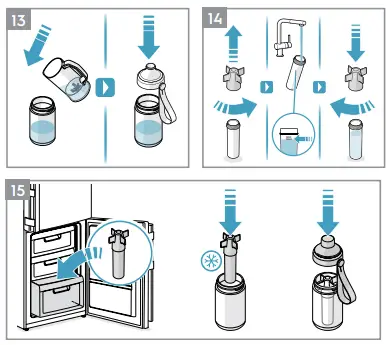

Pour your freshly prepared blend into the take away bottle (K) and fasten with the drinking lid with carry handle (L).
Note: Take away bottle cannot be used to blend directly!

USING THE COOLING STICK ( CERTAIN MODELS ONLY)

The cooling stick keeps your smoothies cool for longer. Unscrew the cap of the cooling stick (W) and fill it with tap water. Screw the cap back on the cooling stick and place it in the freezer until the water freezes.
15 Place the frozen cooling stick in the blend bottle. Pour your freshly prepared blend into the take away bottle (K) and fasten with the drinking lid with carry handle (L). The cooling stick can be cleaned in a dishwasher.

CLEANING AND CARE

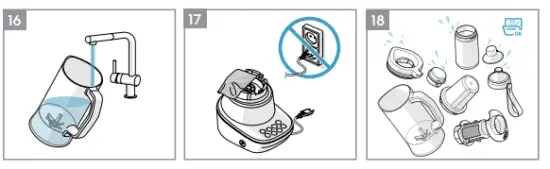

To avoid crazing of the jug, always rinse the jug with only clean water right after usage. This is to prevent acids or essential oils from the ingredients that may attack the plastic material. After rinsing the jug, it can be washed by hand with detergent, or placed into the dishwasher for cleaning. Avoid leaving the ready dishes (e.g. soup, smoothie, juice) in the jug for a long time, especially when acidic ingredients (e.g. lime, lemon) is processed.
Always rinse the jug thoroughly with only clean water before placing it to the dishwasher.
However, if crazing would appear, the effect is purely cosmetic and it does not have any impact the integrity of the jug.

Quick cleaning: Pour warm water into the jug, add a few drops of detergent. Mix water and detergent by pressing the PULSE button then speed 3 button a couple of times. Finally, rinse the jug under running water.

Thorough cleaning of the blender base and interface: Switch off the blender and unplug the power cord. Wipe the blender base with a damp cloth.
 Warning! Never immerse the blender base, plug, or cord in water or any other fluid.

Thorough cleaning of the jug: Note! The Blade assembly is not removable. Remove the lid and measuring cup. Rinse the blade assembly in water and detergent.
 Caution! Handle carefully, the blades are very sharp!
All parts, except for the blender base are dishwasher safe

Enjoy your new Electrolux product!

RECIPES

When using the multi-chopper to chop ingredients like onions and shallots, cut the ingredients into cubes no bigger than 2.5 cm to get the best result. Ingredients with tough textures such as carrot and celery are not recommended for chopping.

RECOMMENDED BLENDING SPEED
Recipe	Ingredients	Quantity		Time	Speed setting
Pureeing raw vegetables	Carrots	20~160	g	30 s	3 (Max speed)
	Potatoes	20~160	g
	Onions	20~160	g
	Water	40~320	g
Strawberries margaritas (Cocktail)	Tequila	240	ml	Program set
	Triple sec	60	ml
	Frozen strawberries	225	g
	Frozen Lemonade concentrate	145	g
	Ice cubes	150	g
Pineapple-apricots Smoothie	Pineapple in slices	250	g	≤ 120 s	3 (Max speed)
	Dried Apricots	40	g
	Yoghurt	300	g
Soup	Carrots	600	g	≤ 60 s	3 (Max speed)
	Water	900	ml
Raspberries Smoothie	Frozen raspberries	250	g	Program set
	Banana (½ pcs)	50	g
	Water	50	g
	Yoghurt	300	g
Milkshake	Milk	150-300	ml	Program set
	Vanilla Ice cream	150-300	ml
	Banana	¼ – ½	pcs
	Chocolate syrup	30-60	g
Potato leek soup	Potatoes	200	g	Program set
	Leek	200	g
	Water	600	g

Recipe	Ingredients	Quantity		Time	Speed setting
Pancake (Batters)	Wheat flour	150	g	Program set
	Salt	1	pinch
	Eggs	3	pcs
	Milk	250	ml
	Water	140	ml
	Butter	50	g
Chunky guacamole	Firm-ripe avocados	2	pcs		Pulse + 1
	Red onion	1	pcs
	Fresh cilantro leaves	1/4	cup
	Fresh lime juice	1 and 1 1/2	tbsp
	Salt	1	pinch
Mushroom soup	Butter	30	g	Program set
	Onion	60	g
	Button mushroom	200	g
	Chicken stock	450	ml
	Salt and pepper	1	pinch
	Sherry	25	ml
Chunky pesto	Fresh basil	48	g	≤ 30 s	3 (Max speed)
	Olive oil	108	g
	Pine nuts	16	g
	Minced garlic	10	g
	Salt	6	g
	Grated Parmesan cheese	50	g
	Grated Romano cheese	30	g
	Butter	42	g
Soybean milk (with filter)	Soaked soybean	160	g	≤ 60 s	3 (Max speed)
	Water	600	ml
Semi-smooth hummus	Canned chickpeas	200	g		Pulse + 2
	Lemon juice	2	tbsp
	Garlic cloves, crushed	2	pcs
	Ground cumin	1	tsp
	Salt	1	pinch
	Tahini (sesame seed paste)	1	tbsp
	Water	4	tbsp
	Extra virgin olive oil	2	tbsp
	Paprika	1	tsp

TROUBLESHOOTING

DISPOSAL

Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances.

Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal minice.

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate.

Due to the Electrolux policy of continual product development; specifications, colours, and details of our products and those mentioned in this manual are subject to change without notice.
