VOYAGE TB50-640 Fusion Thermal Imaging and Cmos Binocular

Dual-spectrum image fusion and object highlight (detail enhancement and target recognition)
Selection of thermal view channel, visible light channel, or both them combined
Thermal resolution: 640×512
Optical resolution: 2560×1440
NETD less than 20 mK (25°C, F#=1.0)
Digital Detail Enhancement (DDE)
Dynamic Noise Reduction (3D DNR)
Adaptive Automatic Gain Control (AGC)
Ultra-low illumination (optical channel), B/W: 0.001 lux @ (F1.0 , AGC On)
Video recording, replay, picture snapshot and search (capable to review the event on device)
Wi-Fi hotspot
Eye-safe laser rangefinder (up to 1,000 m distance detection with measuring accuracy 1 m)
GPS module
Digital magnetic compass
Inclination sensor
Proximity sensor to save power
Up to 8 hours continuous operation
Waterproof, IP67
5-Year Warranty

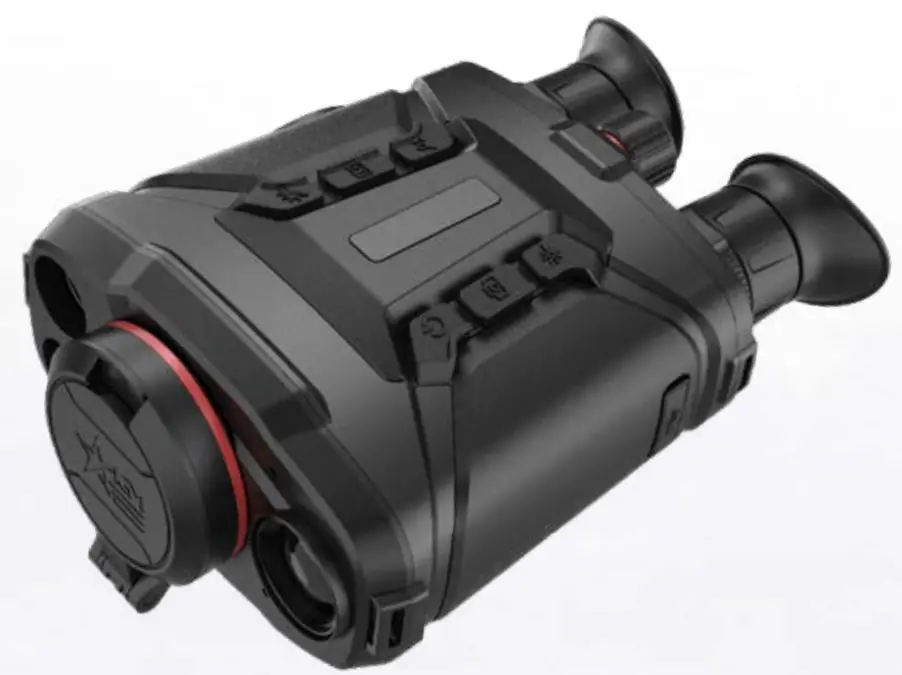

FUSION THERMAL IMAGING & CMOS BINOCULAR WITH BUILT-INLASER RANGE FINDER

The Voyage series of fusion thermal & optical dualspectrum binoculars are equipped with a 12μm highsensitivity infrared thermal sensor (NETD < 20 mK), 2560×1440 ultra-low light optical detector, 1024×768 OLED display and eyepiece with large field of view.
The device can quickly discover and locate hiding objects even under extreme environments, such as smoke, fog, rain and snow.
It can be widely applied to law enforcement scenarios, as well search-and-rescue, drug enforcement, anti-smuggling, hiking, and hunting.
The waterproof housing ensures optimum performance in severe weather conditions and challenging environments.
The Voyage’s user-friendly interface and ergonomic buttons makes adoption and application intuitive and simple. The binocular offers a variety of images including thermal, visible, fusion, and is easily adaptable to different environmental conditions.
The Voyage is equipped with all key features for target detection and positioning, including a laser rangefinder,
GPS module, electronic compass, inclinometer, and 850nm IR illuminator.
This high-tech bi-ocular can take four 18650 rechargeable Lithium batteries for 8 hours of operation. An integrated proximity sensor saves energy.

Equipment described herein is subject to US export regulations and may require a license prior to export. Diversion contrary to US law is prohibited.

SPECIFICATIONS

THERMAL MODULE
Image Sensor	Vanadium Oxide Uncooled Focal Plane Array
Resolution	640×512 (25 Hz)
Pixel Pitch	12 μm
Response Waveband	8 μm to 14 μm
NETD	Less than 20 mK (25°C, F#=1.0)
Lens (Focal Length)	50 mm, Manual focus
Magnification	3.5× – 56×
Field of View	8.7° × 7.0°
Aperture	F0.9
Digital Zoom	1×, 2×, 4×, 8×, 16×
Detection Range	2,600 m/yd (6’ object)*
Focus Mode	Manual focus
Minimal Focus Distance	5 m
OPTICAL MODULE
Max. Image Resolution	1.88” Progressive Scan CMOS
Image Sensor	B/W : 0.001 lux @ (F1.0 , AGC On)
Min. Illumination	31 mm
Lens (Focal Length)	F1.2
Aperture	Built-in 850 nm Smart IR
IR Illuminator	400 m/yd
Night Viewing Range	*
IMAGE DISPLAY
Monitor	0.39-inch, OLED, 1024×768
Diopter Adjustment	-5 to +3 dpt
Interpupillary Distance	60 mm to 70 mm
Eye Relief	15 mm
Image Mode	Optical, White Hot Thermal, Black Hot Thermal, Red Hot Thermal, Image Fusion
Optical Mode	Day, Night, Auto, Defog
Flat Field Correction	Auto, Manual, External Correction
PIP	Yes
LASER RANGEFINDER
Measuring Distance	Max. 1,000 m
Accuracy	±1 m
Laser Wavelength	905 nm (Class 1)

* Approximate value. Ranges depend on various factors such as weather, temperature differences between objects, environment, etc.

SYSTEM
Storage	Built-in memory module (64 GB)
Video Recording	MP4, 1600×1200
Snapshot Capture	JPEG, 1600×1200
Audio Recording	Yes
Local Album	Yes
Wi-Fi Hotspot	Yes
GPS	Yes
Digital Compass	Yes
Hot Track	Yes
Laser Rangefinder	Yes
Proximity Sensor	Yes
Standby Mode	Yes
POWER SUPPLY
Battery Type	Four 18650 batteries
Battery Operating Time	Up to 8 hours
Battery Capacity Display	Yes
External Power Supply	DC 5V/2A, Max.10W, Type-C port
GENERAL
Working Temperature	-30°C to 55°C (-22°F to 131°F)
Storage Temperature (w/o batteries)	-40°C to 70°C (-40°F to 158°F)
Working Humidity	< 90%
Protection Level	IP67
Mounting	1/4”-20 UNC
Cable Output	USB Type-C port
Accessories (Supplied	Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Six 18650 Batteries, Power Adapter, User Manual, Carrying Case
Dimensions (L×W×H)	217 × 155 × 88 mm (8.5 × 6.1 × 3.5 in)
Weight	1.12 kg ( 2.5 lb)
