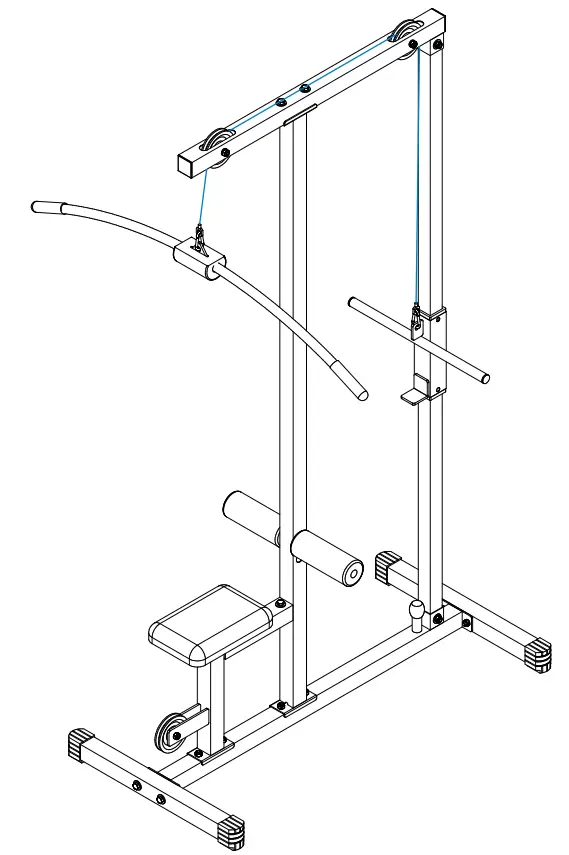

Fit AG PLM180X Powerline Lat Machine
Instructions
VERSION 0508

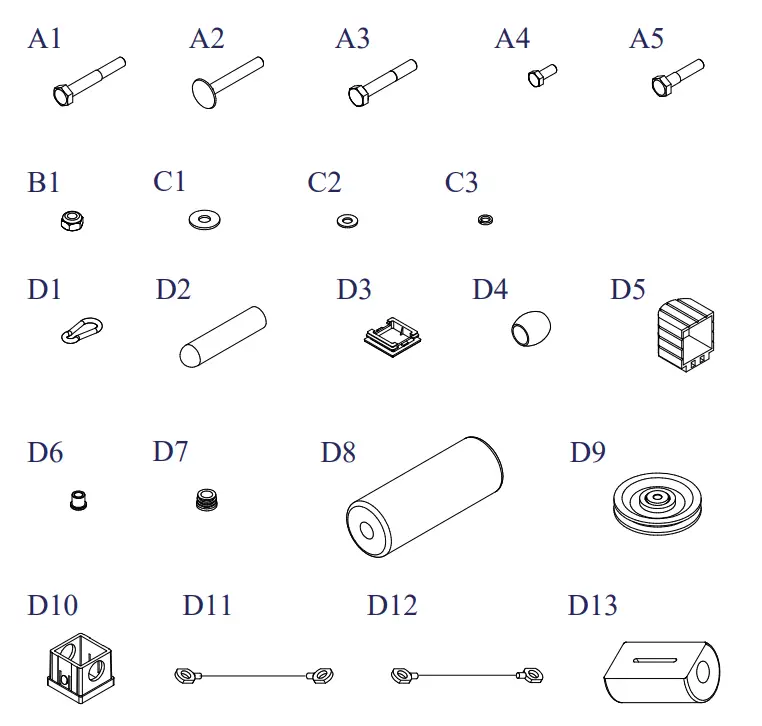

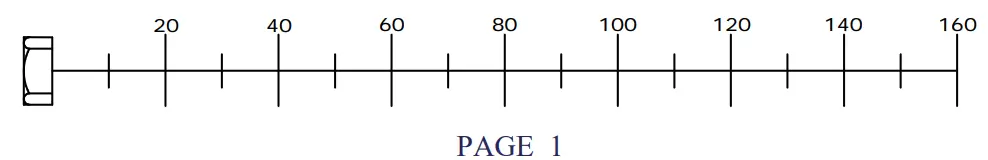

HARDWARE ILLUSTRATION SHEET

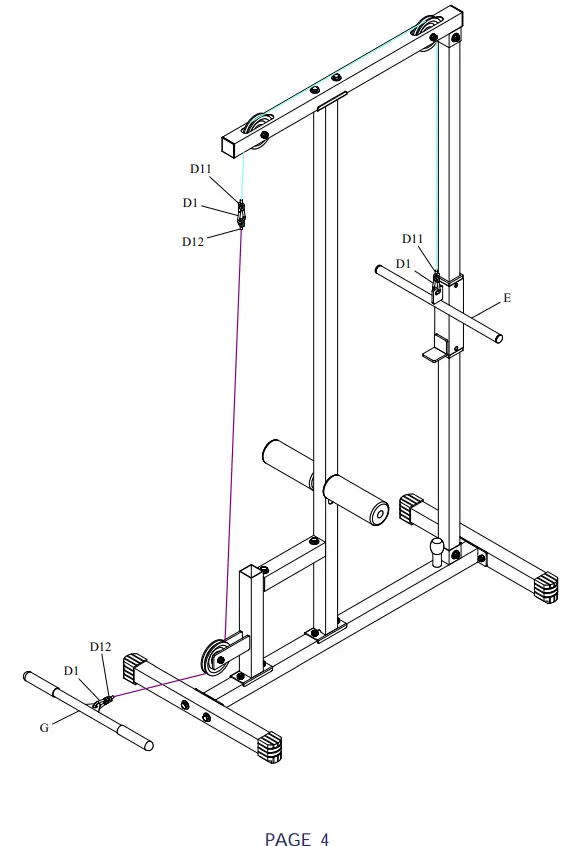

| Qty. | ||
| A1. | M10X70 HEX HEAD BOLT | [6PCS] |
| A2. | M10X70 CARRIAGE BOLT | [4PCS] |
| A3. | M10X65 HEX HEAD BOLT | [6PCS] |
| A4. | M8X20 HEX HEAD BOLT | [2PCS] |
| A5. | M10X45 HEX HEAD BOLT | [1PCS] |
| B1. | M10 NYLON LOCK NUT | [17PCS] |
| C1. | M10 (I.D) WASHER | [14PCS] |
| C2. | M8 (I.D) WASHER | [2PCS] |
| C3. | M8 SPRING WASHER | [2PCS] |
| D1. | ø6 SPRING SNAP LINK (8810-002) | [3PCS] |
| D2. | ø1″X130L RUBBER GRIP (9212-015) | [4PCS] |
| D3. | 50X50 END CAP (9211-005) | [2PCS] |
| D4. | ø1″ WEIGHT STOP CAP (9212-019) | [1PCS] |
| D5. | 50X50 FOOT CAP (9212-003) | [4PCS] |
| D6. | ø16X16 STEEL BUSHING (9211-041) | [4PCS] |
| D7. | ø1″ ROUND END CAP (9211-016) | [4PCS] |
| D8. | ø3″X8″ FOAM ROLLER (9161-060) | [2PCS] |
| D9. | ø110 PULLEY (9213-001) | [3PCS] |
| D10. | 60X45 NYLON BUSHING (9211-032) | [2PCS] |
| D11. | 2580mm LAT CABLE | [1PCS] |
| D12. | 1900mm LOW ROW CABLE | [1PCS] |
| D13. | ø3″X5″ FOAM ROLLER (9161-026) preinstalled | [1PCS] |

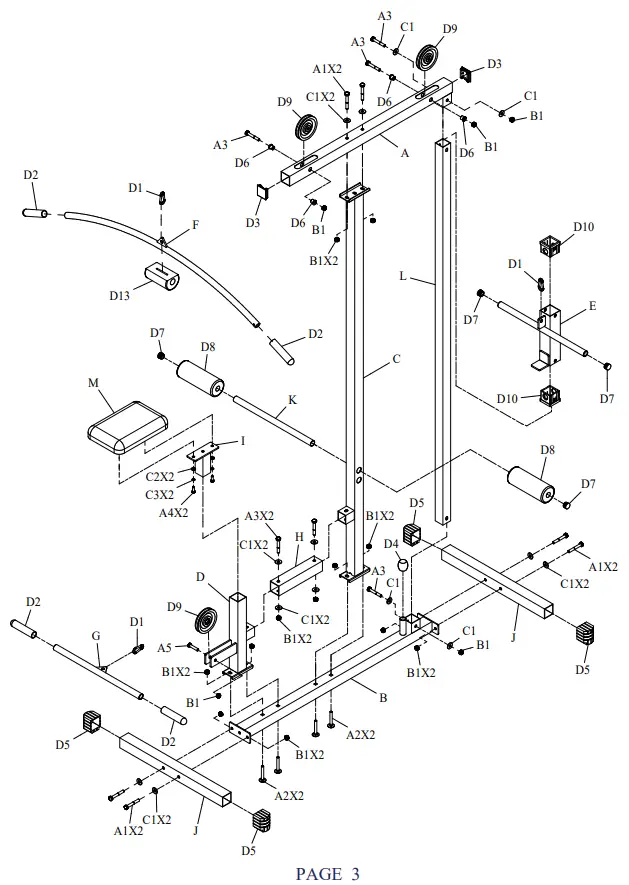

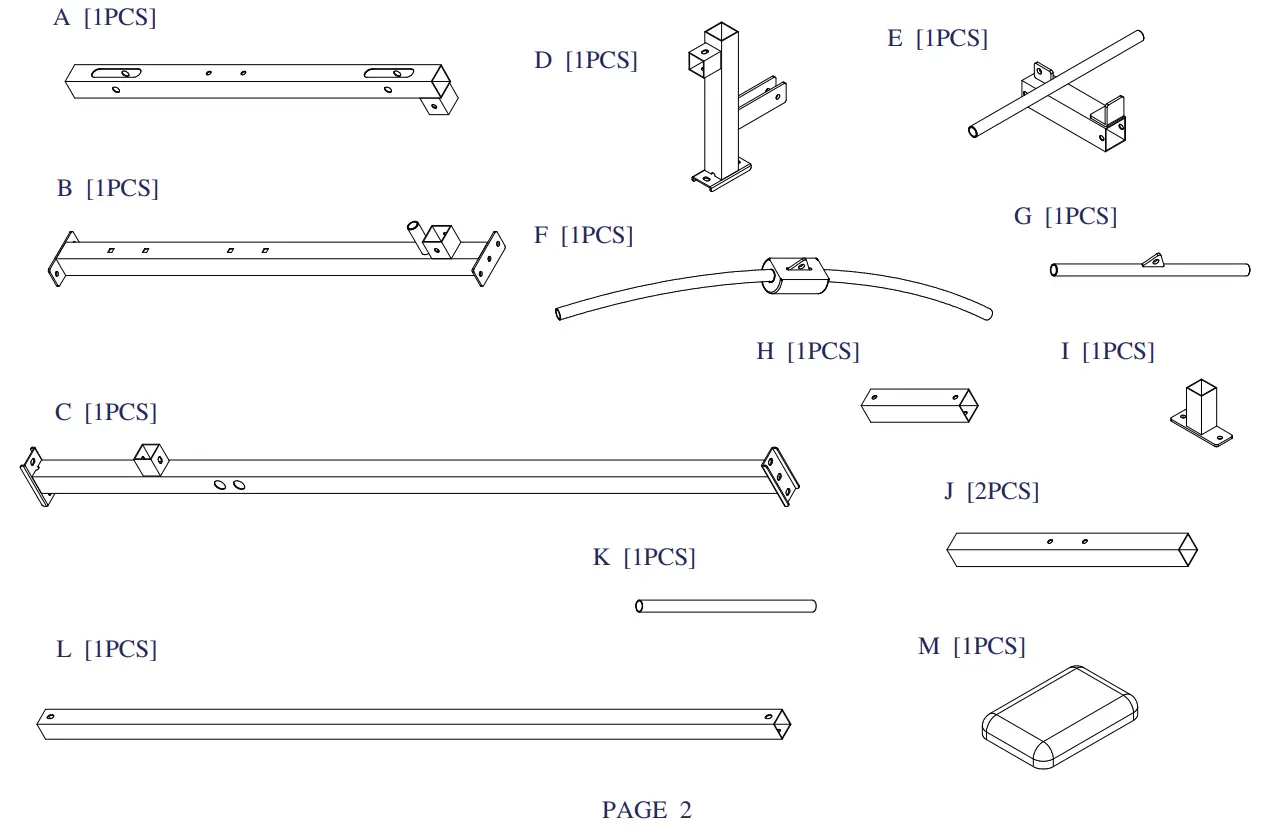

PLA – 180.1X PARTS ILLUSTRATION SHEET
PLM- 180.1x
