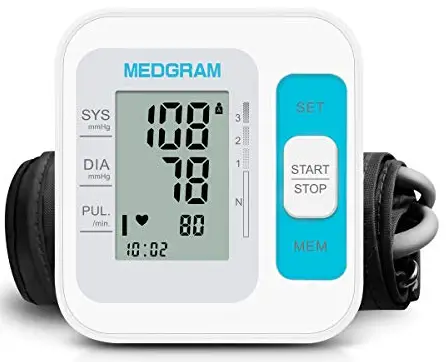

MEDGRAM F01 BP Machine
Product Information
The product is a blood pressure monitor that measures systolic and diastolic blood pressure as well as pulse rate. It is recommended to use the same arm for measurement every time, generally the left arm. The monitor should be used at the same time every day, such as morning and evening. Before taking measurements, it is important to avoid eating, smoking, or exercising within 30 minutes. The user should also empty their bladder and ensure at least 5 minutes of quiet rest before measurements. The monitor can be powered by 3 AA size alkaline batteries or by using a micro USB cable. The cuff should be fitted properly, with a distance of 2cm to 3cm between the cuff and the elbow. The user can start the measurement by pressing the Start/Stop button.
Product Usage Instructions
- Before taking measurements, avoid eating, smoking, or exercising within 30 minutes.
- Empty your bladder and ensure at least 5 minutes of quiet rest before measurements.
- Measure the same arm every time, generally the left arm.
- Measure at the same time every day, such as morning and evening.
- To turn on the monitor, either use 1.5V AA alkaline batteries (install 3 AA size batteries) or connect a micro USB cable.
- Remove the screen protector from the monitor.
- Fit the cuff properly on the arm, with a distance of 2cm to 3cm between the cuff and the elbow.
- Press the Start/Stop button to start the measurement.
- If an error appears on the monitor, refer to the error table in the user manual for troubleshooting.
- If you have any questions or concerns, contact customer service via Amazon order or email [email protected].
Quick Start Guide
- Before measurement, avoid eating, smoking or exercise within 30 minutes.
- Empty your bladder and ensure at least 5 minutes of quiet rest before measurements.
- Measure the same arm everytime(generally the left arm)
- Measure at the same time every day, such as morning and evening.

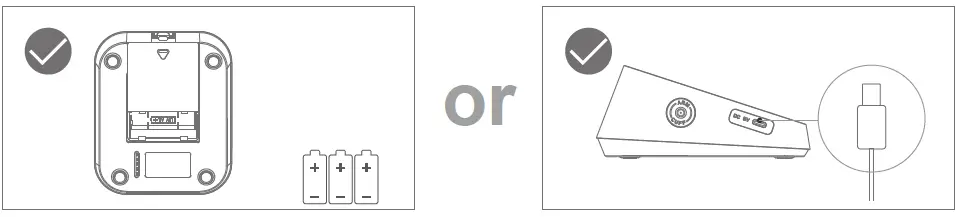

Turn on the Power
- Use 1.5V “AA” alkaline batteries (Install 3 “AA” size batteries)
- Connect micro USB cable

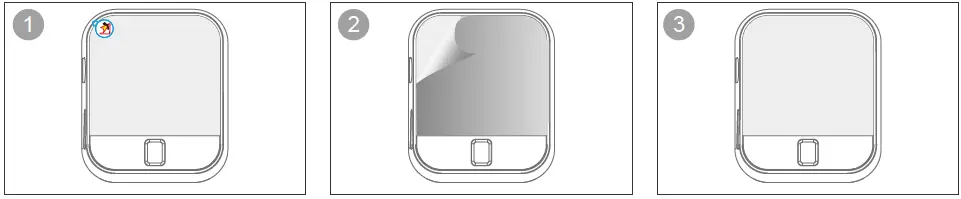

Remove the Screen Protector

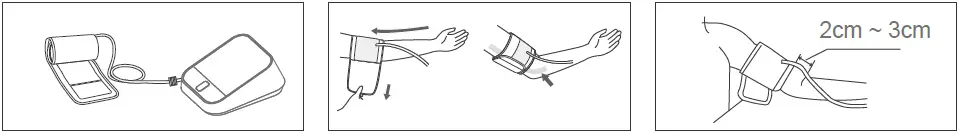

Fitting the Cuff

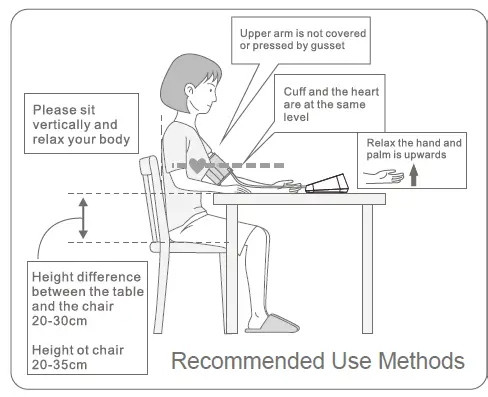

Measurement Preparation

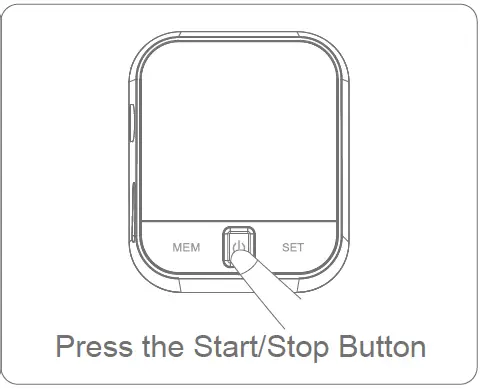

Start Measurment
Error Indicates
| SYMBOL | CAUSE | CORRECTION |
| No display appears | Weak battery or improper placement | Replace both batteries with new ones. Check the battery installation for proper placement of the battery polarities. |
| Er 2 | Monitor could not detect pulse wave or cannot calculate the blood pressure data | Check if the air releasing is too slow or not. If it is too slow, please check if there is any dust in the tube plug of the cuff and the cuff port in the device. If yes, please clean and start the measurement again. If no, please send the device back to the local distributor. |
| Er 4 | Too loose cuff or air leakage (Cannot inflate to 30mmHg within 15s) | Tie the cuff correctly and make sure the air plug is properly inserted in the unit |
| Er 5 | The air tube is crimped | Correct it and make the measurement again |
| Er 6 | The sensor is sensing great fluctuation in the pressure | Please keep quiet and don’t move |
| Er 7 | The pressure that the sensor sensing is over the limit | Please send back to the local distributor |
| Er 8 | The demarcation is incorrect or the device has not been demarcated | Please send back to the local distributor |
Customer Service
Any questions, just contact us via amazon order, or send email to [email protected]
