BT-OEH1
Bluetooth Over-Ear
Art. No. 3830100000000
INSTRUCTION MANUAL
Visit our website via the following QR Code or web link to find further information on this product or the available translations of these instructions.
MANUAL DOWNLOAD:
www.bresser.de/P3830100000000
SERVICE AND WARRANTY:
General Information
Please read the safety instructions and the operating instructions carefully before use. Keep these instructions for renewed use at a later date. When the device is sold or given to someone else, the instruction manual must be provided to the new owner/user of the product.
Intended Use
This product is intended only for private use. It was developed as an electronic medium for the use of multimedia services.
General Warnings
- Risk of choking — Keep packaging material, like plastic bags and rubber bands, out of the reach of children, as these materials pose a choking hazard. This product contains small parts that could be swallowed by children.
- Risk of electric shock — Never bend, pinch or pull the power and connecting cables, extensions, and adapters. Protect the cables from sharp edges and heat. Before operating, check the device, cables, and connections for damage. Never use a damaged unit or a unit with damaged power cables. Damaged parts must be exchanged immediately by an authorized service center.
- Risk of property damage! — Do not disassemble the device. In the event of a defect, please contact your dealer. The dealer will contact the Service Centre and can send the device in to be repaired, if necessary.
- Do not expose the device to high temperatures. Do not short-circuit the device or throw them into a fire. Excessive heat or improper handling could trigger a short-circuit, a fire or an explosion.
- Keep the product at least 10 cm away from pacemakers, defibrillators or other implants, as the product generates magnetic fields that can lead to interference.
- Do not listen at high volume levels for long periods of time to prevent hearing damage.

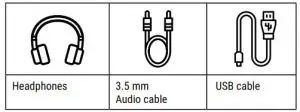

Scope of delivery

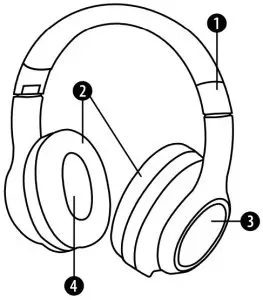

Parts overview
- Headband (adjustable)
- Ear cushions
- Earcups
- Speaker

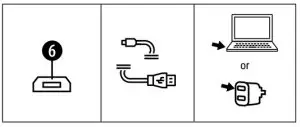

Charging via USB charging cable
The Mini-USB 5V DC connector allows charging the Li-Ion battery 300 mAh by connecting the headphones to a PC (or other USB port). A red light appears when the headphones battery is empty or being charged.
Putting on the headphones

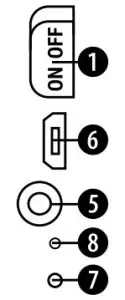

The control panel with the buttons is located on the left side of the headphones. This tells you which way round to put the headphones on.
 |  |
|
On/Off slide switch
| Button | Press | Function |
 |  | Turning headphones on or off |
Pair Headphones with Bluetooth device
When the headphones are turned on, a tone informs you of the current model. Activate Bluetooth in your device and then start a Bluetooth search. Connect to the “BT-OEH1” device. You will be notified by a tone that the connection was successful. The headphones can now be operated with a connected device. If you use this mode, you can receive or reject calls. If there is no Bluetooth connection for a long time, the search will stop and you will need to turn the headset off and on again.

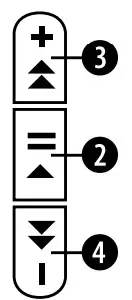

Functions
| Button | Press | Function |
2 | |  • Play or pause musicWhen connected to a smartphone: • Answer call / End call |
 | When connected to a smartphone: • Long press to reject the call | |
3 | |  • Increase volume |
|  • Long press to play the next track in the playlist. | |
4 | |  • Decrease volume |
|  • Long press to play the previous playlist track. |
Using headphones with audio cable
The headphones can also be used with the supplied audio cable, which allows connection to the desired device via the audio input (AUX connector).
Adjusting the headband
Adjust the headphones to your head size by moving the ear cups up or down on both sides.
Transport
The headphones can be folded for comfortable transport.
Technical data
| Model name | BT-OEH1 |
| Item number | 3830100000000 |
| Wearing style | Over-ear |
| Bluetooth version | Bluetooth V5.0 |
| Bluetooth supported | a2dp\avctp\avdtp\avrcp\hfp\spp\smp\att\gap\gatt\ rfcomm\sdp\I2cap profile |
| Bandwidth | 100Hz – 18kHz |
| Range | 10 m |
| Signal-to-noise ratio (SNR) | a70dB |
| Charging | via USB-cable |
| Li-Ion battery | 300 mAh/3.7V |
| Charging time | 2 hours |
| Voltage | 5V DC |
Notes on cleaning
- Only use a dry cloth to clean the exterior of the device. To avoid damaging the electronics, do not use any cleaning fluid.
EC Declaration of Conformity
Hereby, Bresser GmbH declares that the equipment type with part number: 3830100000000 is in compliance with Directive: 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:
www.bresser.de/download/3830100000000/CE/3830100000000_CE.pdf
Disposal
Dispose of the packaging materials properly, according to their types, such as paper or cardboard. Contact your local waste disposal service or environmental authority for information on the proper disposal.
Do not dispose of electronic devices in the household garbage!
As per Directive 2002/96/EC of the European Parliament on waste electrical and electronic equipment and its adaptation into German law, used electronic devices must be collected separately and recycled in an environmentally friendly manner. Empty, old batteries must be disposed of at battery collection points by the consumer. You can find out more information about the disposal of devices or batteries produced after 6 January 2006 from your local waste disposal service or environmental authority.
In accordance with the regulations concerning batteries and rechargeable batteries, disposing of them in normal household waste is explicitly forbidden. Please make sure to dispose of your used batteries as required by law — at a local collection point or in the retail market. Disposal in domestic waste violates the Battery Directive.
Batteries that contain toxins are marked with a sign and a chemical symbol.
1 battery contains cadmium
2 battery contains mercury
3 battery contains lead
Warranty & Service
The regular guarantee period is 5 years and begins on the day of purchase. You can consult the full guarantee terms and details of
our services at www.bresser.de/warranty_terms.
Contact
Bresser GmbH
Gutenbergstraße 2
46414 Rhede · Germany
www.bresser.de
@BresserEurope
Errors and technical changes reserved.
Manual_3830100000000_Headphones-BT-OEH1_de-en-fr-nl-es_BRESSER_v042021
