QUICK START GUIDE

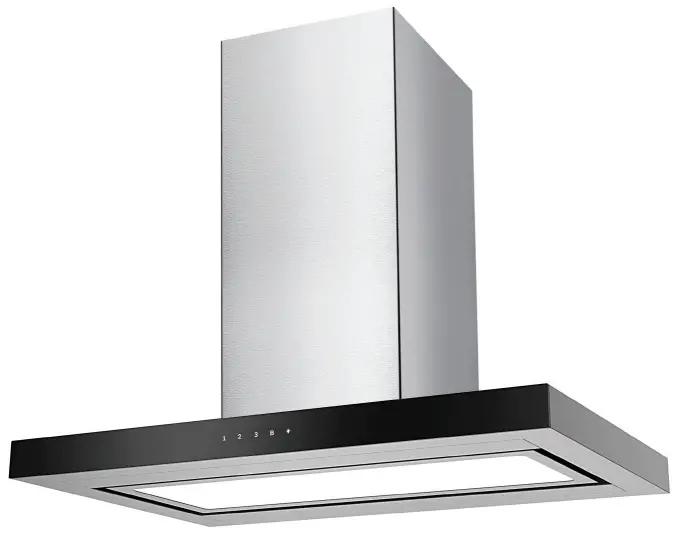

90cm Island Box Canopy Rangehood
FEATURES
Aluminum filters, LED light panel, 4 speeds, 1000m³/hr extraction, Black glass fascia with touch controls, Pressure die-cast aluminum motor
INSTALLATION
Please refer to the dimensions of your rangehood shown in the diagram below.
When positioning the range hood for installation and use, we advise that the range hood be mounted at a height of between 600—800mm above the cooking surface for the safety and performance of your range hood.
Gas cooktops must have a minimum height of 650mm from the burner to the underside of the range hood.
Electric cooktops must have a minimum height of 600mm from the cooktop surface to the underside of the rangehood.
For a complete installation guide, refer to user manual pages 8—13.
THE CONTROLS

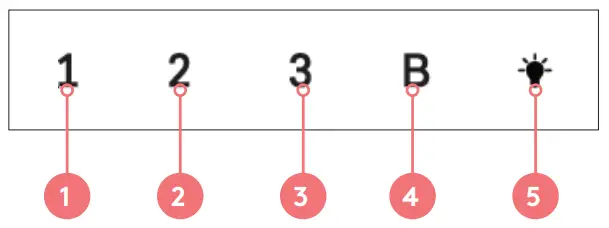

Your Island Box Canopy Rangehood Controls
- Low-speed setting
- Medium-speed setting
- High-speed setting
- Boost setting
Your rangehood will perform at its highest speed for a duration of 5 minutes before changing to the 3rd speed automatically.
– Short press the ‘1’ key, the ra– Short press the ‘2’ key, the rangehood - Light on/off control
For a complete guide on operating your rangehood, refer to the user manual on page 14.
DETAILS
Product Size (W, D, H):
900mm x 600mm x 650—1150mm
SUPPORT
Telephone: 1300 11 4357
Email: [email protected]
MODEL /ARCIS90TPS
