260000 Triumph Sprint Fairing Lowers Fitting Instructions
Kit Includes:
| 4X Brackets with 6 lug nuts pre-attached | CFK260000 + CNUTM60007 |
| 8X M6 X 16mm Flanged Button Head Machine Screws | CBOLM60008 |
| 8X M6 Black Plastic Washers | CWASM60003 |
| 2X M6 Large Black Plastic Washers | CWASM60004 |
| 1 X M6 Flat Steel Washer | CWASM60001 |
| 1X M8 Flat Spring Washer | CWASM80003 |
| 1X M6 X 20mm Hexagonal Head Machine Screw | CBOLM60020 |
| 1X M8 X 12mm Hexagonal Head Machine Screw | CBOLM60019 |
| 2X M6 Hexagonal Shake Proof Flanged Nuts | CNUTM60006 |

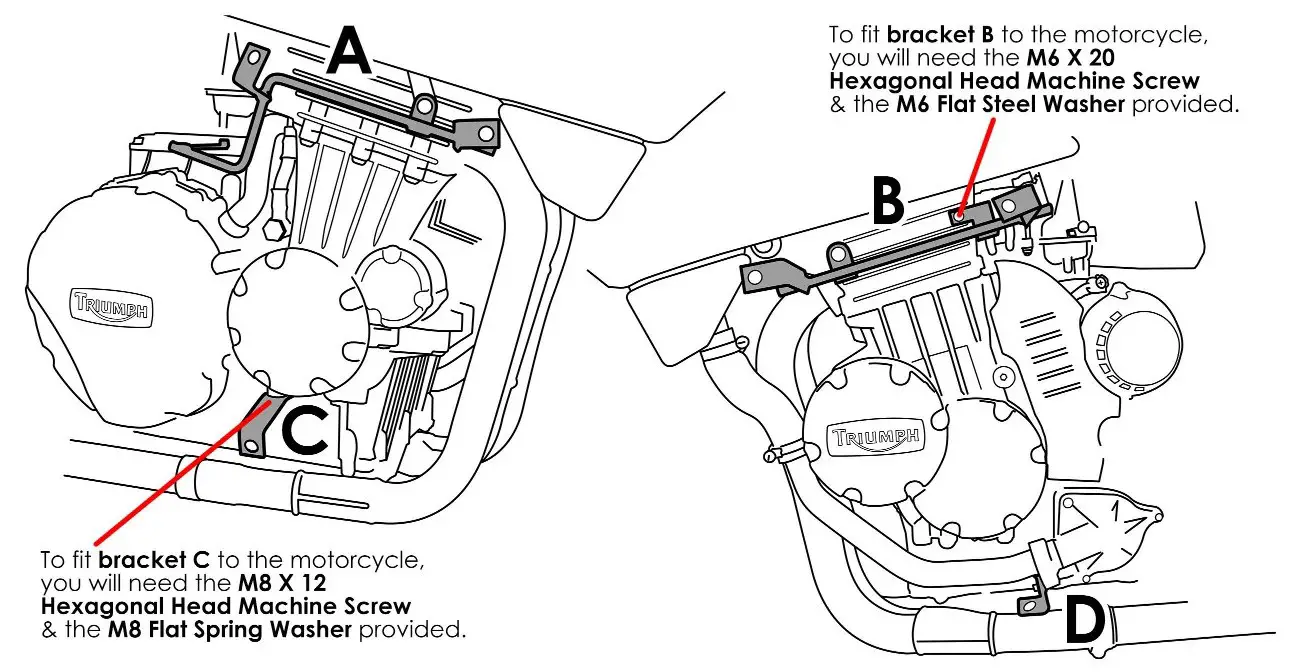

- • Fit the 4 brackets to the motorcycle in the places show below (highlighted in grey). All mounting points between the brackets and the motorcycle use exisiting fittings unless otherwise stated below.
