Thermofocus ®
0700A2 model
01500A3 model
Non contact thermometer

USER MANUAL
Read carefully the instruction before using the thermometer

See also the multi-language
www.tecnimed.it/movie.html

THERMOFOCUS®
0700A2 / 01500A3 mod.
Class IIa medical device, clinically tested
Patents no. MI 1.284.119,
EP 0909.377, US 6.196.714, IL
127.876, JP 504769/98, EP
1.283.983, US 7.001.066, and others international Patents Pending

0051Manufactured in Italy by
TECNIMED srl
12, P.le Cocchi
21040 Vedano O. (VA) – ITALY
[email protected]
www.tecnimed.com
Tel. +39 0332 402350

TECHNICAL CHARACTERISTICS
THERMOFOCUS®
0700A2 mod.
01500A3 mod.
Non-contact infrared thermometer
Resolution: 0.1
Body temperature readings
Measurement range: 34.0/42.5°C (93.2-108.5°F)
Room temperature working range: 10/40°C 55/104.0°F

AccuracyºC	from 34.0 to 35.9°C:	±0.3°C
	from 36.0 to 39.0°C:	±0.2°C ⁽¹⁾
	from 39.1 to 42.5°C:	±0.3°C

Accuracy °F	from 93.2 to 96.7°F:	±0.5°F
	from 96.8 to 102.2°F:	±0.4°F ⁽¹⁾
	from 102.3 to 108.5:	±0.5°F

Other readings(2)
Measurement range: 1.0/55.0°C (33.8-131°F)
Room temperature working range: 10/40°C 55/104.0°F (3)

Accuracy °C	from 1,0 to 19,9°C:	±1,0°C
	from 20,0 to 35,9°C:	±0,3°C
	from 36,0 to 39,0°C:	±0,2°C
	from 39,1 to 42,5°C:	±0,3°C
	from 42,5 to 55°C:	±1,0°C

Accuracy °F	from 33.8 to 67.9°F	±1.8°F
	from 68.0 to 96.7°F	±0.5°F
	from 96.8 to 102.2 °F	±0.4°F
	from 102.3 to 108.5°F	±0.5°F
	from 108.7 to 131 °F	±1.8°F

(1)The ASTM E1965-98-2009 standard requires ±0.2°C (±0.4°F) accuracy for infrared thermometers in the 37-39°C (98.6-102.2°F) temperature range while the ASTM E667-86 and E1112-86 standards require ±0.1°C (±0.2°F) precision for mercury and electronic thermometers in that same temperature range.
2)Only with the 0700A2 model: subtract 2°C (3°F) from the temperature shown on the display to get a rough value.
If the thermometer is set in rectal or internal temperature, subtract 3°C (5°F).
3) Thermofocus can also take surface temperatures in rooms where the temperature is lower than 10°C (55°F) although accuracy and the operating range are not guaranteed and the display shows “Lo.5” and the value alternately.

Power supply:	4 AAA (LR03) alkaline batteries – 1.5 V
Life of high-quality batteries:	up to 3 years or 10,000 readings (depending on use)
Dimensions:	m 165 x 40 x 22 (6.5 x 1.45 x 0.86 inches) – including cap
Weight:	gr. 92 (3.17 oz.) – batteries included

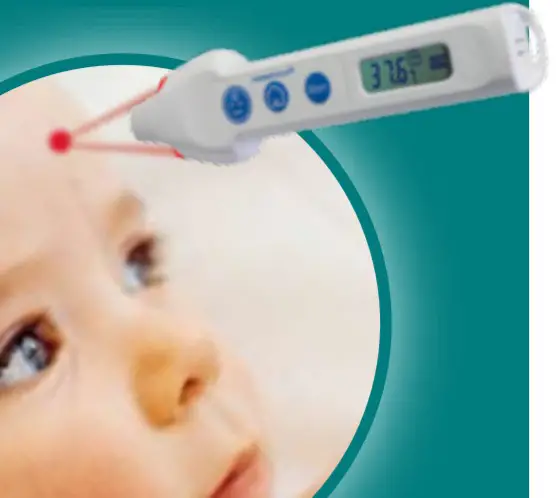

Distance from the subject: calculated using an optical aiming system (approximately 3 cm / 1.2 inches).
Large, clearly visible display.
Atmospheric pressure range of operating conditions: from 700 hPa to 1,060 hPa. Relative humidity range of operating conditions:
from 15 % to 93 %, non-condensing.
Keep in a clean, dry place, preferably at a temperature ranging between +16 and +40°C (60.8 and 104°F). Store at a temperature included between -10 and +60°C (14 and 140°F) and in any case not lower than -18°C (0.4°F) or higher than +70°C (158°F).
Expected life: 10 years.
Their focus is a class II medical device (IIa as per 93/42/EEC Directive and subsequent amendments and integrations) tested in hospitals, private clinics, and medical offices.
Contact the manufacturer for clinical tests.
Tecnimed Srl, P.le Cocchi, 12 – 21040 Vedano Olona (VA) – Italy undertakes full responsibility for this product’s compliance with the reference standards.
Their focus is compliant with the pertinent ASTM standard (E1965-98:2009) and CEI EN 60601-1, CEI EN 60601-1-11 standards.
Internally powered equipment for continuous operation.
The aiming LEDs of Thermofocus emit low luminous radiation largely under the level foreseen from IEC 60825- 1:1993+A1:1997+A2:2001 Standard for Class I lights (class I, wavelength: 610 nm; maximum power: Pmax<1mW).
