Uline H-1347 Jumbo Bath Tissue Dispenser- Double Roll Instruction Manual

ULINE H-1347 Jumbo Bath Tissue Dispenser- Double Roll

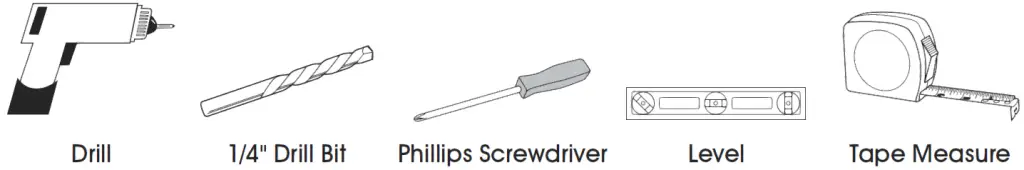

TOOLS NEEDED

PARTS

MOUNTING INSTRUCTIONS

NOTE: Recommended mounting height is 19″ from floor to bottom of dispenser.
NOTE: Ensure that proper mounting hardware is used for appropriate wall composition as enclosed hardware may not be compatible with your wall surface.

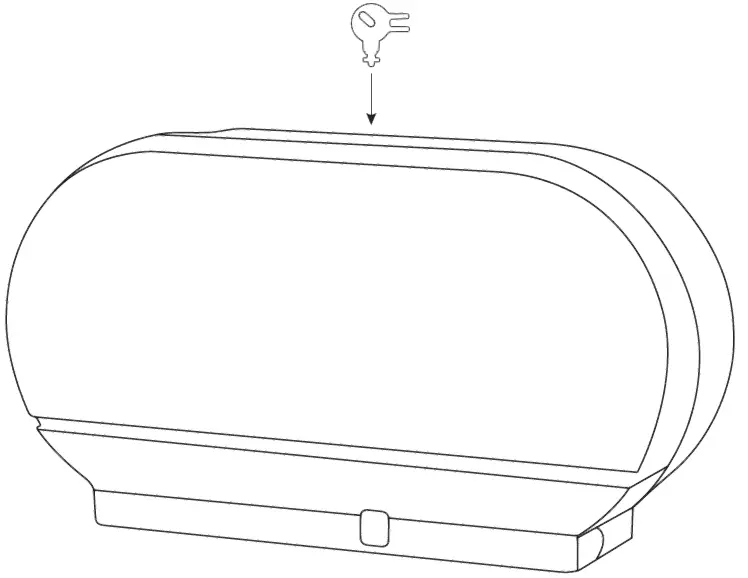

1. Insert key into lock opening on top of dispenser and turn to open cover.

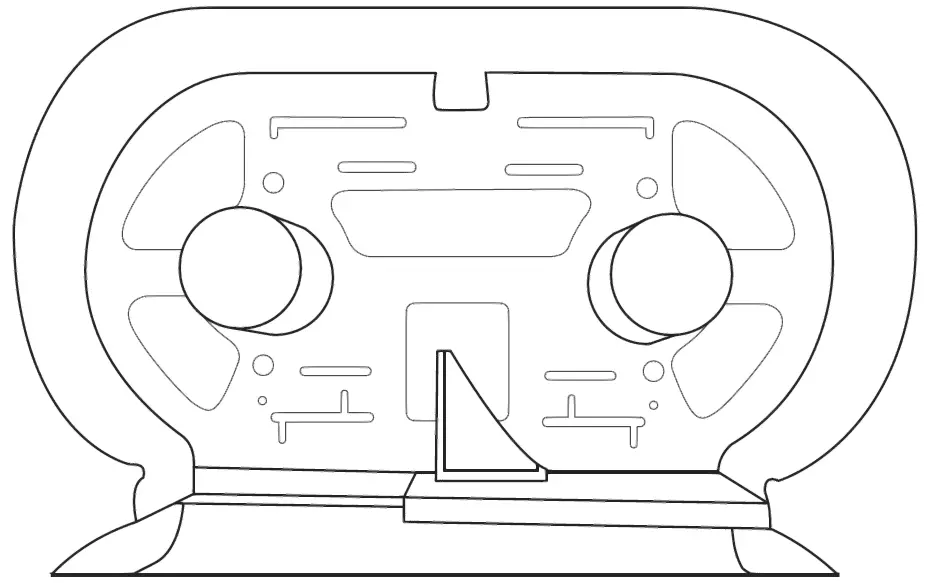

2. Open dispenser cover and hold dispenser to ideal mounting place on wall.

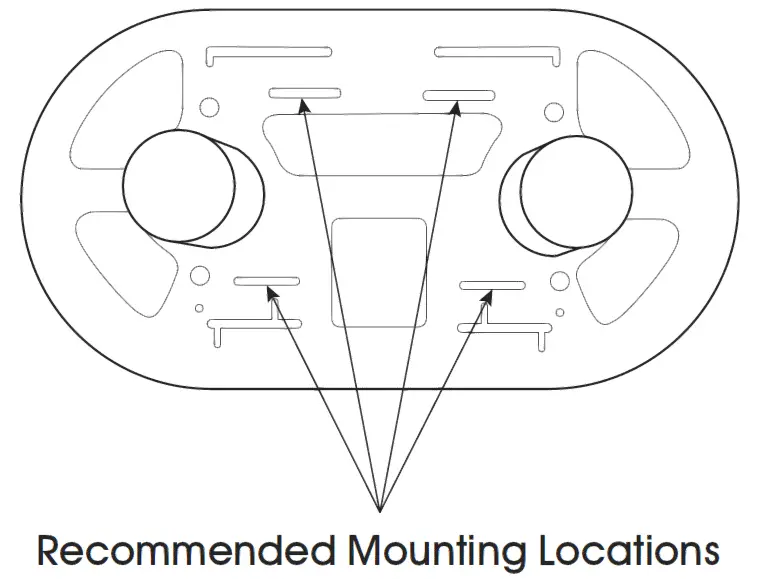

3. Mark the four holes on the wall where screws will be inserted.

4. Drill into wall at four marked locations with 1/4″ drill bit. Insert wall anchors if necessary.

5. Hold dispenser over previously drilled holes and insert screws.

LOADING INSTRUCTIONS

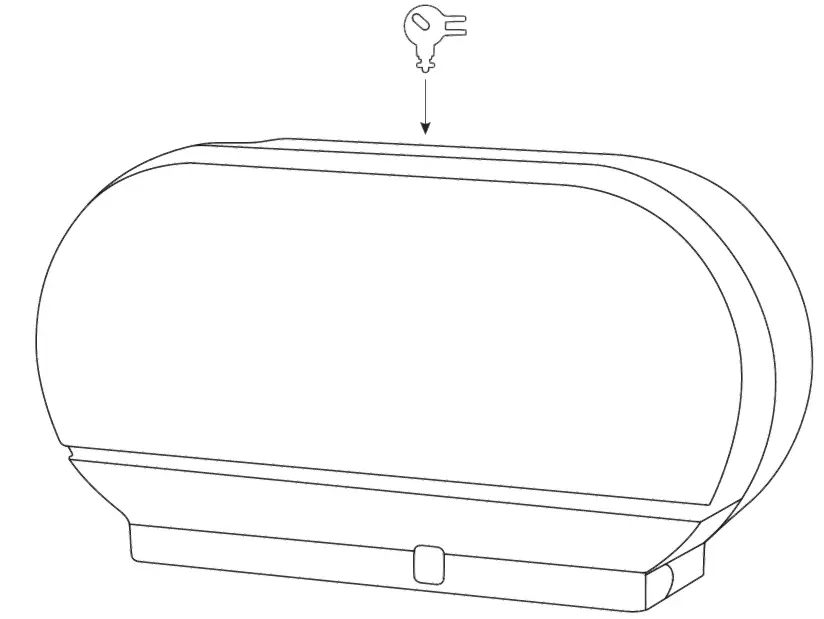

1. Insert key into lock opening on top of dispenser and turn to open cover.

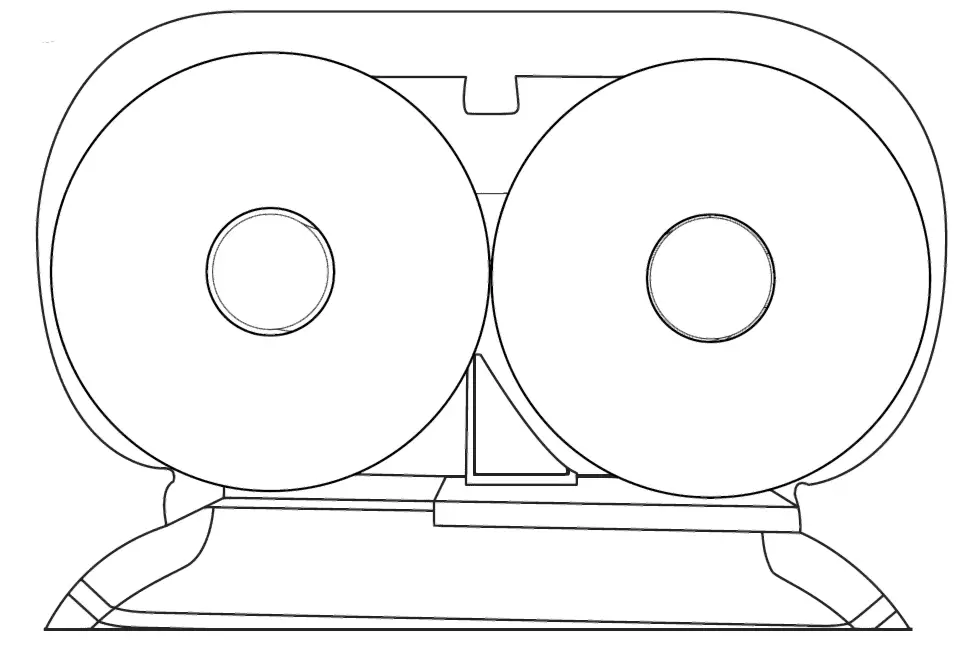

2. Insert a roll on each arm and close lid.
   NOTE: The access panel on the bottom of the dispenser must be on the right side.

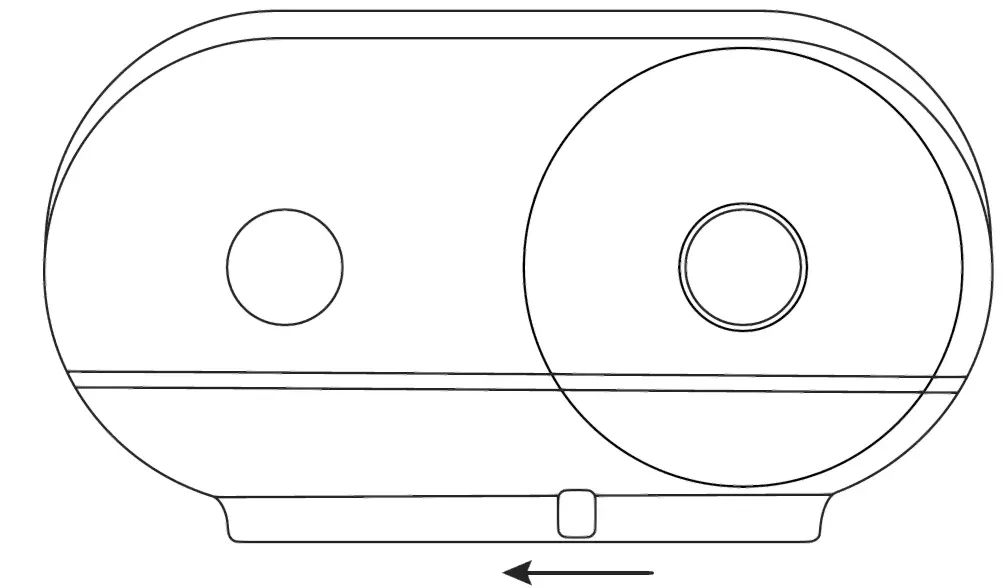

3. When first roll is out, slide access panel to the left to begin using second roll.
   NOTE: The roll on the left side must be used up before the roll on the right can be used.


1-800-295-5510
uline.com
