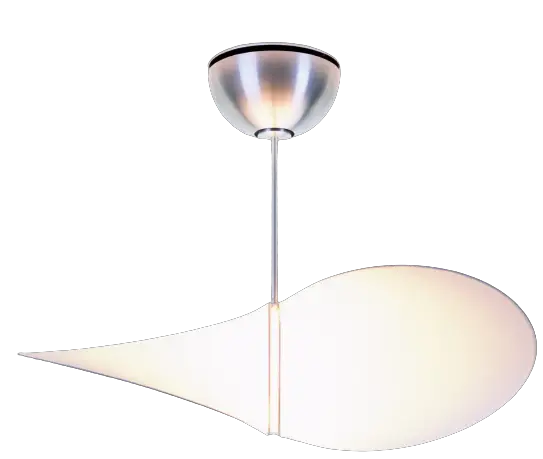

Serien Propeller Ceiling Suspension Fan Lamp Instruction Manual

serien Propeller Ceiling Suspension Fan Lamp Instruction Manual

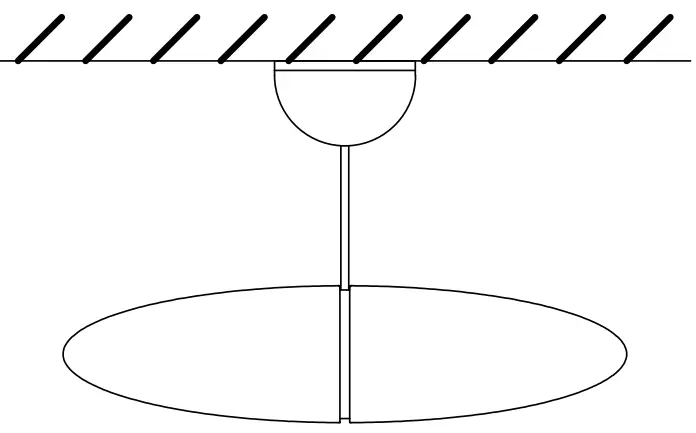

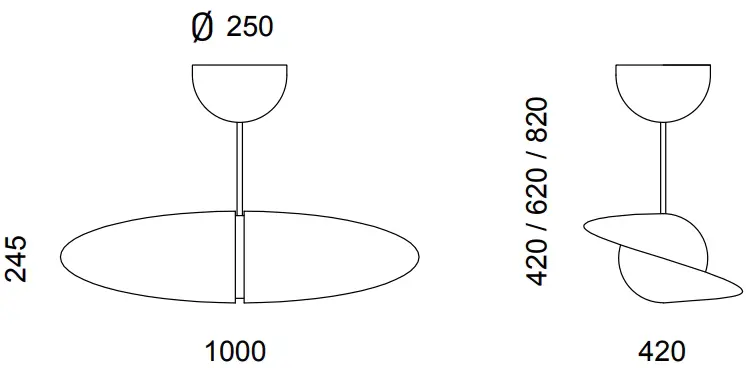

Inductions

mm
kg	5,7
	max. 116W E27 Glühfadenlampen; filament bulbs Motor max. 16W

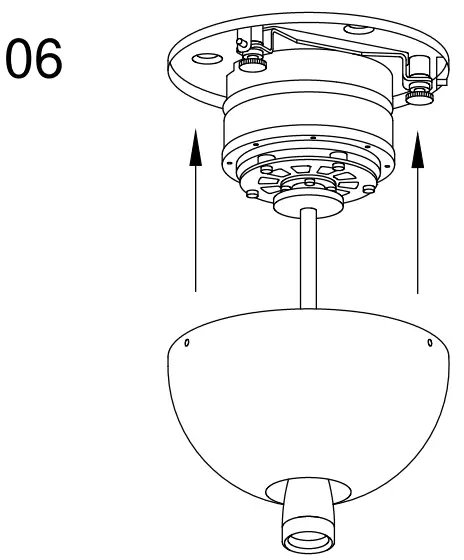

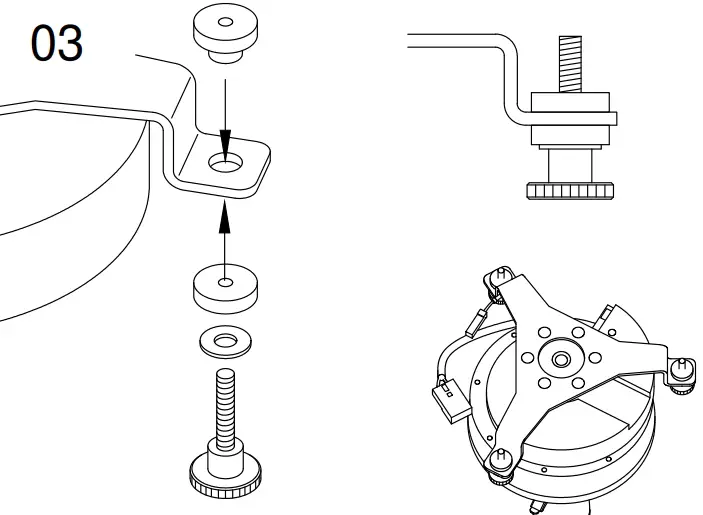

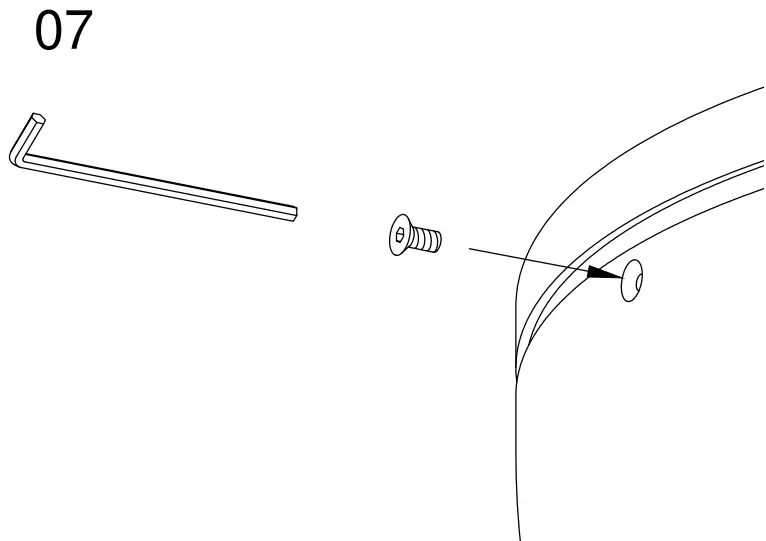

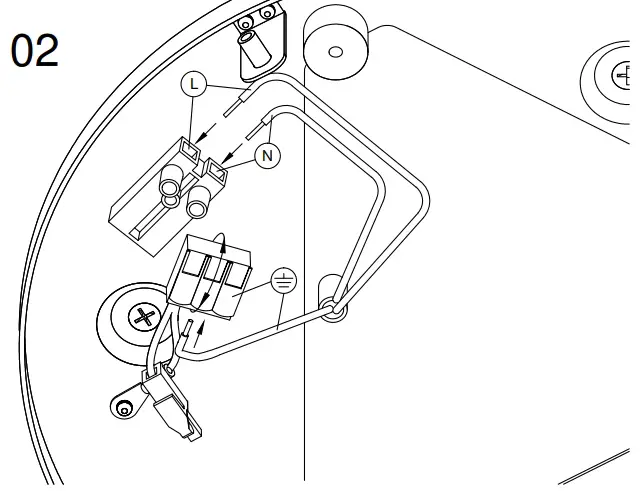

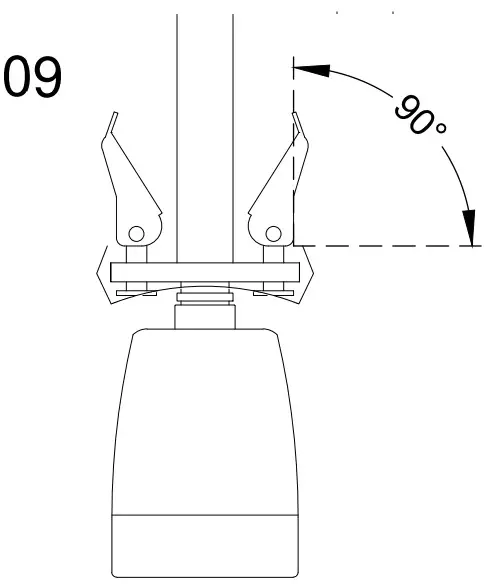

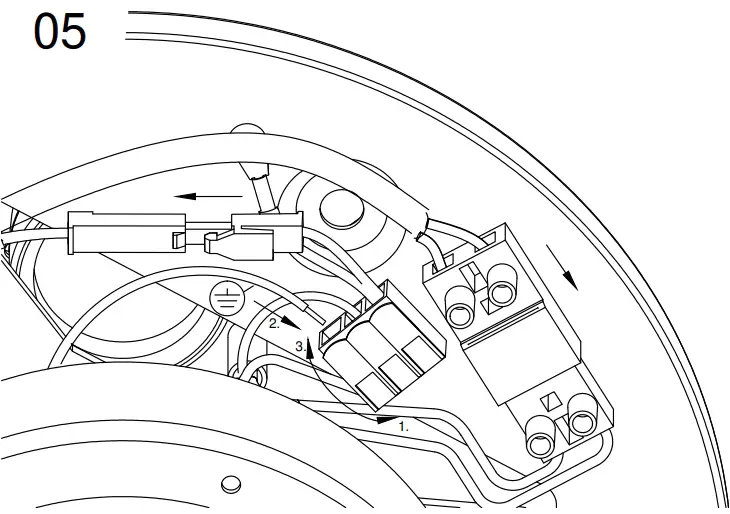

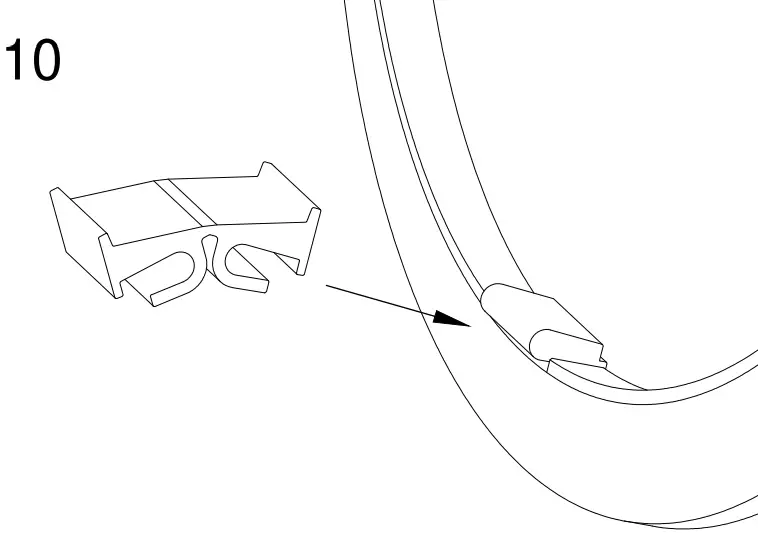

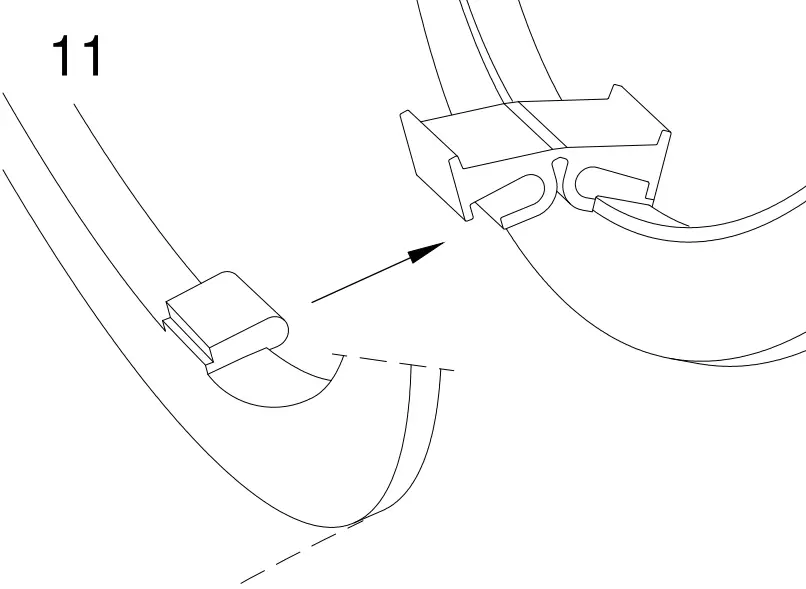

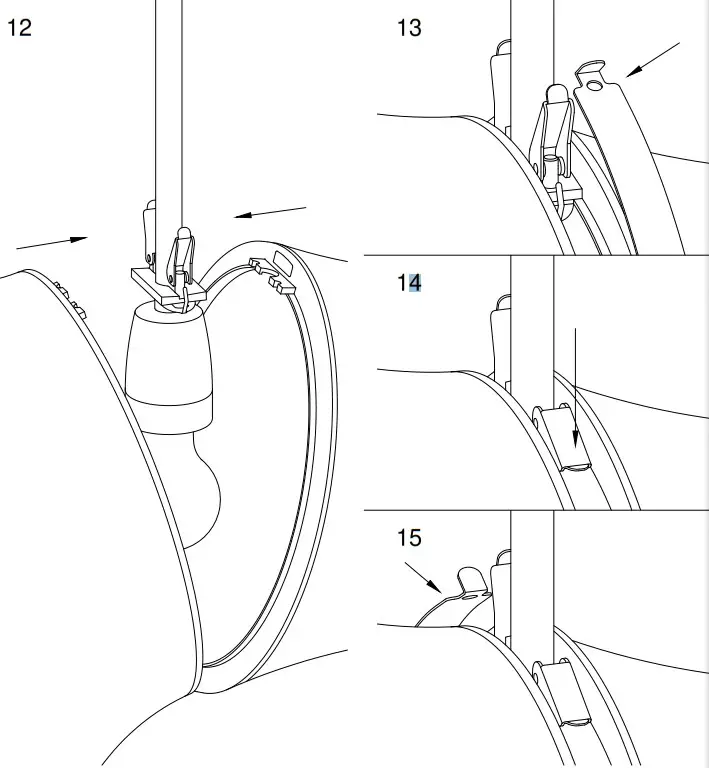

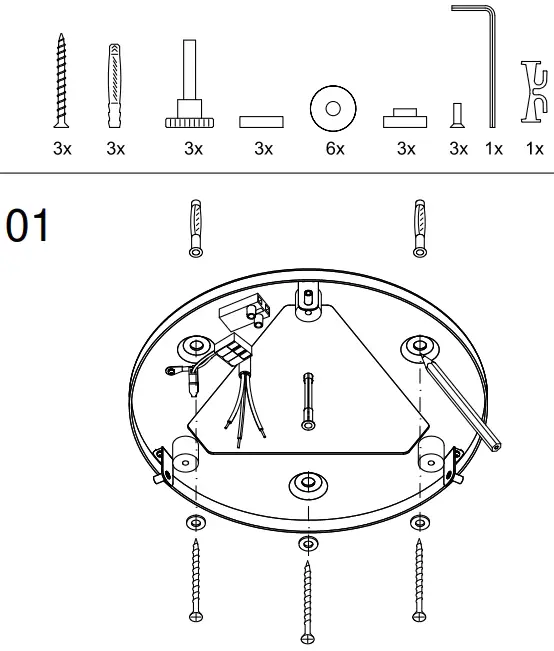

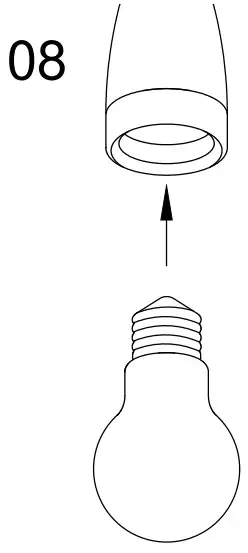

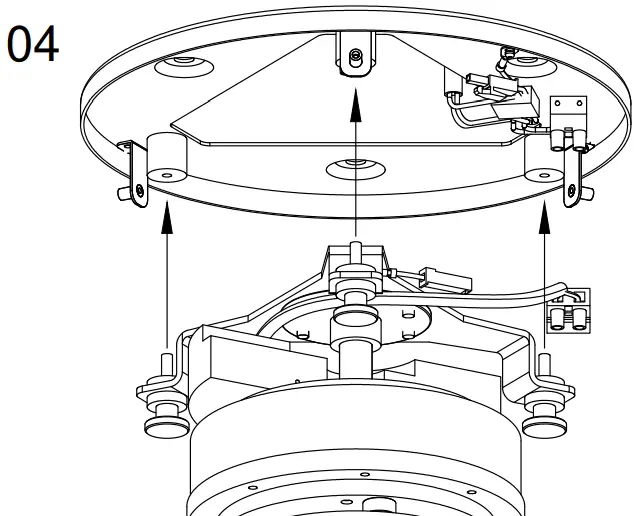

Assembly Instructions

Before assembling the luminaire, turn off the power at the mains!

Remote control with learn function

The remote control is equipped with a learning frequency function. The frequencies can be changed in order to prevent interference with other radio frequencies. For a change of the factory settings please proceed as follows:

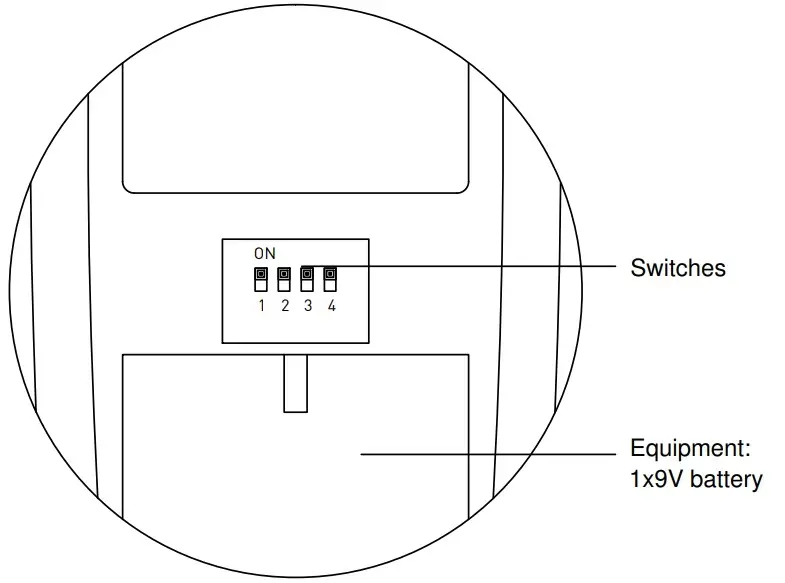

1. Please use a small-sized tool to move the sliding switch in the back part of the battery compartment of the remote control.
2. Please connect the Propeller to the mains voltage (e.g. by a wall
   switch) and press the “OFF” button within 30 seconds for at least 5 seconds.
3. After completing the steps above, please check the product functions. If the Propeller is not responding to the remote control, please disconnect it from mains. Please repeat steps 2 and 3.
   Note: When the system is saving the frequency change, please do not press any other buttons.

Backside

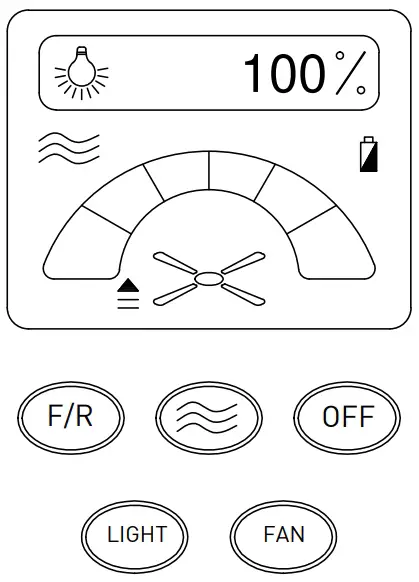

Functions

• Forward /backward motion
• Indication of up/down
• Fan on, six-step speed control
• Indication of speed level
• Fan off
• Fan automatically change fan speed to make the natural wind.
• Light On/Off,
• Battery: please exchange battery if battery sign is flashing



Support

Design Yaacov Kaufman
serien Raumleuchten GmbH
Hainhäuserstr. 3-7 D-63110 Rodgau
www.serien.com
