Optimized LED display panel – 2.6 mm pixel pitch
User Guide

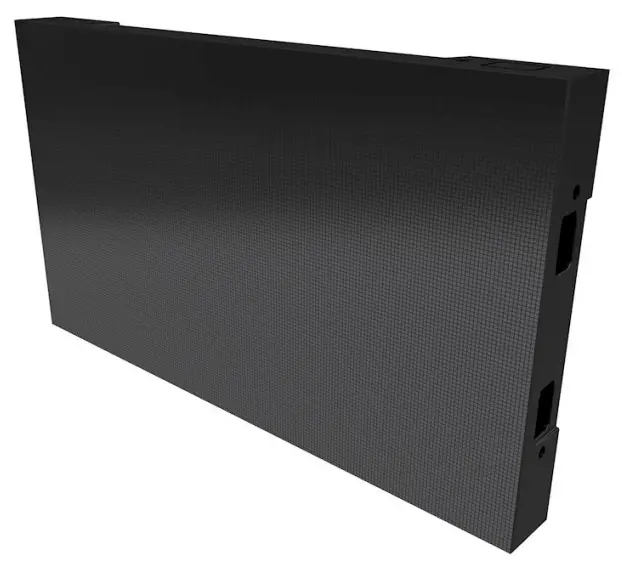

THD2600 LED Display Panel
- Optimized, high-resolution indoor LED display panel
- Easy installation and maintenance – surface mount and front access
- Ultra-thin panel depth – discreet, space-saving design
- Ultimate reliability – for peace of mind
Optoma is the one-stop solution provider for projection and LED displays with its range of 4K UHD, Full HD and custom LED displays.

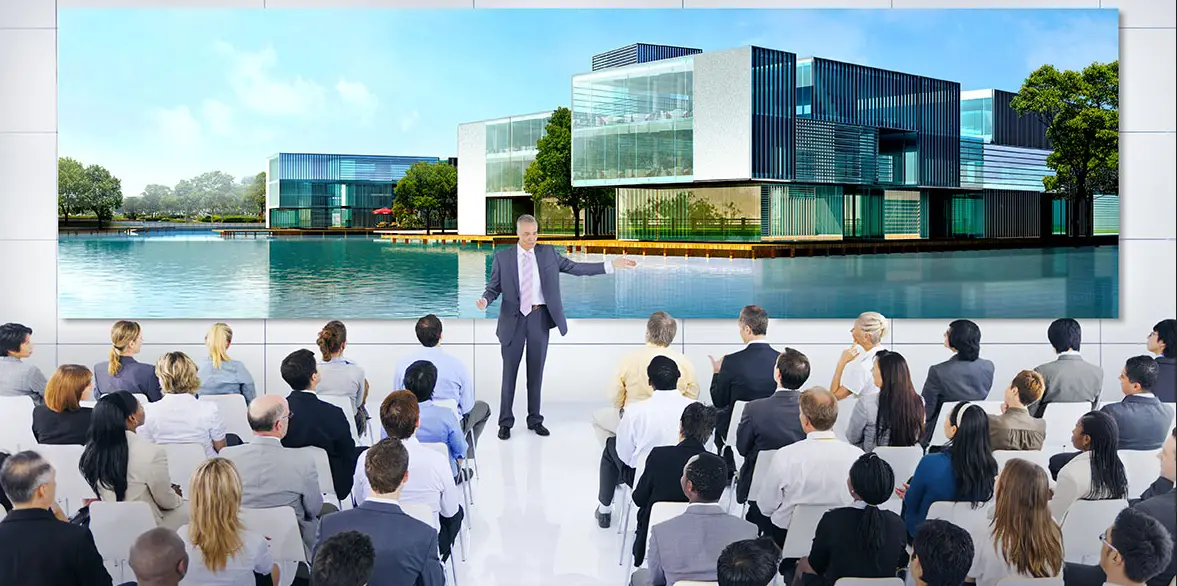

The ultra-thin LED display panels blend discretely into any corporate, higher education, hospitality and digital signage environment. Perfect for individuals looking to invest in visual equipment, or looking to replace current Large Format Displays (LFD), Video Walls and direct view LED displays.
Specifications
| Screen | |
| Dimensions (W x D x H) mm | 500 x 54 x 281.25 |
| Net weight | 4.3 kg |
| LEDs | |
| Pixel pitch (H x V) | 2.604 mm |
| LEDs per pixel | 1R1G1B |
| Red wavelength (dominant) | 620 nm |
| Green wavelength (dominant) | 520 nm |
| Blue wavelength (dominant) | 465 nm |
| Pixels | |
| Pixel configuration | SMD 3-1 |
| LED face colour | Black |
| LED size | SMD 2020 |
| Pixel resolution (width) | 192 pixels/module |
| Pixel resolution (height) | 108 pixels/module |
| Pixels per area | 147.456 pixels/m² |
| Module | |
| Active module width | 500 mm |
| Active module height | 281.25 mm |
| Standard active module area | 0.1406 m² |
| Viewing angle – horizontal | >140° |
| Viewing angle – vertical | >140° |
| Ingress protection (front) | IP 43 |
| Ingress protection (back) | IP 21 |
| Surface finish | Die-cast aluminium |
| LED fixings | Front access |
| Storage temperature range | -10° C – 50° C° C |
| Operating conditions | 10-90 non-condensing |
| Operating temperature range | -10° C – 50° C |
| Colour | |
| Grey scale processing depth | 16 bits |
| Number of colours | 281 (trillions) |
| Refresh rate | >3840 Hz |
| Brightness | |
| Brightness (before calibration) | 800nits |
| Brightness (after calibration) | 800nits |
| Contrast ratio | 4 |
| Brightness control levels | 256 |
| Power | |
| Input power (max) | 72watts per panel |
| Power supply | 110~240V |
| Other | |
| Lifespan | >100,000 |
| Mechanical alignment adjustment | x/y/z (x/y/z planes) |
| Mitering | -90° |
| Mounting frame | Optional |
