GUARDIAN G30300 Toilet Safety Frame
IMPORTANT SAFEGUARDS
Read all instructions before using.
Important information is highlighted by these terms:
READ ALL INSTRUCTIONS BEFORE USING.
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS INJURIES.
WARNING
- Please read carefully before use. Failure to comply may result in severe injury.
- Do not exceed the 300 lb. maximum weight capacity of this safety frame.
- Evenly distribute weight between the armrests during use.
- Ensure all push buttons are properly engaged in position prior to use.

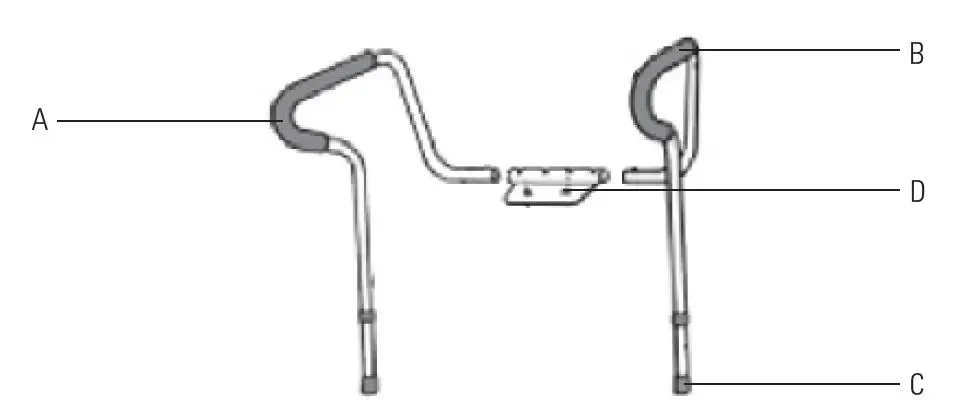

PARTS LISTING
| PART ID | PART NAME | QUANTITY |
| A | SIDE FRAME RIGHT | 1 |
| B | SIDE FRAME LEFT | 1 |
| C | FOOTPIECE | 2 |
| D | TOILET SAFETY FRAME BRACKET | 1 |
ASSEMBLY INSTRUCTIONS
Before beginning assembly, identify all parts.
- Remove existing toilet seat/lid assembly.

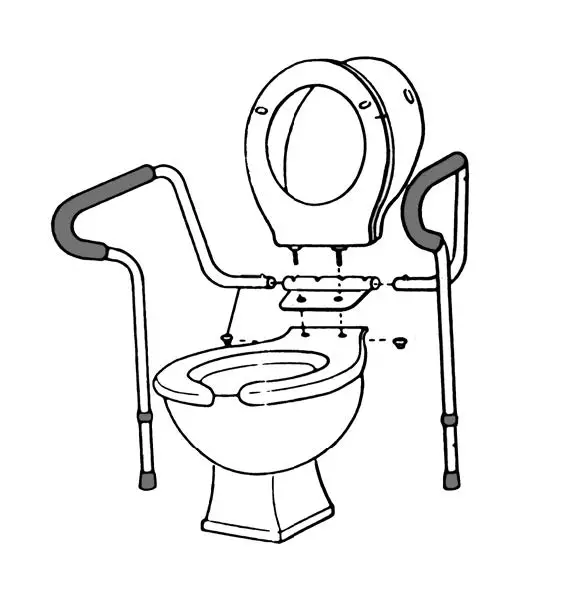

- Place toilet safety frame bracket between toilet fixture and toilet seat/lid assembly with rounded part of bracket facing back of toilet (Figure 1).
- Replace toilet seat/lid and reinsert mounting bolts through bracket and toilet fixture.

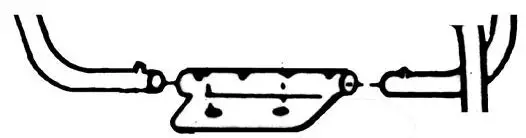

Replace and tighten nuts. - Insert side frames into bracket. Depress detent button and slide side frame into desired position (Figure 2).
- Adjust footpieces to desired height. Make sure both footpieces are fully engaged and adjusted at equal heights.
- Make sure mounting hardware is tightened and all detent buttons are fully engaged before use.
LIMITED WARRANTY
Your Medline product is warranted to be free of defects in materials and workmanship for the duration of use by the original purchaser. This device was built to precise standards and carefully inspected prior to shipment. This limited warranty is an expression of our confidence in the materials and workmanship of our products and assures years of convenient, dependable service. In the event of a defect covered by this warranty, we will, at our option, repair or replace the device. This warranty does not cover device failure due to owner misuse or negligence, or normal wear and tear. The warranty does not extend to non-durable components, such as rubber accessories and grips, which are subject to normal wear and replacement.
Medline United States
1-800-MEDLINE (633-5463)
www.medline.com
[email protected]
Medline Canada
1-800-268-2848
www.medline.ca
[email protected]
Medline Mexico
01-800-831-0898
www.medlinemexico.com
[email protected]
Some products may not be available for sale in Mexico or Canada. Please contact your Account Representative for additional information. We reserve the right to correct any errors that may occur within this manual. ©2020 Medline Industries, Inc. Guardian and Medline are registered trademarks of Medline Industries, Inc.
