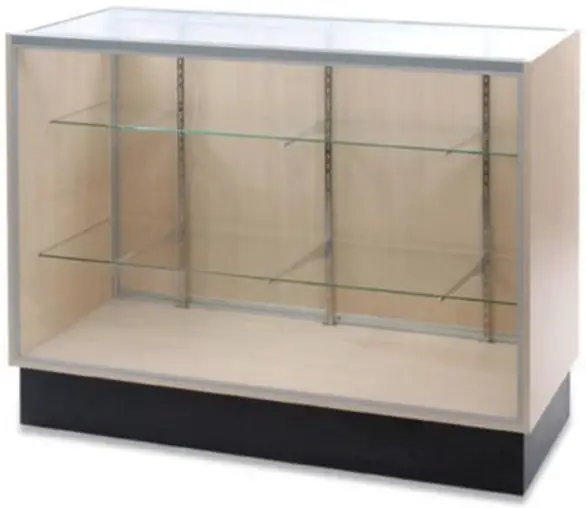

MOBICO 0815 Full Vision Glass Counter Melamine Panel Side
PART LIST
15-1 to 15-13.1/Main of Showcase/QTY
- 15-1 Main Side Board (Left) 1 PC
- 15-2 Main Side Board (Right) 1 PC
- 15-3 Bottom Board 1 PC
- 15-4 Alum. Frame Bar (Upper/Front) 1 PC
- 15-5 Alum. Frame Bar (Upper/Back) 1 PC
- 15-6 Glass Plate (The Top of Showcase) 1 PC
- 15-7 Front Glass Plate 1 PC
- 15-8 Sliding Wooden Door 2PCS
- 15-9 Lock (Push Lock Optional) 1 PC
- 15-10 Rail for Shelf Bracket 3 PCS
- 15-11 Shelf Bracket 6 PCS
- 15-12A Glass Shelf 1 PC
- 15-12B Glass Shelf 1 PC
- 15-13 Sliding Door Track 1 PC
- 15-13.1 Plastic Insert 7PCS
15-14 to 15-19/Base of Showcase/QTY
- 15-14 Front & Back Board 2PCS
- 15-15 Left & Right Board 2PCS
- 15-16 Reinforcement Bar 1 PC
- 15-17 Leveler 4PCS
- 15-18 Metal Joint Screw 22 PCS
- 15-18.1 Cam-lock 22PCS
- 15-19 Metal Screw 4PCS
- Metal Screw 27PCS
Installations

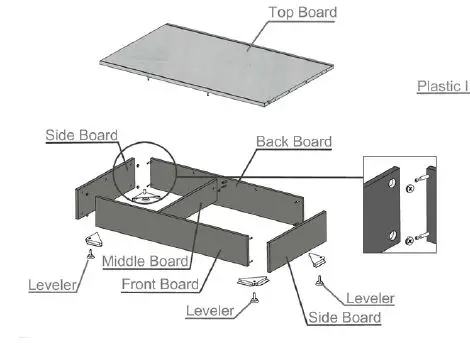

Base

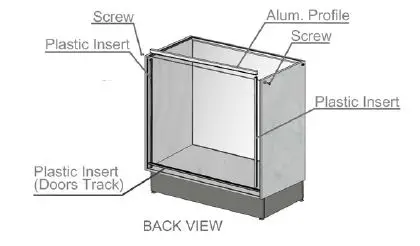

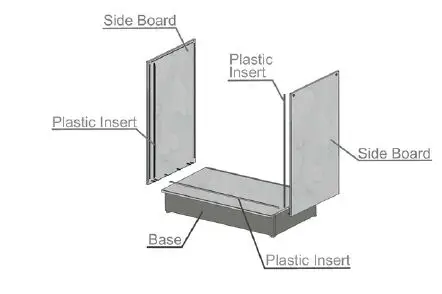

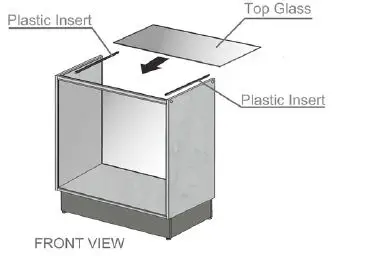

Vision Part

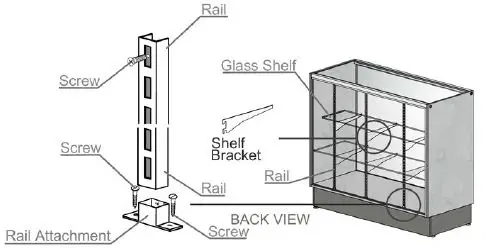

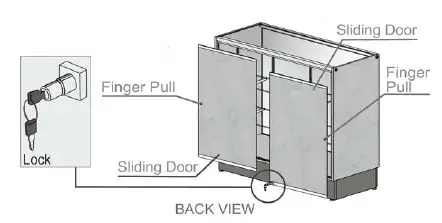

Shelves & Doors
